A coil which has an inductance of 40 mh and a resistance of2 2 is connected together to form a rl series circuit. if they are connected to a 20 v dc supply, the

A coil which has an inductance of 40 mH and a resistance of2 2 is connected together to form a RL series circuit. If they are connected to a 20 V DC supply, the time constant of the RL series circuit is (a) 20 ms Q67. (b) 200 ms (c) 100 mns (d) 1000 ms

3 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Abhishek singh Best Answer

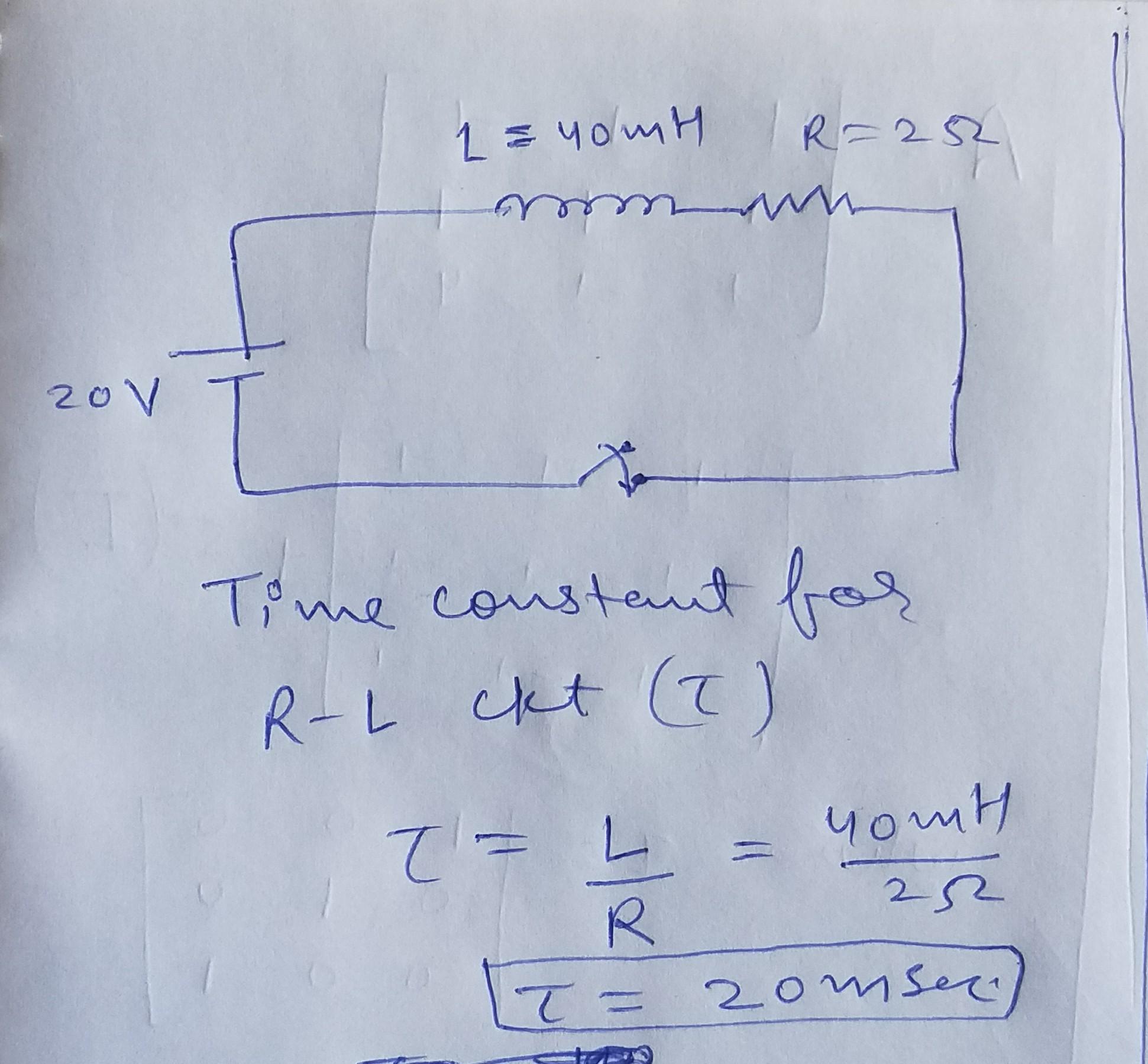

    For series R-L circuit, time constant (T) = L/R. And for series R-C circuit, T = R*C. This will always help you. Best regards.

  • comment-profile-img>
    Shanu arora best-answer

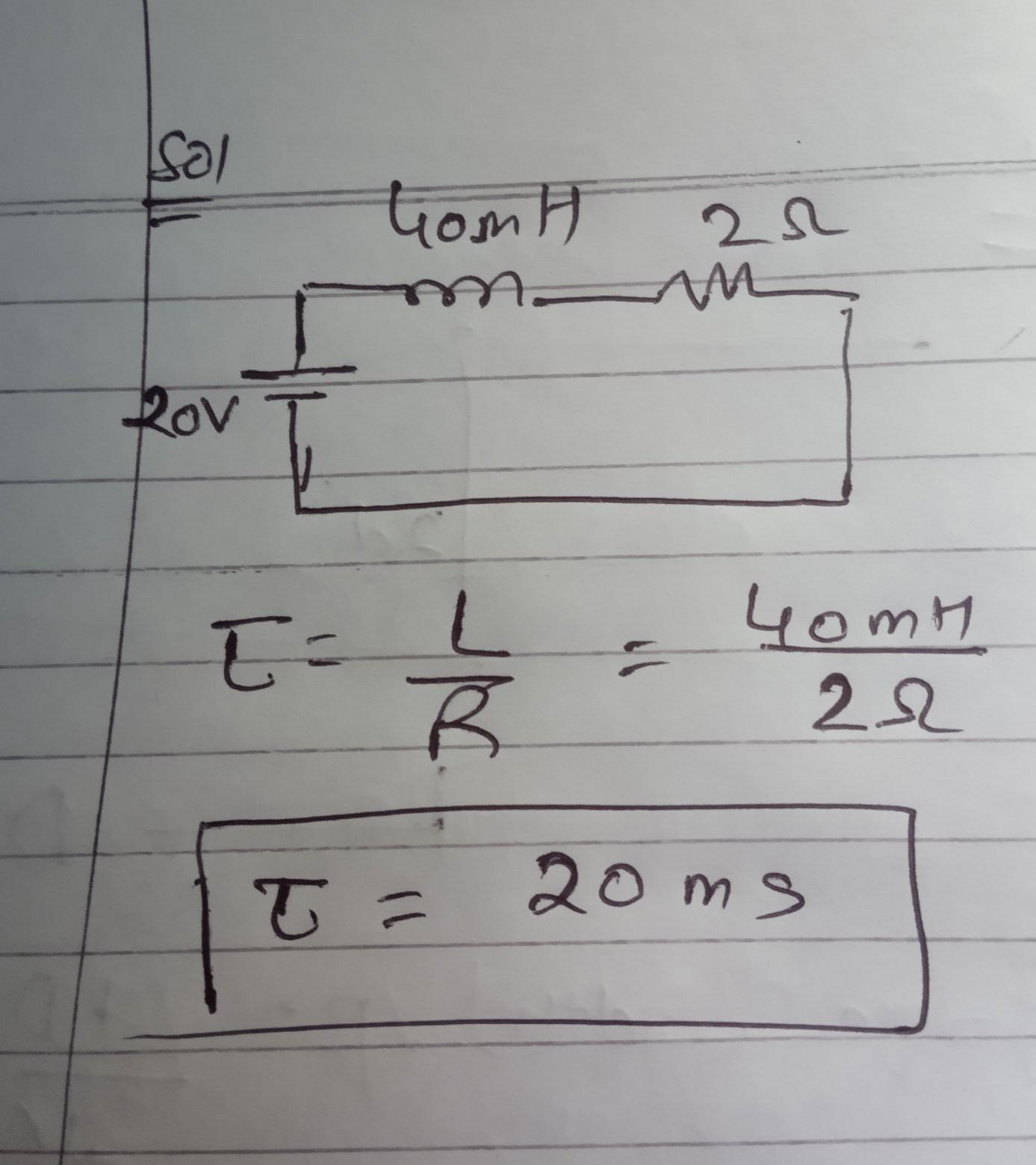

    here is the solution, the time constant for RL ckt is T=L/R. time constant is the time,it takes the voltage across the component to either fall (across the inductor) or rise (across the resistor) to within 1/e of its final value
