Kanishk Tomar posted an Question
October 27, 2021 • 14:34 pm 30 points
  • IIT JAM
  • Physics (PH)

A current source produces a square wave i(t) 1.0 amp peak to deak voltage

1 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Anshum Sharma

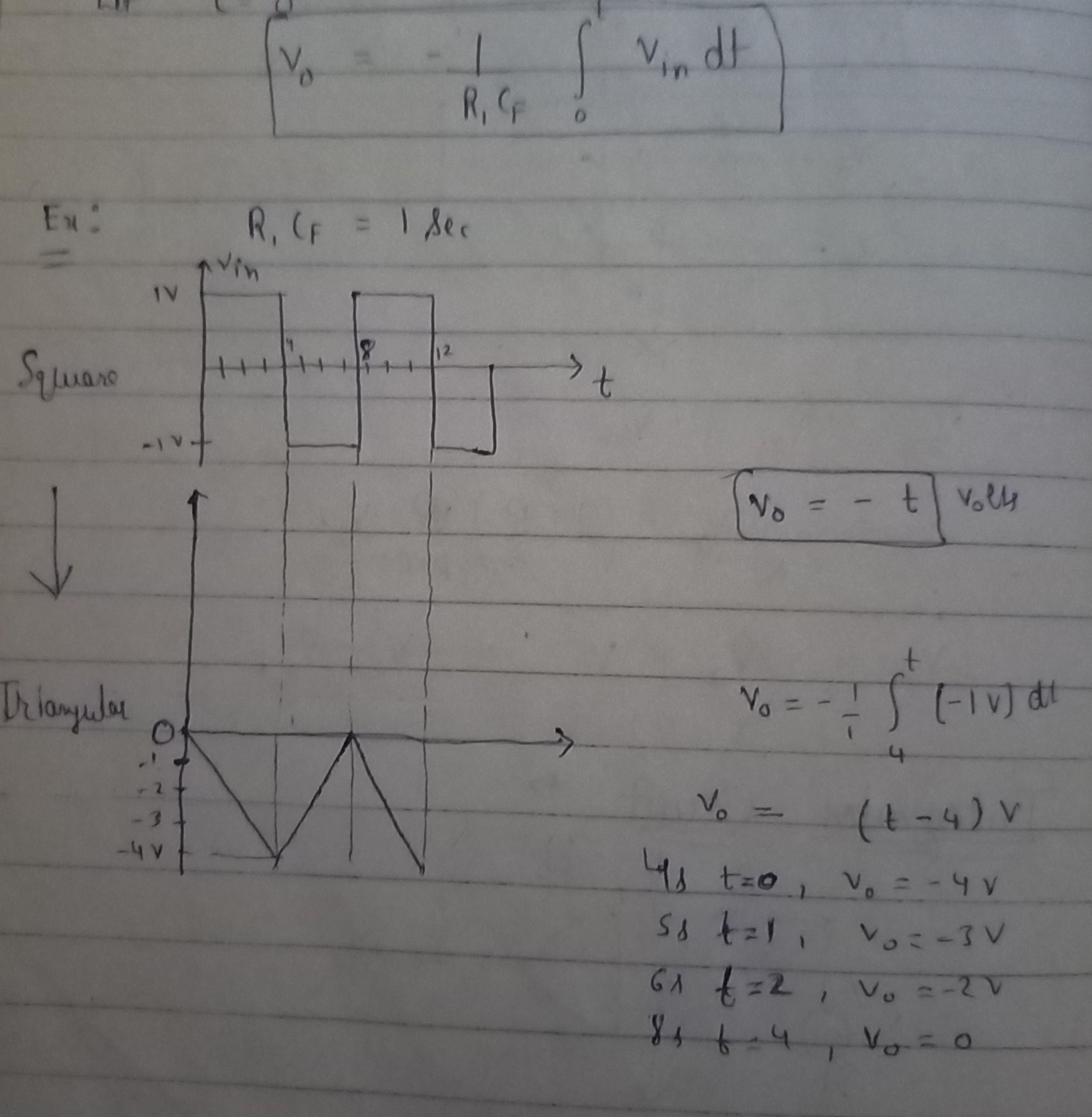

    It is considered by us .. you have to prove that the input of square is equal to the output of triangular wave. so we take 4 sec to t sec in the limits

    eduncle-logo-app

    Didn't understand. Could You explain in a bit more detail from the basics

  • comment-profile-img>
    Anshum Sharma best-answer

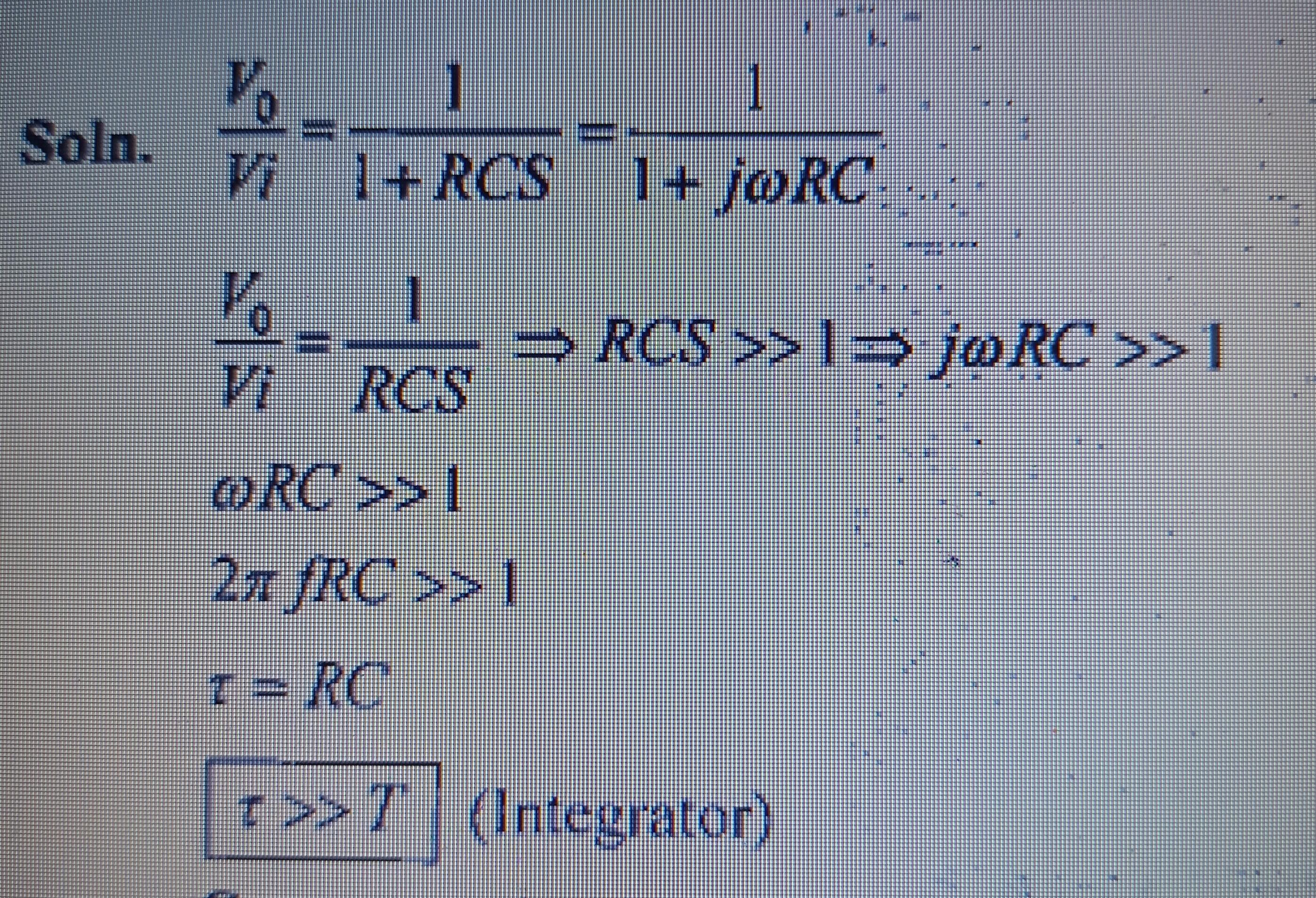

    This circuit is an integrator circuit, see the attached image. If the input voltage is in square wave then the output voltage is in triangular form. so the correct option is (D). see the attached image
