A current source produces square wave

a current source produces square wave please also explain theory reason involved behind every step

1 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi

    option d is correct.. b is not correct becz output is not exponential dependent..

    eduncle-logo-app

    ok & why we are those theoretical lengthy formulas

    eduncle-logo-app

    Have look please

    eduncle-logo-app

    kindly reply

  • Mahak best-answer

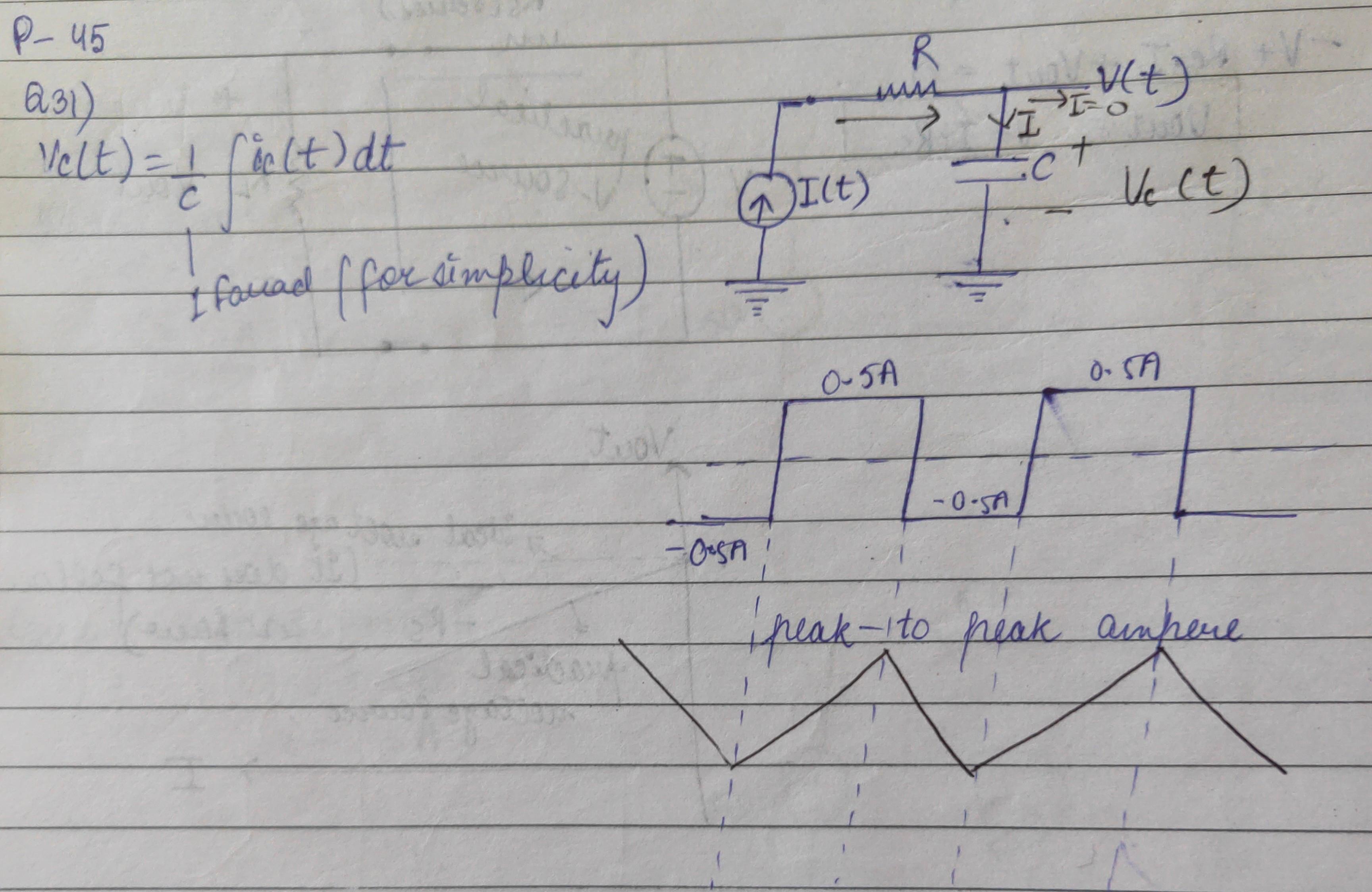

    see attached solution

    eduncle-logo-app

    mam yahi chiz to option B bhi kar raha hi na

    eduncle-logo-app

    ??????

    eduncle-logo-app

    how you came to this result mam

    eduncle-logo-app

    option b me linear decrease nhi hai woh decaying increase and decrease hai but it is linearly increasing and decreasing

    eduncle-logo-app

    ok mam thanks
