Gurmeet singh Asked a Question
November 28, 2020 11:12 pmpts 30 pts
A 'gentle' fold with an interlimb angle equal to 160 appears tight (apparent interlimb angle equal to 20°) in horizontal section. According to the plunge of the fold axis, it can also be classified as (A) horizontal fold. (C)steeply plunging fold. (B) gently plunging fold. (D) vertical fold.
  • 2 Answer(s)
  • like-1
  • 1 Likes
  • 2 Comments
  • Shares
  • Rahul kumar thankyou
    Answer (B) Gently plunging fold The fold appears tight in the horizontal section indicates that the hinge line of the fold axis makes very low angle with the horizontal plane. Hin...
    Show more
    Likes(1) Reply(0)
  • Sajan sarthak Best Answer
    gently plunging fold If a gently plunging fold is cut as horizontal section it would appear tight although it's gentle open fold
    • cropped3075380955795526468.jpg

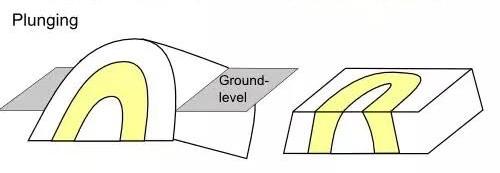

    • cropped7943851803573299794.jpg
    Likes(0) Reply(0)
