A string with one end fixed on a rigid wall, passing over a fixed frictionless pulley at a distance of 2m from the wall, has a point x mass 'm = 2kg attached to
A string with one end fixed on a rigid wall, passing over a fixed frictionless pulley at a distance of 2m from the wall, has a point x mass 'M = 2kg attached to it at a distance of 1m from the wall A mass 'm' = 0.5 kg attached at the free end is held at rest so that beyond the pulley. What will be the speed with which mass 'M will hit the wall when the mass 'm' is released ? Edu (Take g = 9.8 m/s2) M M
1 Answer(s)
Answer Now
- 0 Likes
- 2 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Shanu arora

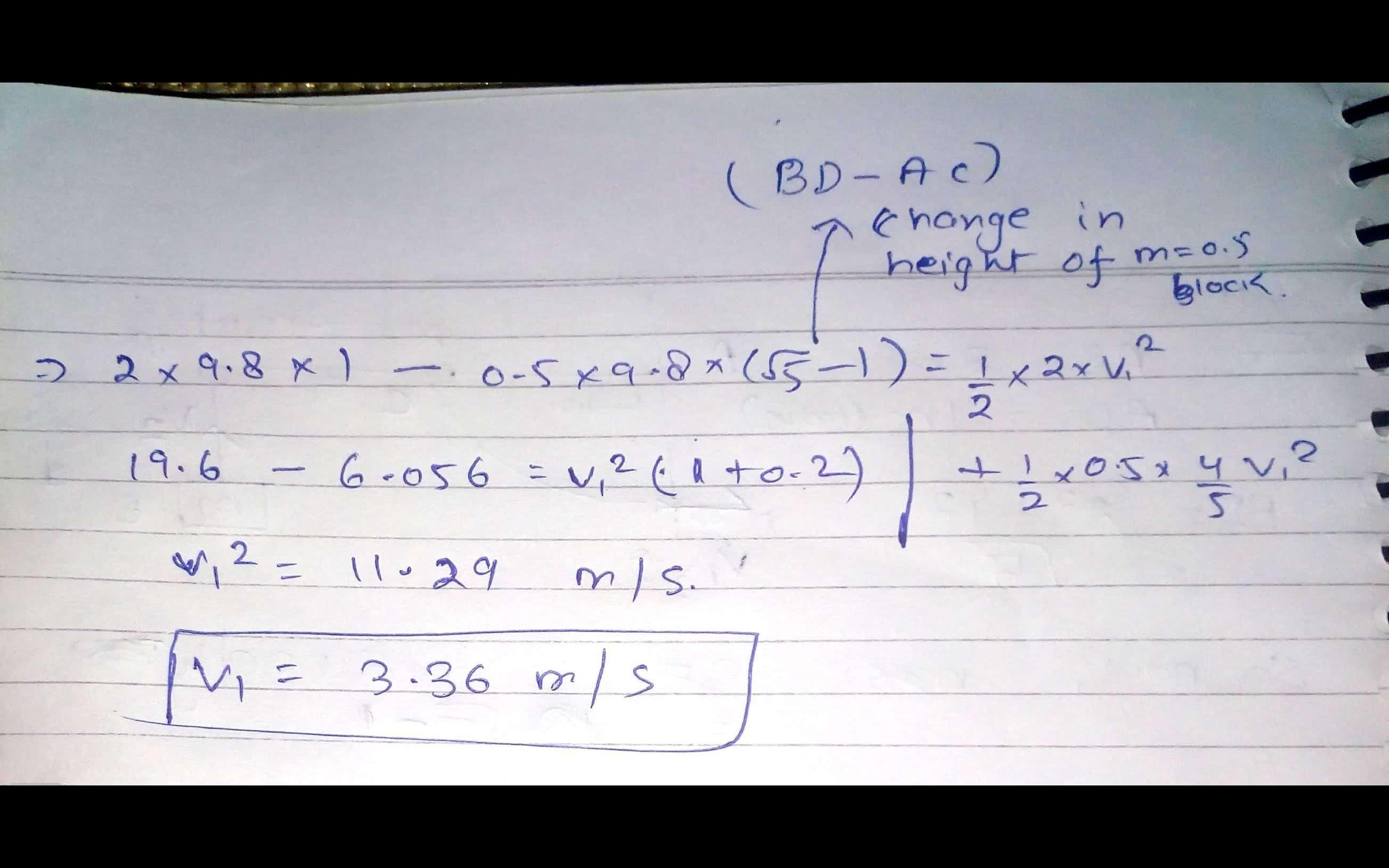

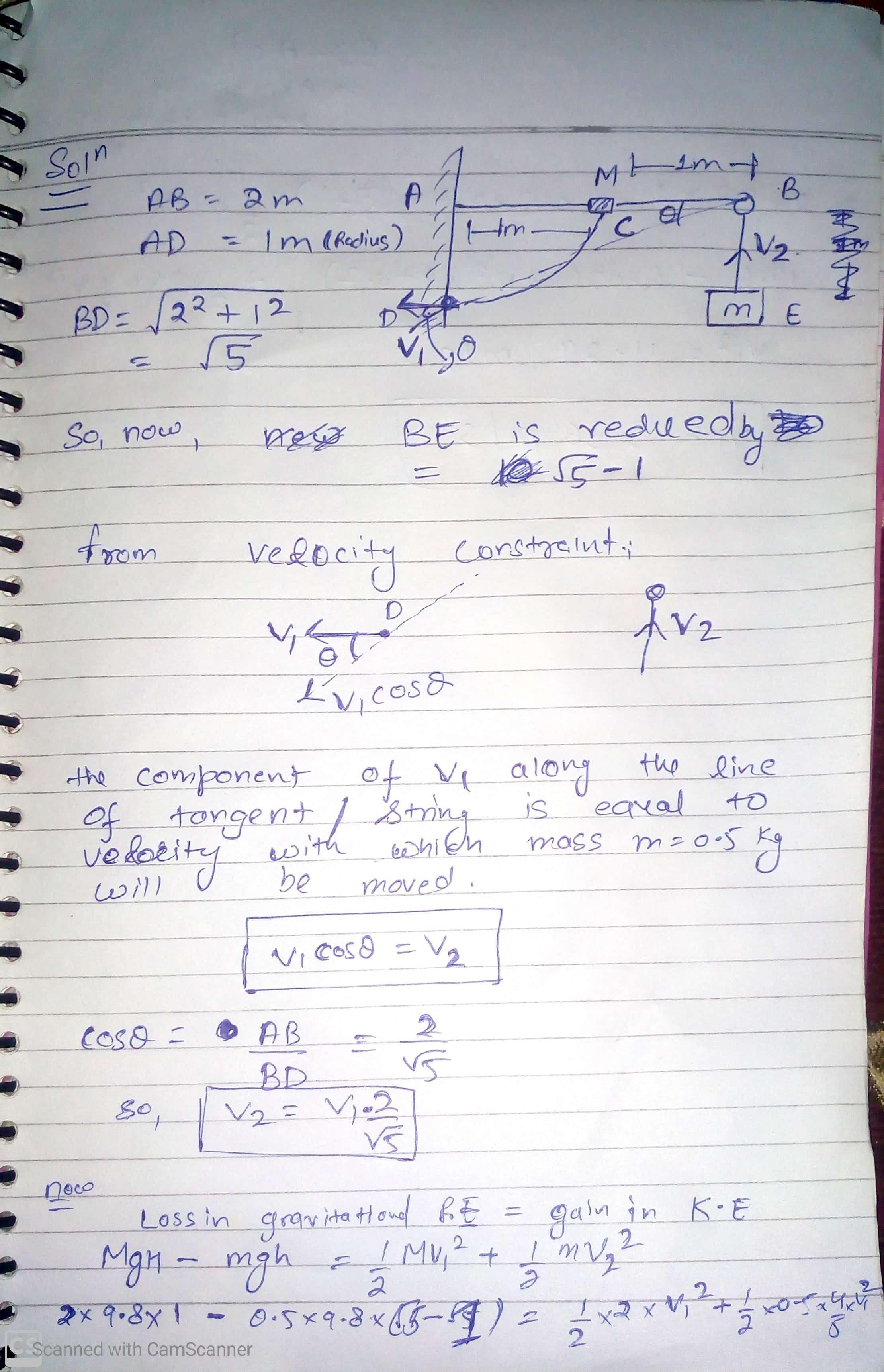

solution : important aspects 1) the path point x mass will be curved such that it's tangent at every point is BD ( drawn in solution) 2)as this length is ✓5 , thus now string length is increased by ✓5-1,thus this is the height by which mass m2 is lifted up. 3) tangential speed of point mass will be equal to the Speed with which m2 will be lifted up.
![cropped1670989899.jpg]()
![cropped476949867.jpg]()
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Shanu arora Best Answer
solution : important aspects 1) the path point x mass will be curved such that it's tangent at every point is BD ( drawn in solution) 2)as this length is ✓5 , thus now string length is increased by ✓5-1,thus this is the height by which mass m2 is lifted up. 3) tangential speed of point mass will be equal to the Speed with which m2 will be lifted up.
thankyou sir
