Dayita dey Asked a Question
January 20, 2022 1:45 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

Thermal Physics

An ideal gas undergoes the cyclic process A B- C- D. Indicator diagram P-T of this cyclic process is shown in the following figure. Represent the same process in the P-V and V-T indicator diagrams.
  • 2 Answer(s)
Answer Now
  • 1 Likes
  • 2 Comments
  • Shares
  • Fhjguii thankyou
    see this
    • cropped6546879503311447416.jpg
    Likes(1) Reply(0)
  • Susobhan ghosh Best Answer

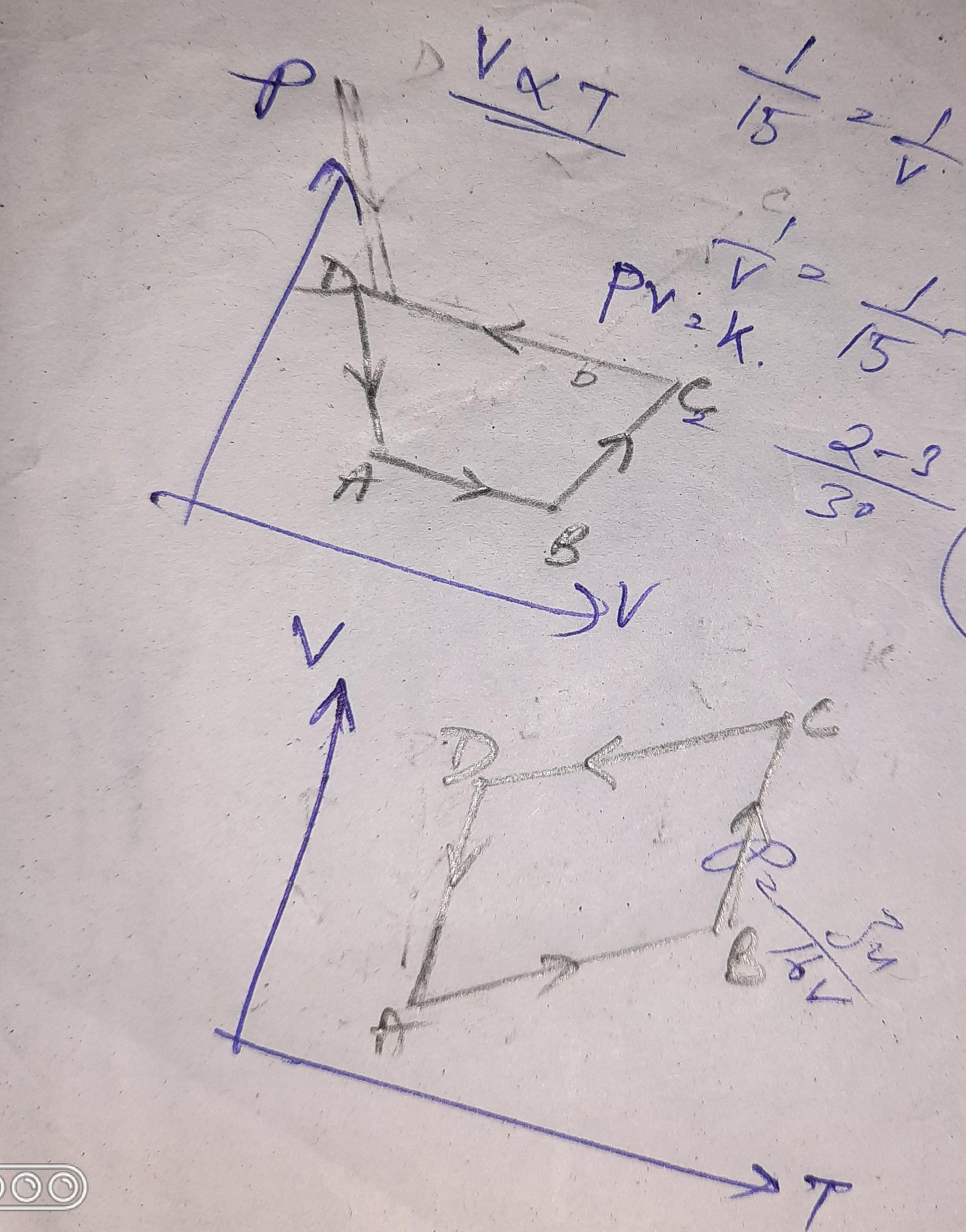

    see this is coming after deriving
    • cropped11655782881272759.jpg
    Likes(0) Reply(0)
