Analog electronics. please explain option b.

Which of the tollowing s true (A) A-B-C. Ā BT (6) t onily r al nput are there (1) then the outpur is true (1), this 5 logicaly equvalernt to R at least one input i5 talse (0) then the outpr is talse (C) option A & B is known as De morgen's laws D) None of these

3 Answer(s) Answer Now
  • 0 Likes
  • 5 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

    option a is definitely true. b is true for and gate or nor gate..

  • comment-profile-img>
    Ruby negi

    option a is definitely true. b is true only for and gate or not gate .

  • comment-profile-img>
    Dhairya sharma

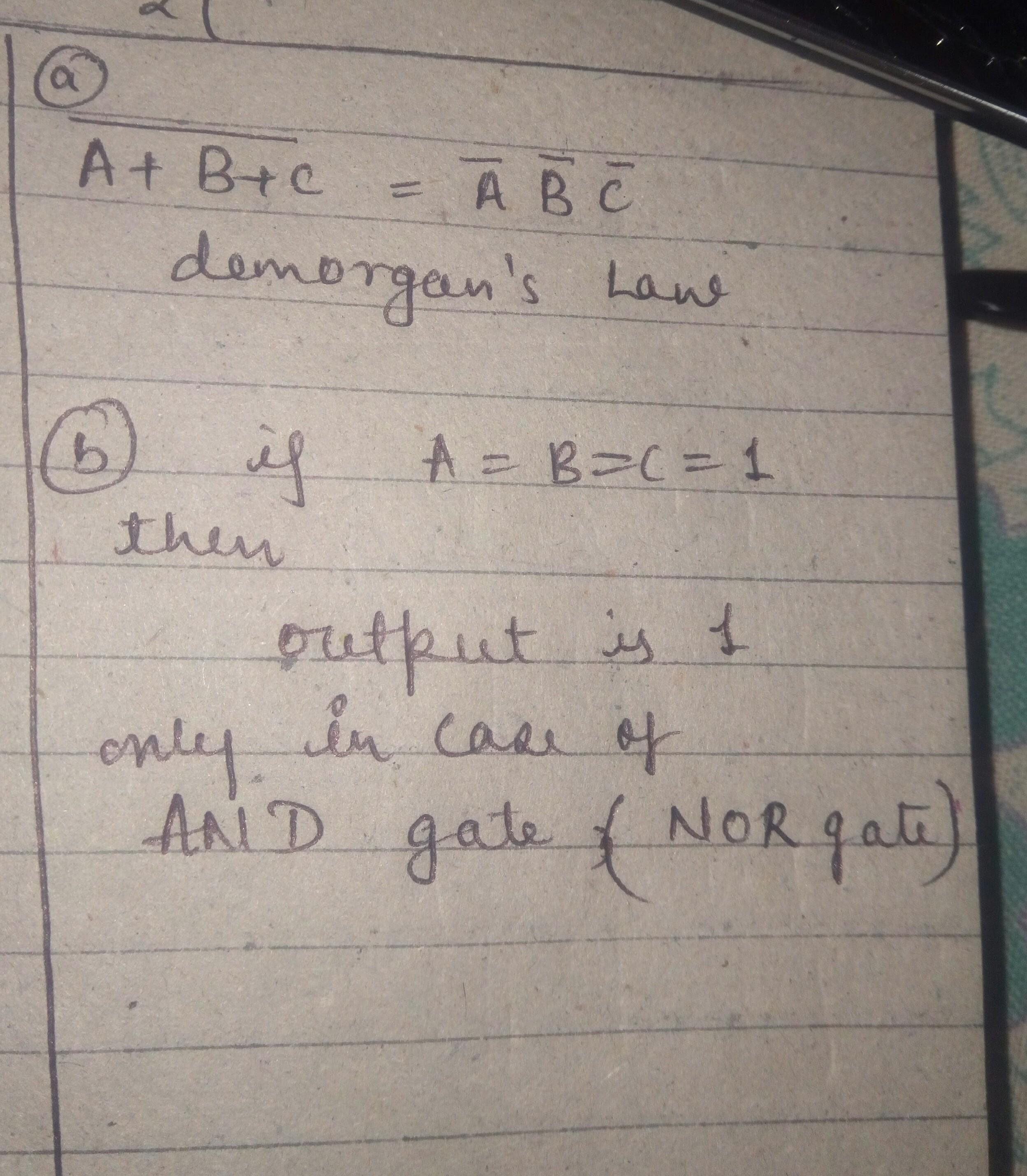

    see attached. if all i/p are one o/p is false......i.e. it behaves likes and

    eduncle-logo-app

    dear see it....

  • comment-profile-img>
    Abhishek singh Best Answer

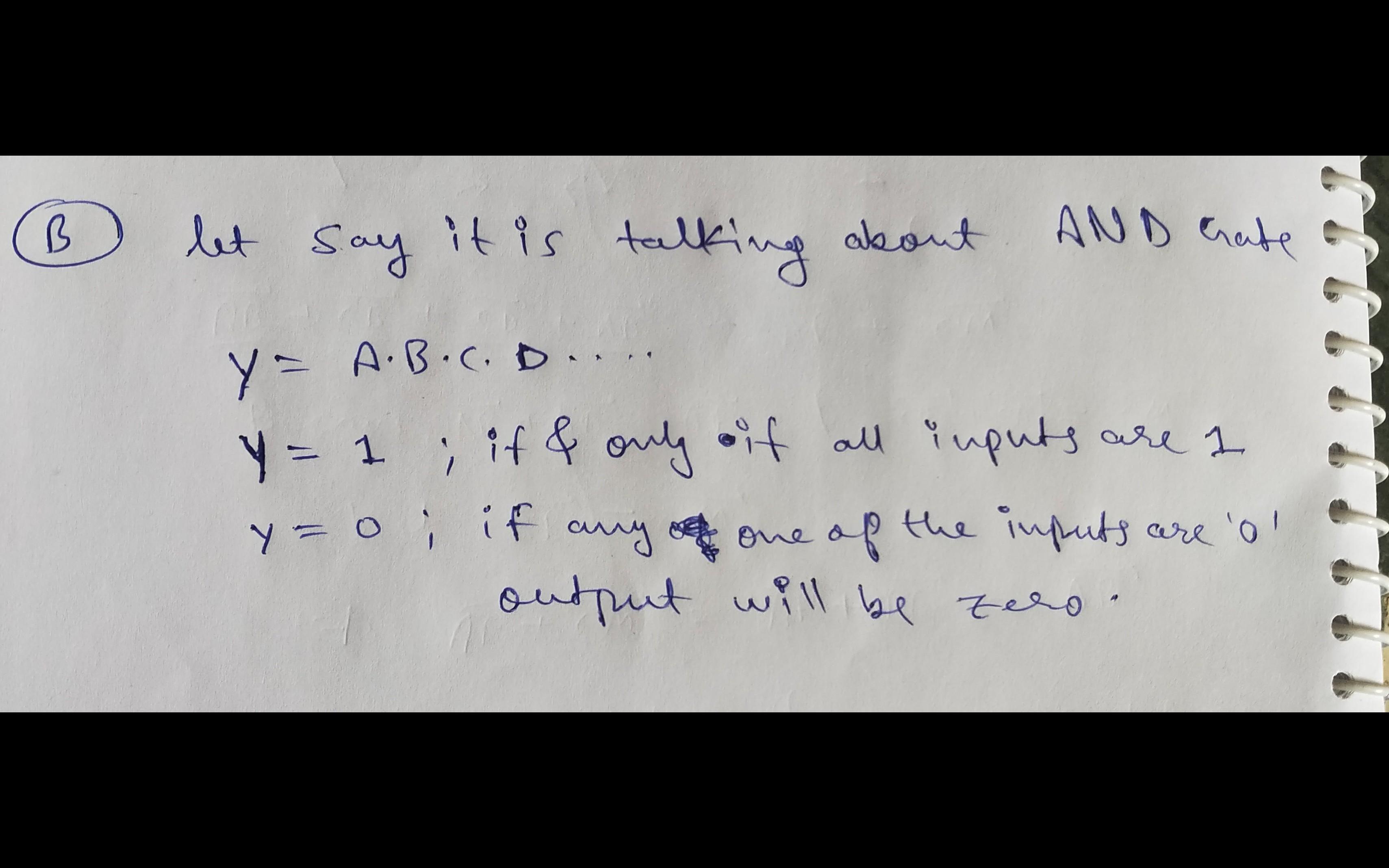

    Option A is certainly true. But option B is true for an AND gate only. see the attached. best regards.

  • comment-profile-img>
    Dhairya sharma best-answer

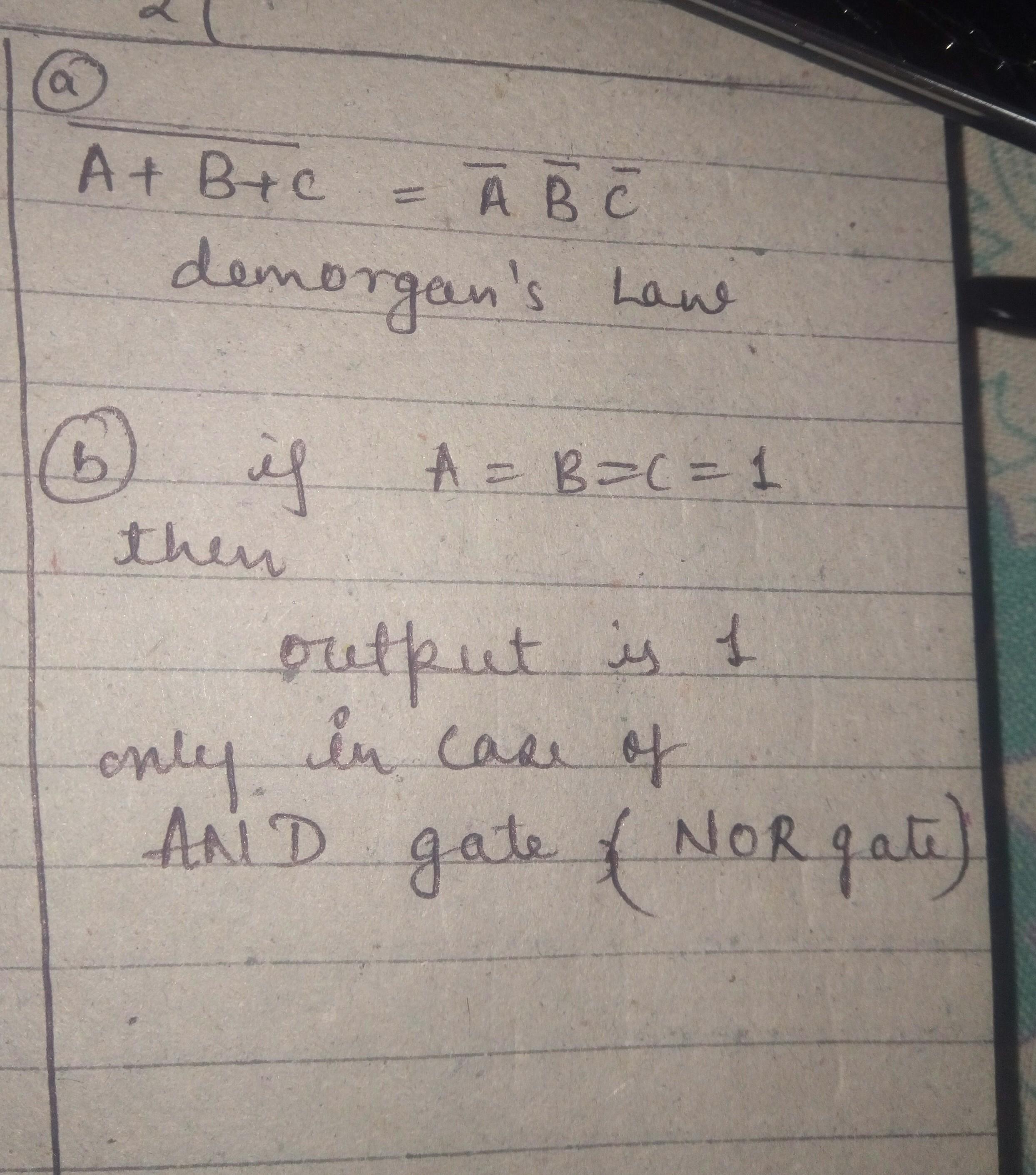

    dear option 1 is correct because it is the statment of de morgen theorem.....

    eduncle-logo-app

    please explain option B
