Simun Mishra posted an Question

May 11, 2020 • 14:36 pm

30 points

IIT JAM
Chemistry (CY)

Arrange the following in decreasing order of their bond order. ...and how to know the total no of e in each compounds

2 Answer(s)

0 Likes
6 Comments
0 Shares

S
Suman Kumar

Mo of CO is little complex but if you want then i can send
- Likes(0)
- Reply(1)
send this
- Like(0)

>
Dinesh khalmaniya 1

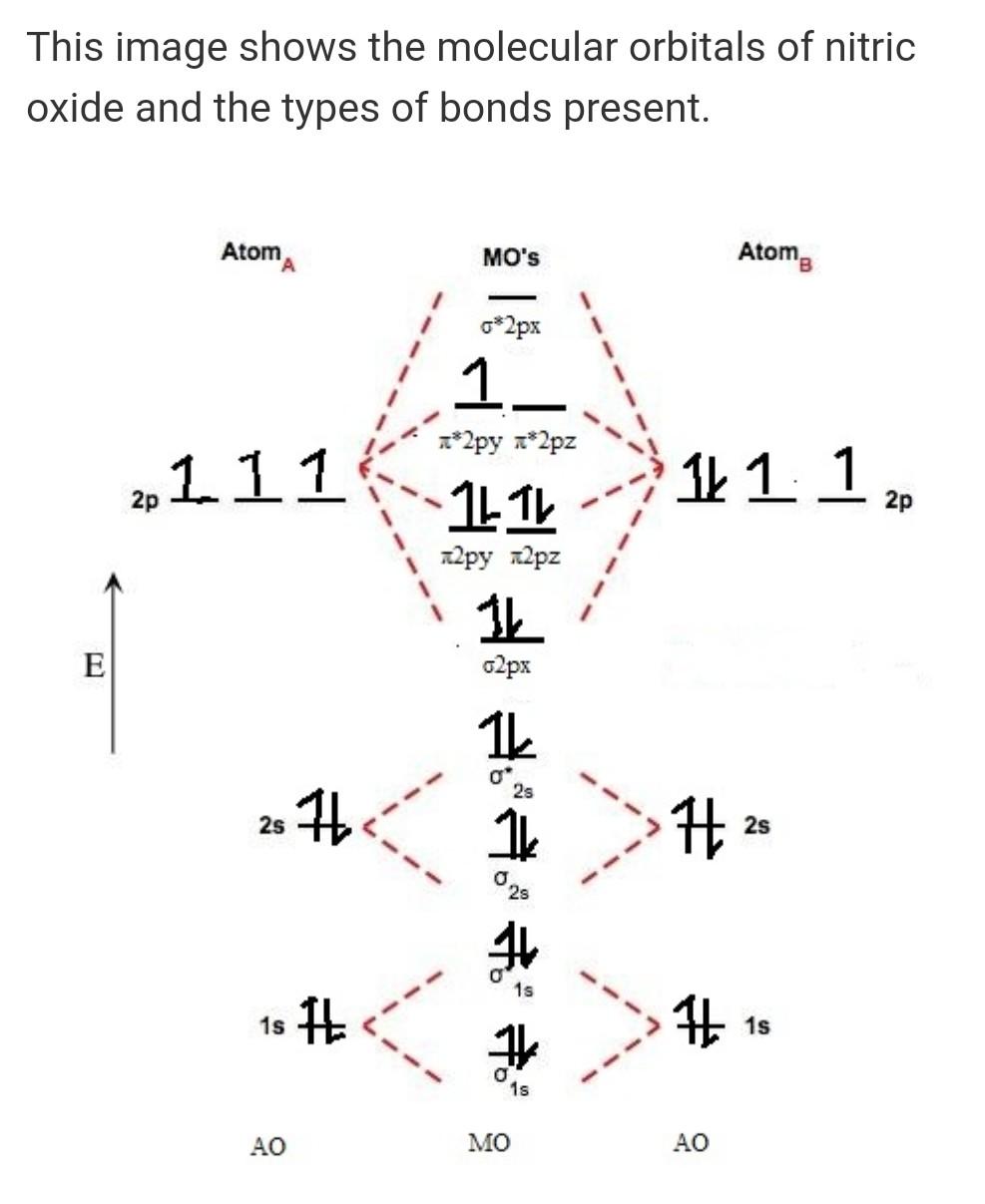

MOT of NO+ and NO
- Likes(0)
- Reply(0)

>
Dinesh khalmaniya 1 Best Answer

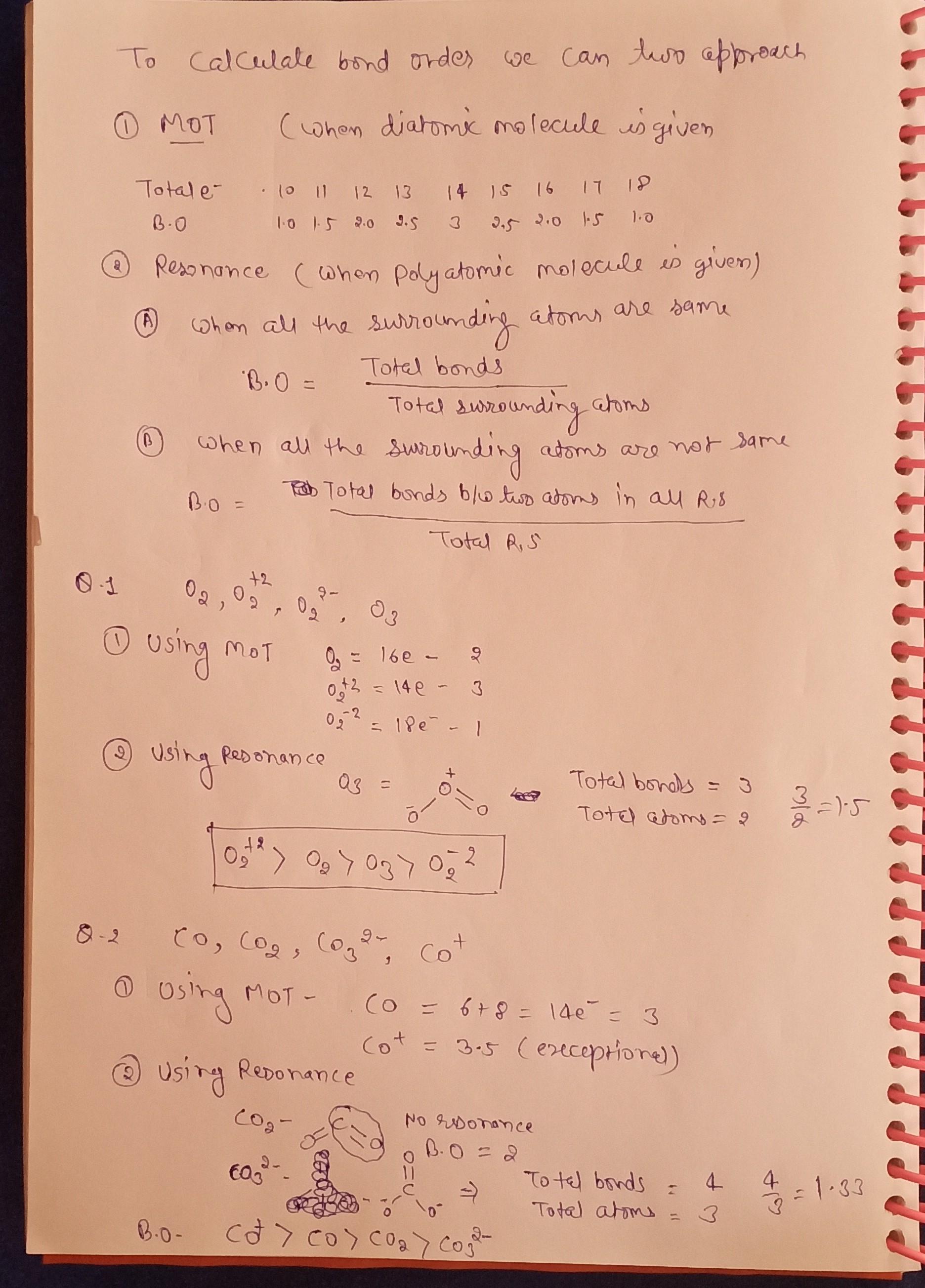

check it for your clarification
- Likes(1)
- Reply(0)

>

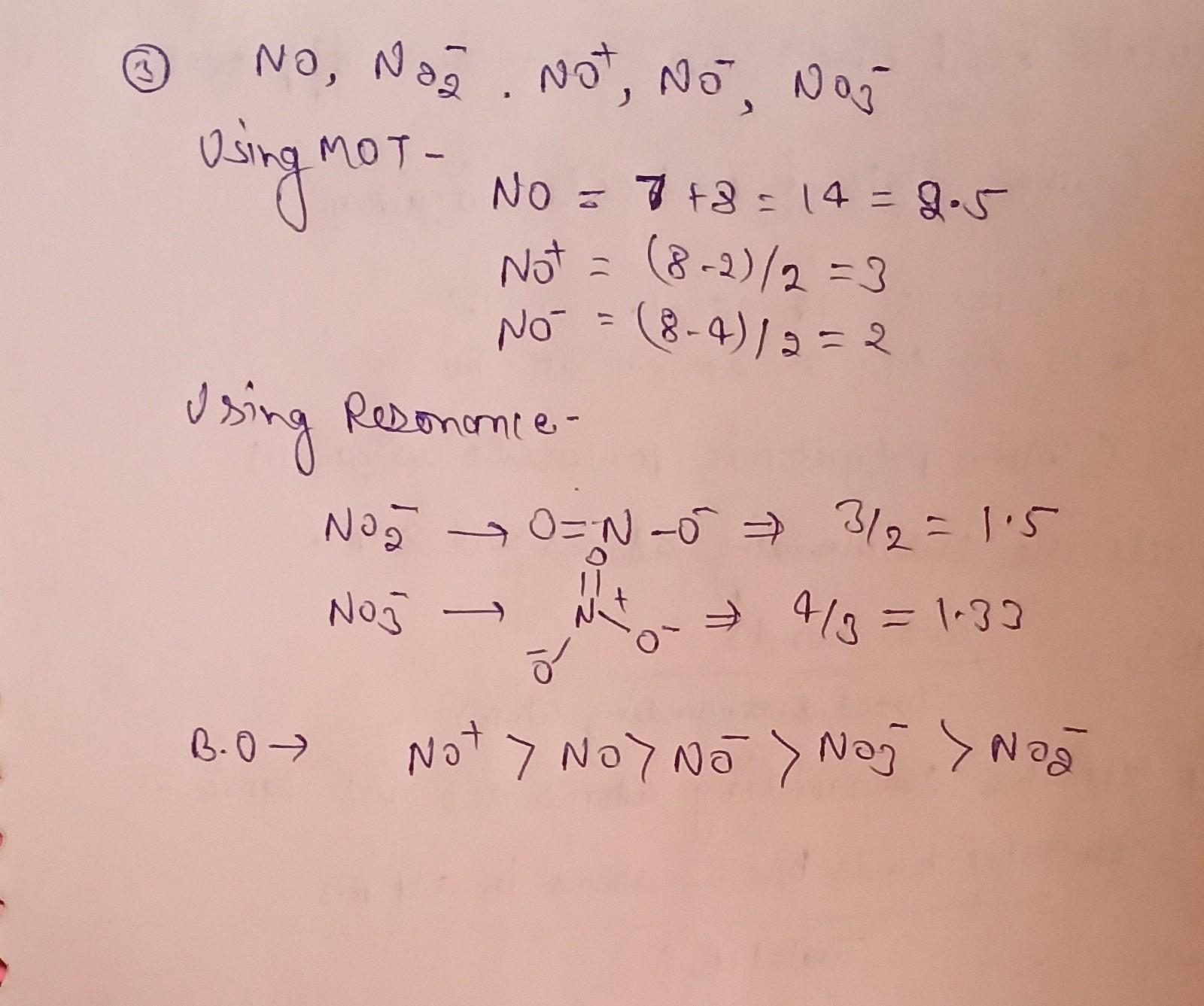

Dinesh khalmaniya 1

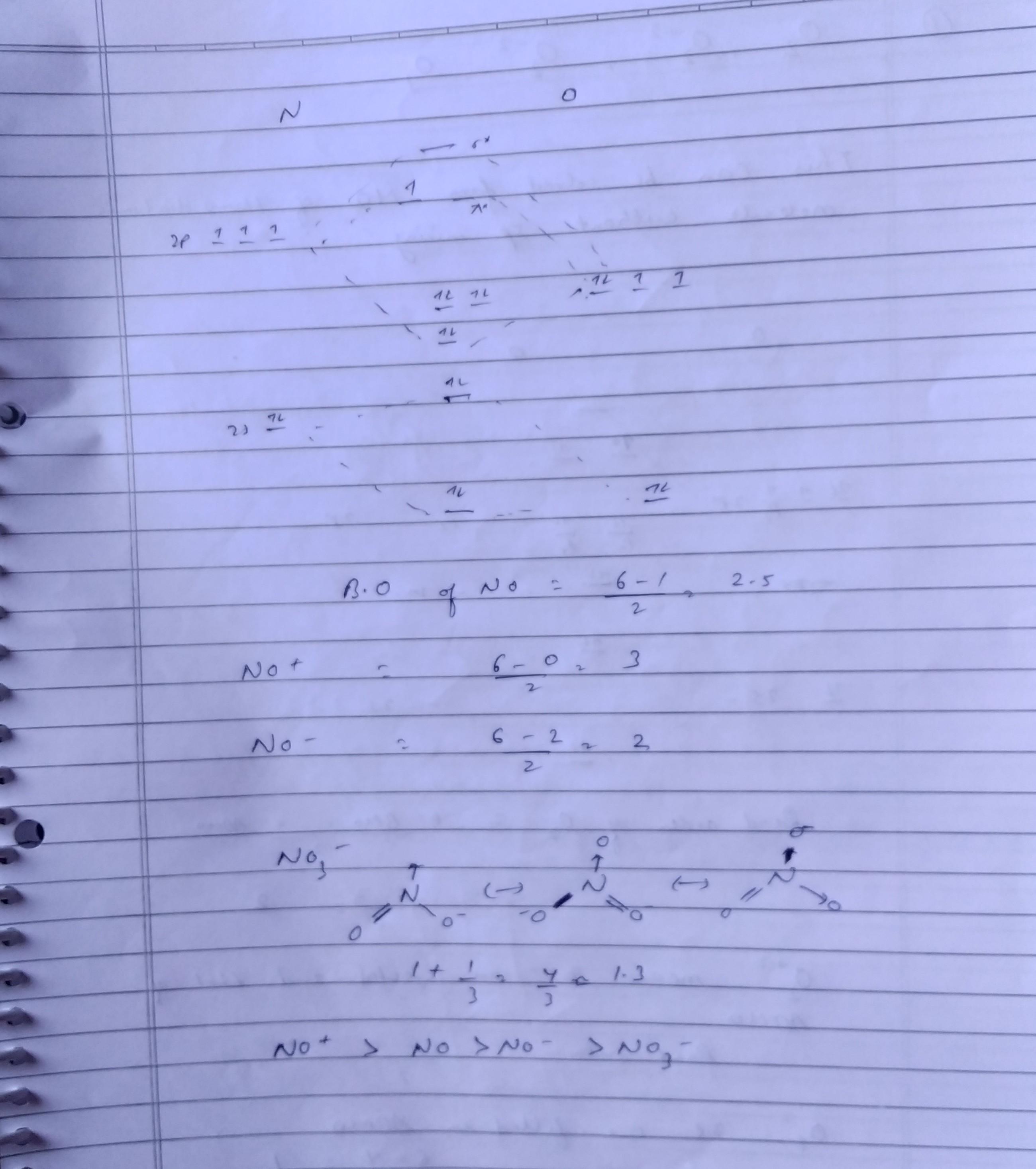

remaining q3
- Likes(0)
- Reply(9)
NO has total 2 equal to 15 so correct it
- Like(0)

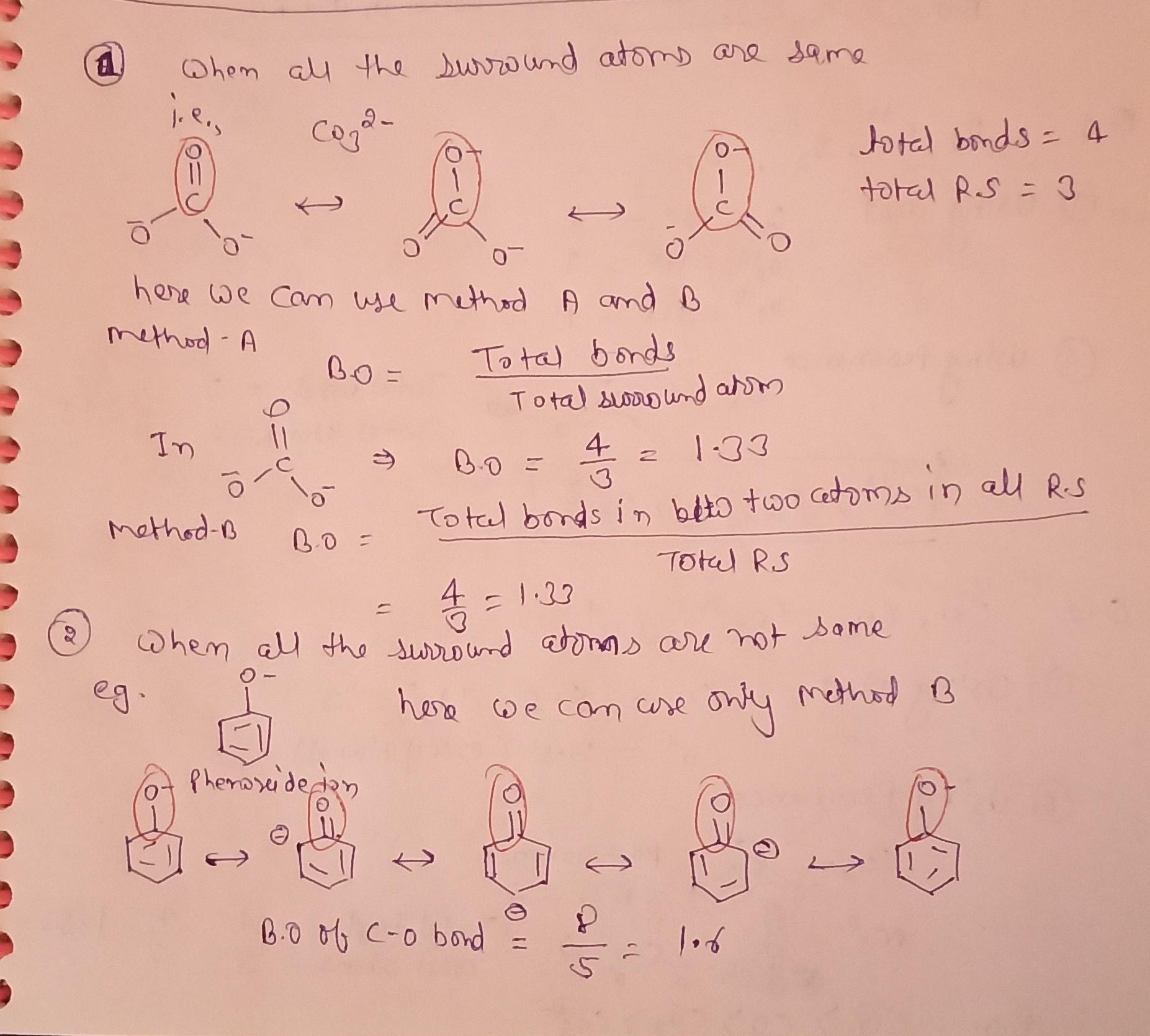

give one example of when all the surrounding atoms are same and when not same
- Like(0)
why here No+ = 8- 2 ÷ 2
- Like(0)

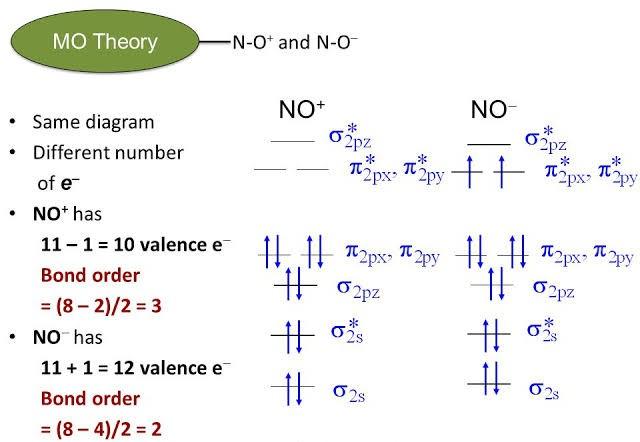

you can use short trick as NO+ = 7+8-1 = 14e so BO = 3 or you can solve using bond order formula but you can solve it if you know MOT diagram of NO. so im sending you MOT of NO+ please check it
- Like(0)
ok
- Like(1)
here No is 3.5 ..bond order
- Like(0)
NO bond order is 2.5 not 3.5
- Like(0)
but the total no of e in No is 15 ...and the bond order is 3.5
- Like(0)
ok ok sry ........its clear ....
- Like(0)

S
Suman Kumar

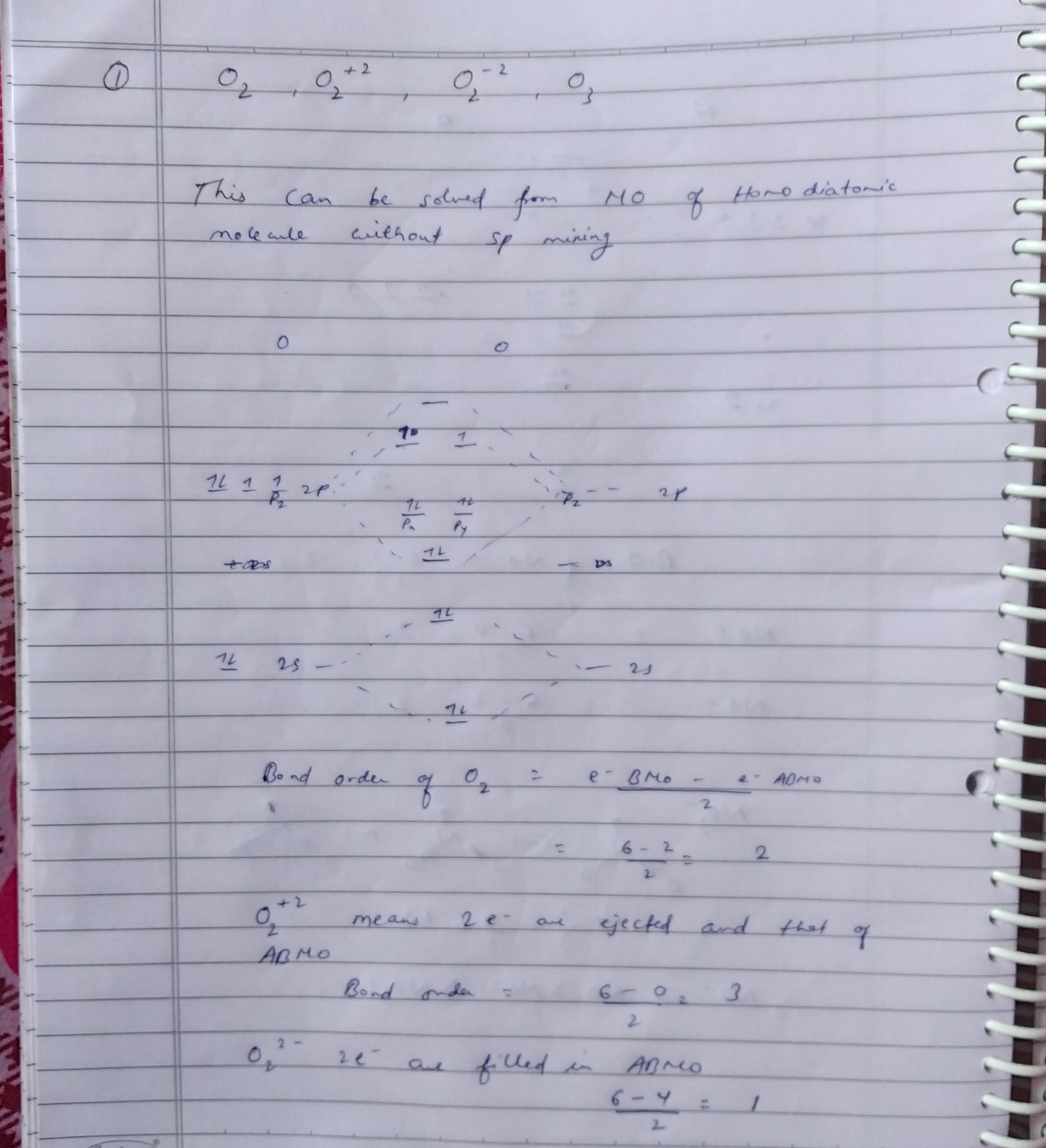

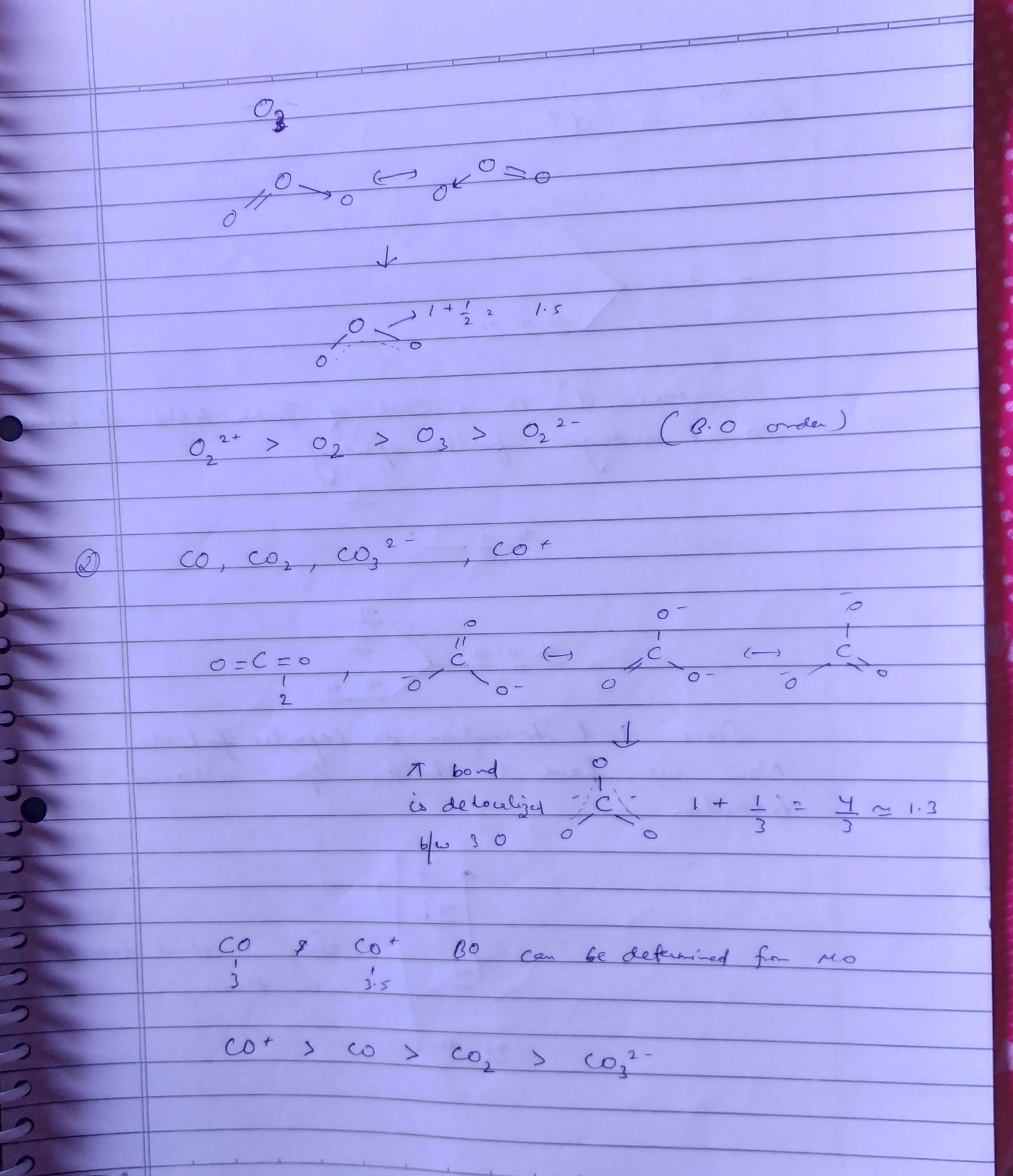

I have provided the answer
- Likes(0)
- Reply(3)
For CO when you will see the mo in that that non bonding mo has little anti bonding character that's why co+ bond order increases. These are experimentally found
- Like(0)
sorry but ...I can't understand ....this ....
- Like(1)
the mot structure ...and ur handwriting is no ...clear ....so ..
- Like(0)

>
Dinesh khalmaniya 1

check it
- Likes(0)
- Reply(3)
can u pls give example of the 2 point about resonance
- Like(0)
wait.
- Like(0)
here CO+ is ..2.5 according to mot total no of e is 6+8 =14 and due to + charge it will be 14-1 =13 so 2.5..?
- Like(0)
