(c) a thin cylindrical shell has closed ends. the cylinder has a radius of 0.5 m and a wall thickness of 30.0 mm. there is a small elliptical hole in the wall o

(c) A thin cylindrical shell has closed ends. The cylinder has a radius of 0.5 m and a wall thickness of 30.0 mm. There is a small elliptical hole in the wall of the cylinder and the major axis of the ellipse is five times the minor axis. What is the maximum allowable pressure if the allowable stress in the cylinder material is 300 MPa, () when the major axis of the ellipse is in the axial direction and (i) when the major of the ellipse is in the hoop direction? [12 marks]

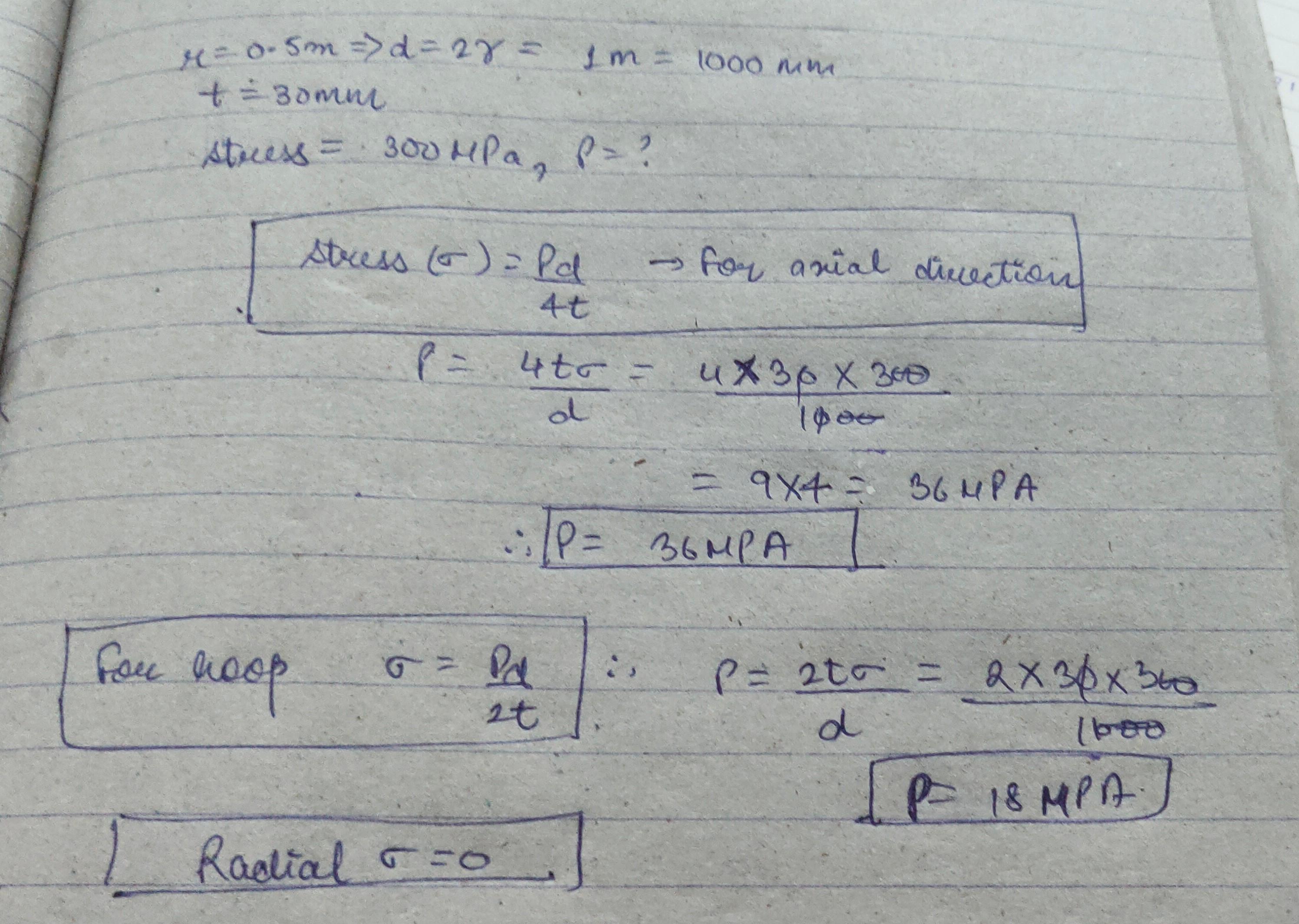

1 Answer(s) Answer Now
