Deepanshu sati Asked a Question
May 1, 2022 8:30 ampts 30 pts
Consider the following circuit in steady state condition. Calculate the amount of charge stored in 1 JEST 2017] (a) 5k2 stored in l uF and 2 uF capacitors respectively. 4kQ uF 2 k2 1 k2 W 2uF wlH 4 k2 6 V (a) 4uC and 8 uC (b) 8 uC and 4 C (c) 3 uC and 6 uC (d) 6 uC and 3 uCC
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Dr suman 1 thankyou
    see the attached files.

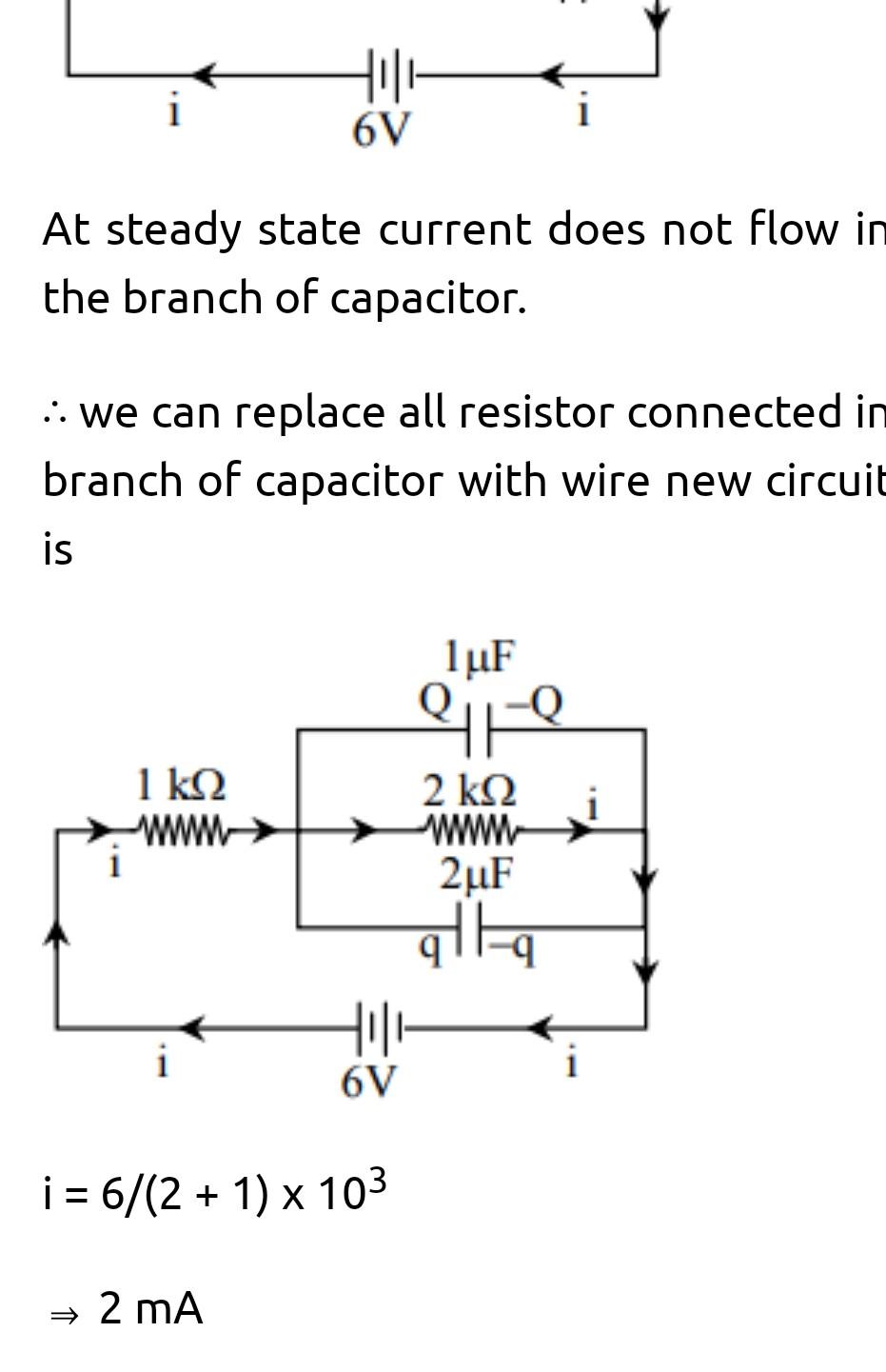

    • cropped4851386125078988908.jpg

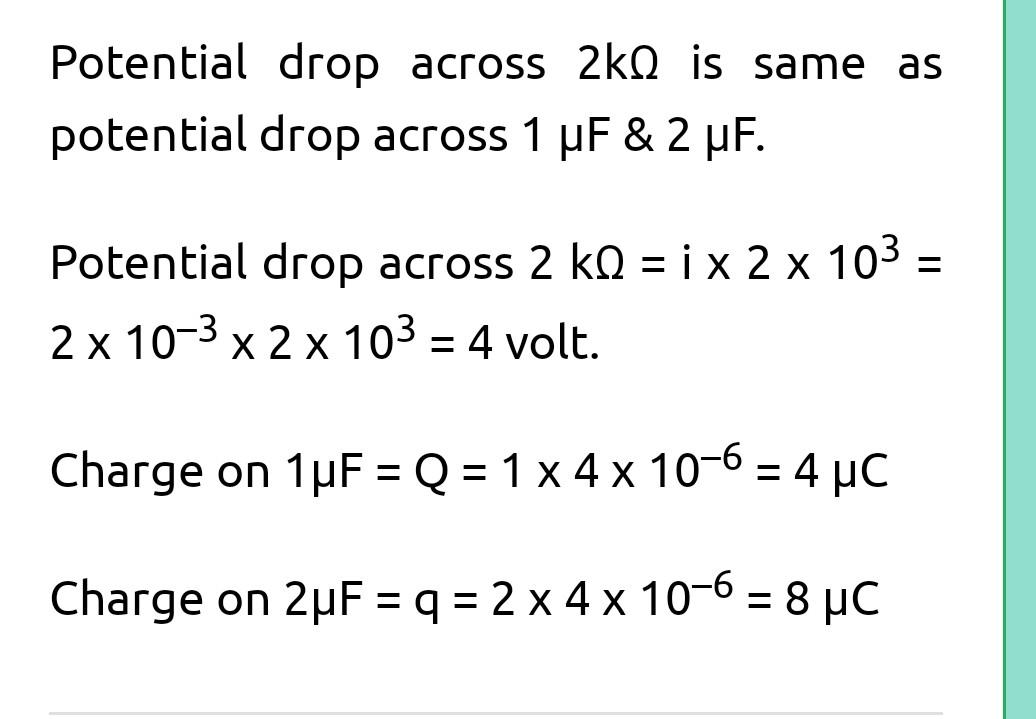

    • cropped385461594099742114.jpg
