Define couple charged device in gis?
2 Answer(s)
Answer Now
- 1 Likes
- 2 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Sajan sarthak
![best-answer]()
Charge-coupled device, known as CCD, is very popular photodetector commonly used for digital imaging and video . CCD is based on a metal-oxide-semiconductor (MOS) structure. CCD structured with a p-type semiconductor body, a thin silicon dioxide insulating layer and an array of gating electrodes. A positive bias voltage applied on a gate electrode repels holes away from the area underneath the electrode, creating a depletion region. Incoming photons are able to generate photoelectrons in the depletion region as illustrated in below figure. These photon-induced charges are then shifted programmably in the horizontal direction to one side of the array so that they can be electrically amplified and collected.
![eduncle-logo-app]()
Dear student accept the friend request so that no questions will left unanswered it will be quite helpful to you.
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Rahul kumar![best-answer]()

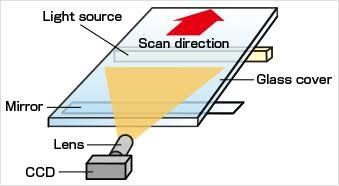

CCD, also known as charged couple device, is an important type of sensor used in GIS for scanning purpose and data acquisition. CCD is generally consisted of a large number of photosensitive pixels packed together on a chip. Most sophisticated large format scanners use CCD's with eight thousands pixels per chip. Maximizing the number of chips can provide better information.
