Arun posted an Question
September 28, 2021 • 22:09 pm 30 points
  • IIT JAM
  • Physics (PH)

Determine the output waveform for the network of fig. 2.74. v5v :,» 20 v 77 figure 2.74 series clipper lor example 2.20. solution past experience suggests that

Determine the output waveform for the network of Fig. 2.74. V5V :,» 20 V 77 Figure 2.74 Series clipper lor Example 2.20. Solution Past experience suggests that the diode will be in the "on" state for the positive

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • comment-profile-img>
    Ravi bhushan best-answer

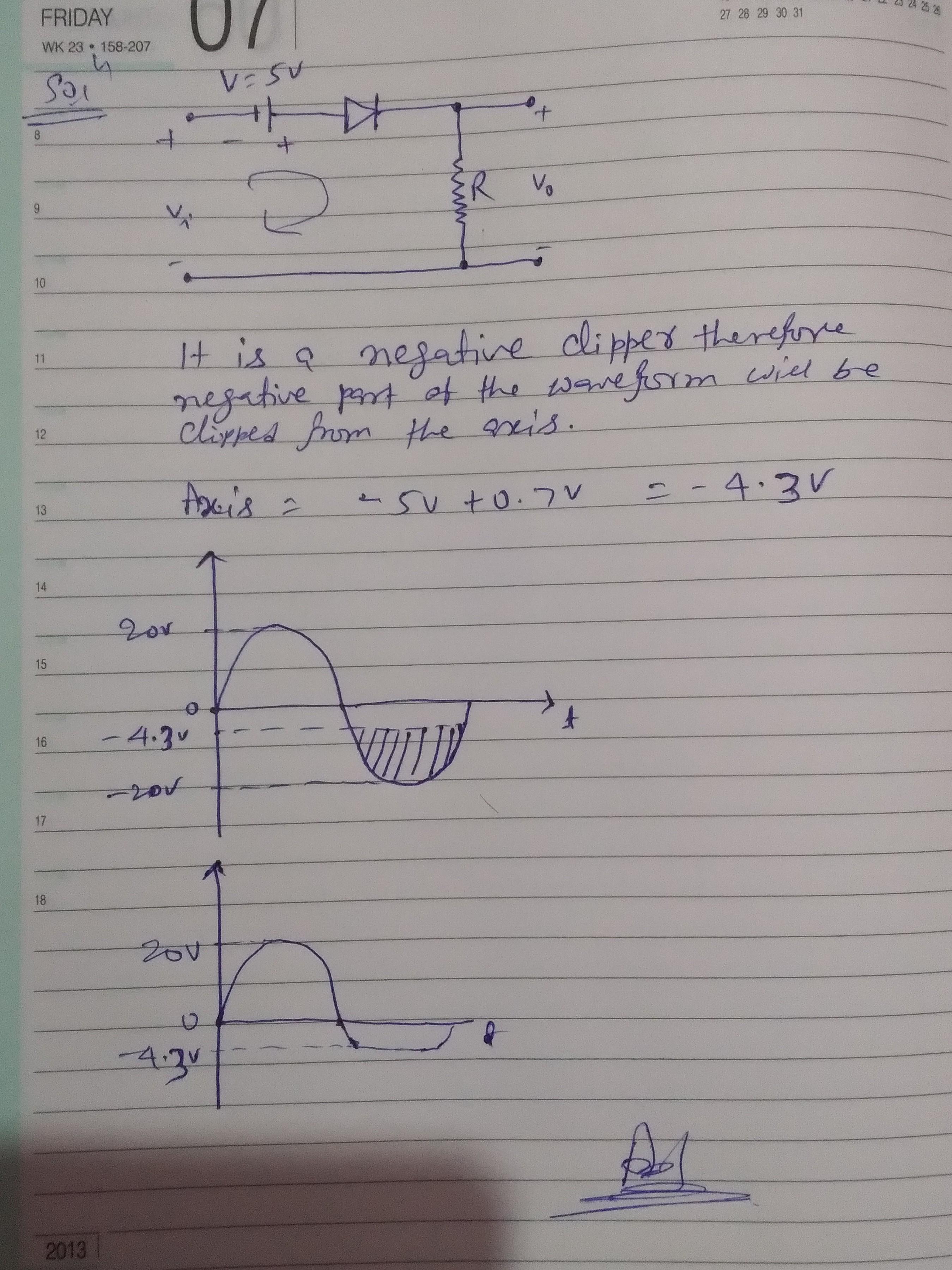

    Here is the detailed solution.

    eduncle-logo-app

    what do you mean by negative clippers

    eduncle-logo-app

    Because output section is connected to the negative terminal of the diode. If it is connected to positive terminal then it will be positive Clippers.
