Determine v0 for the network

determine v0 for the network. Draw the plot for the output vo .

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi Best Answer

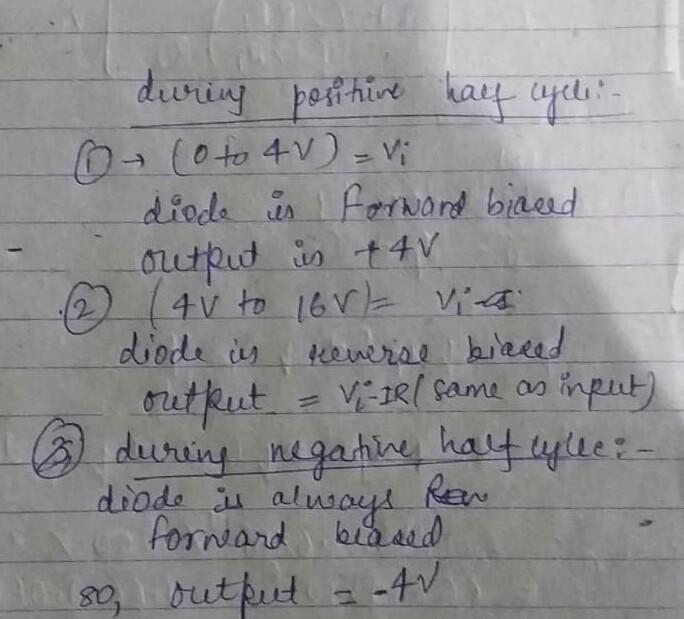

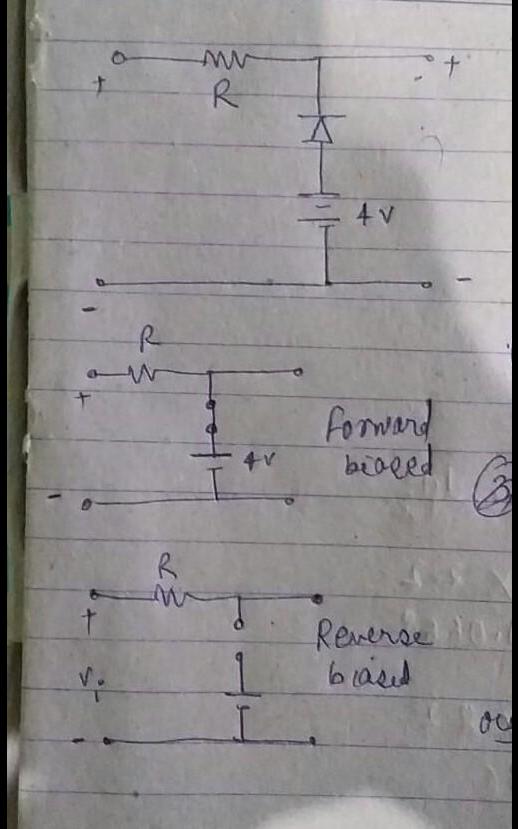

    see,these are the steps and figure that help u while understanding the circuit...
