Draw TS diagrams for the following ideal gas cycles: a) OTTO b) DIESEL c) RECTANGLE ON PV DIAGRAM d) A RIGHT TRIANGLE ON PV DIAGRAM IN WHICH BASE IS ISOBARIC, ALTITUDE IS ISOCHORIC AND HYPOTENUSE IS ADIABATIC.
  • 3 Answer(s)
  • 0 Likes
  • 4 Comments
  • Shares
  • Chandra dhawan Best Answer

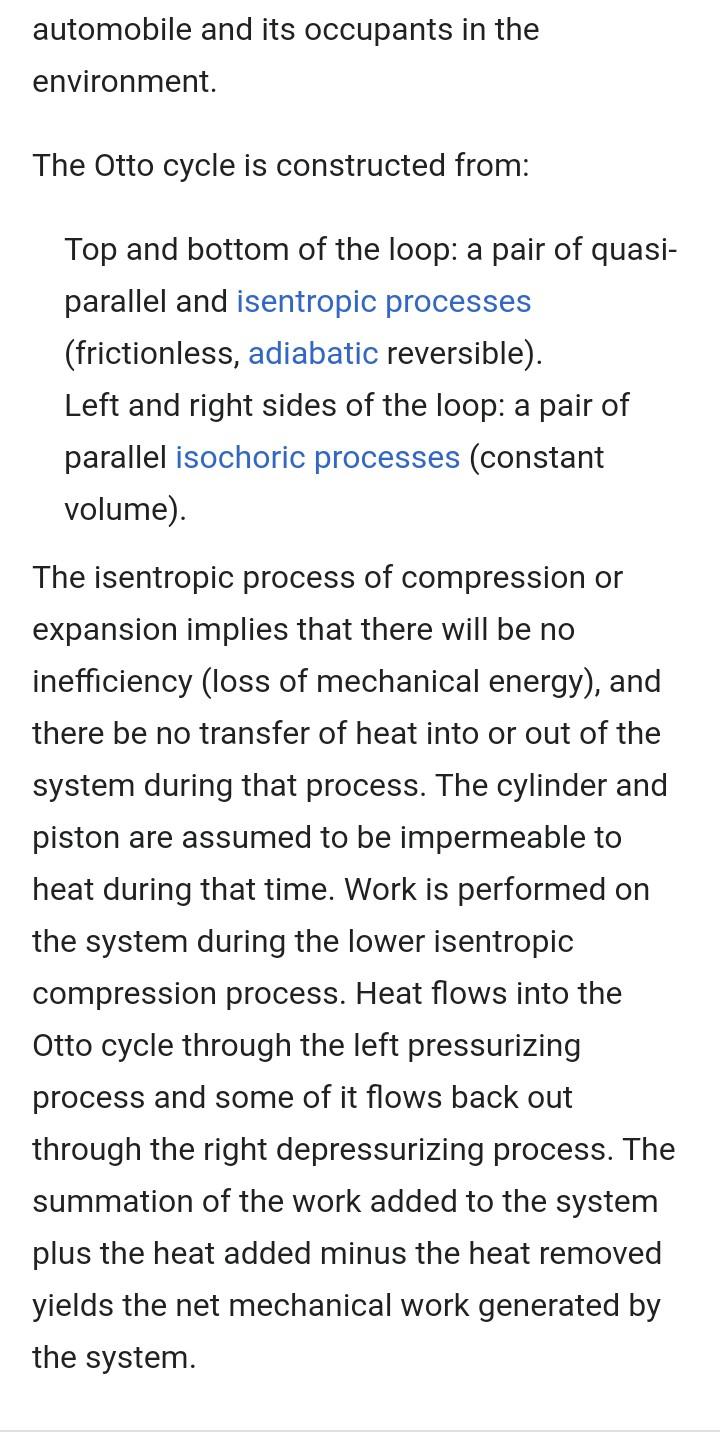

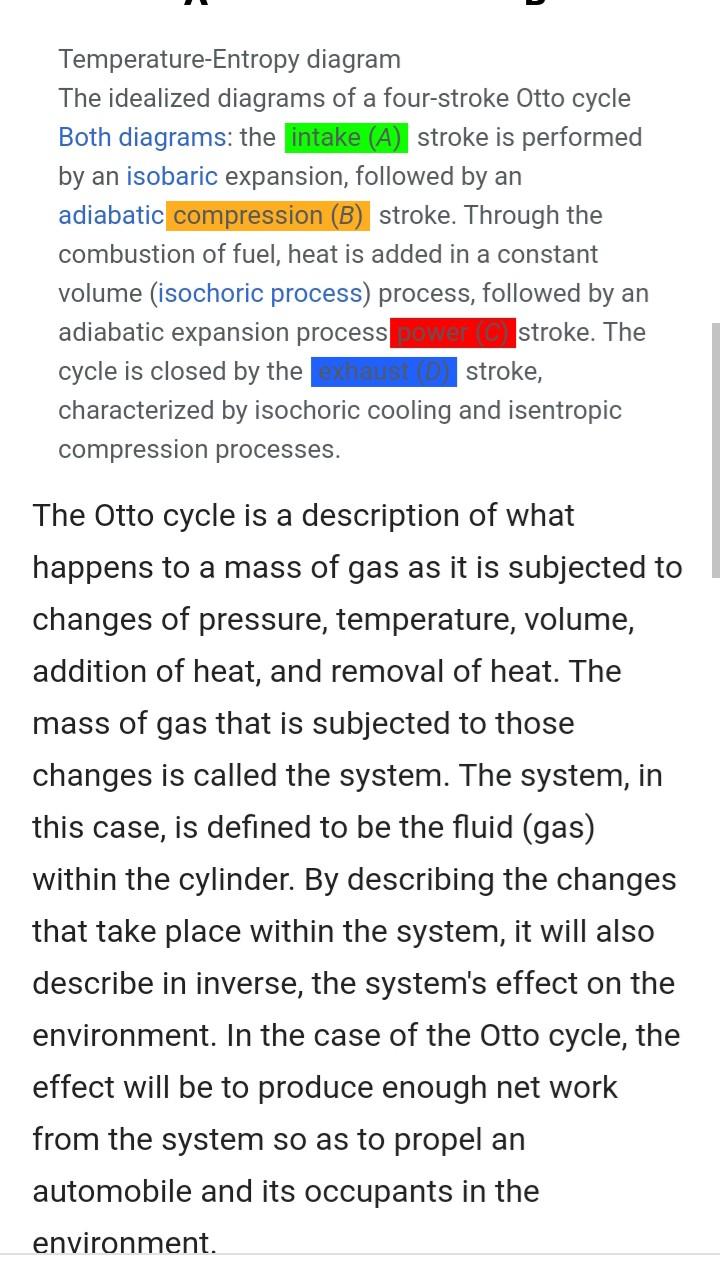

    .see attachment...it's for Otto ..
    • cropped7547551563881084565.jpg
    • cropped9113628320646499785.jpg
    • cropped3100792789606596366.jpg
    Likes(1) Reply(0)
  • Somnath thankyou

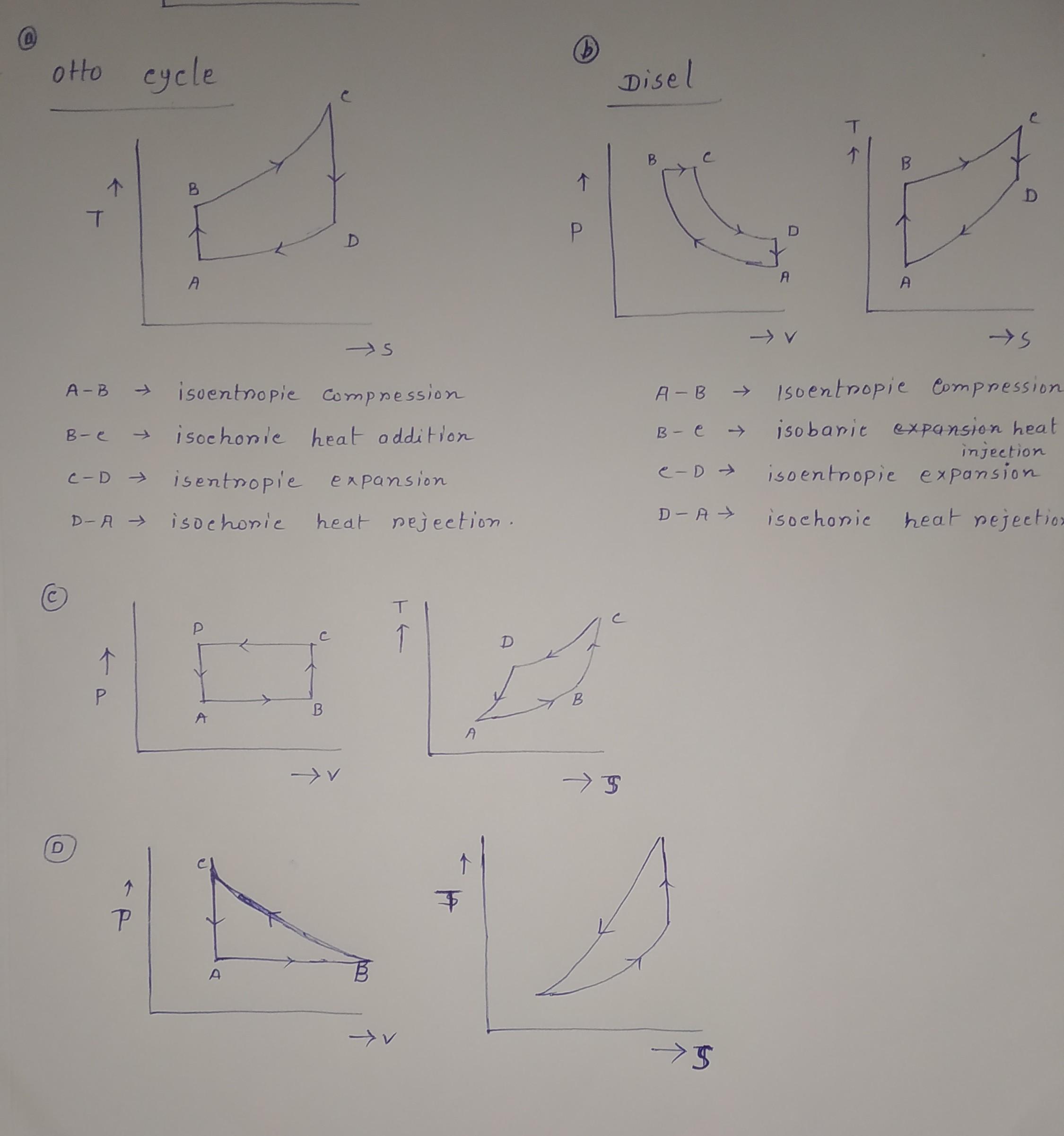

    See the attachment.
    • cropped2449615152611876026.jpg
    Likes(0) Reply(0)
  • Vaishnavi rajora thankyou

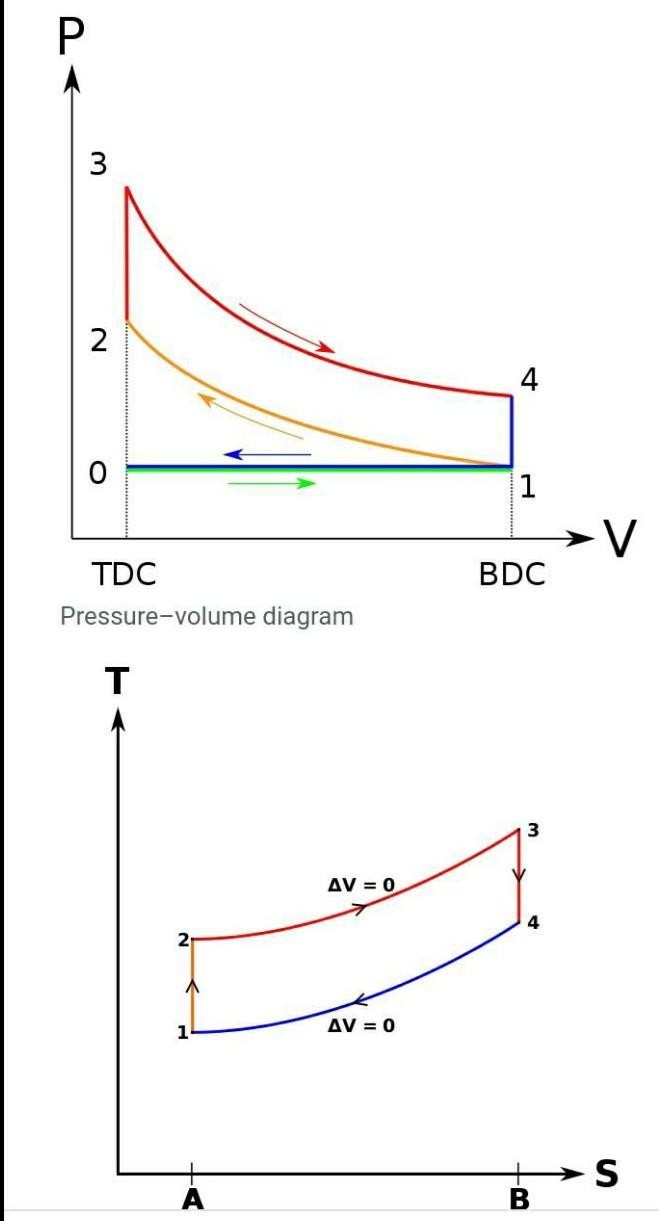

    see attached
    • cropped2948033040422677130.jpg
    Likes(0) Reply(0)
  • Vaishnavi rajora
    see attached
    • cropped603881768680292598.jpg
    Likes(1) Reply(1)
    Vaishnavi rajora

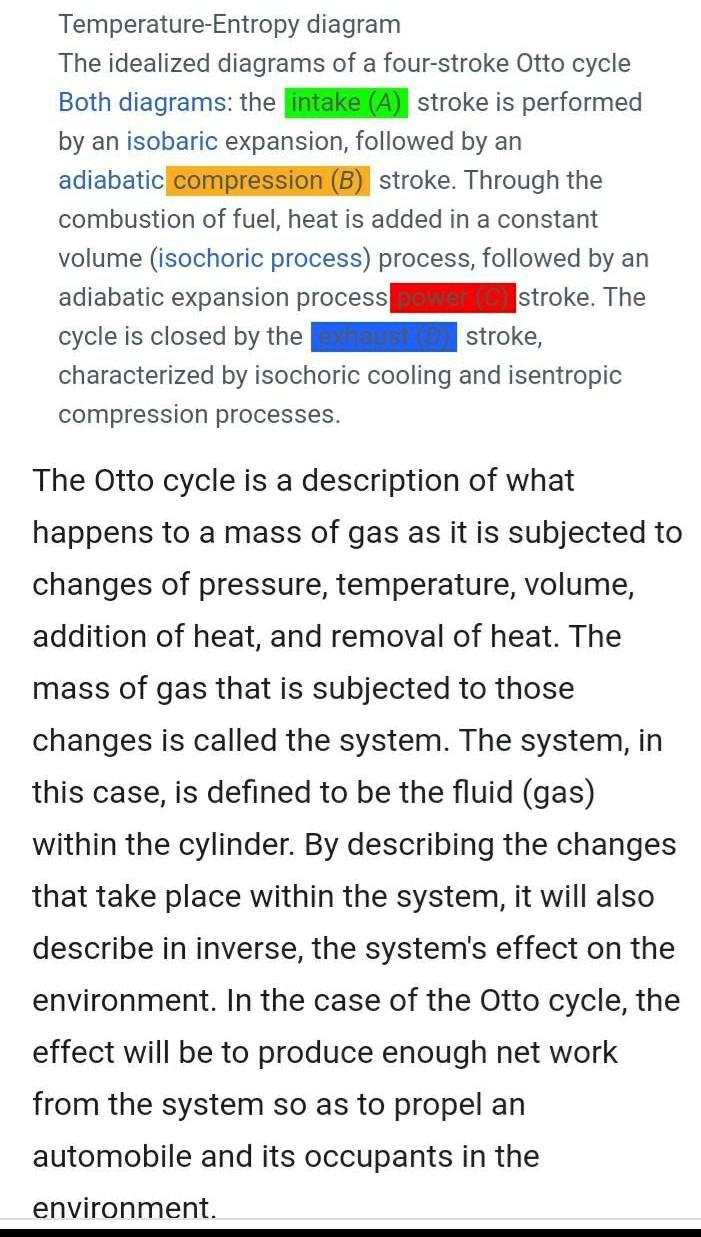

    see attached
    • cropped5413015852606176087.jpg
