Eduncle unit solved papers (1-15)-physics question: 28/60 for the circut shown in the given figure, assuming ideal diodes, the output wavefom v, ill be n ww d d

Eduncle Unit Solved Papers (1-15)-Physics Question: 28/60 For the circut shown in the given figure, assuming ideal diodes, the output wavefom V, ill be N ww D D t VF a 15 +2V 2vf+ B) A) +2V /t () -2Vt 4V C View Solution
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 1 Comments
  • Shares
  • Ravi bhushan Best Answer

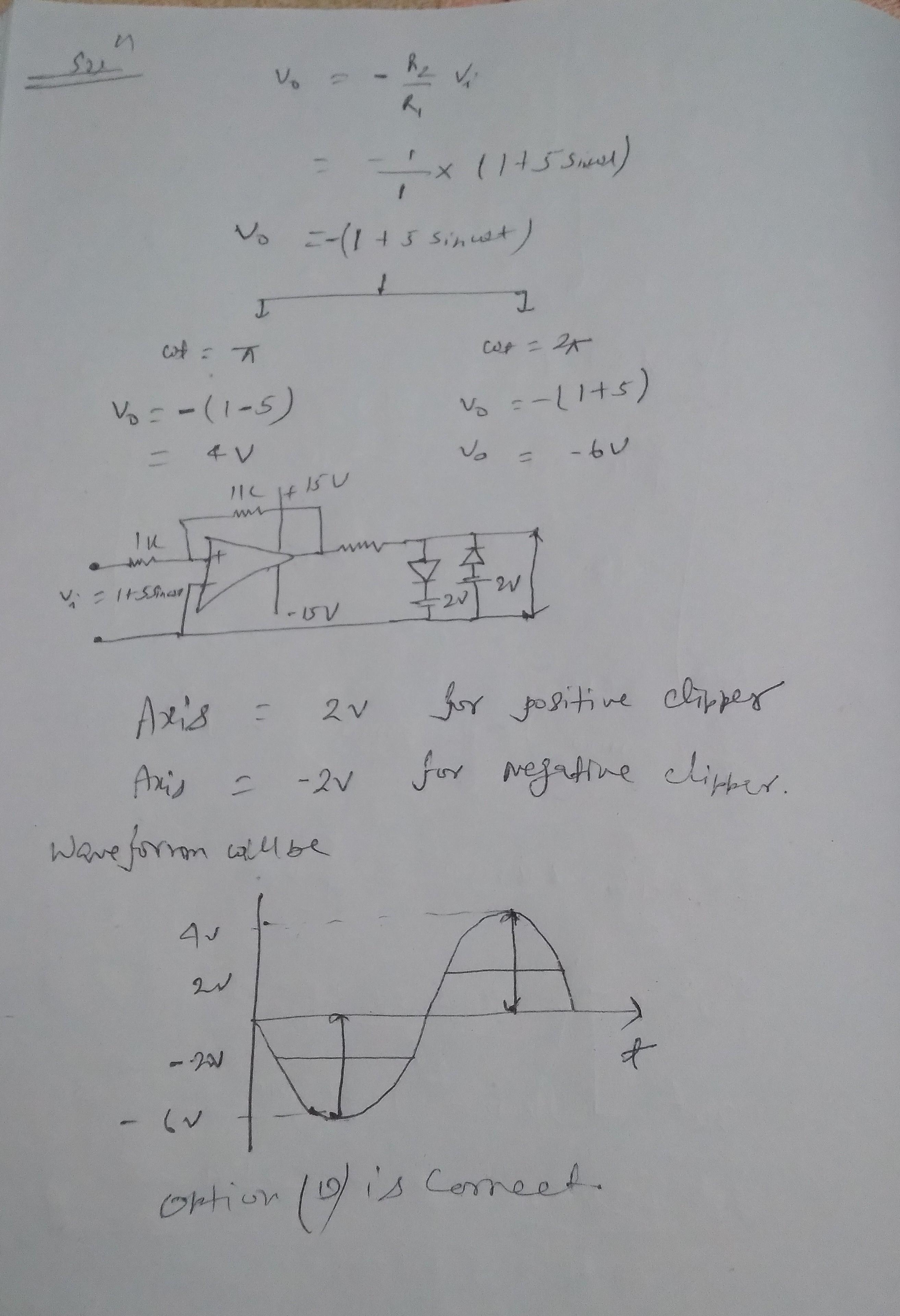

    Here is the detailed solution.
    • cropped3960998306552887227.jpg
    Likes(0) Reply(0)
