Himanshu posted an Question
June 24, 2020 β€’ 01:30 am 30 points
  • IIT JAM
  • Physics (PH)

Electricity numerical graph

there is a graph asked between electric field & radius of sphere. just tell how they write combined equation that is in box by using the above two

3 Answer(s) Answer Now
  • 0 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Dhairya sharma

    the plot is all about dependency of electric filed w.r.to distance. see my attachment carefully which i hv already attached. in that u will find that R is radius of sphere , which is constant and functional form will depend only on r.

    eduncle-logo-app

    and now you will see that inside sphere is depend linearly on r and outside r it depends as 1/r^2 . and we can draw them as shown in your figure

    eduncle-logo-app

    i hope u will understand it

    eduncle-logo-app

    πŸ‘

    eduncle-logo-app

    if u have any doubt plz ask

    eduncle-logo-app

    hope it will help u

  • comment-profile-img>
    Ruby negi Best Answer

    and u know why I am saying this, because when u r finding e.f inside the sphere then the charge density is only in the sphere of radius r but when u are finding e.f outside the sphere then the charge density is at the sphere of radius R(means in whole sphere)..

  • comment-profile-img>
    Ruby negi best-answer

    dear, the boxed equation is not an overall equation.. in case of finding e.f in inside the sphere u have to put R=r so that e.f =pho/3*epilson*r and in case of outside , R remains same.

    eduncle-logo-app

    for any doubt do let know

    eduncle-logo-app

    mam can you please provide me this cases & all u said in written as it involves function so it is not that much clear in chat

    eduncle-logo-app

    yeah

    eduncle-logo-app

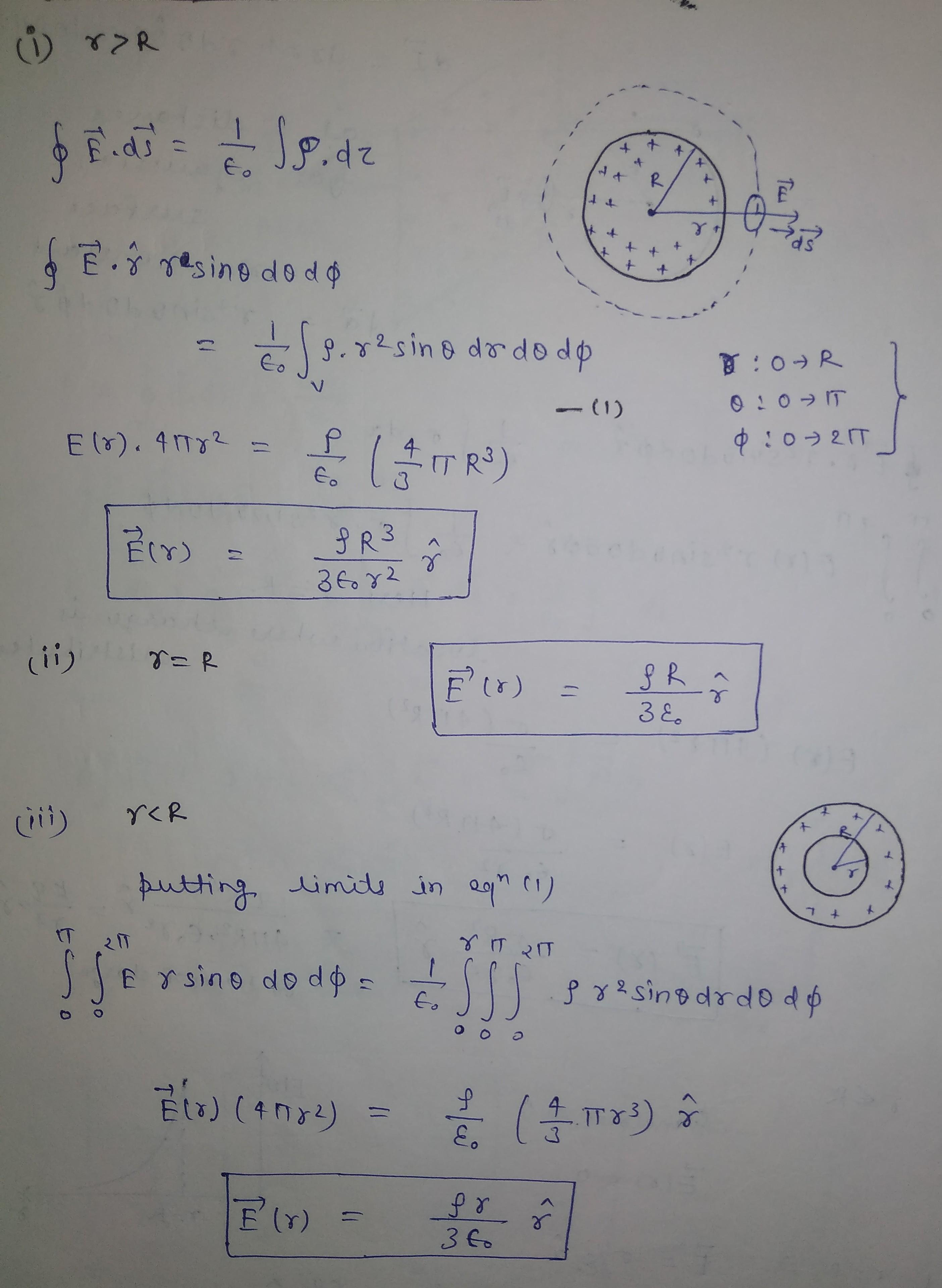

    do u want whole solution ? or only equations.. if u want equation I attached a page.

    eduncle-logo-app

    for derivation, do let me know
