Deepanshu posted an Question
May 24, 2020 • 03:18 am 30 points
  • IIT JAM
  • Physics (PH)

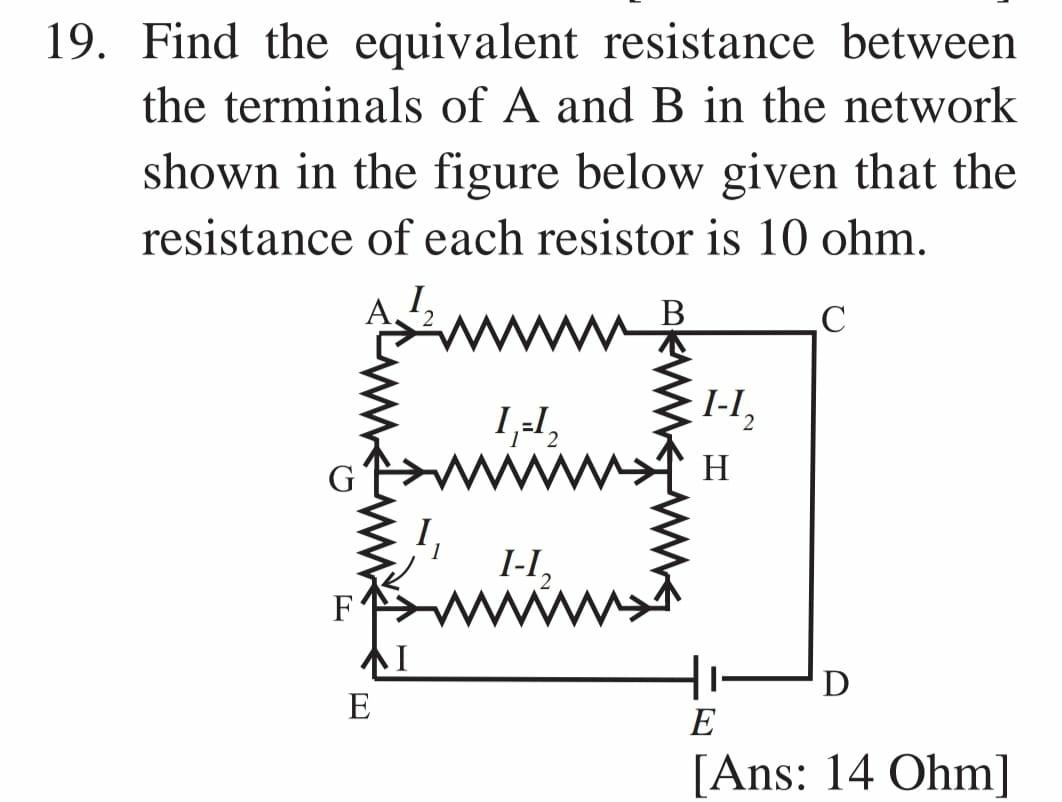

Electricity problem

Electricity problem. I am not getting the answer as 14. please help

2 Answer(s) Answer Now
  • 1 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

    current will not flow in the arm AG , so we can neglect that arm . so the equivalent resistance is 14ohm.. i hope you will get the solution....best regards

    eduncle-logo-app

    why will current not flow through AG arm?

    eduncle-logo-app

    because the wire is open circuited at A, where the current will go after A (if it move in GA arm)

    eduncle-logo-app

    oh.. also the i1 current coming from FG enters completely into GH. Which means none of the current flows through GA

    eduncle-logo-app

    yes...

    eduncle-logo-app

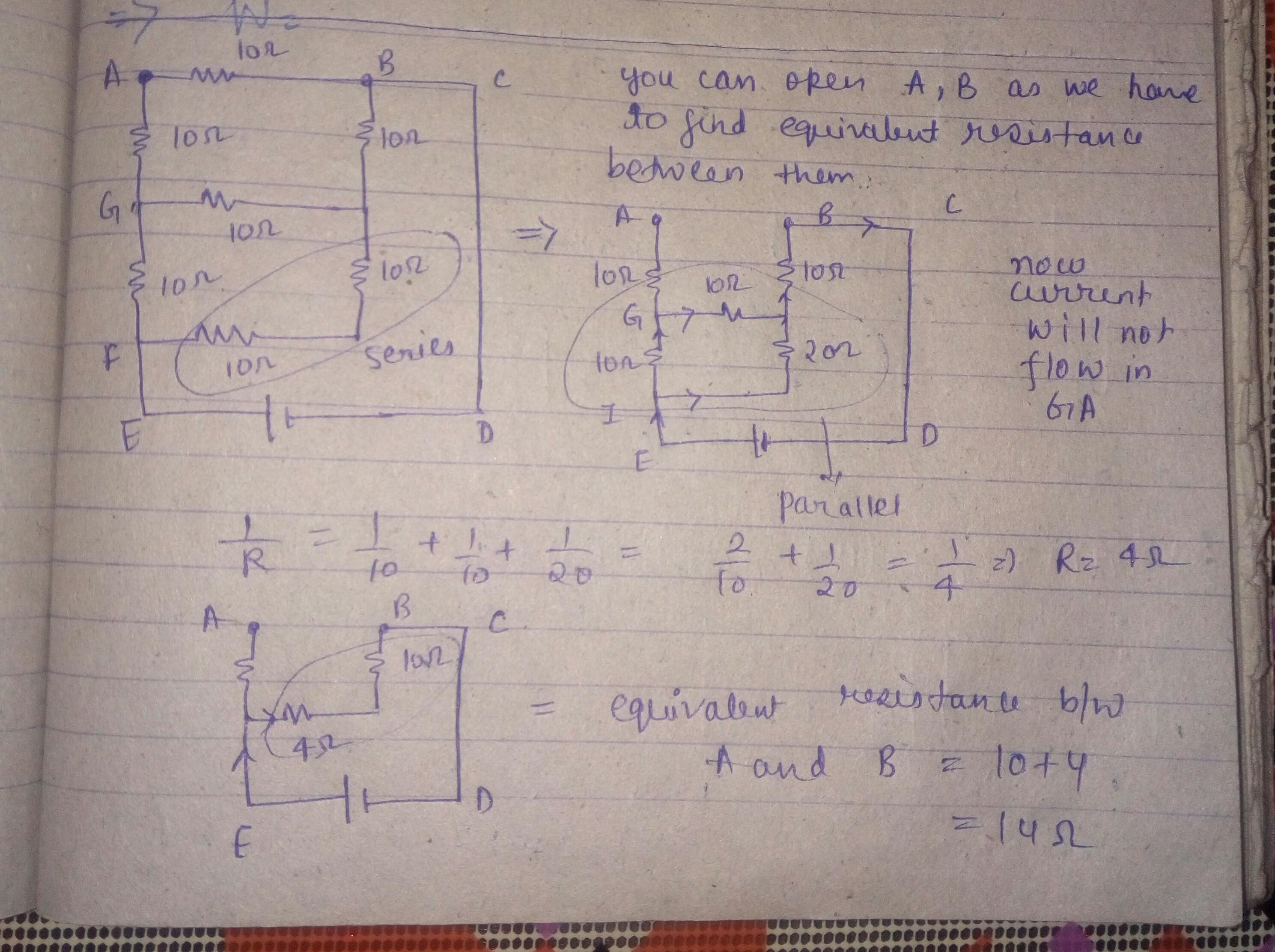

    I also provide you a solution..see that..

    eduncle-logo-app

    but if current does not flow through that arm.. the resistance must be infinite isn't it?

    eduncle-logo-app

    yeah resistance is infinite for AG arm that's why current will take the path that has less resistance and move towards GH .

  • comment-profile-img>
    Dhairya sharma

    dear did u upload your question properly ? actually i'm not able to see it.

    eduncle-logo-app

    Yes it has been uploaded properly.. It is showing me the picture

    eduncle-logo-app

    lemme try dear.
