Himanshu posted an Question

June 14, 2020 • 04:05 am

30 points

IIT JAM
Physics (PH)

Electricity theory

explain me that line how distance matter some diagram are also give!!!!!

3 Answer(s)

1 Likes
8 Comments
0 Shares

>
Chandra prakash

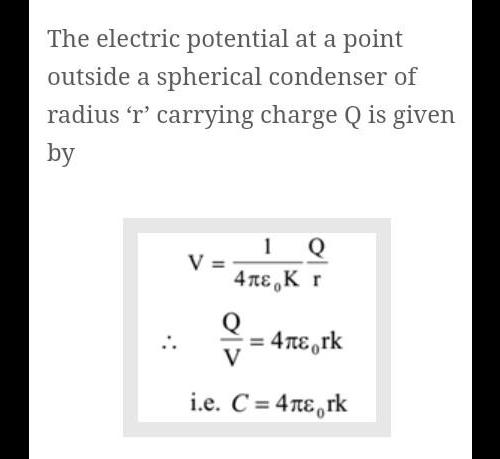

spherical case
- Likes(0)
- Reply(0)

>
Chandra prakash Best Answer

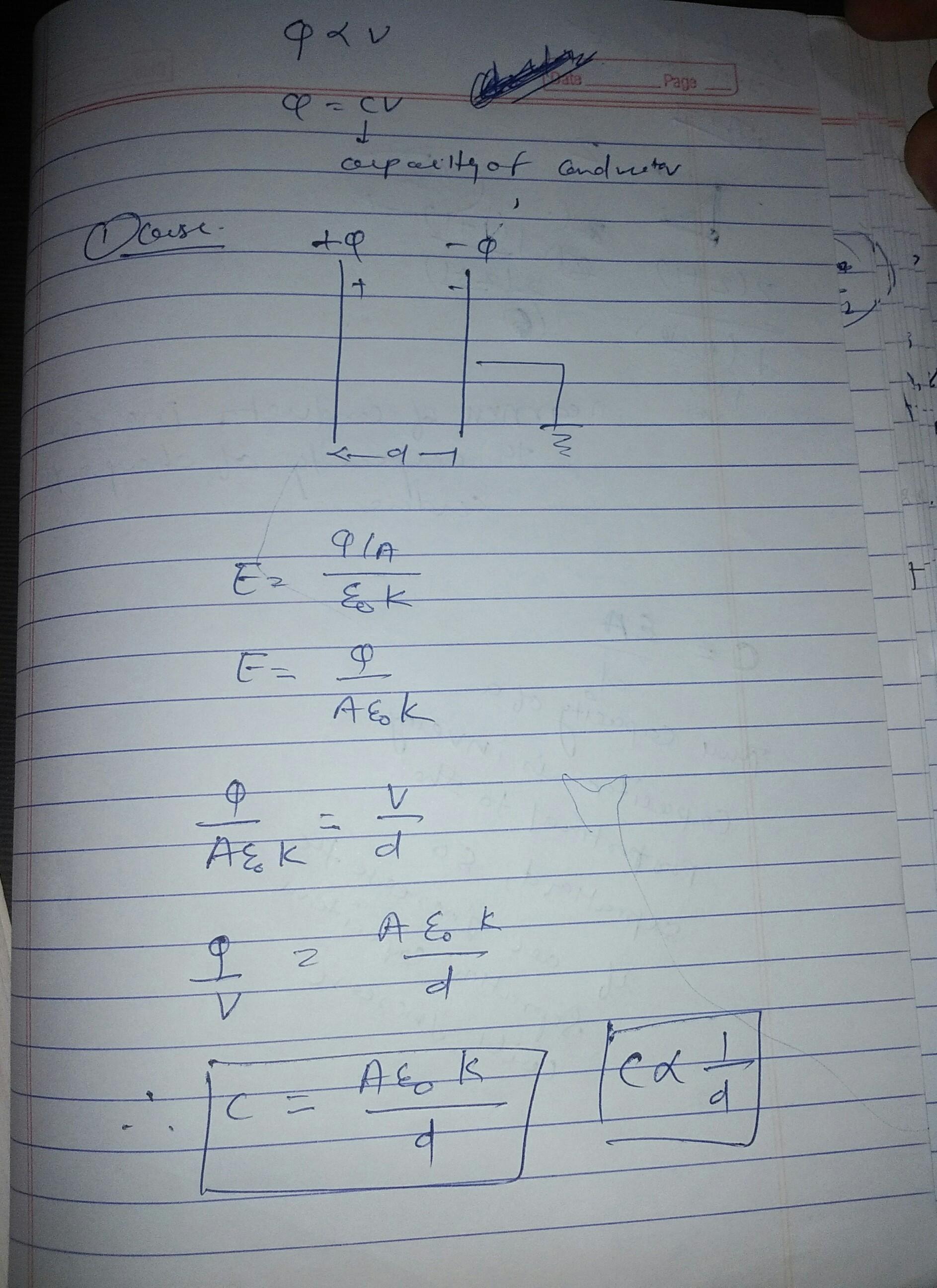

see attached file... simple derivation
- Likes(1)
- Reply(0)

>
Dhairya sharma

do u understood it ?
- Likes(2)
- Reply(2)
yes mam thank you
- Like(2)
welcome dear!
- Like(1)

>
Dhairya sharma

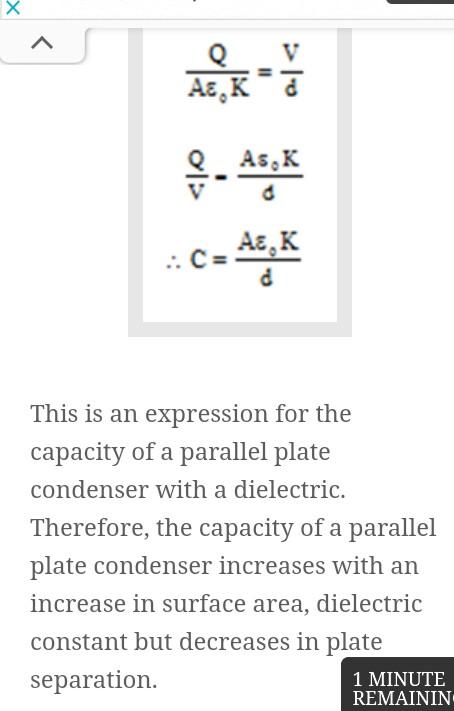

see attached
- Likes(2)
- Reply(1)

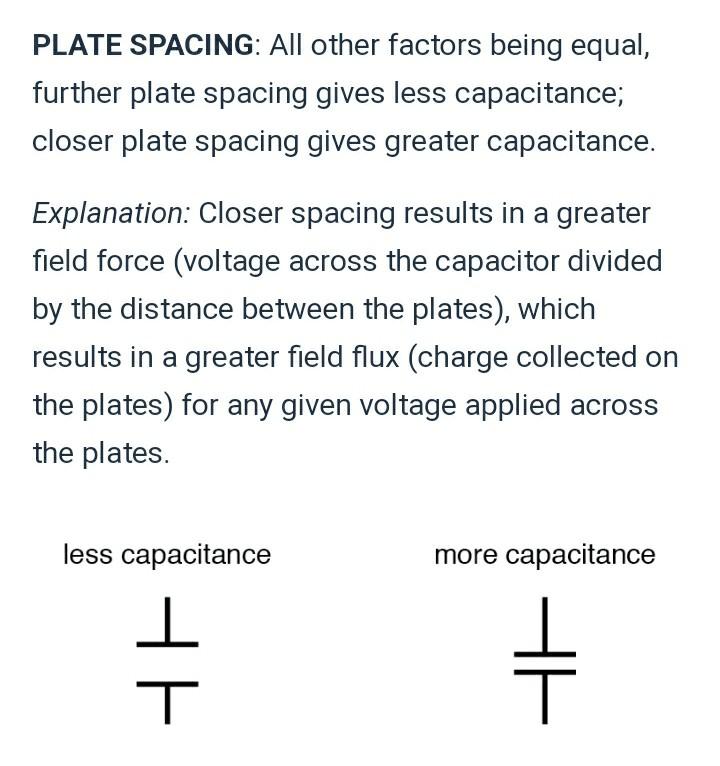

see it for more clarification
- Like(1)

>
Chandra prakash

For example we will consider a parallel plate capacitor C = \frac{\varepsilon A}{d} thus , Capacity of a cacpacitor is inversly proportional to the separation d , so if we decrease the separation , capacitance will increase.
- Likes(1)
- Reply(1)
👍
- Like(1)

>
Dhairya sharma

while third one is liner so field lines woluld be linear
- Likes(2)
- Reply(0)

>
Dhairya sharma

while in figure one it has no perticular shape so perpendicular to every surface means filed line may be like that.
- Likes(2)
- Reply(0)

>
Dhairya sharma

dear for circular or symmetrical it will outword towards the surgace and always perpendicular to the surface means in circle it follows by radius so it would be in radial direction
- Likes(1)
- Reply(3)
and how nearness increase capacity as C=QV. no distance is there ?????
- Like(2)
nearness will effect the experincing charge of both plates due to each other
- Like(1)
in capacitor they should be near so they can feel each others filed lines or area of influence..... otherwise there would be no capacitor if we put them at large distance.....becuse now two opposite polarity not intrecting with each other
- Like(1)
