Electronic

Electronic... kindly solve....i think Data is not sufficient by the way. answer is Ib= 0.17mA Ic= 1.7mA IE= 1.717 mA
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 2 Comments
  • Shares
  • Ruby negi

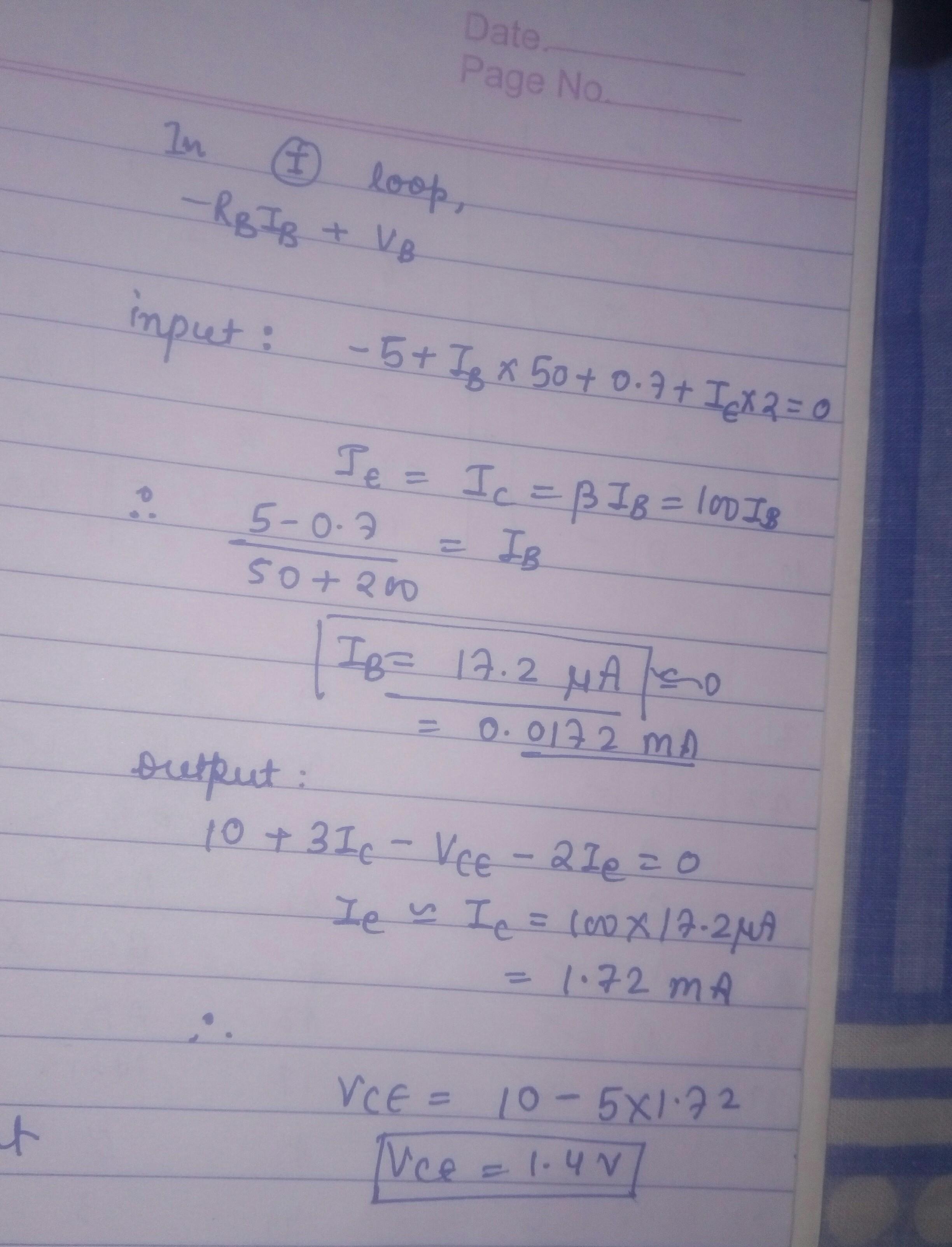

    solution..
    • cropped1263673207.jpg
    Likes(1) Reply(0)
  • Ruby negi thankyou
    apply KVL in both input and output sides: in input side: -5+50 I_b + 0.7 +2 I_e=0 where I_b is base current and I_e is emitter current . also 0.7 is given now , in output side, +...
