Aarti posted an Question
May 06, 2021 • 19:46 pm 30 points
  • IIT JAM
  • Physics (PH)

Example: 2r i 4r (b) (c) 3r ww 2r i =? 4r w4v lo4r (a) for the circuit shown in the figure the current i is: indeterminate due to inadequate data (a) (b) zero (

Example: 2R I 4R (b) (c) 3R ww 2R I =? 4R w4v lo4R (a) For the circuit shown in the figure the current I is: indeterminate due to inadequate data (A) (B) zero (C) 4 A (D) 8 A

1 Answer(s) Answer Now
  • 1 Likes
  • 1 Comments
  • 0 Shares
  • Som shekhar sharma best-answer

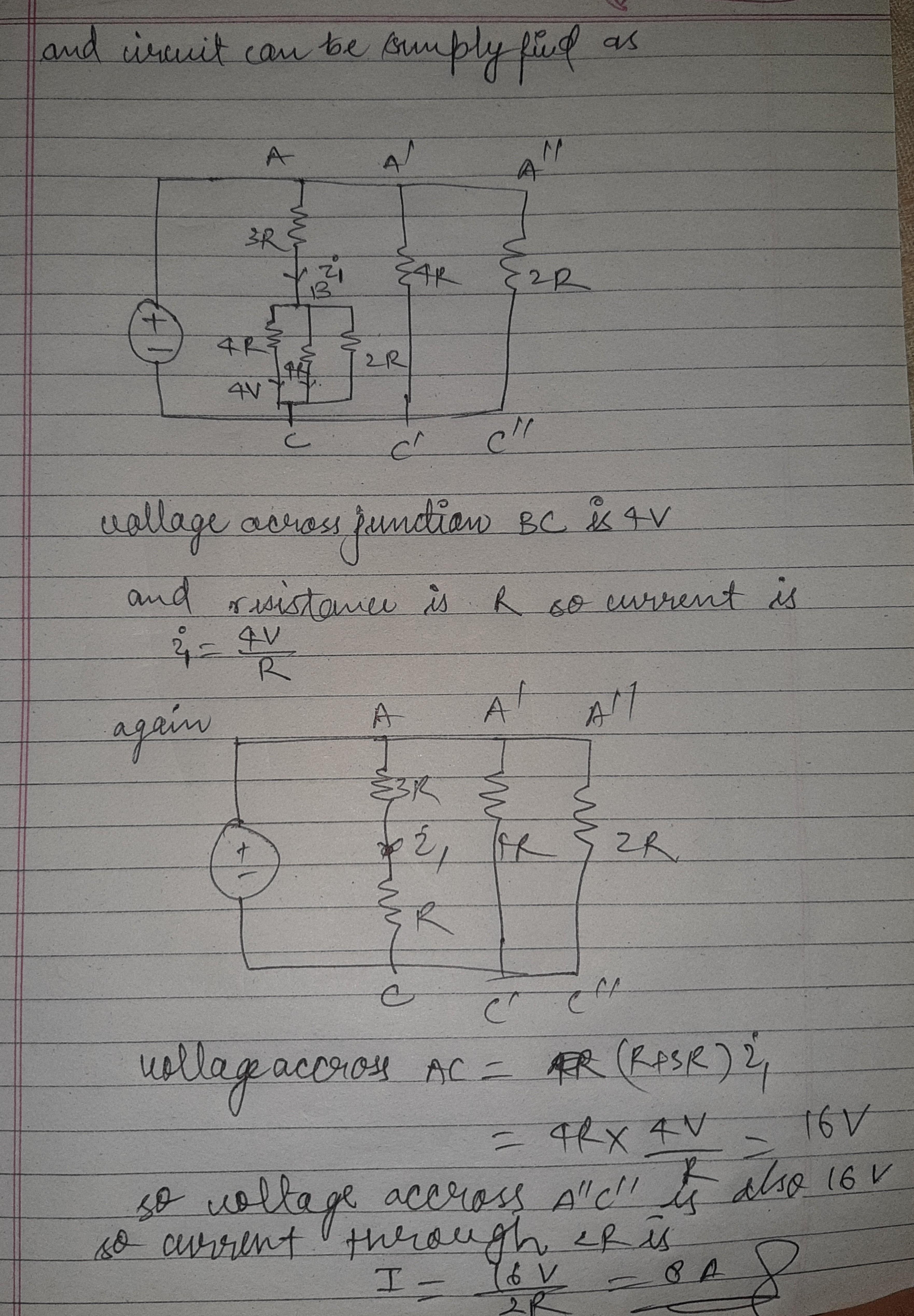

    i have given simplified circuit in first page and use it to analyse 2nd page of the solution

    eduncle-logo-app

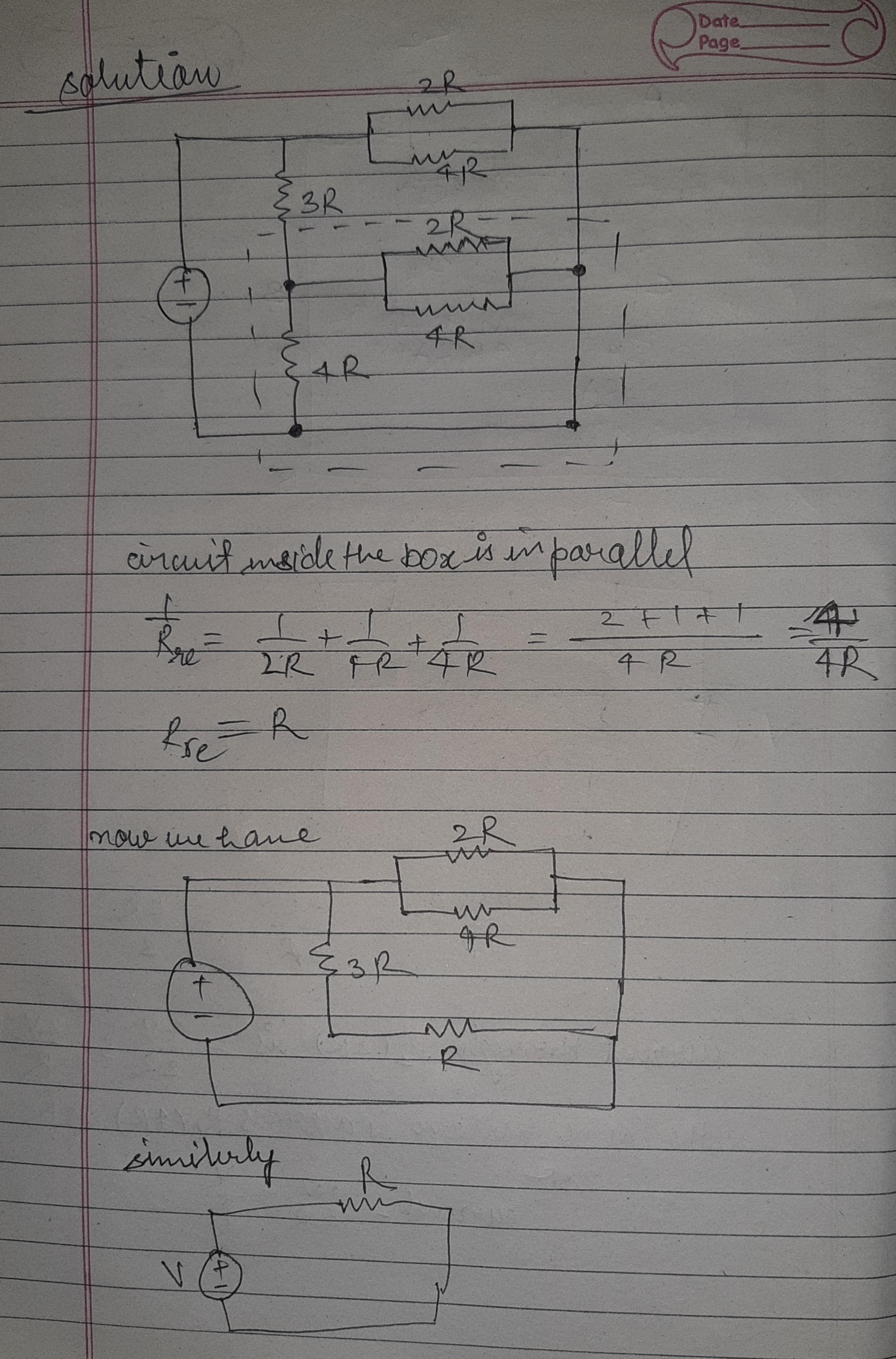

    but they gave this solution to the ques, but I didn't get that

    eduncle-logo-app

    they first calculated i using loop a. and then found out V and then they applied in outer loop to calculate I in 2R.
