Chetan Suryawanshi posted an Question
June 02, 2020 • 22:19 pm 30 points
  • IIT JAM
  • Physics (PH)

Example: 82 ww 40 40 ww- 82 solution r 0 20 // 0 ohm // 4 ohm = 0 ohm 8+4+ 8 202 l o ohm =0 ohmn 02// 40 = 0 so if a 0 resistance parallaly connected in any cir

Example: 82 ww 40 40 wW- 82 Solution R 0 20 // 0 ohm // 4 ohm = 0 ohm 8+4+ 8 202 l O ohm =0 ohmn 02// 40 = 0 So if a 0 resistance parallaly connected in any circuit then equivalent resistance would be zero. i can't understand.....what is question......how will this answer

3 Answer(s) Answer Now
  • 0 Likes
  • 6 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

    so when you find the equivalent resistance of 8,4,8 ohm that are connected in series you will get 20ohm then the 20ohm, zero ohm and 4ohm are connected in parallel so the equivalent resistance for the is zero ..

  • comment-profile-img>
    Dhairya sharma Best Answer

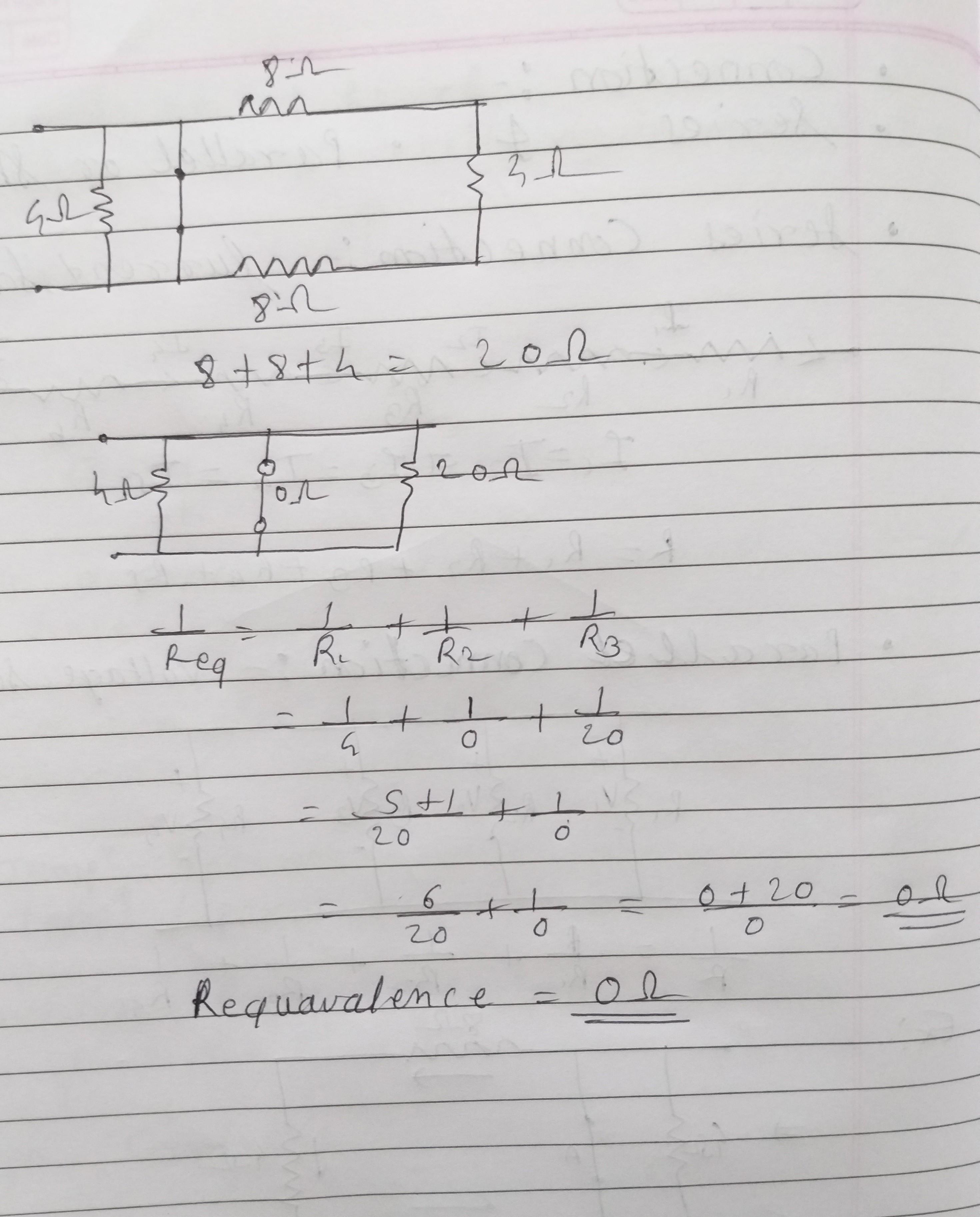

    see attached

    eduncle-logo-app

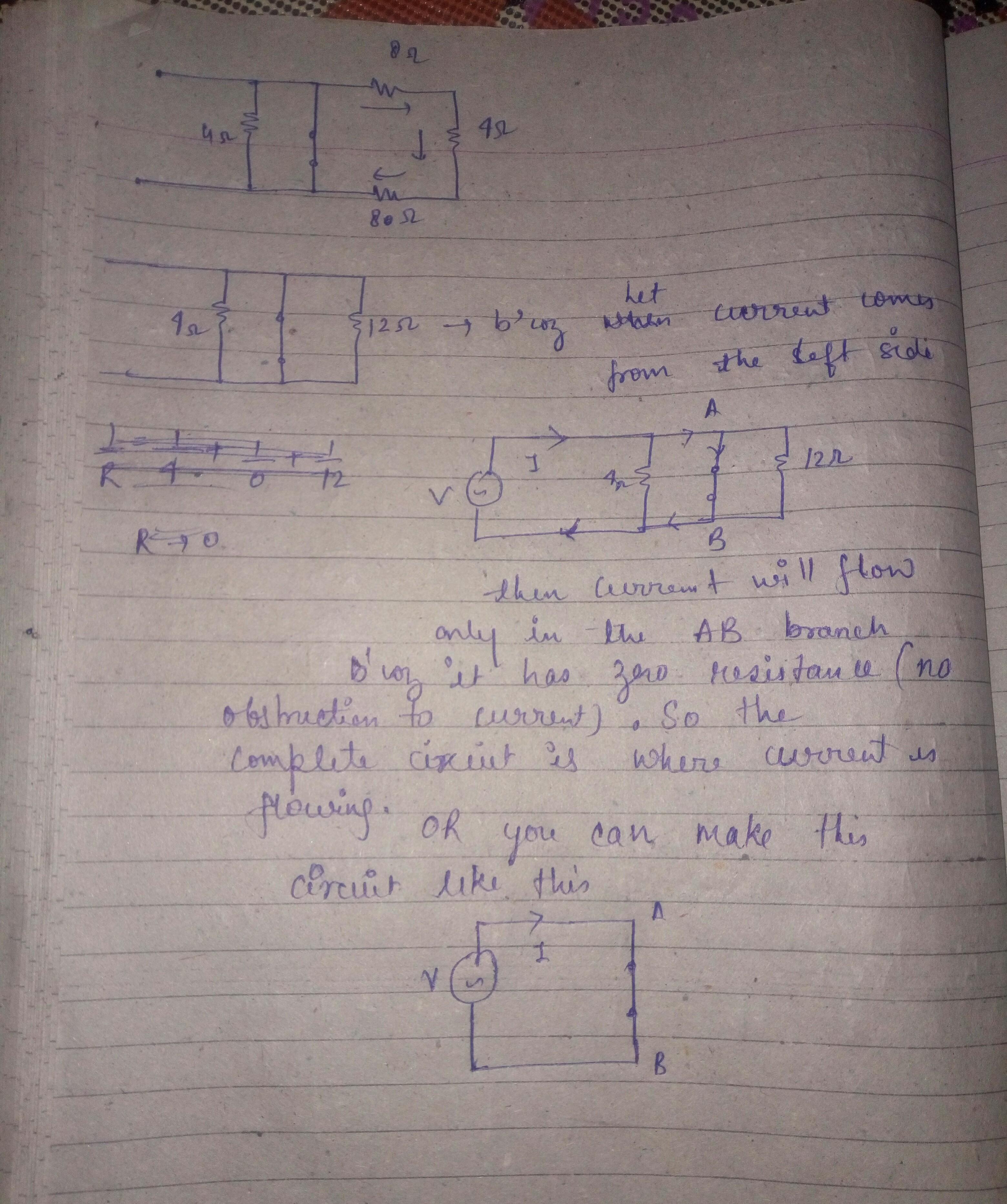

    herr these two dots shows that they are attached with zero resistance

    eduncle-logo-app

    i hope u get it dear

  • comment-profile-img>
    Ruby negi

    according to me, question is to find the equivalent resistance...

  • comment-profile-img>
    Dhairya sharma

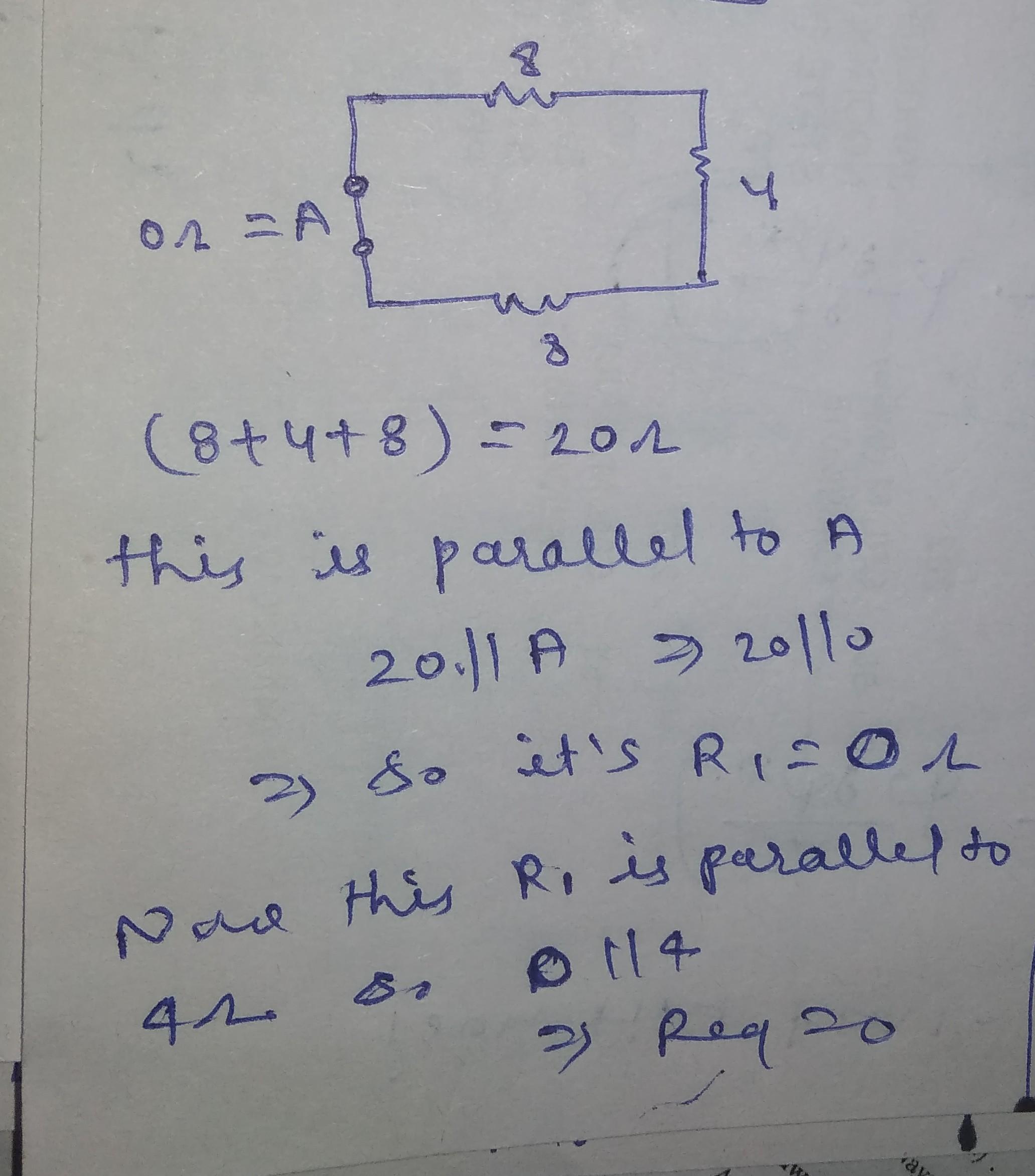

    dear in this figure resistance are connected with parallel to 0 resistance so equivalent resistance is zero

    eduncle-logo-app

    see attached in my next comment
