Gurmeet Singh posted an Question
January 25, 2021 • 22:36 pm 30 points
  • IIT JAM
  • Geology (GG)

Explain flow of glacier. please. especially with respect to plastic flow at bottom. what he means to that

Cguiariuues pIOSeL 1 u pa reguiaries presem In a moving glacier two zones can be identified: (1) zone of flow, and ti) zone of fracture. The "zone of flow" is found in the deeper layers of ice. Here the weight of the overlying ice is great, and the ice behaves plastically

3 Answer(s) Answer Now
  • 2 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Saurabh 1

    Gurmeet, kindly mark other answers. I think you forgot to mark them.

    eduncle-logo-app

    ok sir.yahan muje ek bat bta do....how sole marks tells us about the paleocurrent direction.

    eduncle-logo-app

    Well let's take example of flute cast. In this case as you have seen it is formed by scouring leading to deposition of sediments in the erosional prone part hence filling of sediments leads to flute like structure and cast defines the sediments filled. See in the diagram , the short steep side will point upstream and the long tapered side points downstream . See the arrow shows the direction of current.

    eduncle-logo-app

    Also see this ...

    eduncle-logo-app

    opposite to as case of dunes...in the flow

    eduncle-logo-app

    uper wali fig me direction sahi hai

    eduncle-logo-app

    as windwards side generally gentle & lee side steep hota...yahan ulta hai?

    eduncle-logo-app

    like my message so that i get notification

    eduncle-logo-app

    See these two, i guess in these figures flow or current direction is given correctly.

    eduncle-logo-app

    can you record this on Instagram.. please.

    eduncle-logo-app

    Ok bhai kar dunga.... Aur koi doubt kisi question me?

    eduncle-logo-app

    Any doubt in other questions i answered today

  • comment-profile-img>
    Sajan sarthak best-answer

    weight jyada he isliye pressure he to niche break nahi kar raha to plastic/ ductile behave kar raha he

  • comment-profile-img>
    Saurabh 1 Best Answer

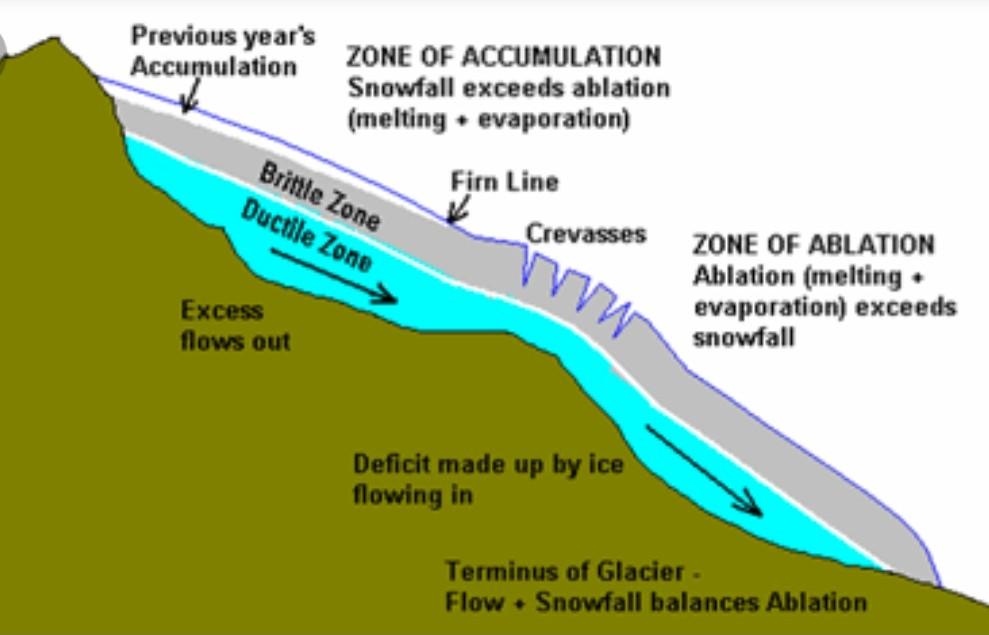

    Glacier is basically a downward moving body mostly consists of ice. Glacier has brittle nature at the top or on the surface which undergoes brittle deformation (best example is your crevasse form due to shearing or some tensional forces acting on the brittle ice). While as one moves down or in subsurface condition, they behaves as a ductile material under some pressure, ductile flow is seen most probably. Go through the figure attached it will help you.

    eduncle-logo-app

    ductile and plastic are nearly same ?...as they are saying glacier move as plastic movement.?

    eduncle-logo-app

    Actually materials that have a fair amount of plastic deformation before breaking are said to be ductile. While the brittle one actually breaks. So in all plastic deformation can be somewhat found prominent in ductile materials. In short quite synonymous

    eduncle-logo-app

    See this figure for more details..

  • comment-profile-img>
    Sajan sarthak best-answer

    GLACIER when moves its more like layers or sheets slideupon each other as the lower layer is very deeper inside it's having melted and liquid mixed layers so when they start sliding doesn't break and slide like VISCOUS flow. while the upper layered breaks and crevacess gets often created on them.

    eduncle-logo-app

    3rd line
