Aashi posted an Question
June 13, 2020 • 22:42 pm 30 points
  • IIT JAM
  • Physics (PH)

Explain the question

3 Answer(s) Answer Now
  • 0 Likes
  • 8 Comments
  • 0 Shares
  • Neeraj bansal best-answer

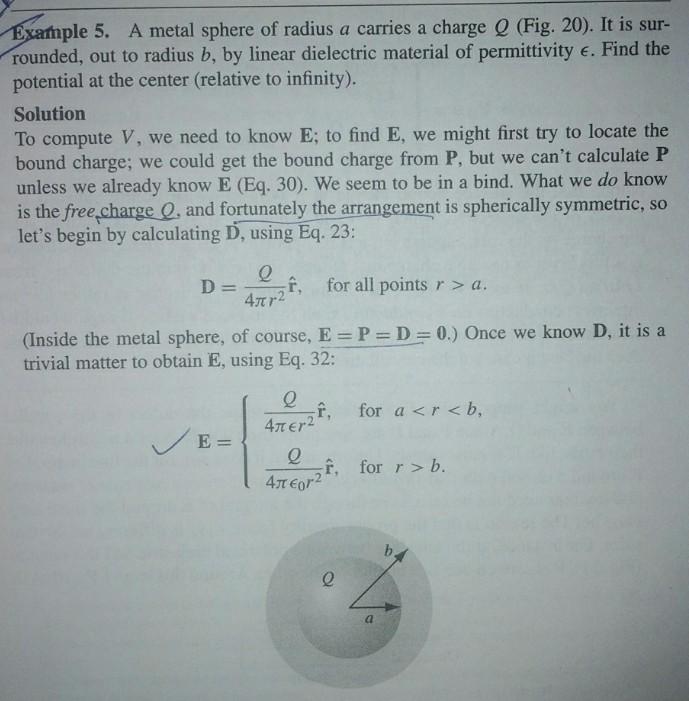

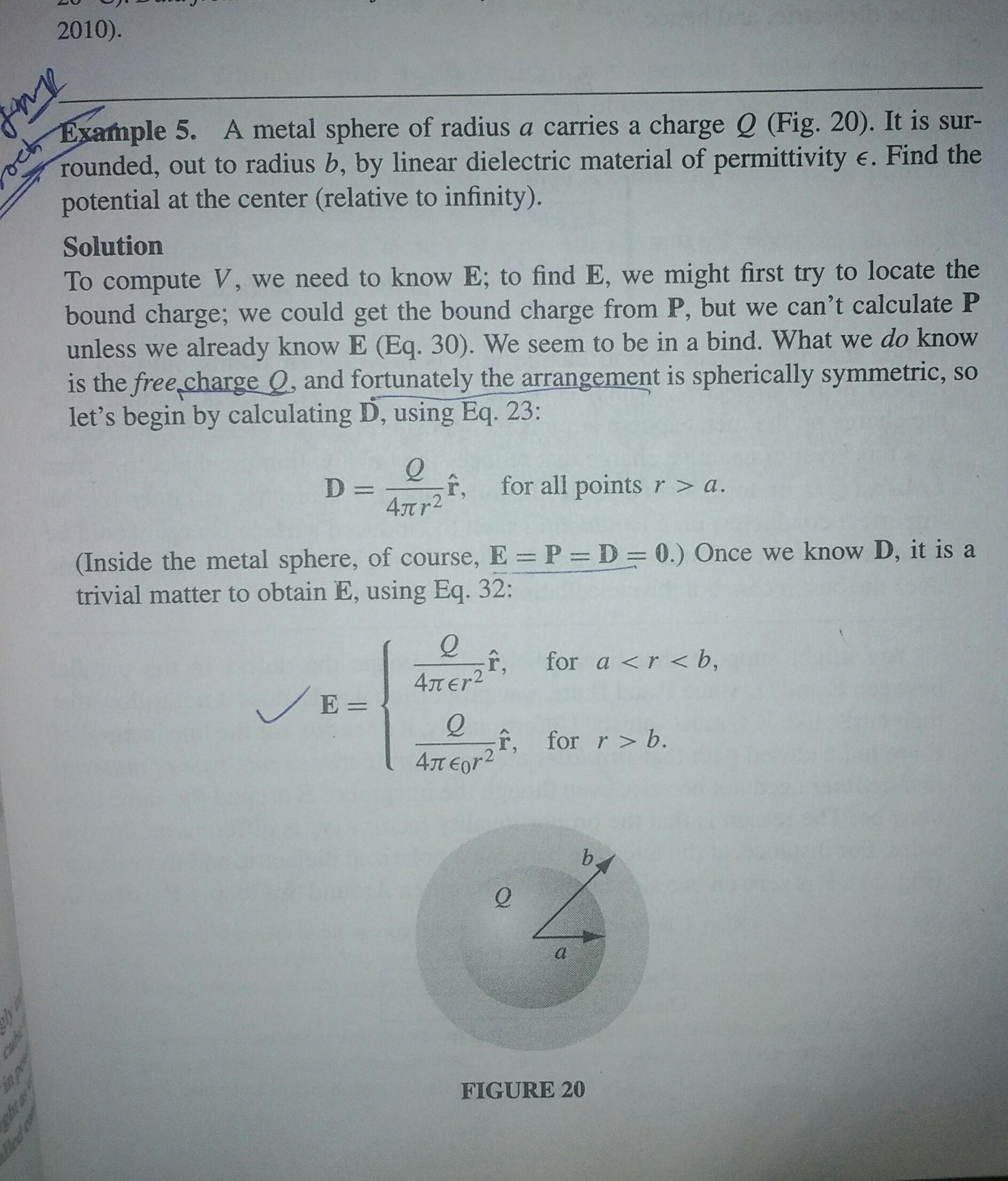

    question says that there is sphere with radius 'a' and it is surrounded with dielectric material upto radius 'b' i.e. dielectric is outside given sphere. we have to find potential at thecentre using infinity as reference point and volume and charge density. means you will assume bringing the charge from infinity to centre of sphere

  • comment-profile-img>
    Ruby negi

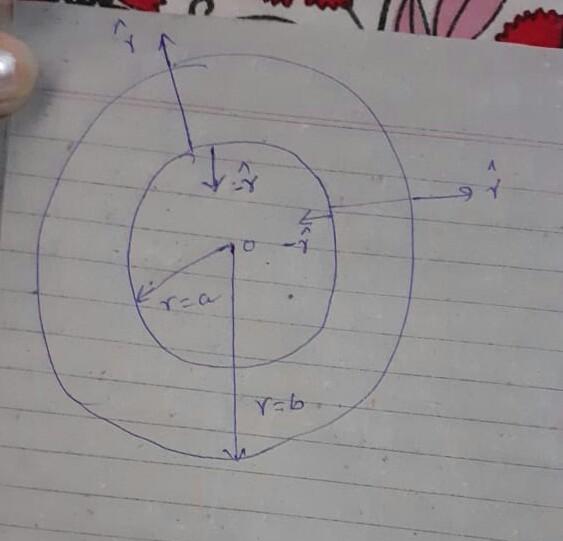

    note these are the normal vector to the sphere.. in case of inner shell, it's direction is inward that's why surface charge density will negative.

    eduncle-logo-app

    feel free to ask..

    eduncle-logo-app

    maam at surface a n vector is in -r direction with respect to dielectric. ma'am do we always find n vector with respect to dielectric and if yes why?

    eduncle-logo-app

    no, it's depend on which surface u are finding normal vector..

  • comment-profile-img>
    Chandra prakash

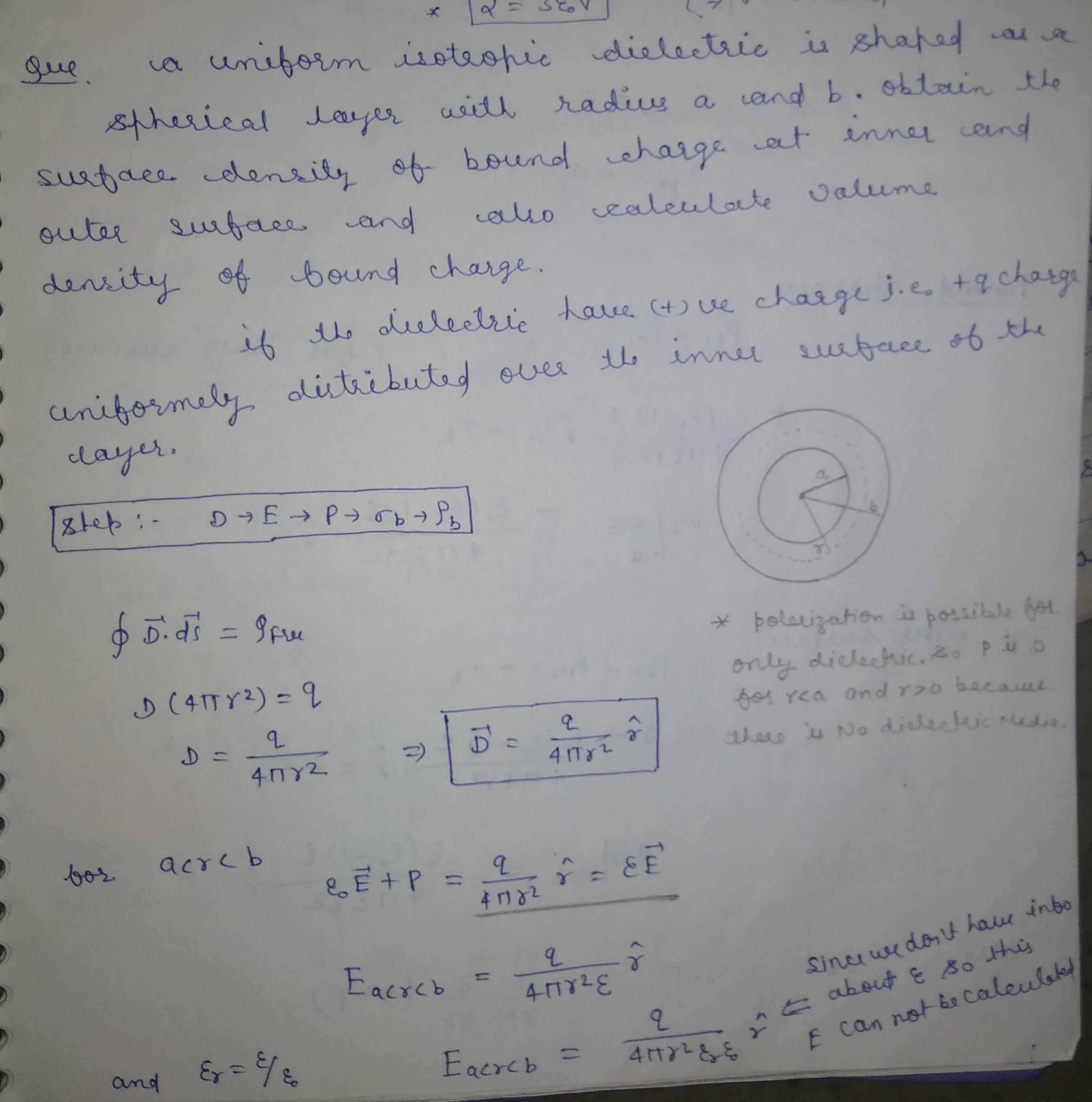

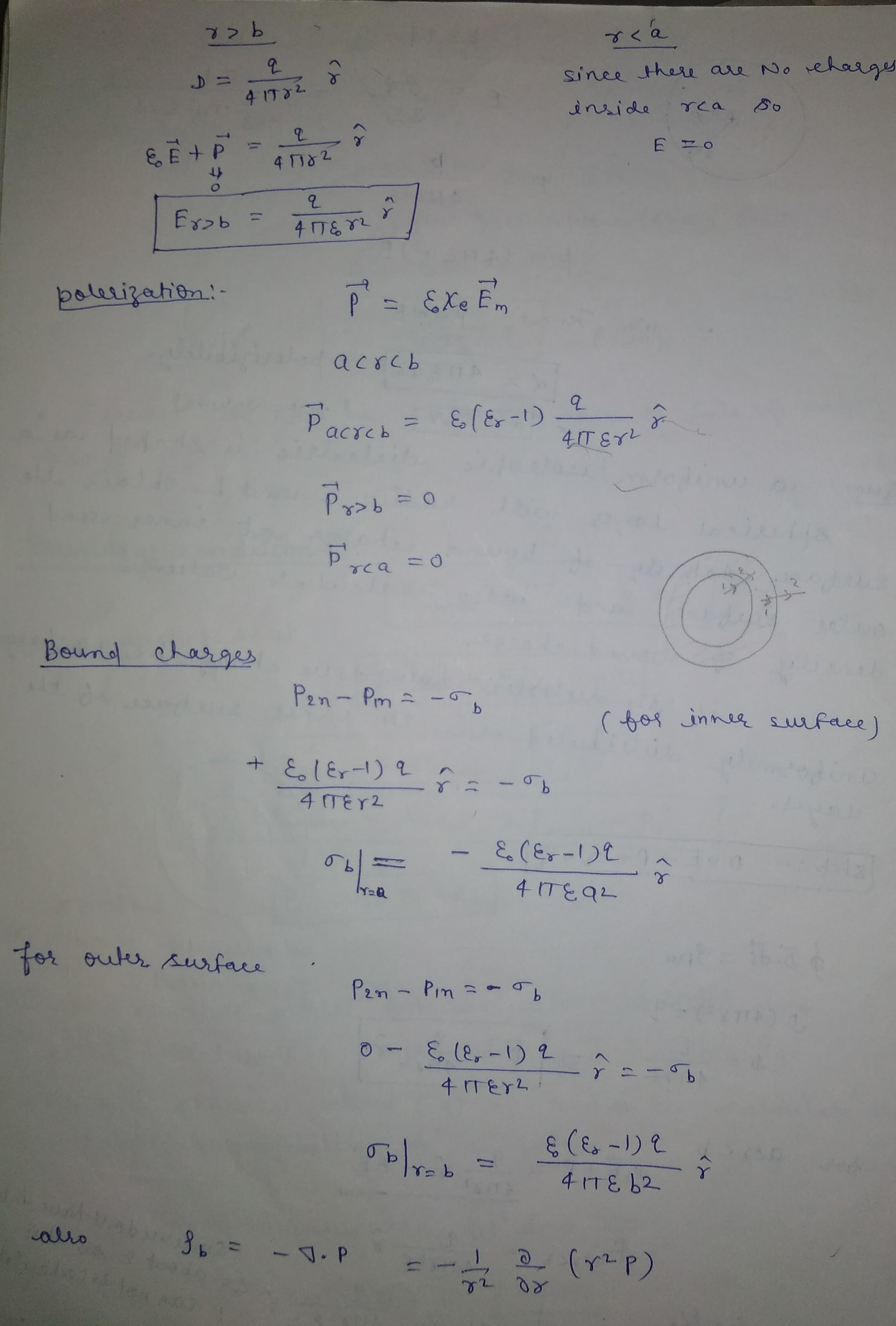

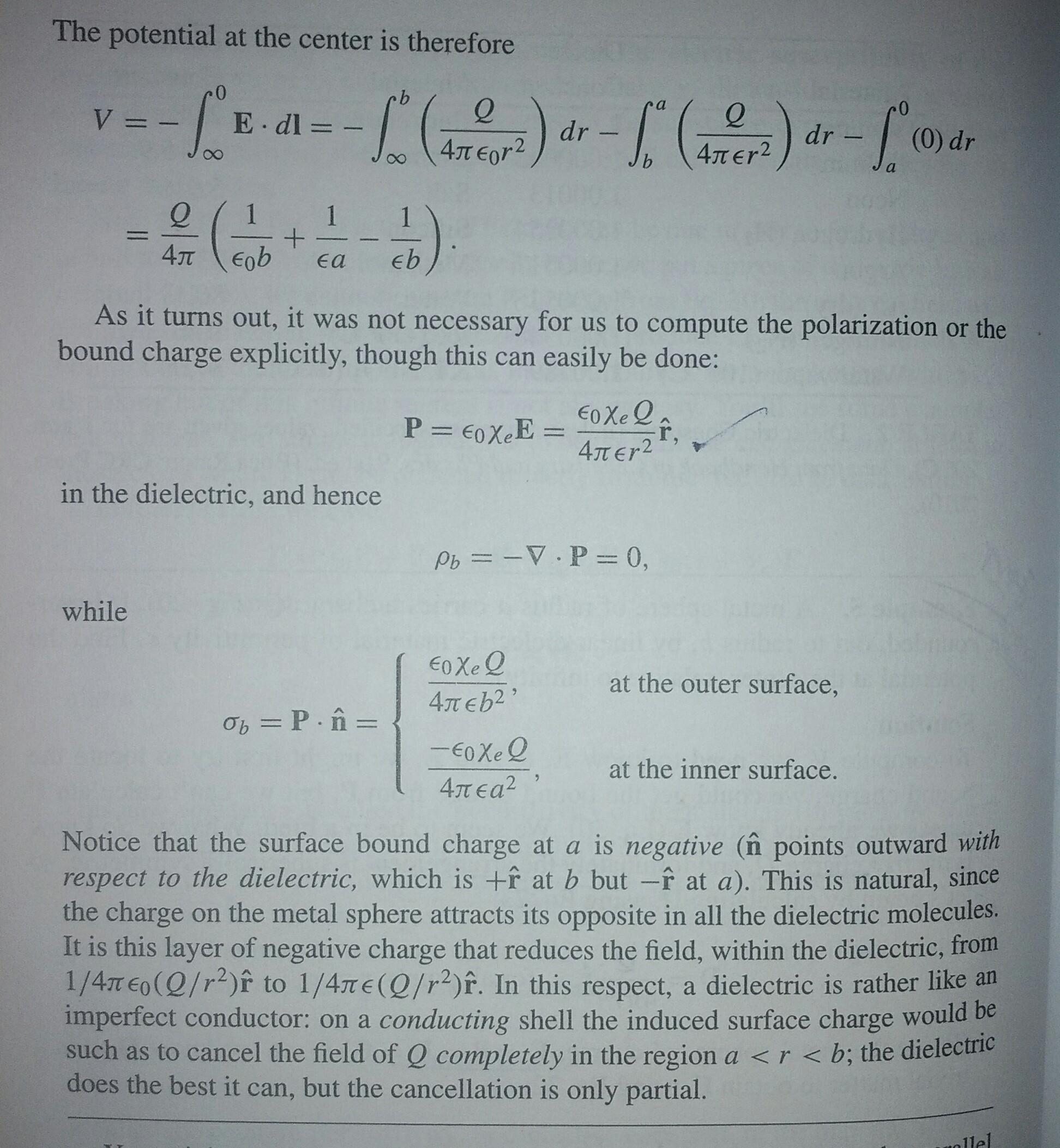

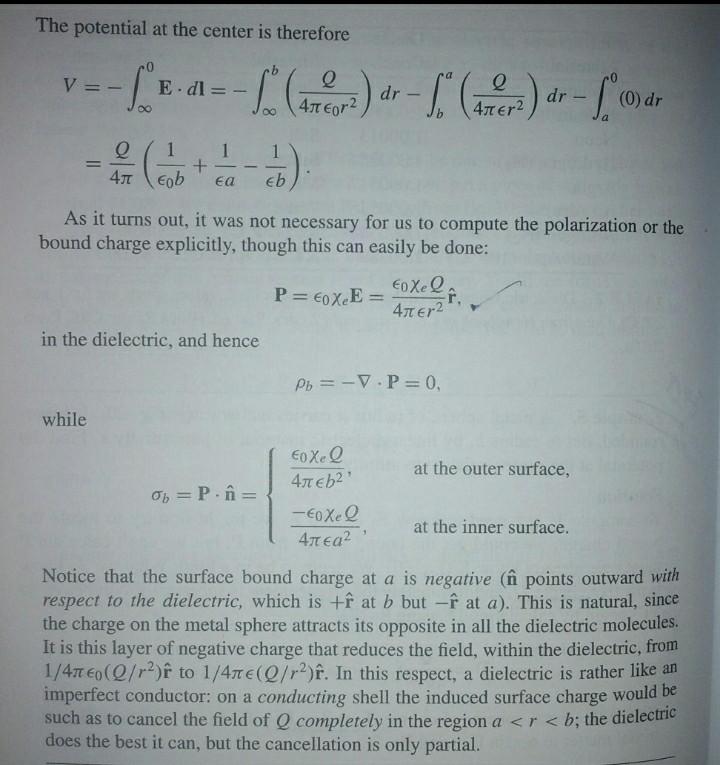

    hope you get it dear.. in this question 1st of All u find electric field and potential... after all u compute the polarization and bound charge explicitly... for better understanding see solution dear

  • comment-profile-img>
    Dhairya sharma

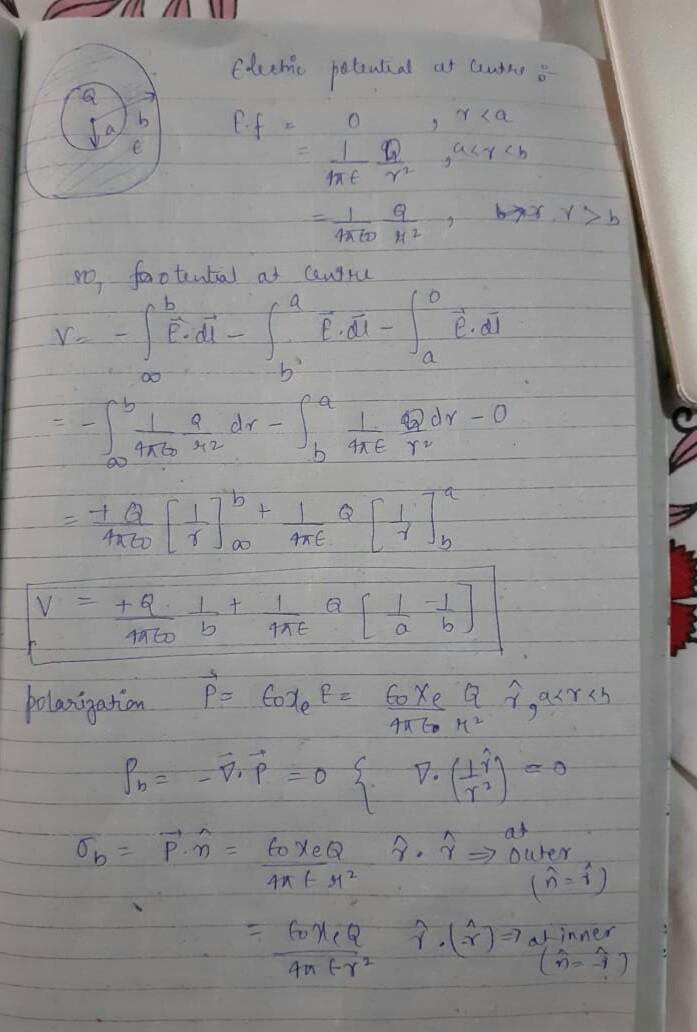

    i hv attached the field.....we can find out potential from field.
