Shib Sagar posted an Question
July 13, 2020 โ€ข 06:50 am 30 points
  • IIT JAM
  • Chemistry (CY)

Explain this how to use those formulas give 2,3 examples

tive nuclear BOund state t is this nis orbital that is occupicd. Z f

2 Answer(s) Answer Now
  • 0 Likes
  • 9 Comments
  • 0 Shares
  • comment-profile-img>
    Priyanshu kumar best-answer

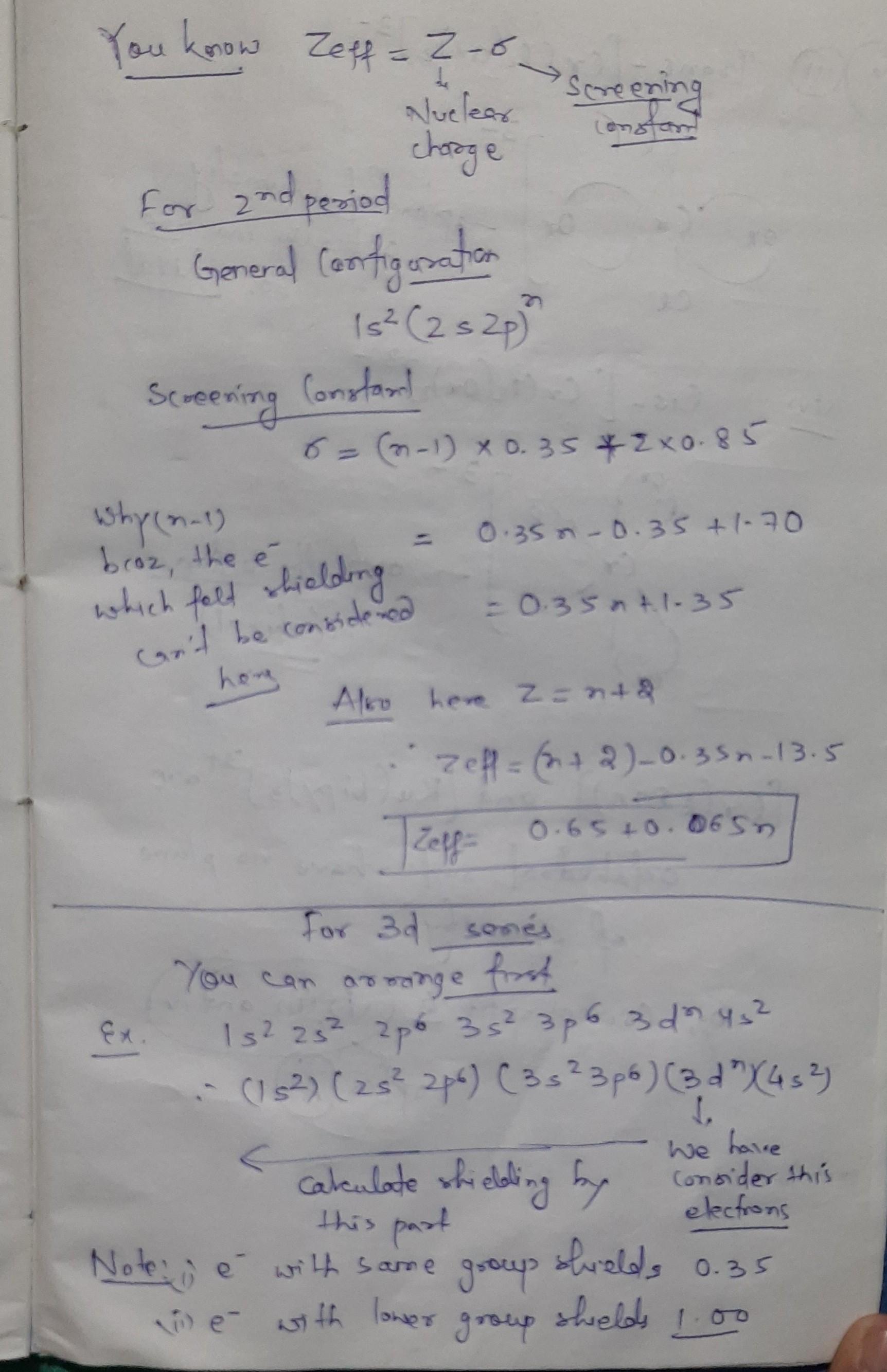

    check this...how you can proceed for all these

    eduncle-logo-app

    check this shib

    eduncle-logo-app

    sir I m not clear about this topic and I m also confuse when I use these formula and the other one which is like zeff=z-sigma

    eduncle-logo-app

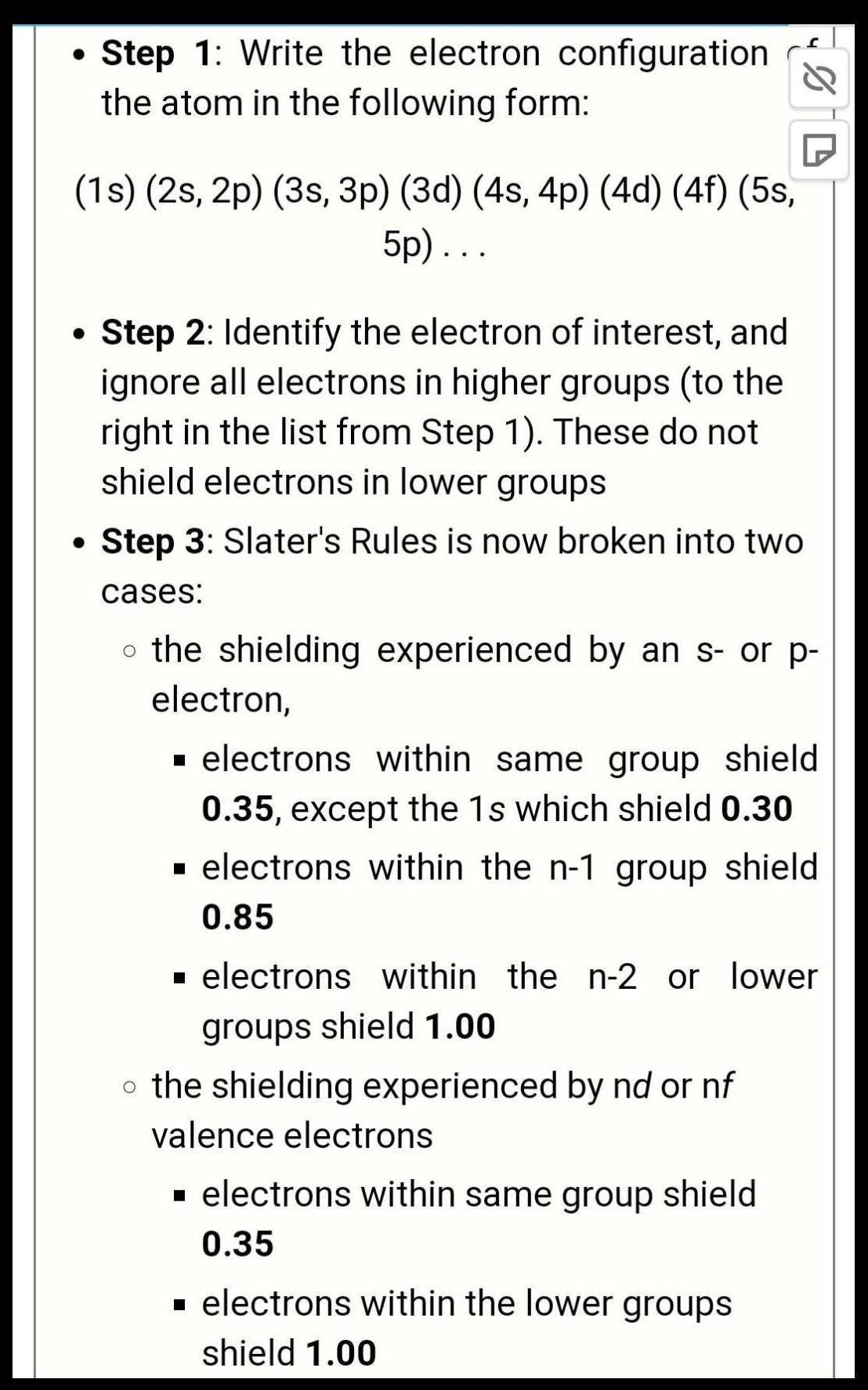

    mainly i have attached images about slater rules..so that you can easily find screening constant that is sigma...and nuclear charge is nothing but this is atomic number

    eduncle-logo-app

    the formula which is given in your booklet..it is derived from general formula by taking n

    eduncle-logo-app

    Don't be learn formula type...try to focus on concept behind slater's rule...it helps

    eduncle-logo-app

    and the screening effect is caused by internal electrons between nucleus and considering electrons...so dont be confuse here

    eduncle-logo-app

    got shib or still any doubt then ask?

    eduncle-logo-app

    sir i solved many problems regarding Zeff=Z-sigma but my confusion is for last electron of 2nd periond and last electron of d orbital that when i will use that formula instead of 1st one

    eduncle-logo-app

    yes see when the transition series comes then effective nuclear charges changes as d electrons comes...so use the formula which i have attached in the images

    eduncle-logo-app

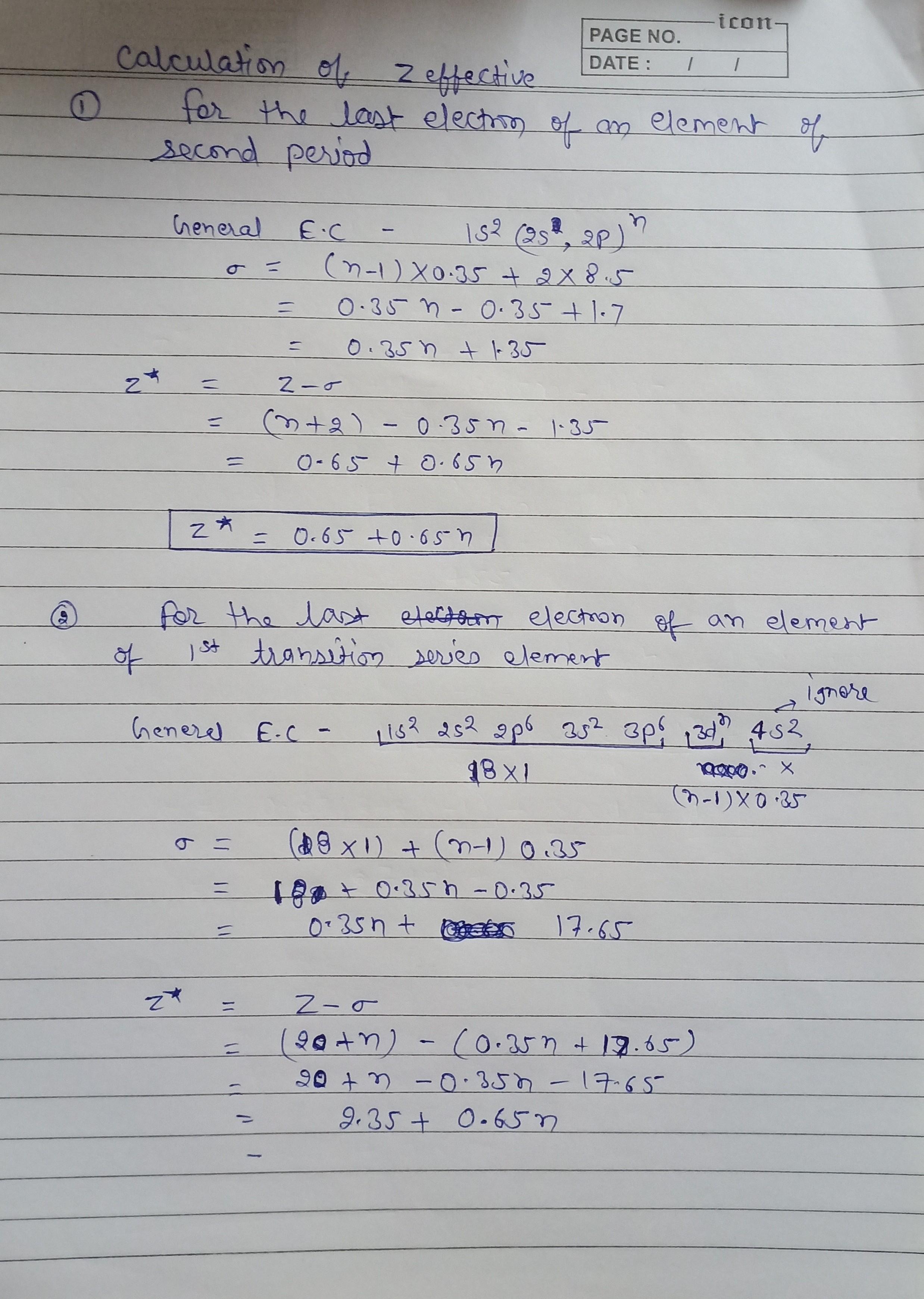

    see this one..last part...read step 3...when 2nd orbit comes and when 3rd means d orbital comes

    eduncle-logo-app

    shib you can always use Zeff=Z - sigma...changes comes here in finding sigma value...so proceed the way which i have written to find sigma value

    eduncle-logo-app

    shib please mark the answer too if your queries is resolved๐Ÿ˜Š

  • comment-profile-img>
    Priyanshu kumar

    don't be confuse....first arrange the electron configuration in the proper way as given in the image then find the value of screening constant

    eduncle-logo-app

    please mark the answer if it helps u shib๐Ÿ˜Š๐Ÿ™

  • comment-profile-img>
    Priyanshu kumar

    use this way shib

    eduncle-logo-app

    got it shib if you have any doubt in this then please ask and clear your doubt

  • comment-profile-img>
    Dinesh khalmaniya 1 Best Answer

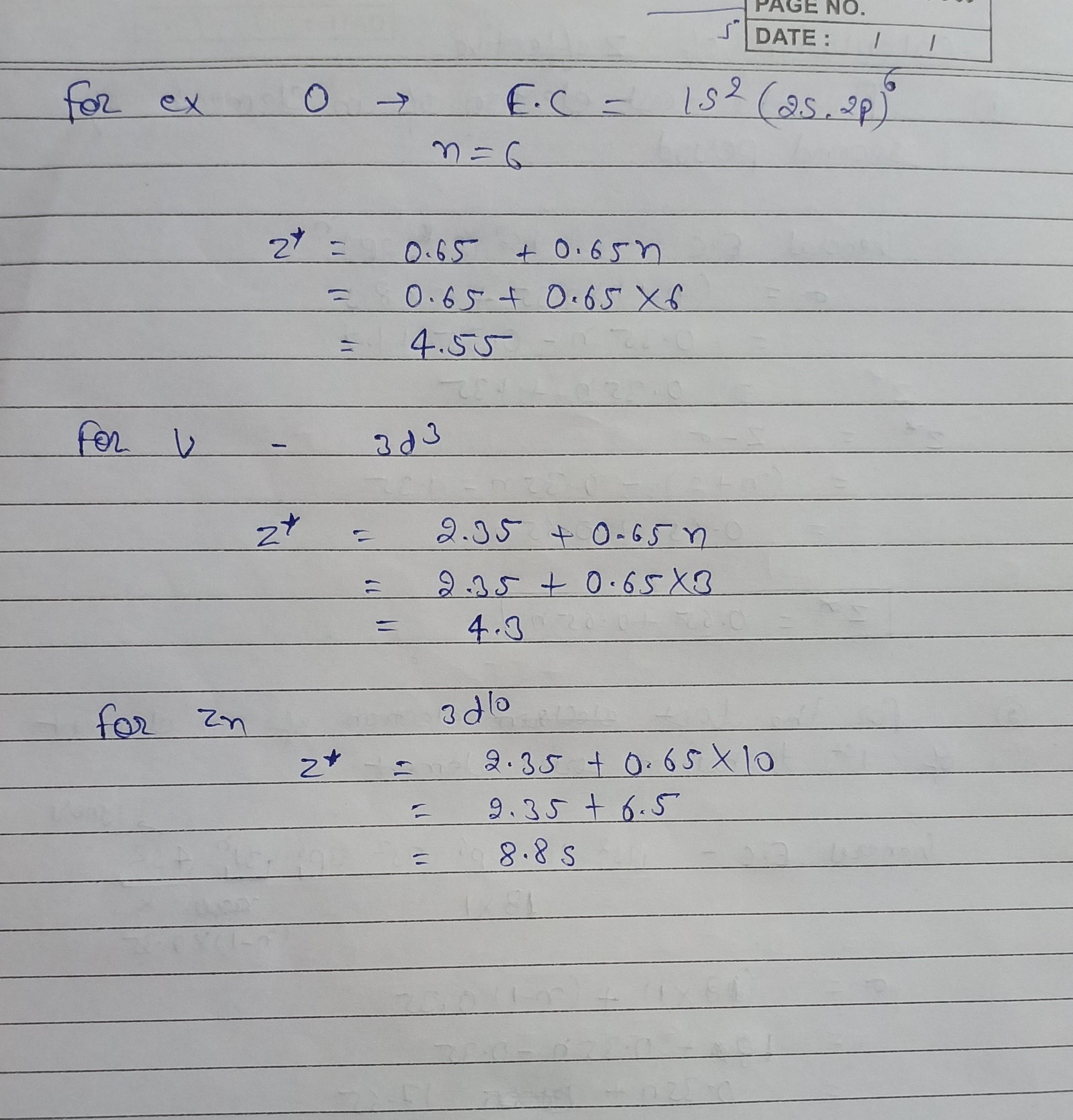

    some examples

    eduncle-logo-app

    accept the answer if you got it ๐Ÿ™๐Ÿ™

  • comment-profile-img>
    Dinesh khalmaniya 1

    now you can apply these formula for those which are given in you booklet.

  • comment-profile-img>
    Dinesh khalmaniya 1

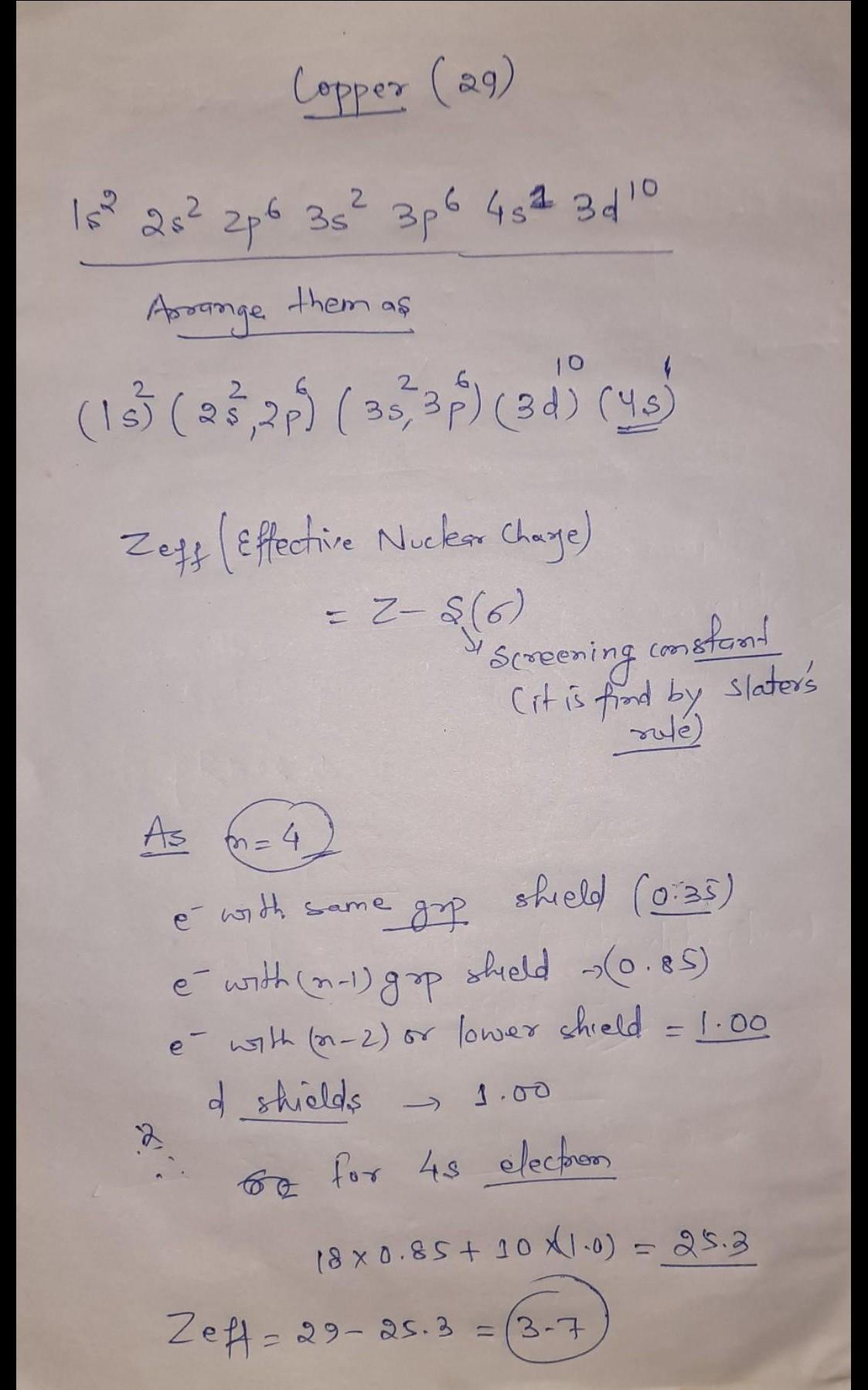

    you can't use this formula for exceptional configuration such as Cr, Cu

  • comment-profile-img>
    Dinesh khalmaniya 1

    2nd formula is wrong. please use formula provide by me

    eduncle-logo-app

    dis you get it???

    eduncle-logo-app

    please accept the answer if you got it ๐Ÿ™๐Ÿ™

    eduncle-logo-app

    sir pz tell me when I will use these formulas I am not clear about the last electron of 2nd period

    eduncle-logo-app

    here this formula is used only for the electron present in 3d orbital so we will use the n value of n is equal to number of electrons in 3d orbital

    eduncle-logo-app

    got it??

    eduncle-logo-app

    such as for Sc =3d1 , n= 1, for Fe = 3d6 n= 6

    eduncle-logo-app

    got it??

    eduncle-logo-app

    sir for Sc and Fe i can use Zeff=Z-sigma this formula??

    eduncle-logo-app

    yes, why not

    eduncle-logo-app

    but you can't use this formula for Cr, and Cu because they have exceptional configuration

    eduncle-logo-app

    but I'll specially suggest you to uss systematic method to calculate Zยฐ
