Sayan posted an Question
April 23, 2020 • 00:37 am 30 points
  • IIT JAM
  • Physics (PH)

Find the angle

2 Answer(s) Answer Now
  • 0 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Dhairya sharma

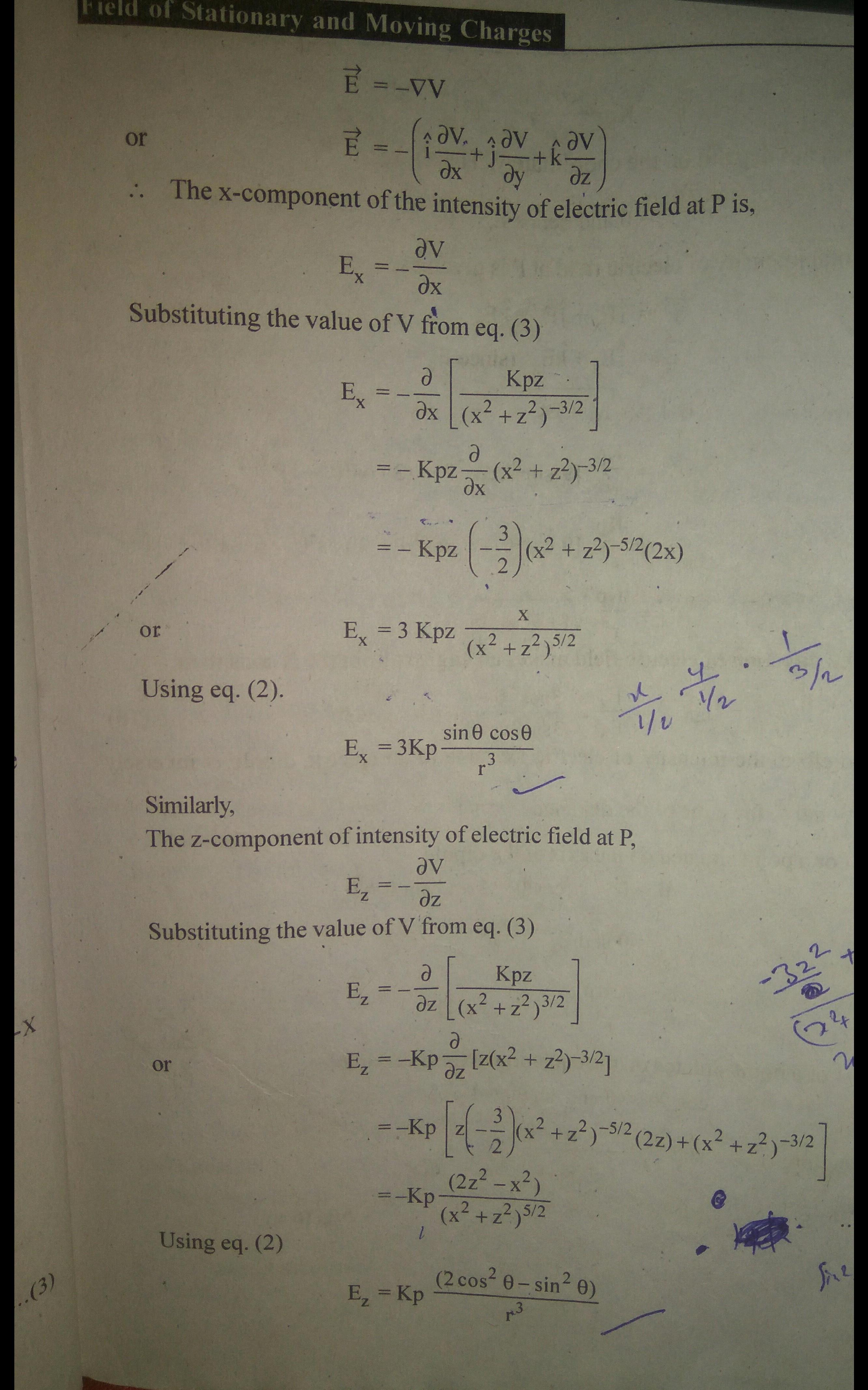

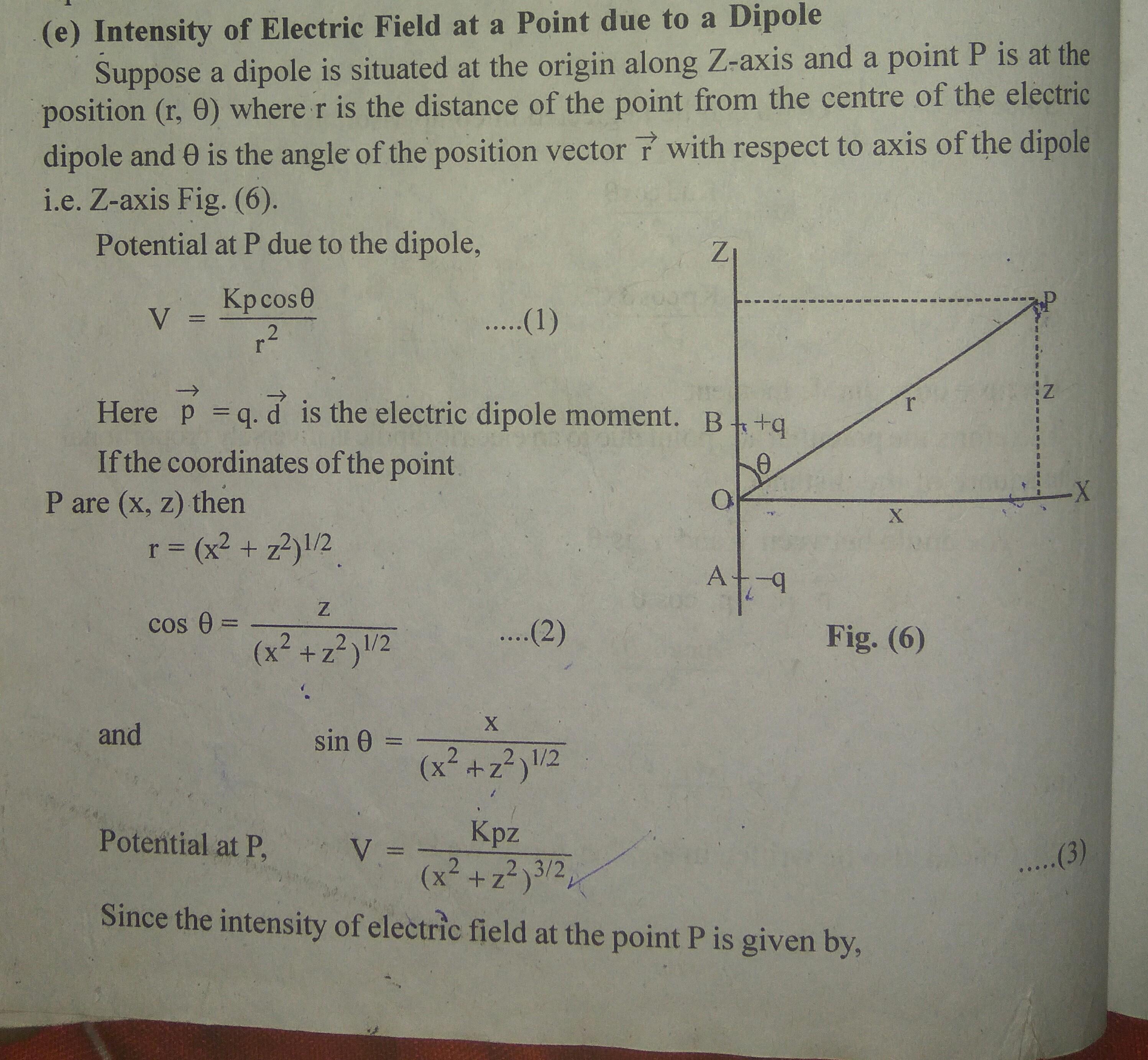

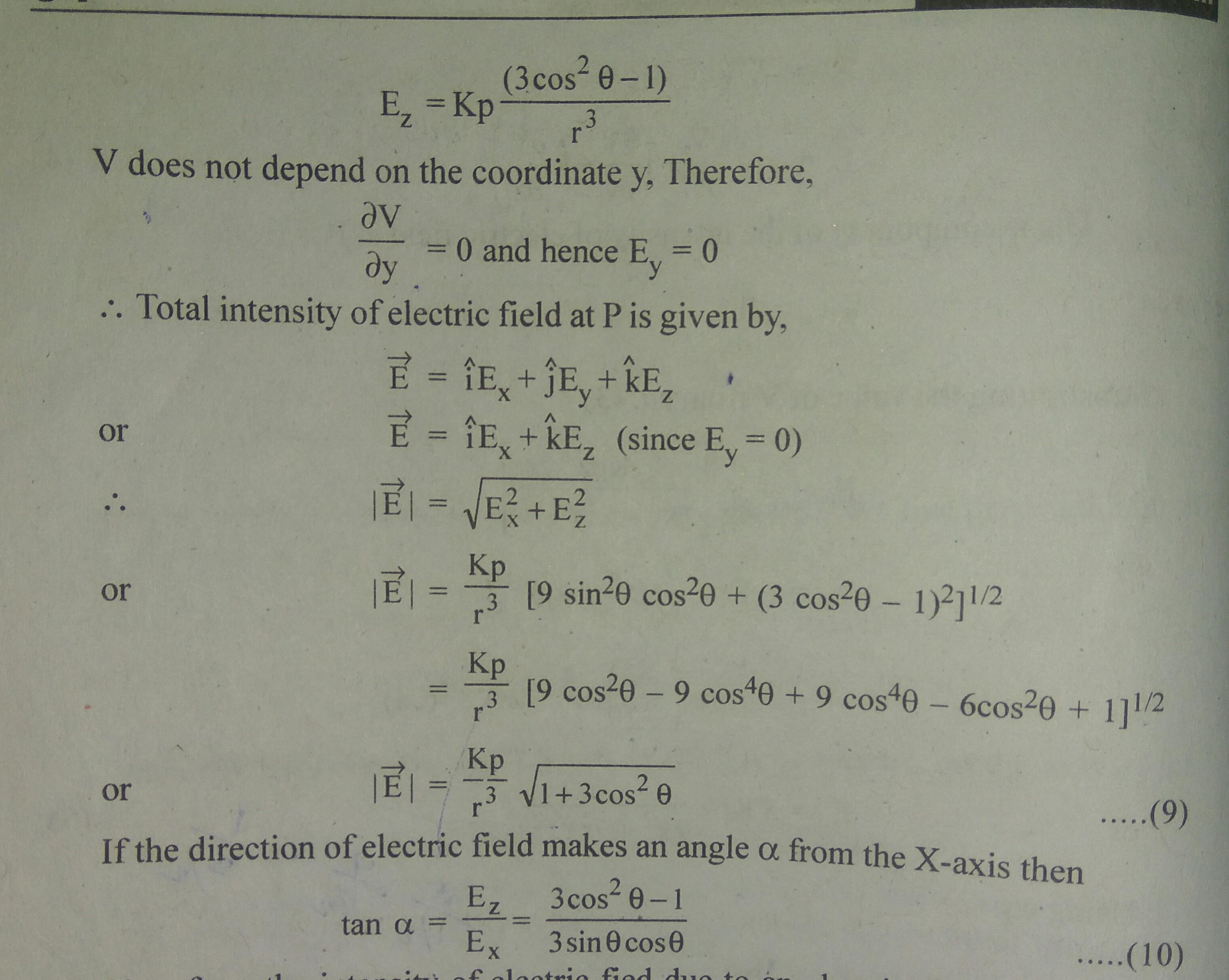

    see the all attatched. here angle made from x axis whereas the thitha from dipole. in question angle made from the x axis which is the similar to the given. see the attached.

  • comment-profile-img>
    Shanu arora

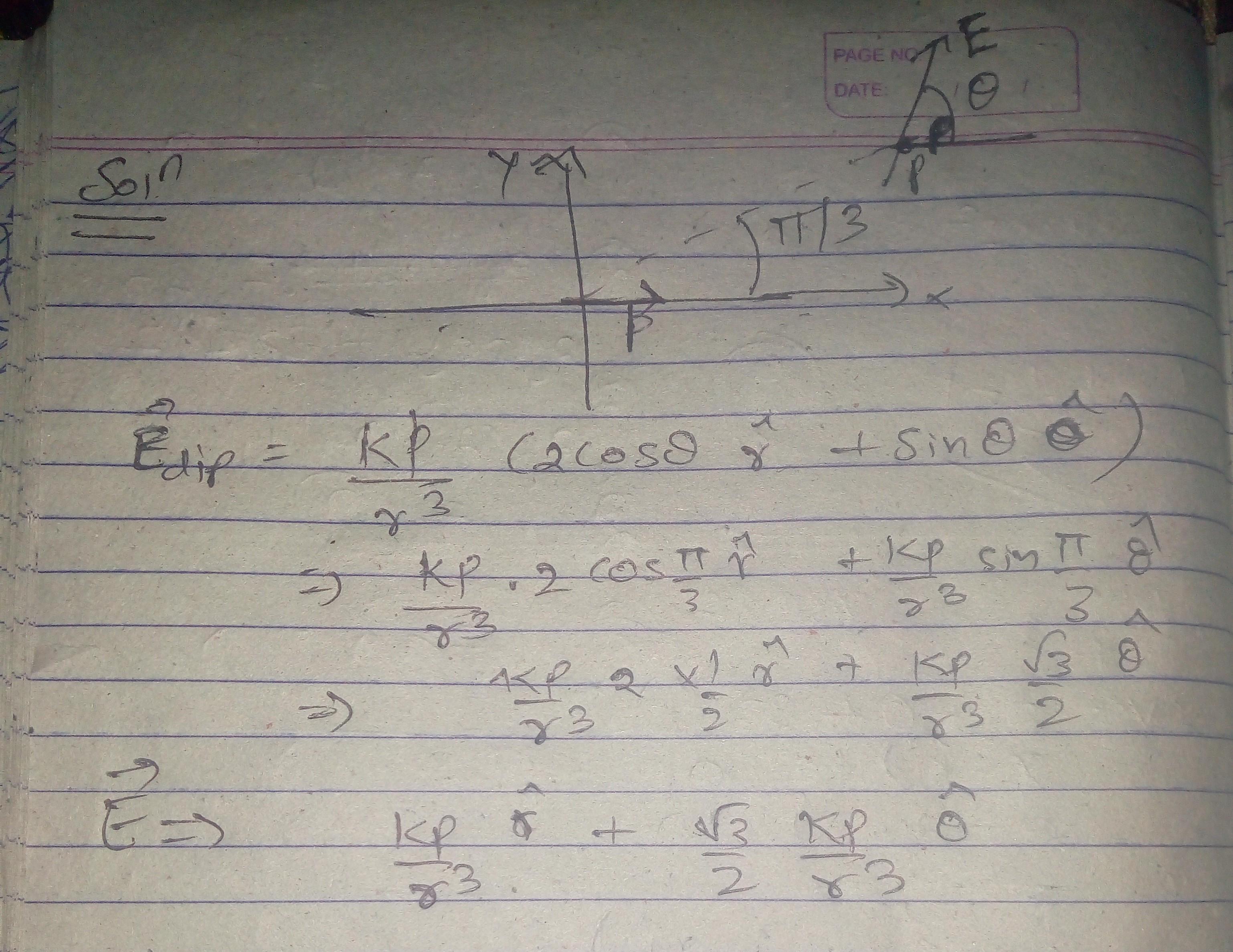

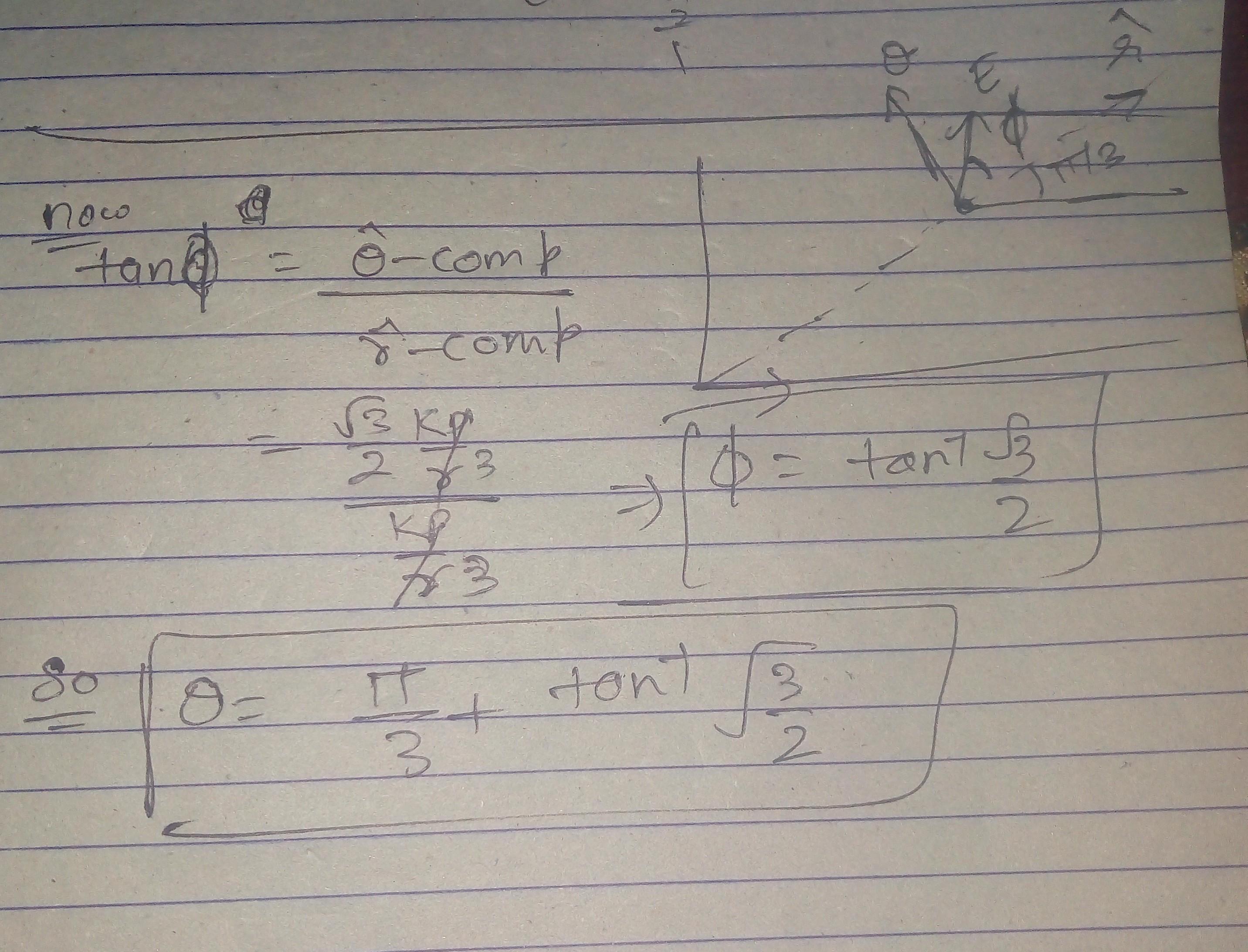

    here is the solution , I have used the radial formula of electric field due to a dipole and then find the angle between r component and theta component , this can also be done by writing r cap and theta cap in term of i and j .feelfree for any doubts

  • comment-profile-img>
    Ruby negi best-answer

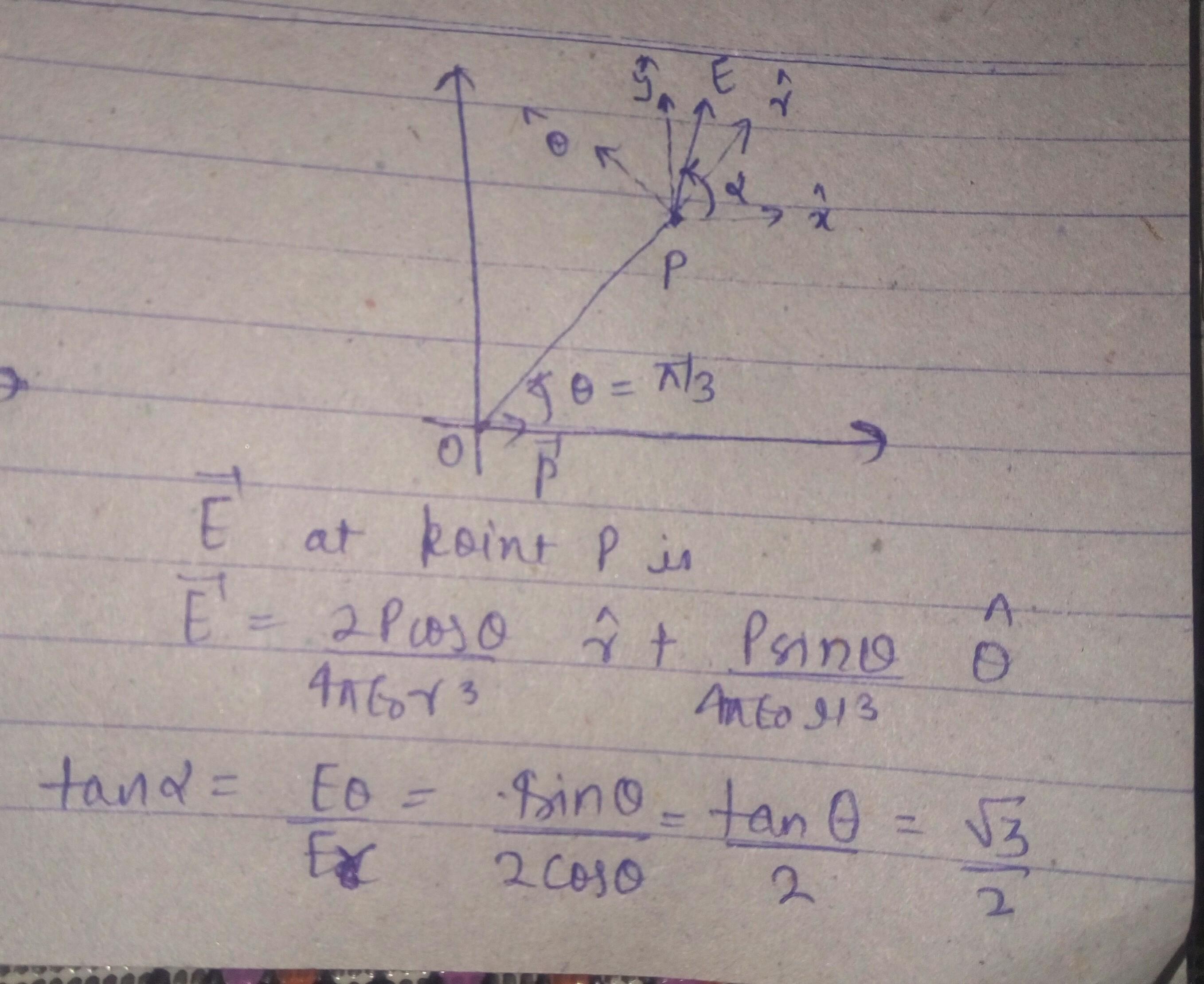

    option d is correct, E is resultant of E along r and E along theta, resultant E makes angle alpha with x-axis so E along theta/E along r= tan(alpha)... hope this solution help u.. for any query please ask..
