Find value of v°

Find value of V°. .

1 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi

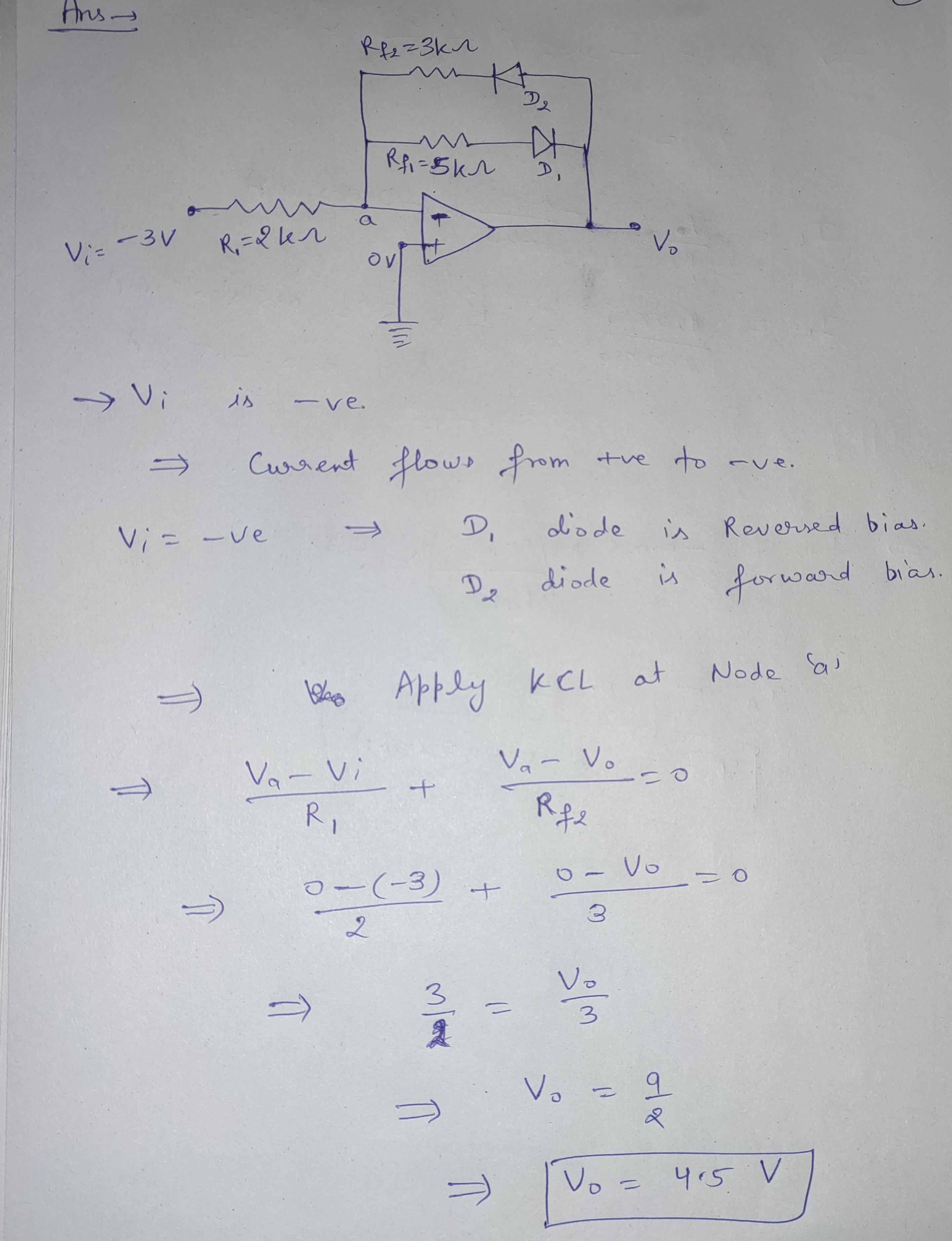

    in this question ,given voltage is negative so diode D1 is reversed biased it will open and D2 is forward biased so it will closed... therefore output voltage should be (-R2/R)*Vi=(-3*-3)/2=4.5V
