Surya posted an Question
June 20, 2022 • 05:49 am 30 points
  • IIT JAM
  • Physics (PH)

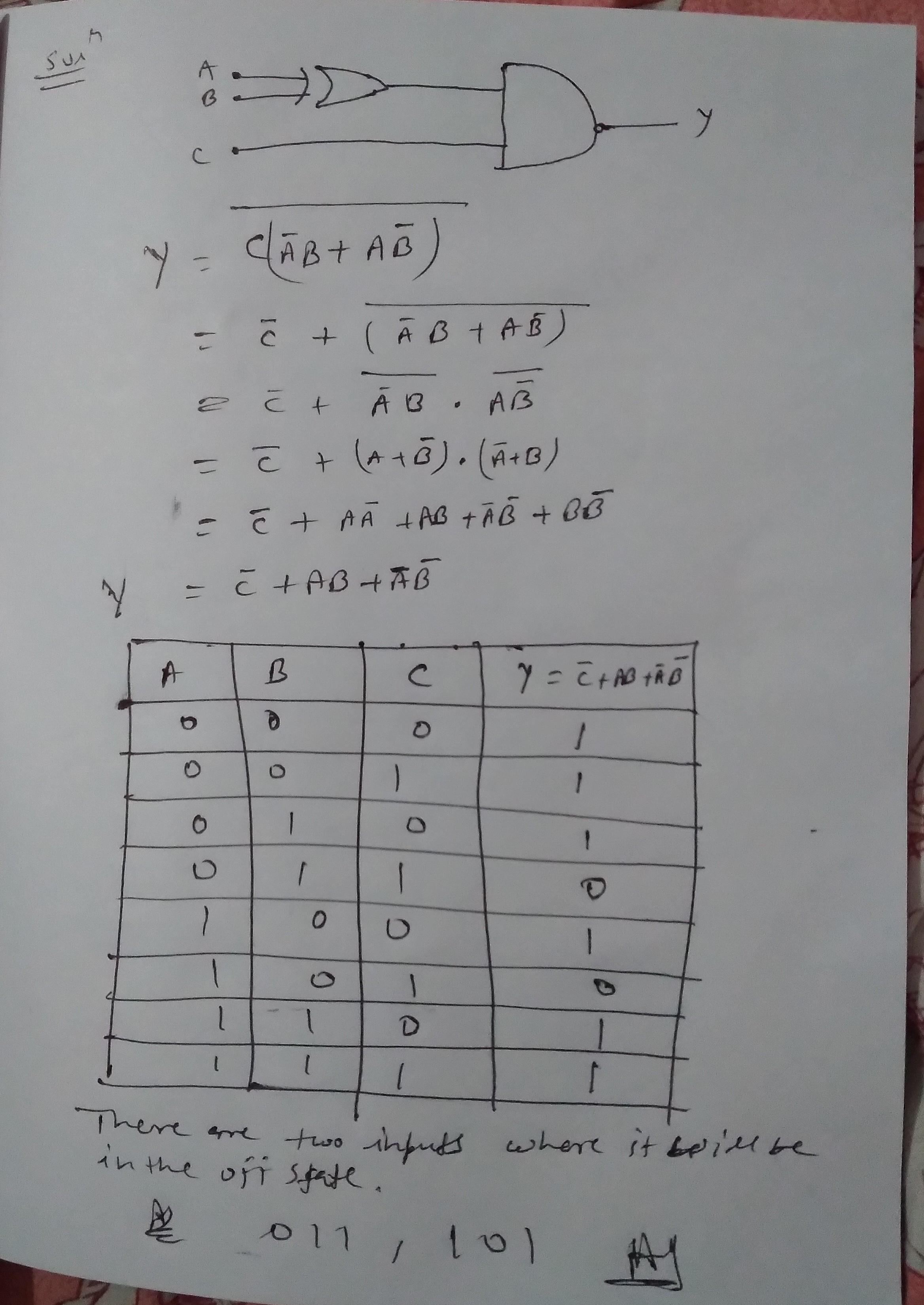

For the logic circuit shown below, which combination of the inputs a, b and c will cause the output y fo be in the "of" state? d -y

For the logic circuit shown below, which combination of the inputs A, B and C will cause the output Y fo be in the "of" state? D -Y

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
