Given ans- upright non plunging sir why don't the answer is inclined non plunging as axial plane seem to be at n45°

The figure shows stereographic projections of the axial plane and the hinge line of a fold. Which one of the following folds is represented in the figure? Axial plane Hinge ine
  • 2 Answer(s)
Answer Now
  • like-1
  • 1 Likes
  • 2 Comments
  • Shares
  • Sajan sarthak Best Answer

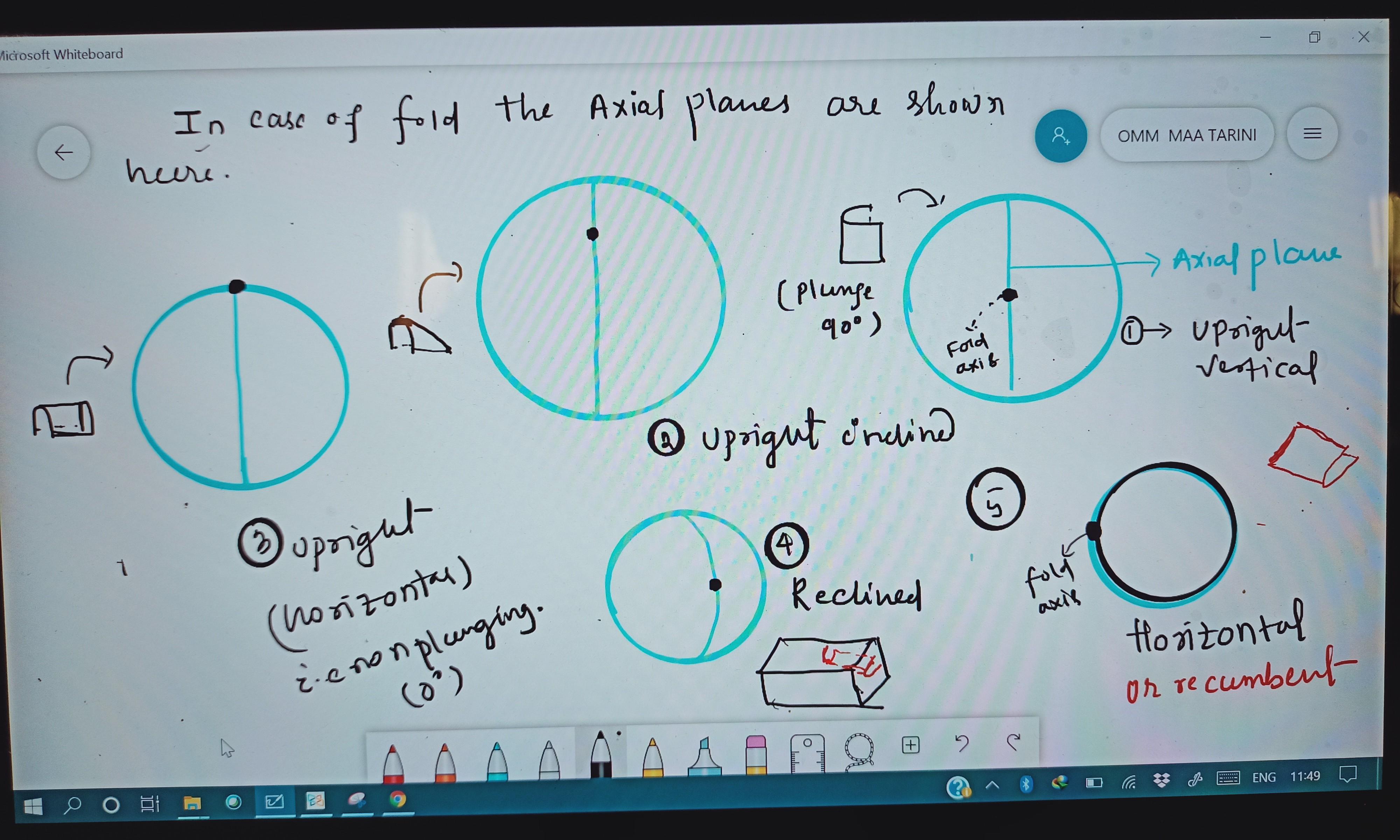

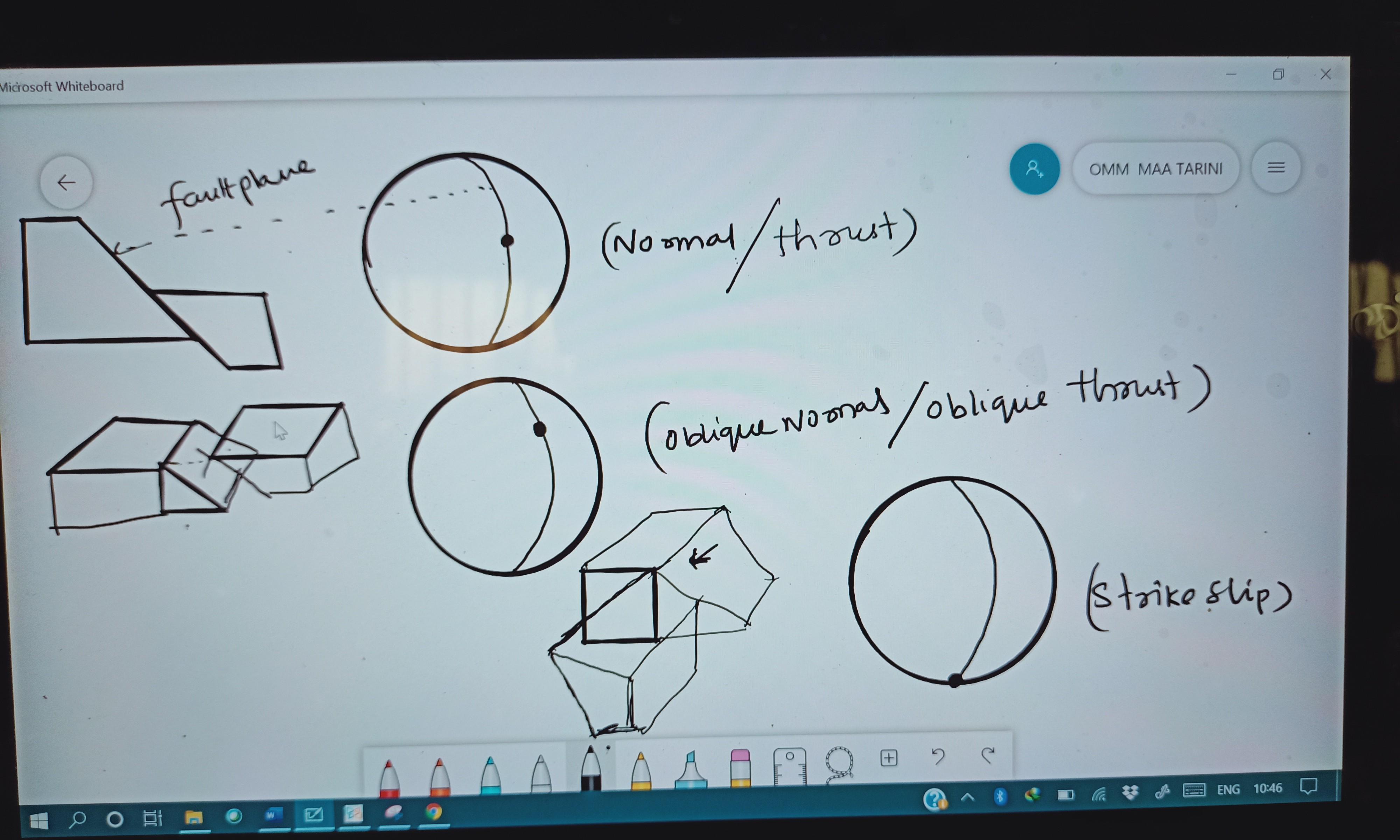

    answer and figure below
    • cropped1668652947237240282.jpg
    • cropped4004308503418976416.jpg
    Likes(0) Reply(1)
    Gurmeet singh
    thank you so much.
  • Rahul kumar thankyou
    Answer: Upright non-plunging fold As shown in the diagram, the axial Plane is vertical and hinge line is horizontal (0° plunge). Any fold with vertical axial plane and non-plungin...
    Show more
    Likes(2) Reply(1)
    Gurmeet singh
    is it not dependent on strike of hinge line? as shown ~N45°
