Sagar Kumar Biswal posted an Question
November 07, 2020 • 04:57 am
![]()
30 points
30 points
- IIT JAM
- Physics (PH)
He two 22. a calcite a/4 plate is introduced between the thu. crossed polarizers (p, and p,) as shown in the figure an unpolarized beam is incident normal to p,
he two 22. A Calcite A/4 plate is introduced between the thu. crossed polarizers (P, and P,) as shown in the figure An unpolarized beam is incident normal to P, from left hand side. Write down the expressions for the m electric fields associated with the beam after P, ater /4 plate and after P,. Also find the state-of- polarization after P, after 2/4 plate and afterP as 2 as observed by an observer shown in the figure. [JAM GP-2013 Optic axis (Faşt axis) Pass axis Pass axIS 45 45 P N4 plate
1 Answer(s)
Answer Now
- 0 Likes
- 1 Comments
- 0 Shares
-
![comment-profile-img]()
>
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Eduncle![best-answer]()
Dear Student,
Greetings!!

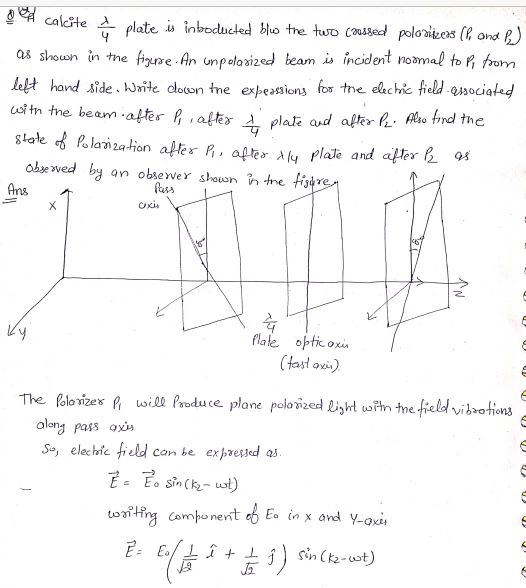

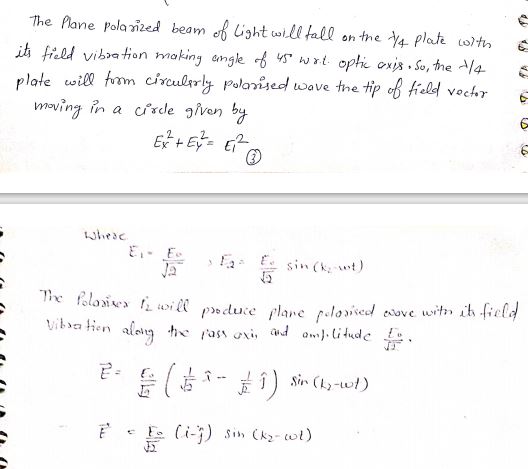

Refer the attached image for solution
what will be the handedness of circular polarization? And can you write the total electric field expression after passing though that quarter wave plate ?
