Aditi agrawal Asked a Question
June 16, 2020 11:40 ampts 30 pts
  • IIT JAM
  • Physics (PH)

How to find central deflection and bending moment in this question??

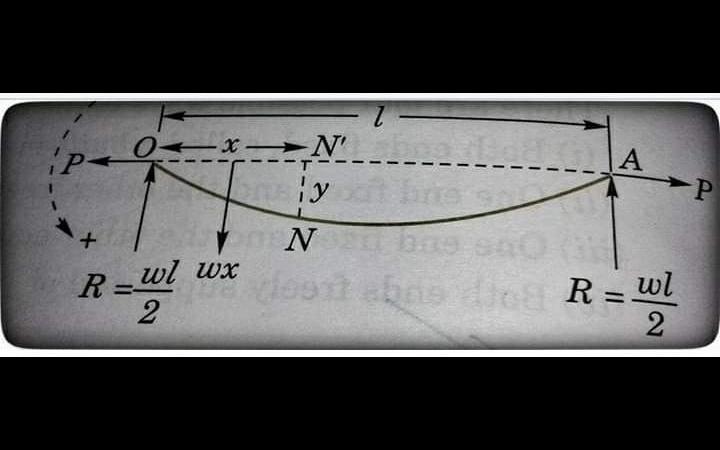

A horizontal tie rod of length / is freely pinned at each end. t carries a uniform load w kg per unit length and has a horizontal pull P Find the central detlection and the maximum bending moment, taking the origin at one of its ends. sech- where a Ans. El
  • 3 Answer(s)
Answer Now
  • 0 Likes
  • 5 Comments
  • Shares
  • Aditi agrawal
    this is the book
    • cropped5193251997842490714.jpg
    Likes(0) Reply(0)
  • Avik dubey
    The problem is very easy & it is belong to the subject Strength Of Material.....it is the subject of Mechanical Engineering also with civil
    Likes(0) Reply(22)
    Aditi agrawal
    please send me the solution of this question
  • Chandra dhawan thankyou

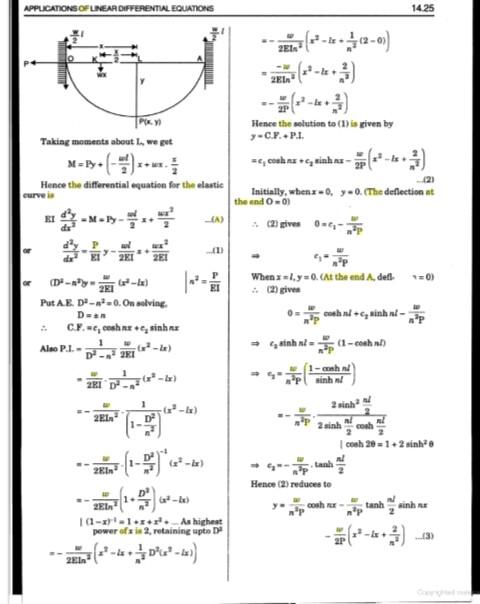

    this will help you alot see attached file
    • cropped197726945.jpg

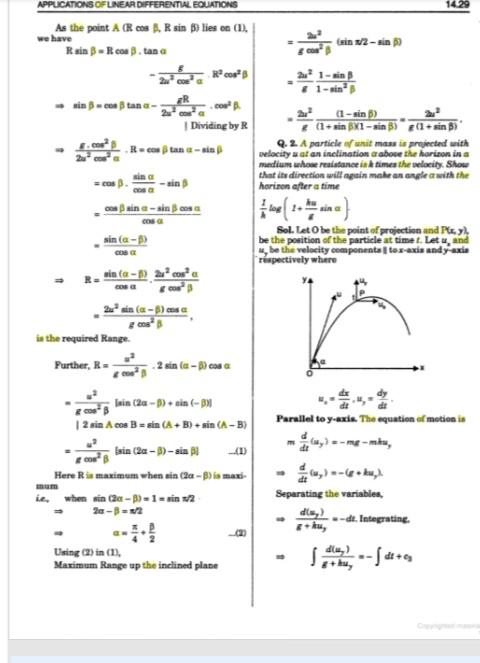

    • cropped1189901583.jpg

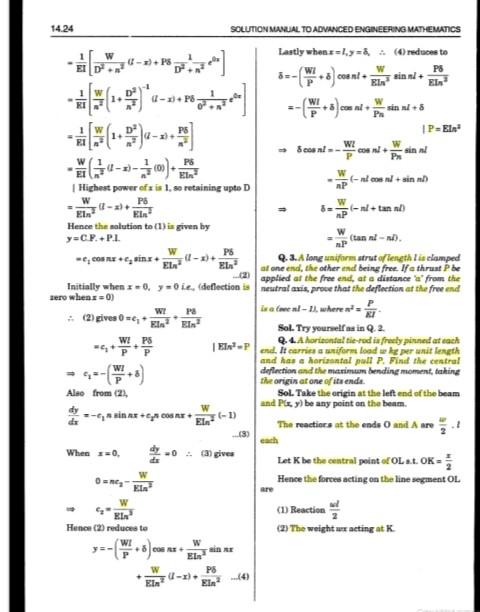

    • cropped-550969258.jpg
    Likes(1) Reply(0)
  • Dhairya sharma thankyou
    see diagram
    • cropped3869326254233958121.jpg
    Likes(1) Reply(0)
  • Dhairya sharma Best Answer

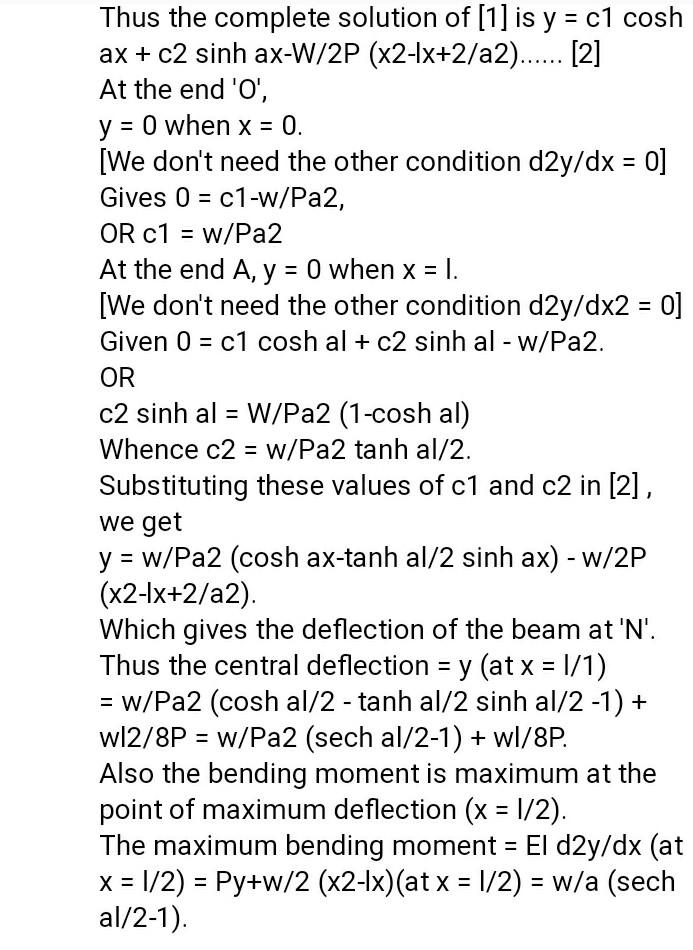

    see attached

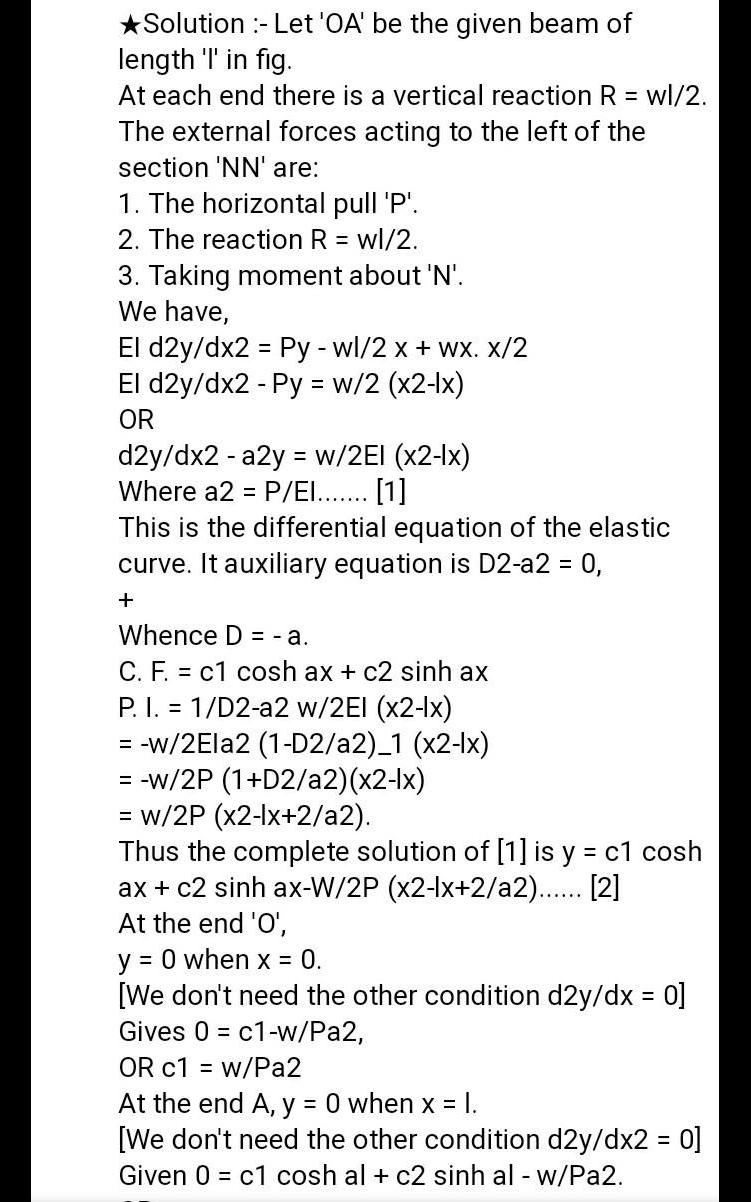

    • cropped3124142928439206824.jpg
    • cropped3027539640092934229.jpg
    Likes(1) Reply(0)
