I don't understand the delta star transformation concept
I don't understand the Delta star transformation concept
2 Answer(s)
Answer Now
- 0 Likes
- 3 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Somnath
![best-answer]()

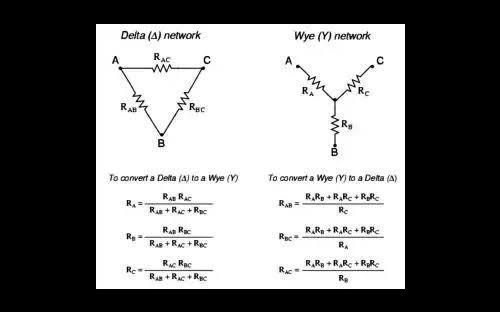

Delta to star or star to delta transformation is a process to simplify a complex resistance network.At first see the image given below.In the left side of the image the resistance connected between A,B and C in the form of a triangle is called delta network. In a complex circuit this type of network can be written as star network as shown in the right side of the image with the value of the resistances should be as written on the image. You can covert the star network to a delta one also.Only one thing you have to remember is the formula of transformation of the resistances. For more information visit https://electrical-engineering-portal.com/resources/knowledge/theorems-and-laws/delta-star-transformation
![cropped3403484920831646522.jpg]()
-
![comment-profile-img]()
>
Chandra prakash
![best-answer]()
Both Star Delta Transformation and Delta Star Transformation allows us to convert one type of circuit connection into another type in order for us to easily analyse the circuit. These transformation techniques can be used to good effect for either star or delta circuits containing resistances or impedances.
