I don't understand this diagram of projectile motion
3 Answer(s)
Answer Now
- 1 Likes
- 3 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Somnath Best Answer
In this diagram path of the projctile is shown.A partilce is thrown with a velocity Vi making a centaain angle with the horizontal.At different position of the particle you can resolve the velocity of that particle at yhat moment into two components.one along horizontal(x-axis) and another along vertical direction.The diagram shows the velocity component at different position. Notice that below the maximum height velocity componennts are along horizontal and vertically upward direction.Horizontal component helps the particle to move forward and the upward component helps to achieve the height. At maximum height one horizontal component is present. After the maximum height componennts are along horizontal and vertically downward direction.Horizontal component is for forward direction and the vertically downward component tries to down the particle.
-
![comment-profile-img]()
>
Abhishek bedi
![best-answer]()
use equations of motion
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Abhishek bedi![best-answer]()

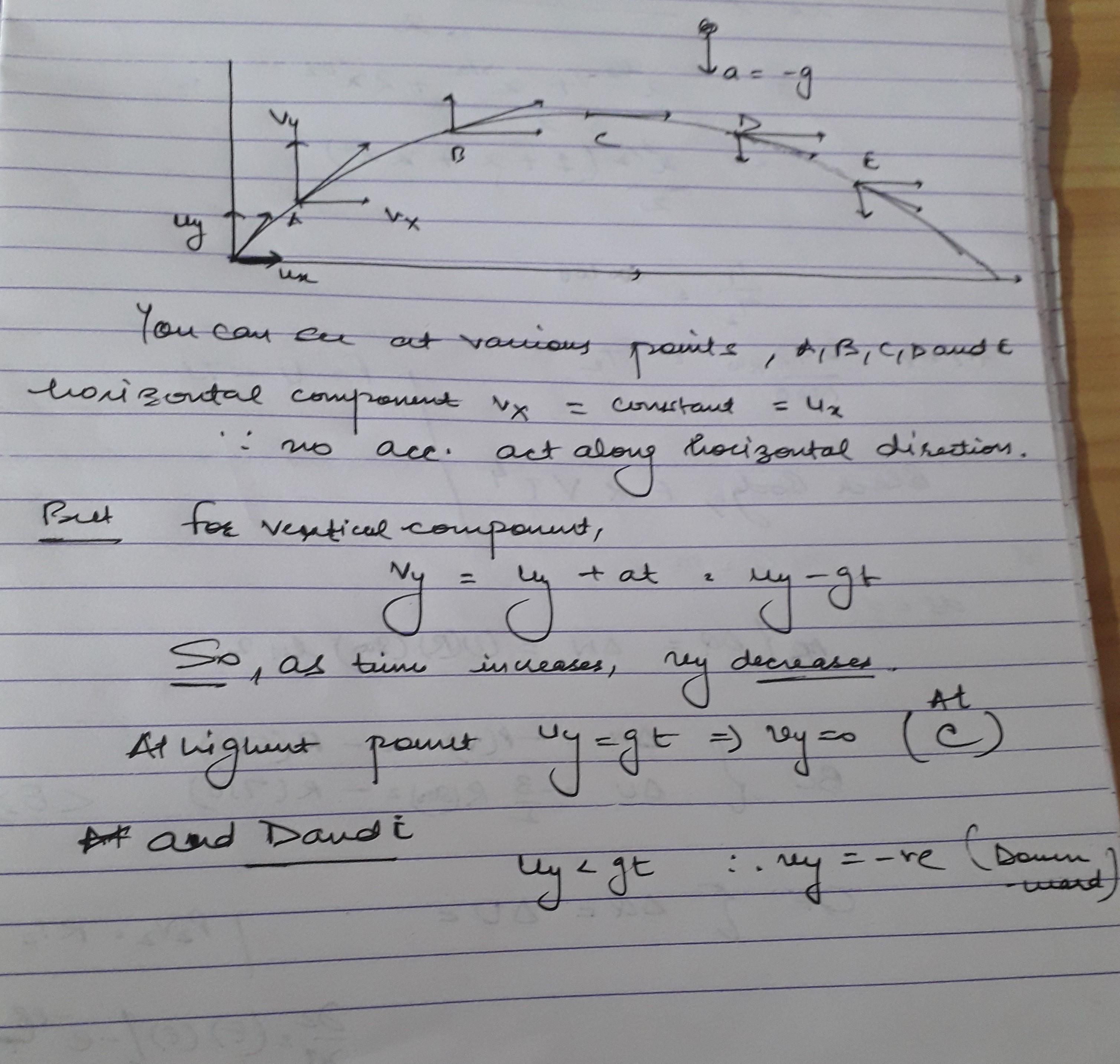

I've missed to attach pic...
