I don't understand this example please tell me in short

1 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Dhairya sharma

    dear please use simple diolde signs and apply kvl or kcl in loops.you will get proper results

  • Jeevesh magnani best-answer

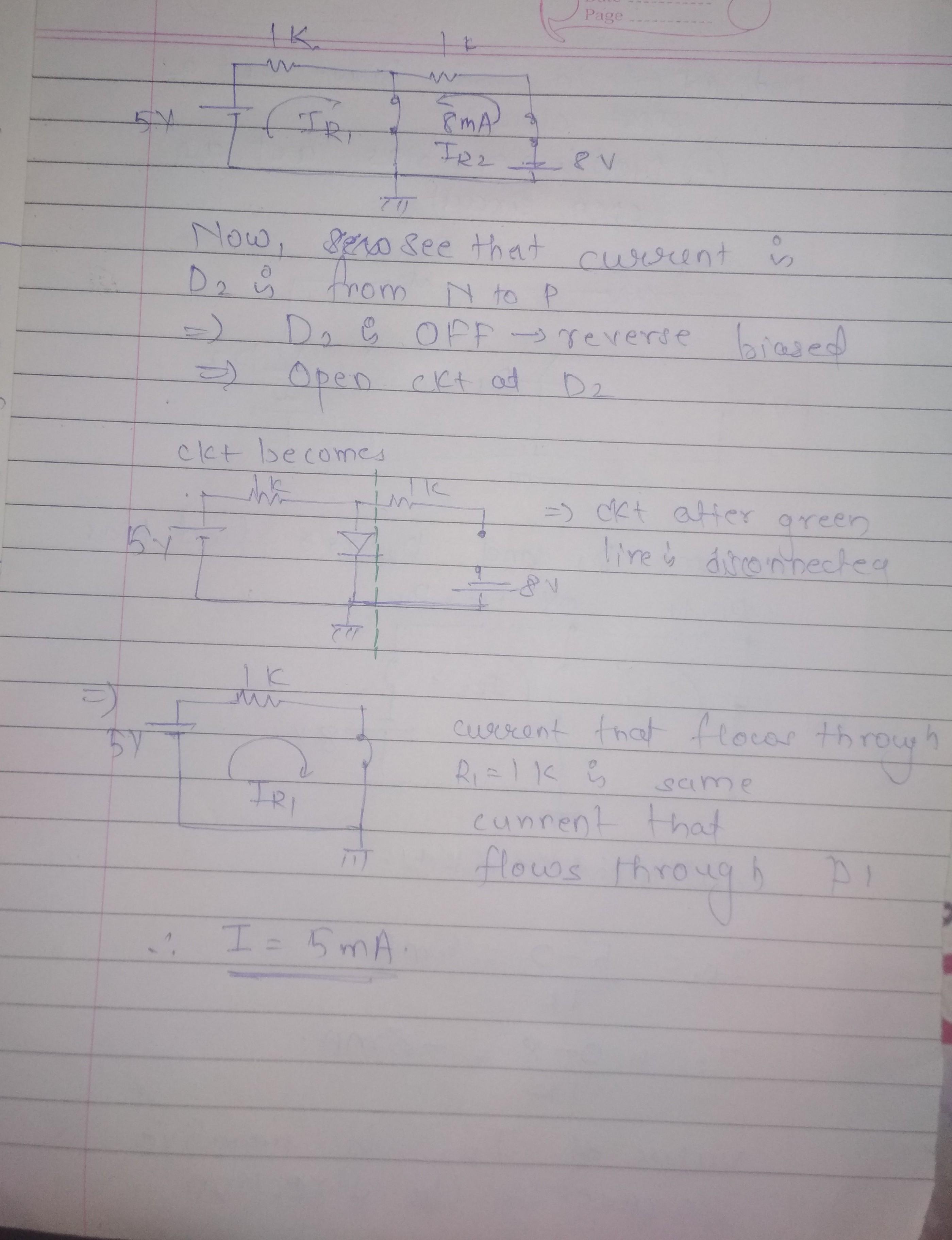

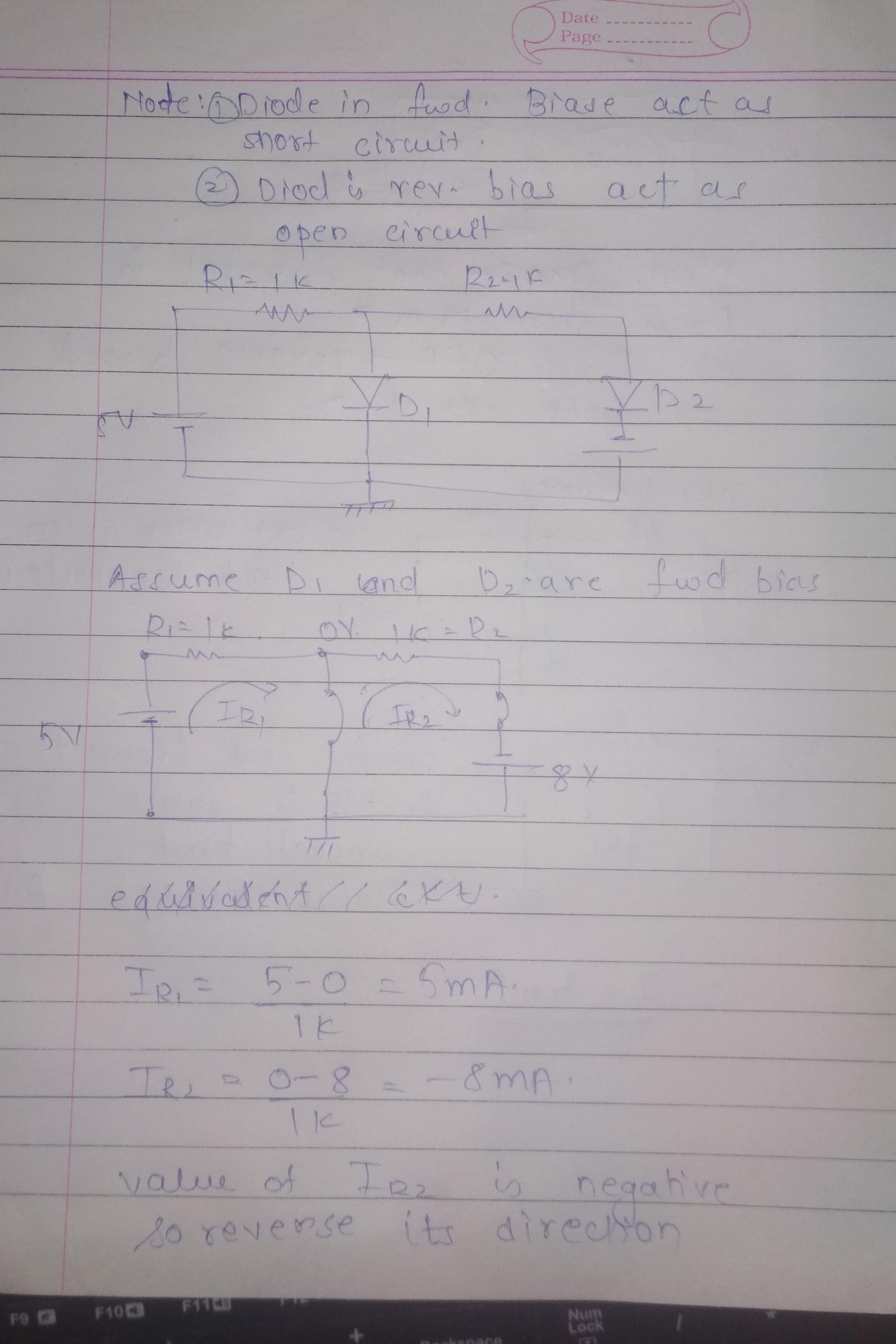

    explained the theory behind the working of circuit given. please see the attachment for details. prerequisites: knowledge on KCL and KVL.
