In an ideal chevron fold, the inter-limb angle is found to be 60 and the fold axis is perpendicular to the trace of the axial plane. The dip of the limb of the fold is . (up to one decimal)
  • 2 Answer(s)
  • like-1
  • 3 Likes
  • 2 Comments
  • Shares
  • Sajan sarthak sahoo Best Answer

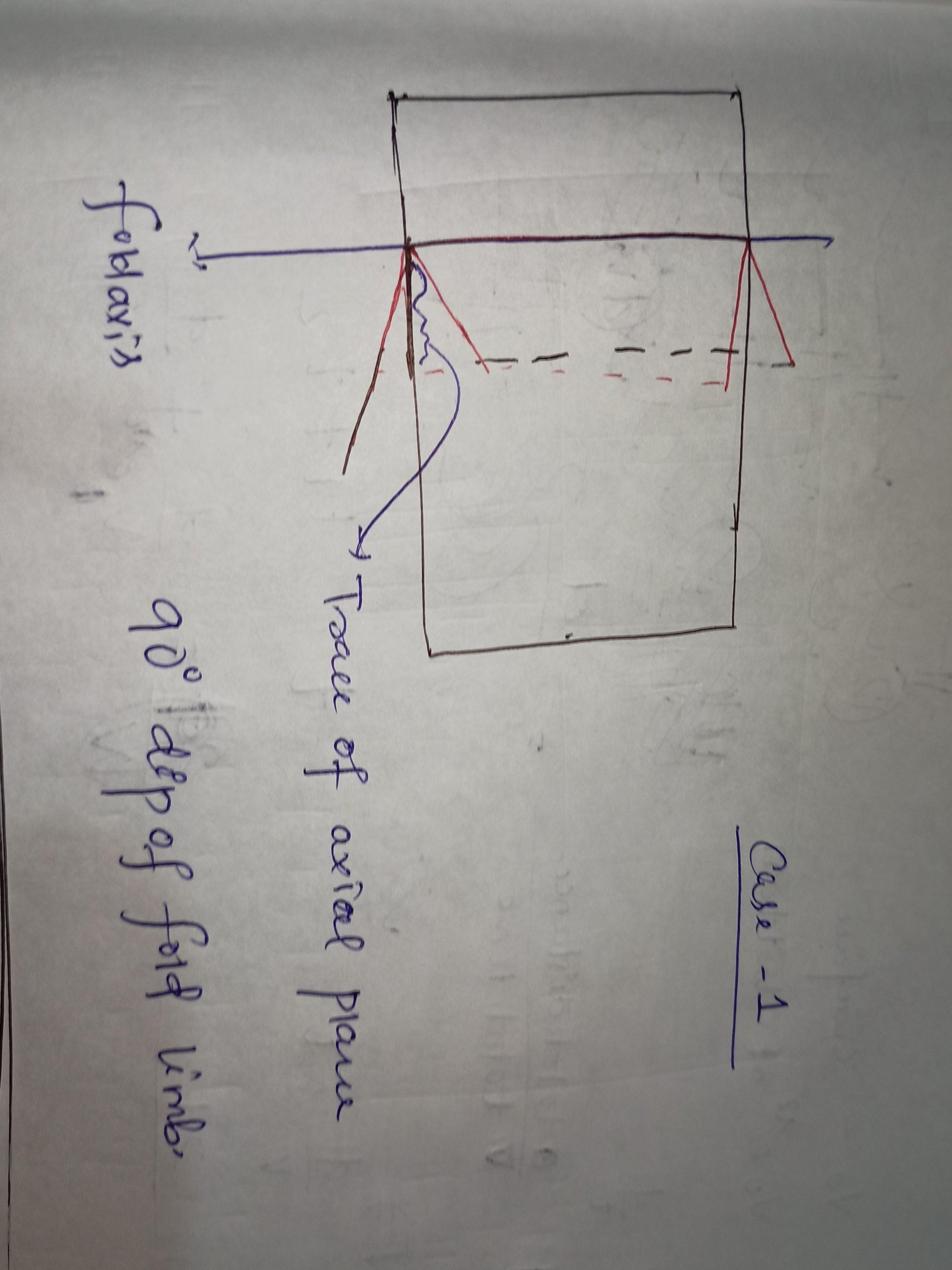

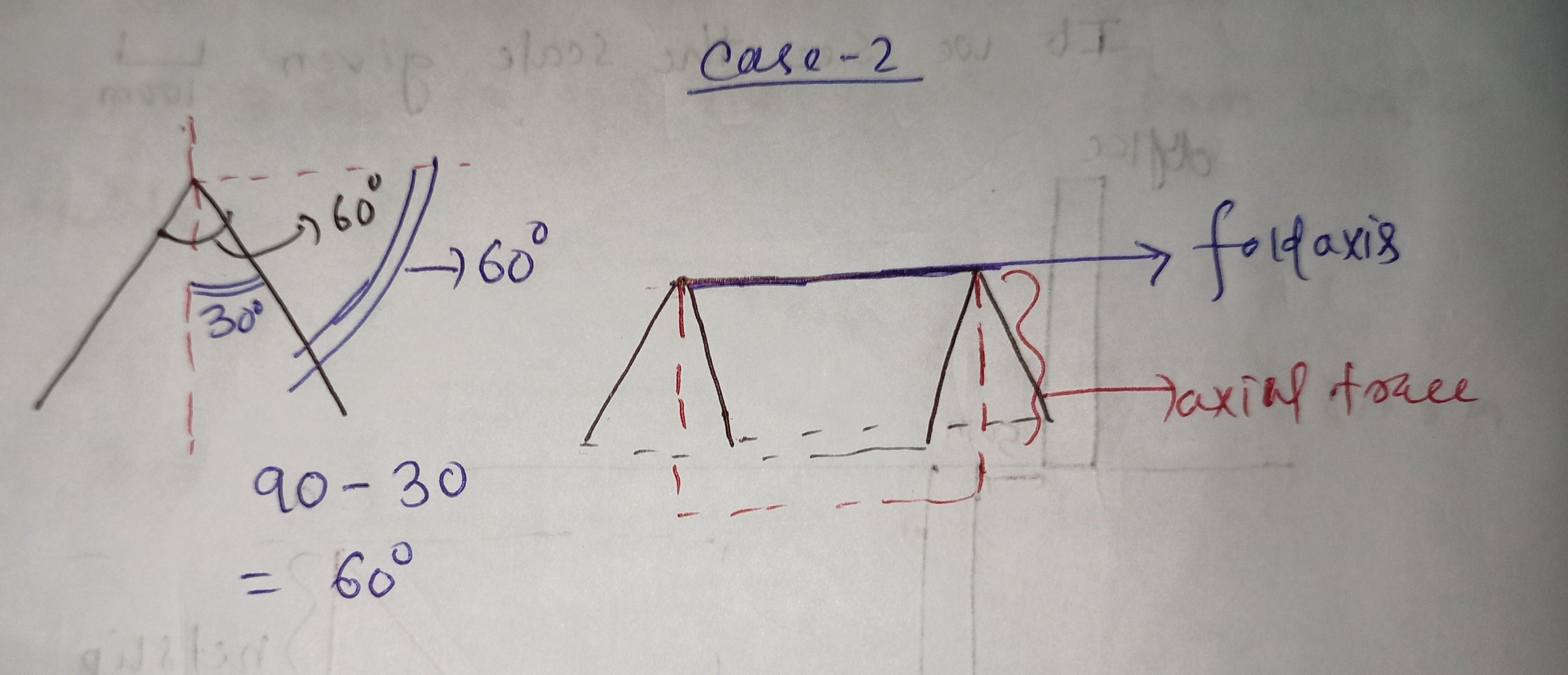

    This question will have numerous answer. I have written 2 cases see them
    • cropped1353802118068284186.jpg
    • cropped7526932418403248621.jpg
    Likes(0) Reply(5)
    Gurmeet singh
    what is trace of 'trace of axial plane'?
  • Rahul pandey thankyou
    Ans: 90.0 Since, axial trace is perpendicular to the fold axis so the fold should be a vertical fold. For any vertical fold the dip of limb will be 90 degrees.
    Likes(1) Reply(2)
    Gurmeet singh
    sir, in case of symmetrical fold, the hinge and axial plane are making zero degrees?
