In the circuit diagram, heat produces in r, 2r and 1.5r are in the ratio of r w 1.5r w. 2r www. (1) 4:2:3 (2) 8:4: 27 (4) 27:8:4 (3) 2:4:3

In the circuit diagram, heat produces in R, 2R and 1.5R are in the ratio of R w 1.5R w. 2R www. (1) 4:2:3 (2) 8:4: 27 (4) 27:8:4 (3) 2:4:3

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

    use the formula For heat i.e (I^2)R where I= current and R= resistance

  • comment-profile-img>
    Abhishek singh Best Answer

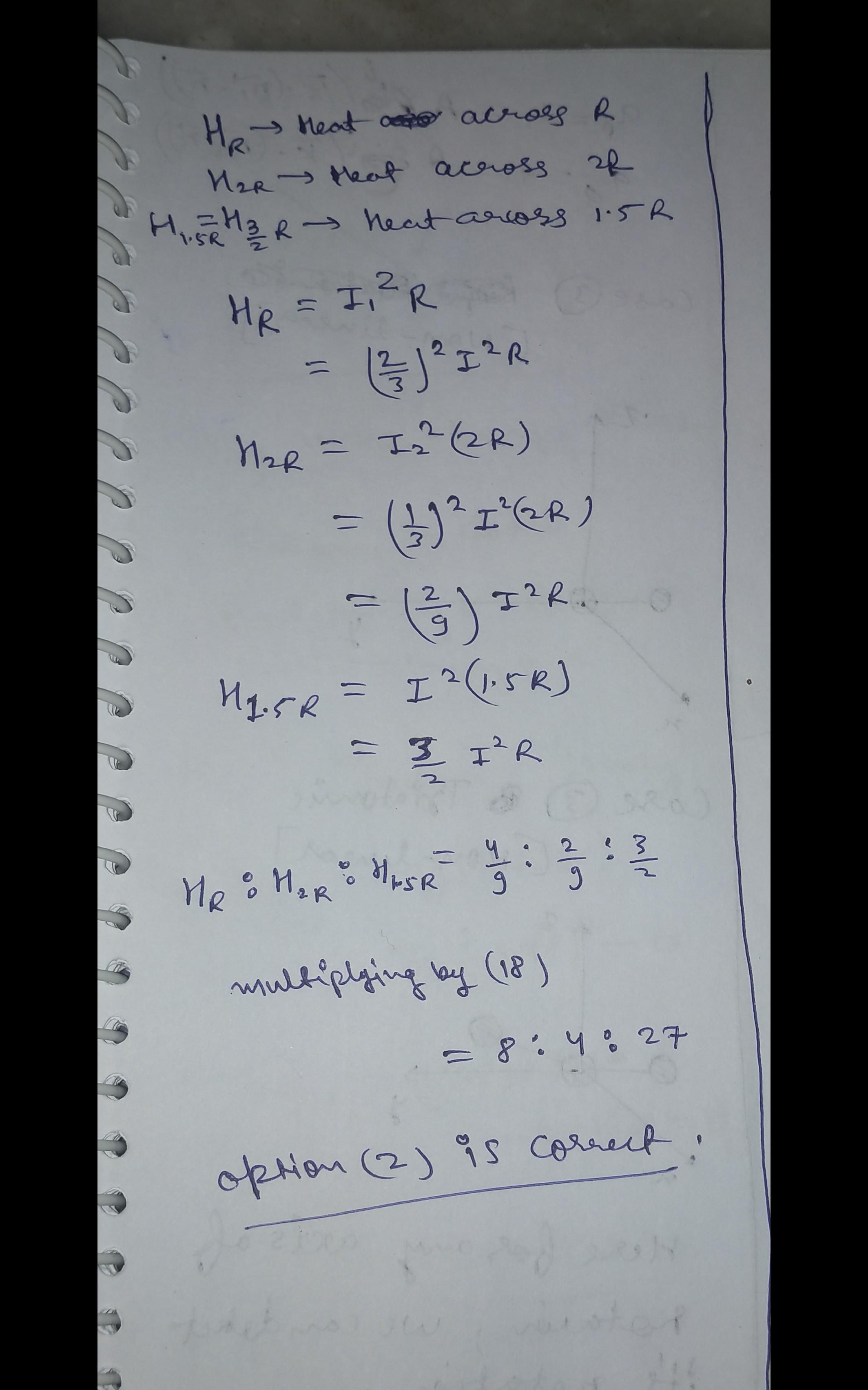

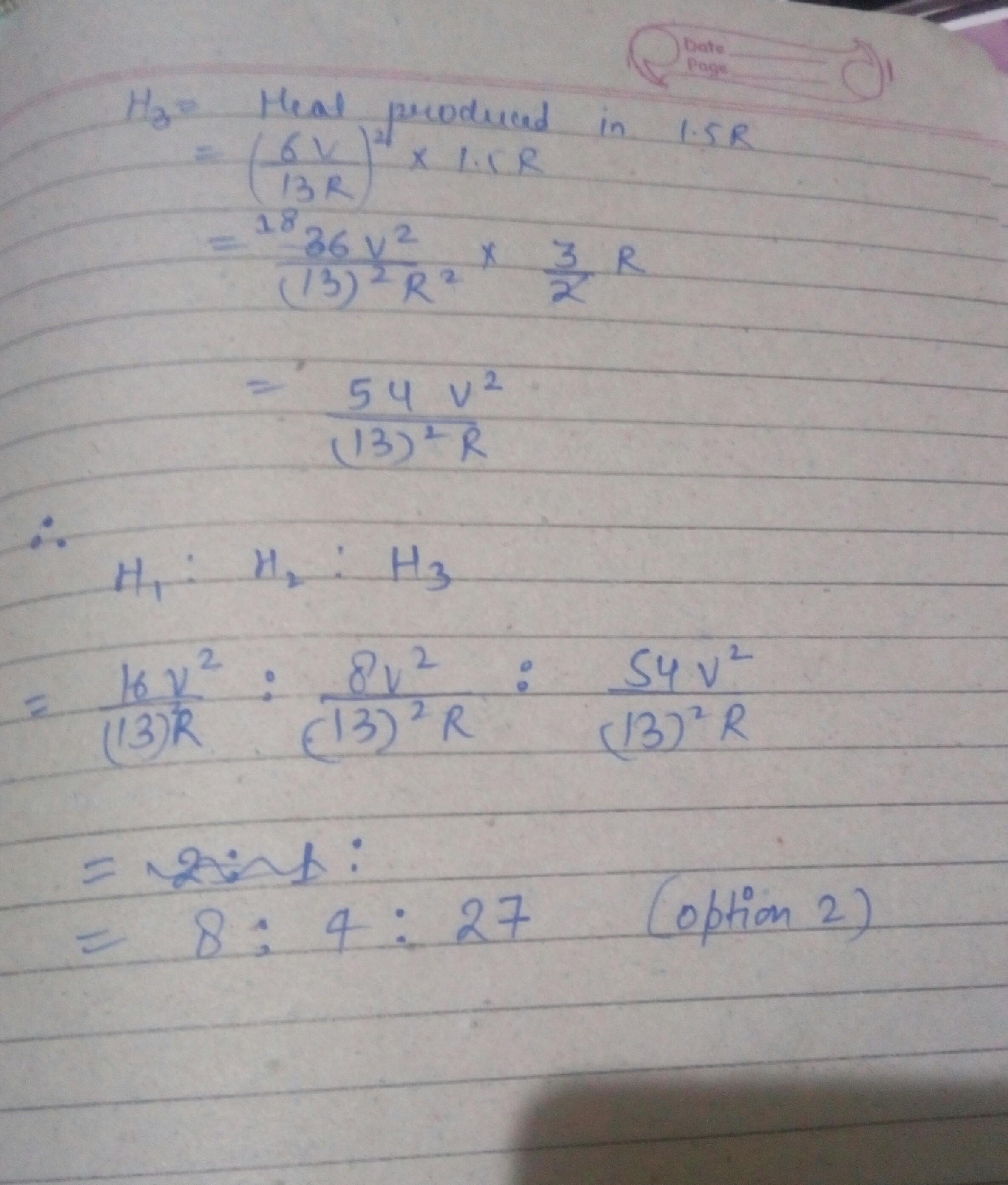

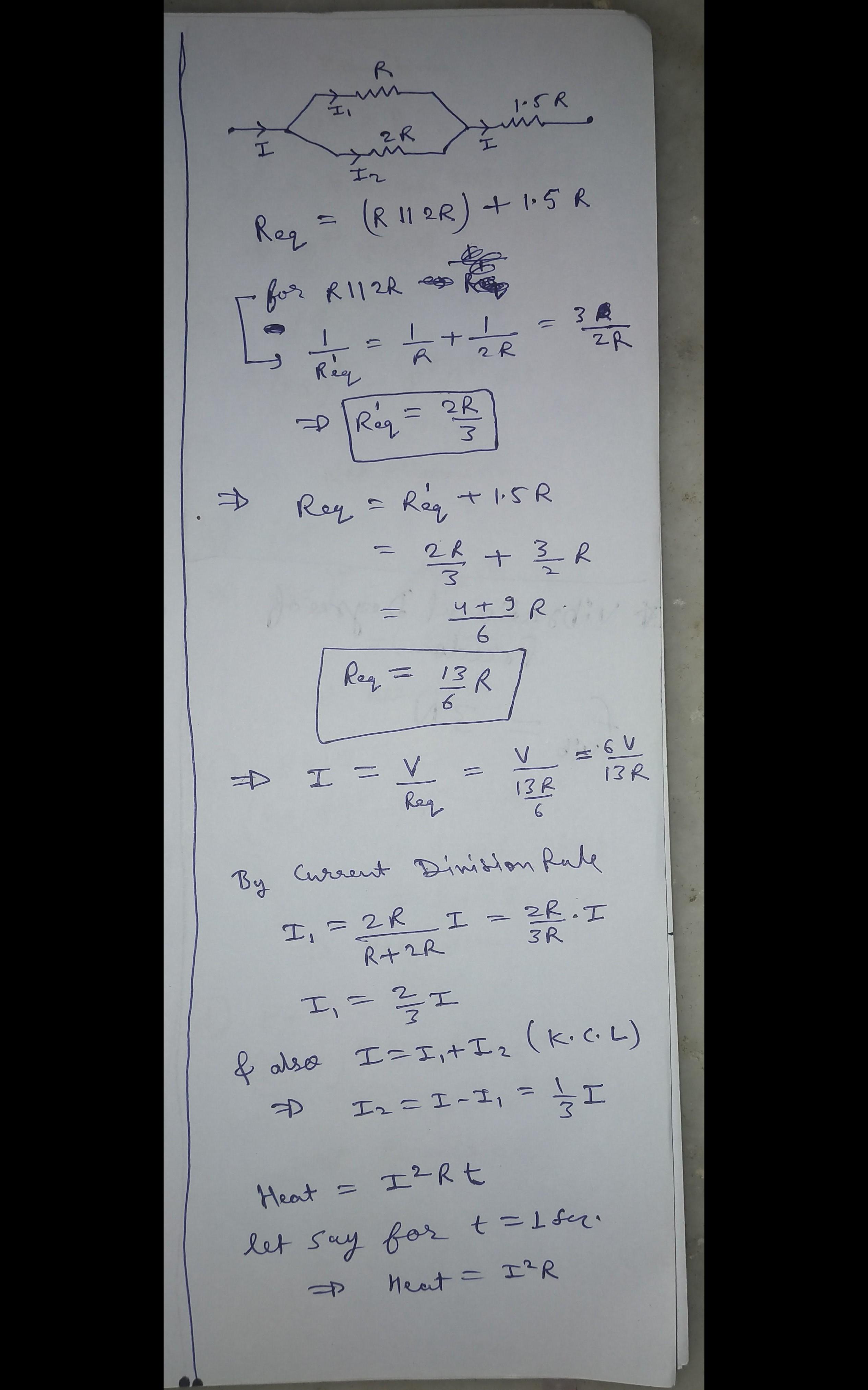

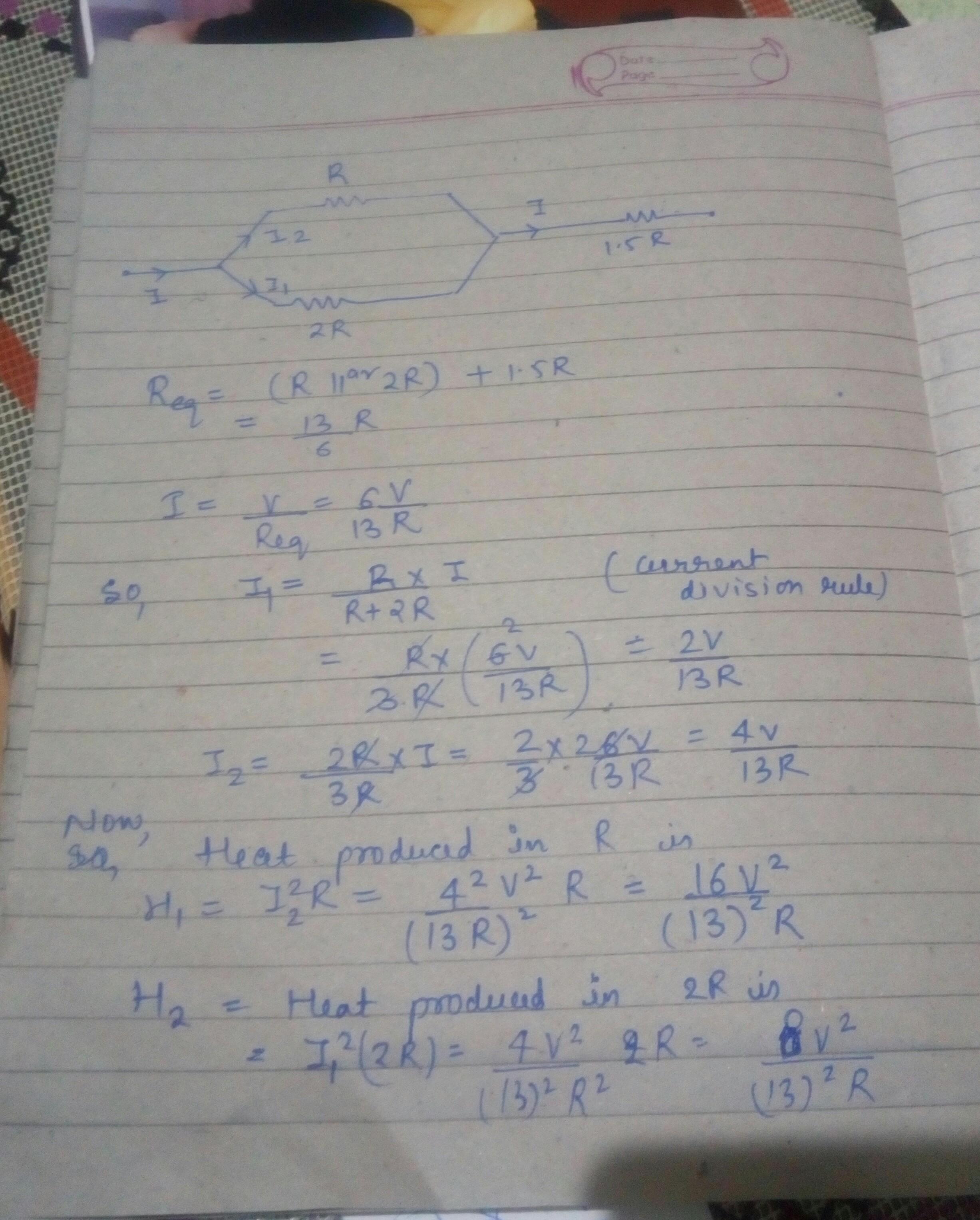

    A detailed solution attached. feel free to ask doubts, if any. Best regards.

    eduncle-logo-app

    why voltage is taken as 6V?

    eduncle-logo-app

    it's V volts. Not 6 volts. 6 is the term from denominator. please read carefully.

    eduncle-logo-app

    still having doubts? feel free to ask. I will be happy to answer.
