Sankar posted an Question
July 09, 2021 • 02:45 am 30 points
  • IIT JAM
  • Geology (GG)

In the given geologic map, the horizontal lines are stratum contours. the throw on the fault (f-f) is meters. shale sandstone siltstone o0m shale 200m sandstone

In the given geologic map, the horizontal lines are stratum contours. The throw on the fault (F-F) is meters. Shale Sandstone Siltstone O0m Shale 200m Sandstone Your answer 9) In the previous question, identify 2 points the down thrown block.

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

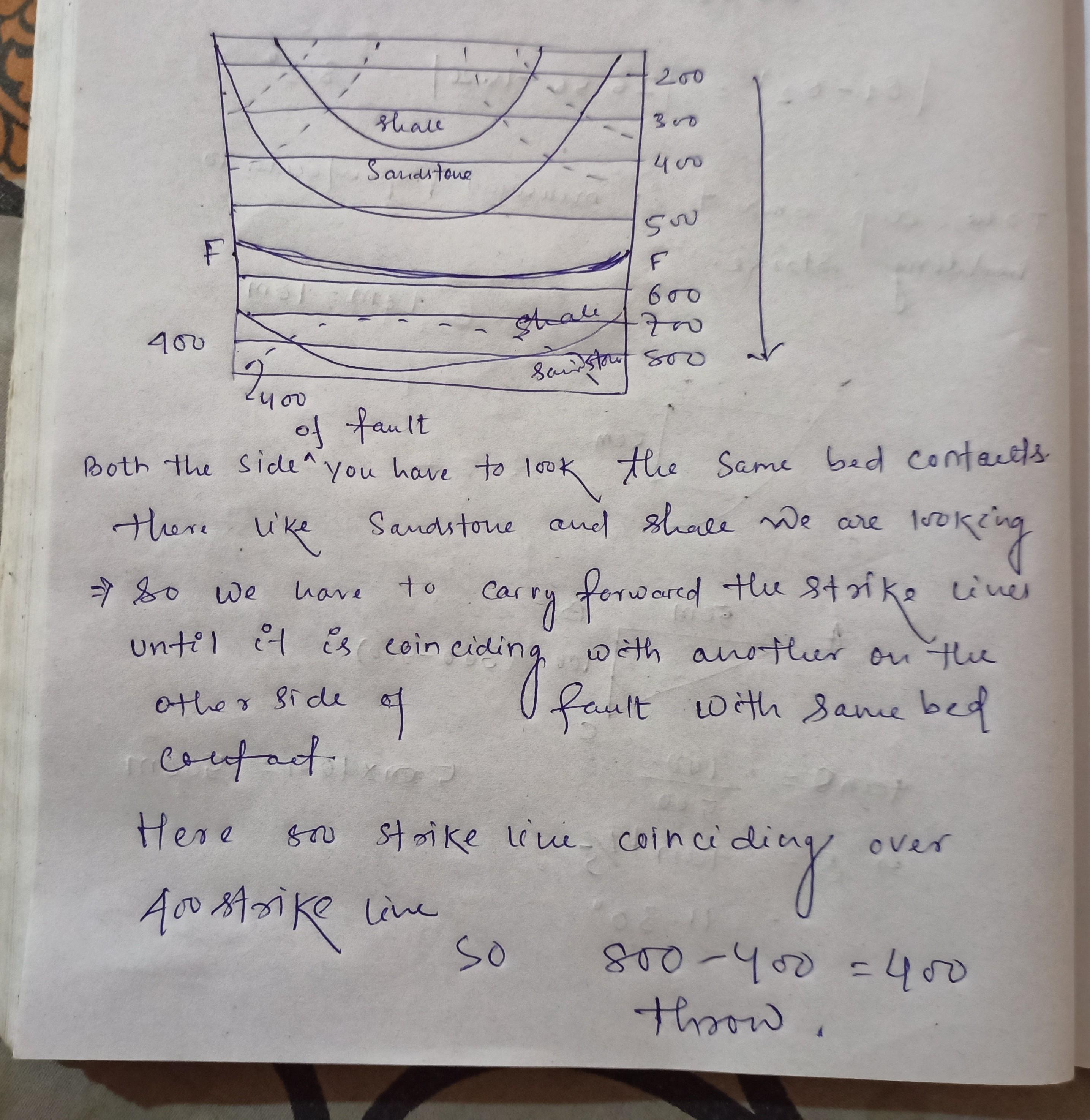

    here throw is asked The method is to carry the strike line of upthrown bedcontact strike to a stike line that is coinciding ths downthrow bed contact strike line. then just minus them.
