Susobhan Ghosh posted an Question
January 09, 2022 • 00:16 am 30 points
  • IIT JAM
  • Physics (PH)

In the given practical differentiator circuit. f'ind output voltage. if v,= sint rf im2 r v.o iuf im

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • Isha lohan 1 best-answer

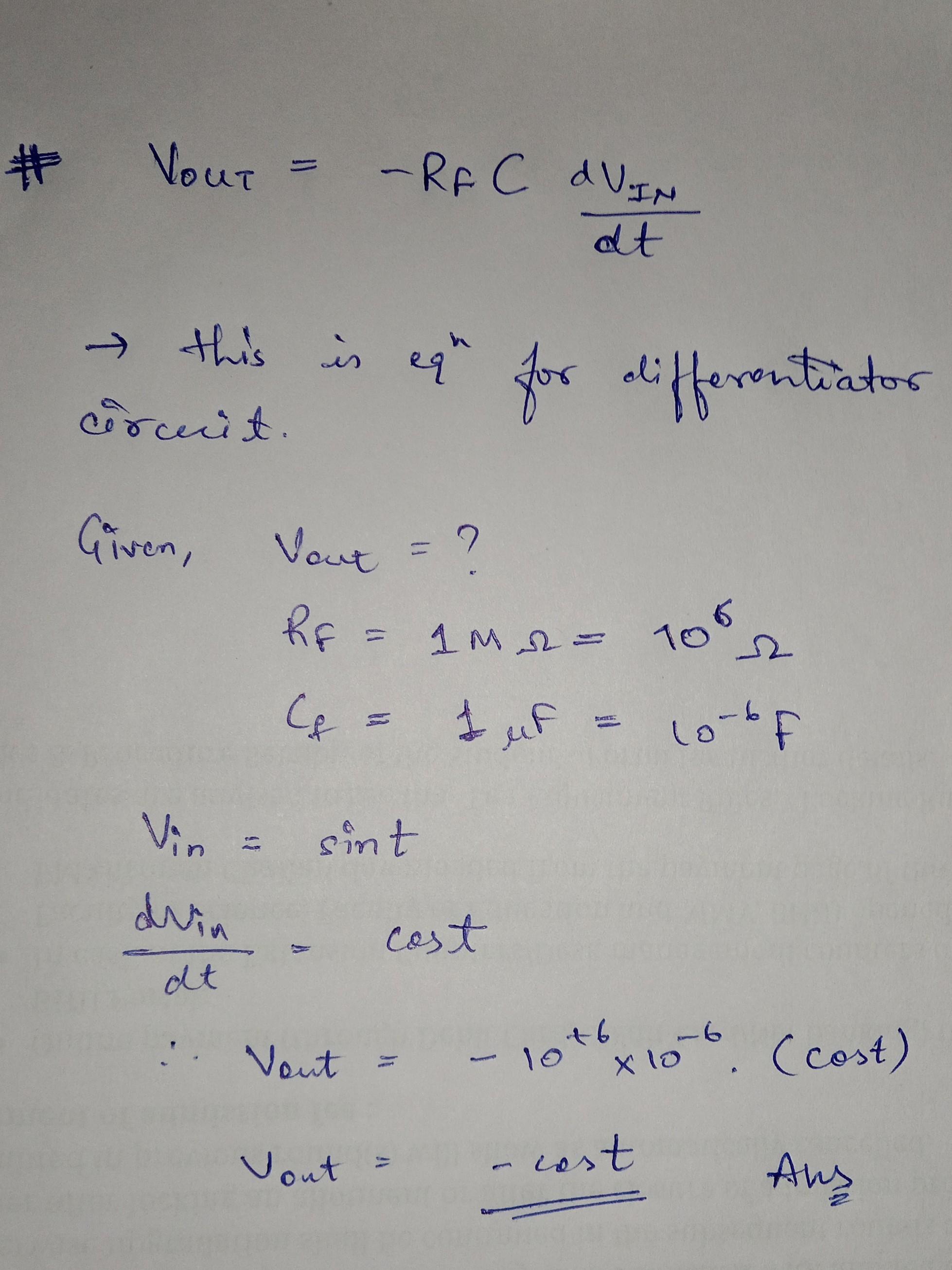

    See attached. Ask if any further doubt.

    eduncle-logo-app

    but ans is -cost/2

    eduncle-logo-app

    ohh i see. can you please tell me the source of this ques? is it a book or some test papers? Are you sure that, ans has a 2 at denominator? I mean, are u sure thay the source surely don't have printing mistakes?

    eduncle-logo-app

    I hope you have understood the concept.
