Lap to view m the circuit shown in the figure can be used as a r www c vin vout (a) high-pass filter or a differentiator (b low-pass filter or a differentiator

lap to view M The circuit shown in the figure can be used as a R www c Vin Vout (a) high-pass filter or a differentiator (b low-pass filter or a differentiator (c) high-pass filter or an integrator d) low-pass filter or an integrator

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • Prashant kumar best-answer

    Answer

    eduncle-logo-app

    so the final answer is??

    eduncle-logo-app

    option no. 4

    eduncle-logo-app

    how can u say this to a low paas filter

    eduncle-logo-app

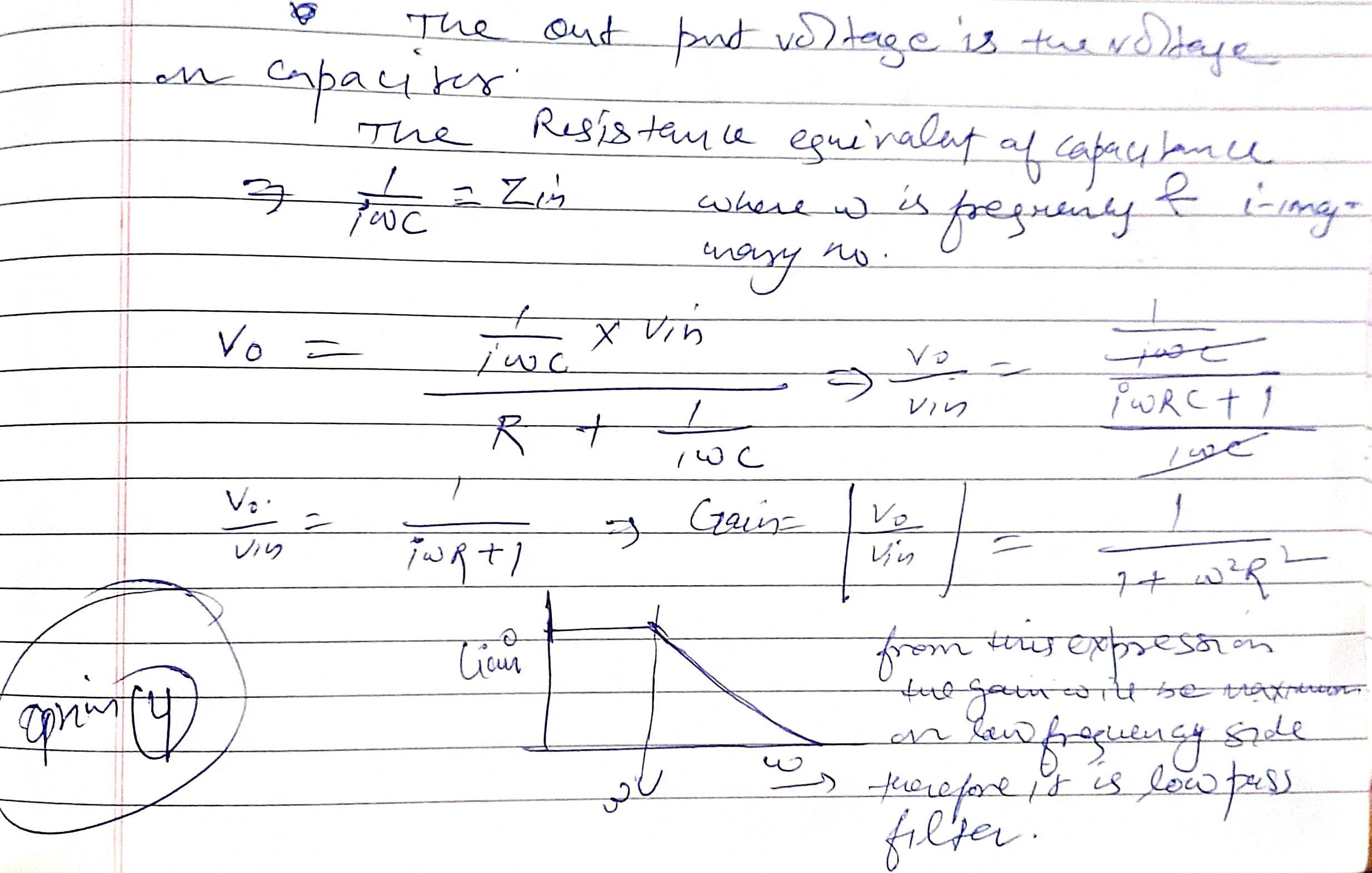

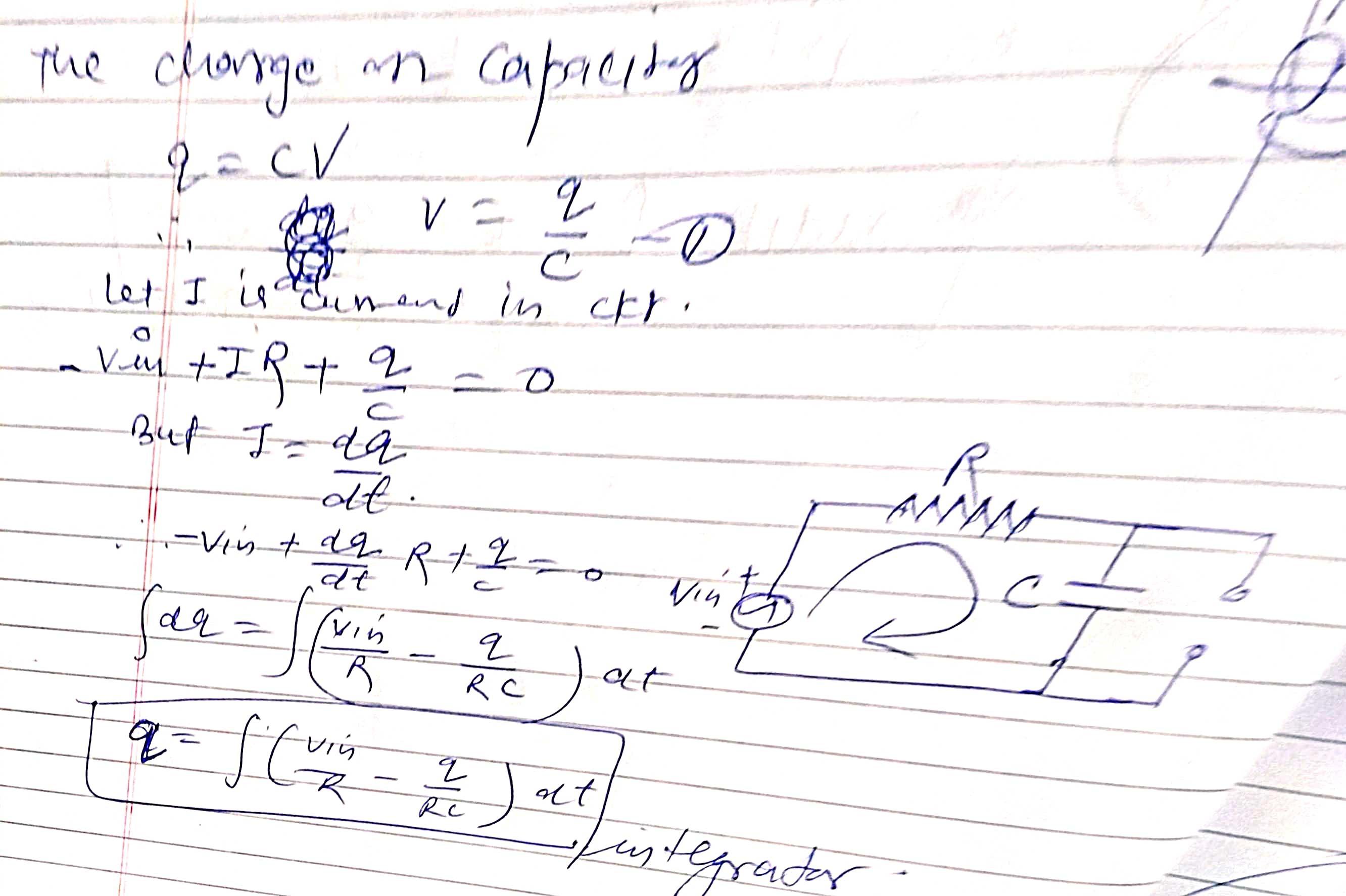

    See on which side of frequency gain is maximum if the frequency is maximum from a particular frequency which is known as cutoff frequency the gain is maximum if you increase the value of frequency the gain is decreased near the zero or we can say low frequency side gain is maximum therefore this is low pass filter
