Himanshu posted an Question
July 29, 2020 • 01:26 am 30 points
  • IIT JAM
  • Physics (PH)

Magnetism.

explain me this case by diagram and what is "tight" coupling and "loose" coupling explain these things in detail.

2 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi Best Answer

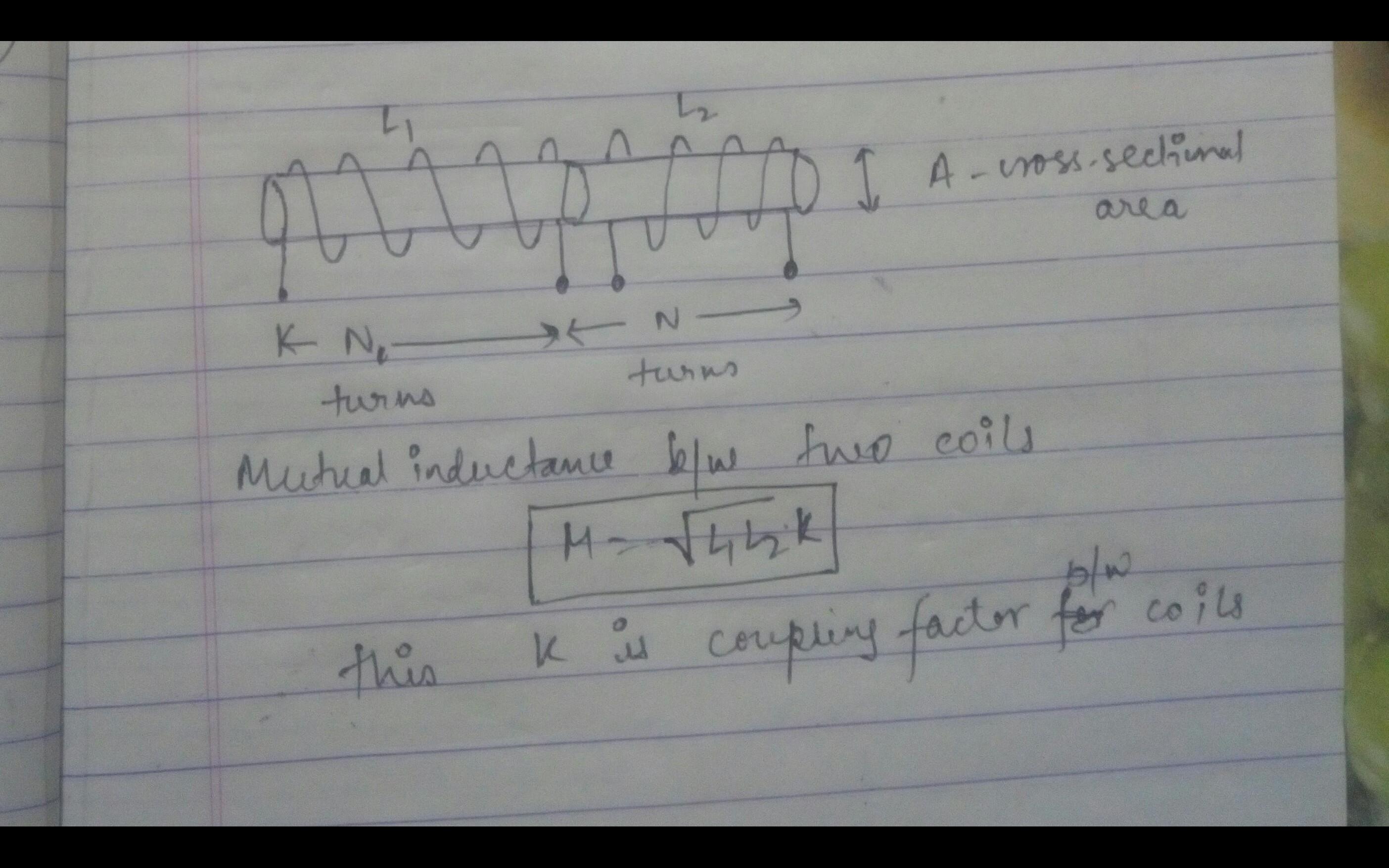

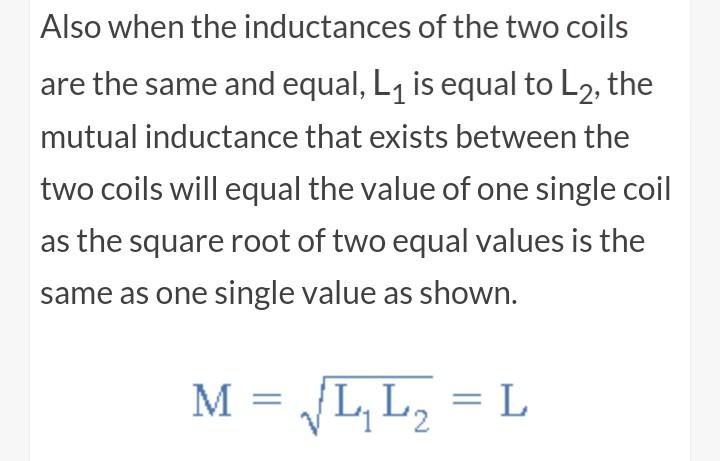

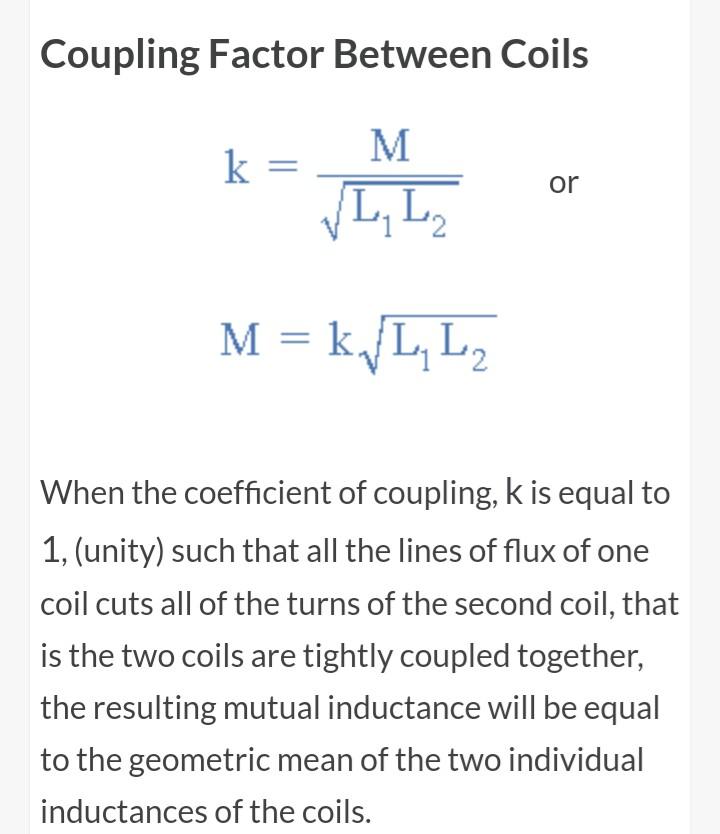

    the amount of inductive coupling that exists between the two coils is expressed as a fractional number between 0 and 1 instead of a percentage (%) value, where 0 indicates zero or no inductive coupling, and 1 indicating full or maximum inductive coupling. In other words, if k = 1 the two coils are perfectly coupled, if k > 0.5 the two coils are said to be tightly coupled and if k < 0.5 the two coils are said to be loosely coupled.

  • comment-profile-img>
    Dhairya sharma

    https://electricalbaba.com/mutual-inductance-perfect-coupling-and-coupling-factor/

    eduncle-logo-app

    follow above link for ans

    eduncle-logo-app

    if still hv doubt drop a comment here

  • comment-profile-img>
    Somnath best-answer

    Please open the link given below and read the article it will help to get your answer. https://electricalbaba.com/mutual-inductance-perfect-coupling-and-coupling-factor/
