Arindam paul Asked a Question
September 4, 2020 7:29 ampts 30 pts
Match the entries in Group I (Mechanical system) with analogous quantities in Group II (Electrical system) Group I Group II P) Mass 1) Current Q) Spring constant 2) Voltage R) Displacement 3) Reciprocal capacitance S) Velocity 4) Charge 5) Inductance (A) P-3, Q-5, R-4, S-1 C) P-3, Q-5, R-4, S-2 (B) P-5, Q-3, R-4, S-2 (D) P-5, Q-3, R-4, S-1
  • 2 Answer(s)
  • 0 Likes
  • 3 Comments
  • Shares
  • Priyanshu kumar thankyou

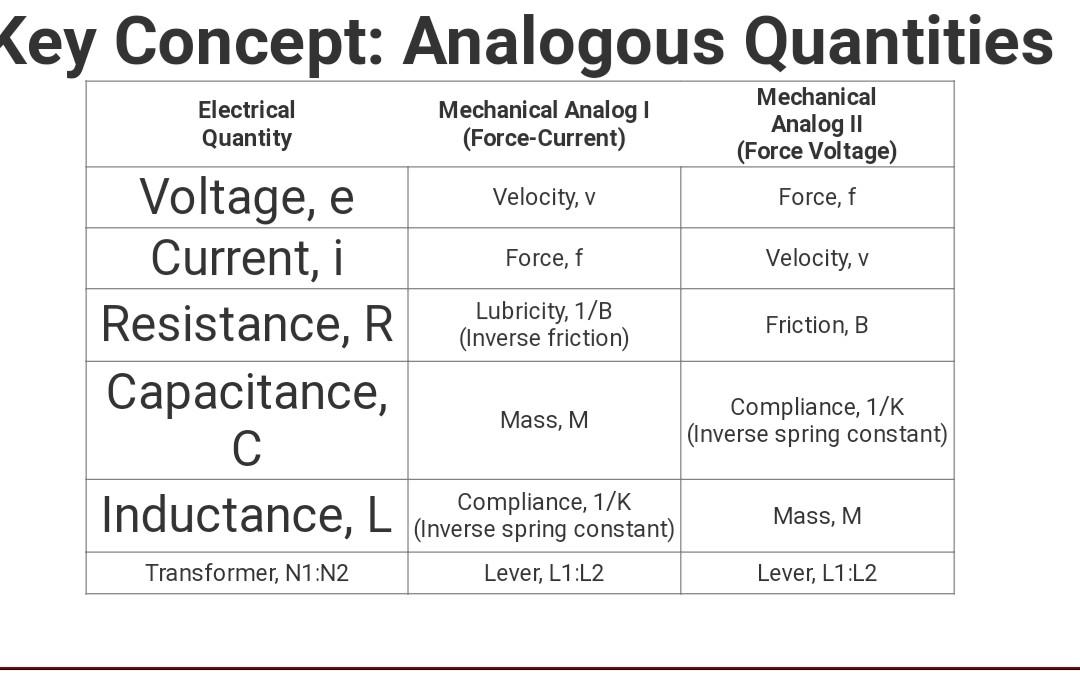

    see attachment
    • cropped763571939078264901.jpg
    Likes(0) Reply(0)
  • Anup padwal thankyou
    Option D is correct. In this question you only have to know the electrical systems for mass and velocity which will ultimately lead to the answer. Also see the attachment.
    • cropped4876970574486883967.jpg
    Likes(0) Reply(0)
  • Priyanshu kumar
    Option B is correct
    Likes(0) Reply(2)
    Arindam paul
    Sir please discuss
