Motion of bodies connected by strings
what is meant by the reaction at the pulley and how it represent as R and it's relationship with T is given as R=2T. please explain it full.
2 Answer(s)
Answer Now
- 0 Likes
- 3 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Ravi prakash yadav
![best-answer]()

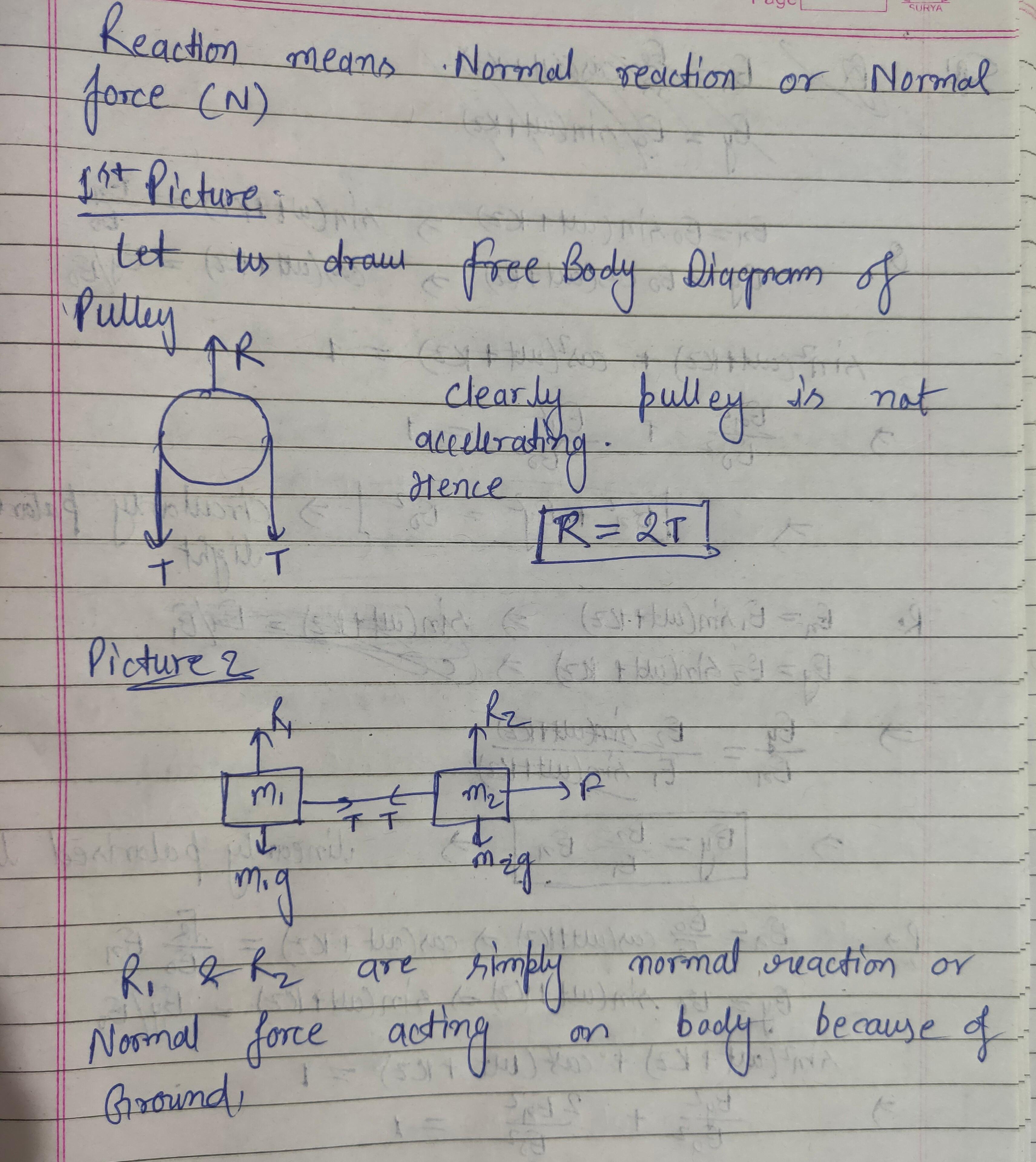

Reaction is nothing but normal reaction. Normal reaction acts when two bodies are in contact. In picture 2,R1 and R2 are simply normal reactions due to ground on both masses m1 and m2 respectively. See the attachment.
![cropped2369891032415175872.jpg]()
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Ruby negi Best Answer
A reaction force is just the opposition force of any force , it exists only in the presence of a action force . For eg : if u place a box of 5 kg (5*9.81=49.05N) on a floor, the floor exerts a reaction force of 49.05N on that box. Once you remove that box then that reaction force disappears.It is also called as normal force. so here , 2T is the reaction force to pulley when both the weight of the masses applies and in second figure, R1 and R2 are normal reaction to the weight...
see attachment
