draw the v-i characteristics curve >what is the knee voltage? calculate the static and dynamic resistance for an operating point v=0.7 volts pre
ncOwa Draw the V-I characteristics curve >What is the Knee voltage? Calculate the static and dynamic resistance for an operating point V=0.7 volts Predict whether the diode is silicon or germanium type. in 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 volts 0 0 0 0 o 10 28 65 121 200 in mA
2 Answer(s)
Answer Now
- 0 Likes
- 4 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Dhairya sharma Best Answer
yes dear it's si diode
-
![comment-profile-img]()
>
Dhairya sharma
![best-answer]()

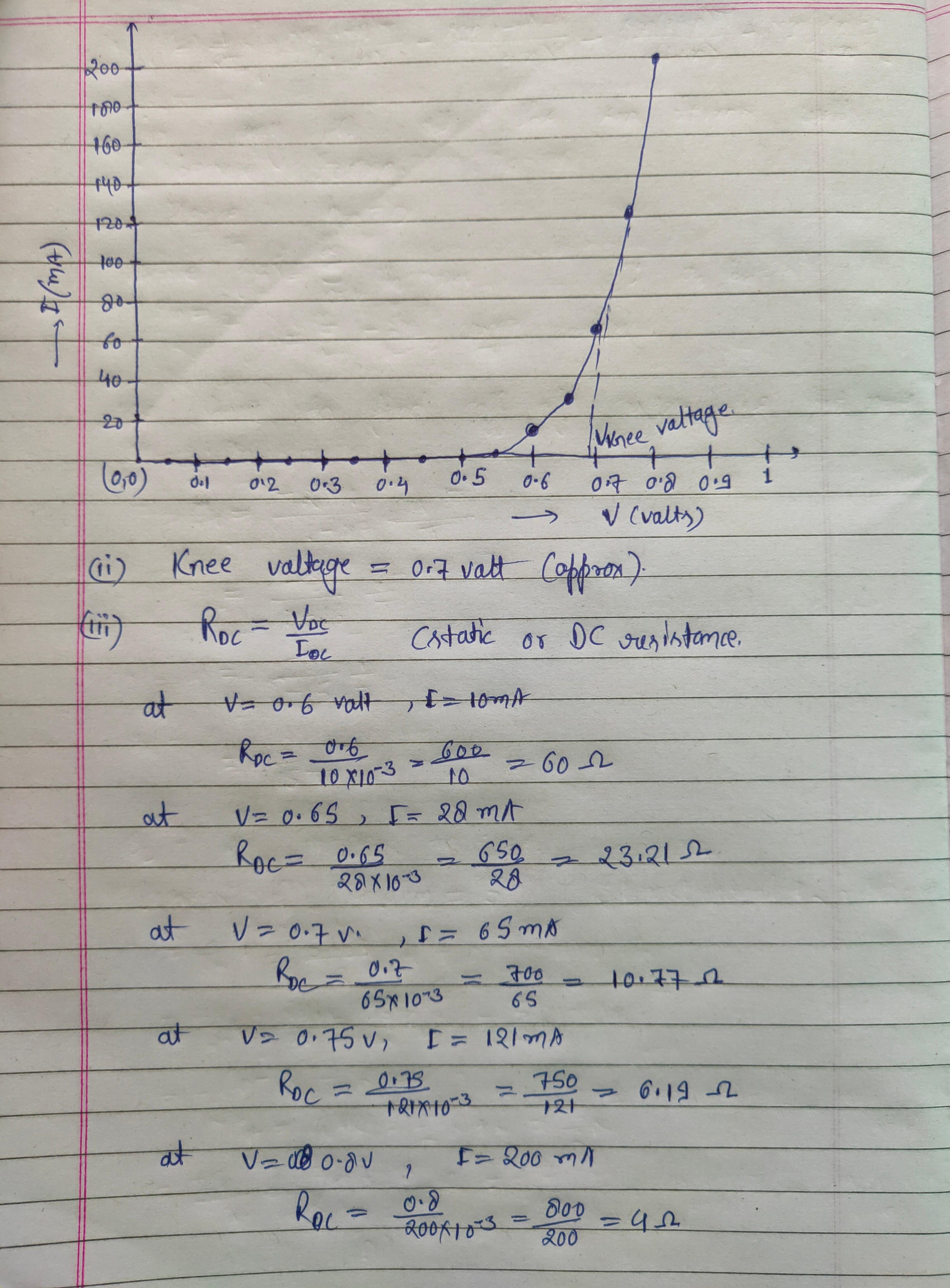

see attached
![cropped9114325377249291626.jpg]()
-
![comment-profile-img]()
>
Ravi prakash yadav

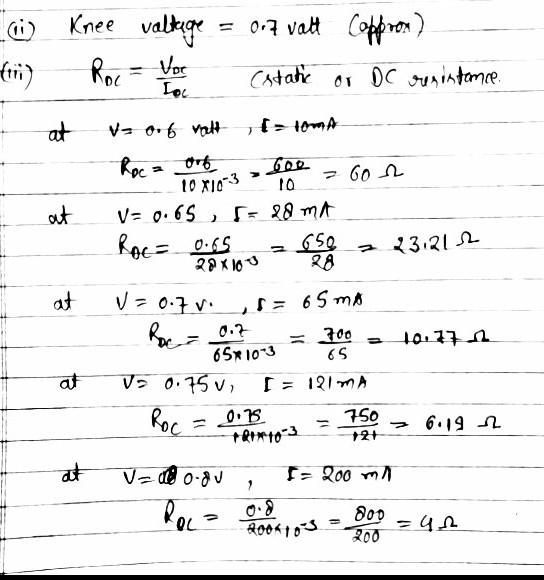

see the attachment
![cropped1836635663518362317.jpg]()
![eduncle-logo-app]()
its silicon diode right?!
![eduncle-logo-app]()
and how did you calculate dynamic resistance ...didn't understand?
![eduncle-logo-app]()
using the formula Rac=Va-Vb/(Ia-Ib) I have again calculated Rac.
![eduncle-logo-app]()
And for Silicon,knee voltage=0.3 volt and for germanium knee voltage =0.7volt. In the given question,knee voltage is approximately equal to 0.7volt. So it is a germanium diode.
