Surya posted an Question
February 03, 2022 • 08:59 am 30 points
  • IIT JAM
  • Physics (PH)

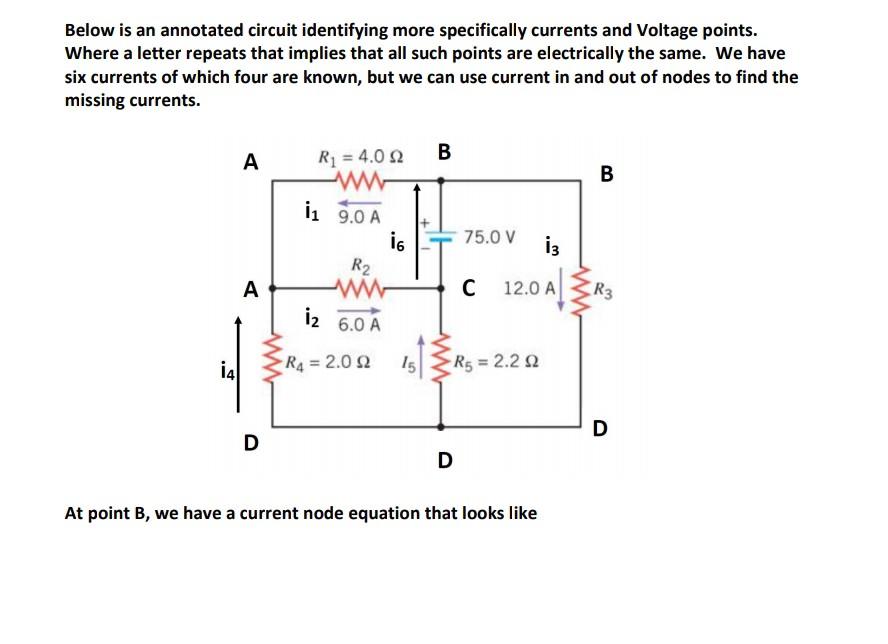

None of the resistors in the circuit shown in the drawing is connected in series or in parallel with one another. find (a) the current 15 and the resistances (b

None of the resistors in the circuit shown in the drawing is connected in series or in parallel with one another. Find (a) the current 15 and the resistances (b) R2 and (c) R3 R3 R1=4.0 w 9.0 A 75.0 V R2 12.0 AR3 6.0 A Ra=2.02 15 Rs=2.29

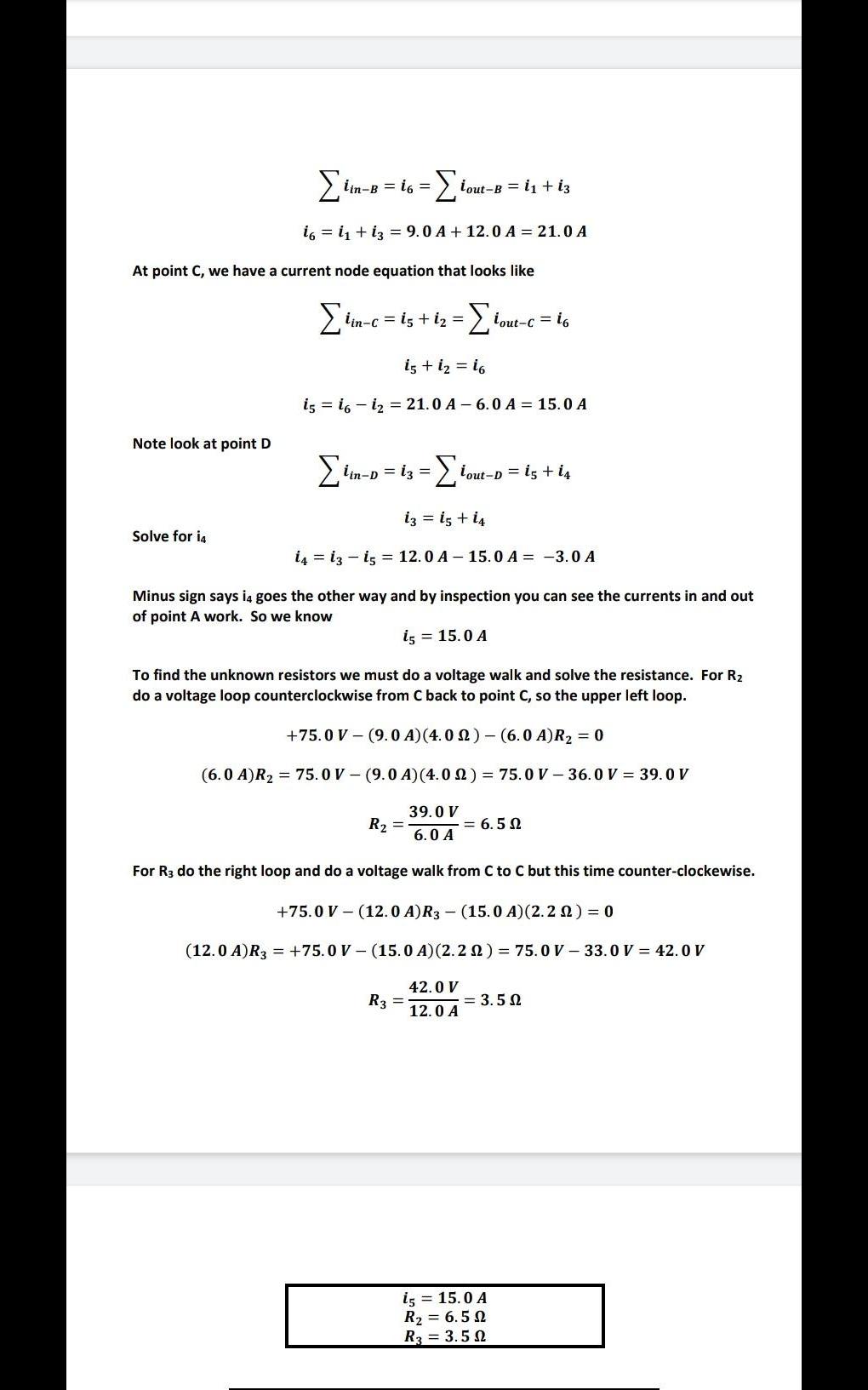

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
