Numerical problem

an oblique drill was drilled at angle of 30° towards east and met a mineralized strata dipping 60° towards west.The geologist found the upper and lower layer after 20km and 40km drill.the true thickness of mineralized strata is ___(in m)
  • 2 Answer(s)
Answer Now
  • like-1
  • 2 Likes
  • 4 Comments
  • Shares

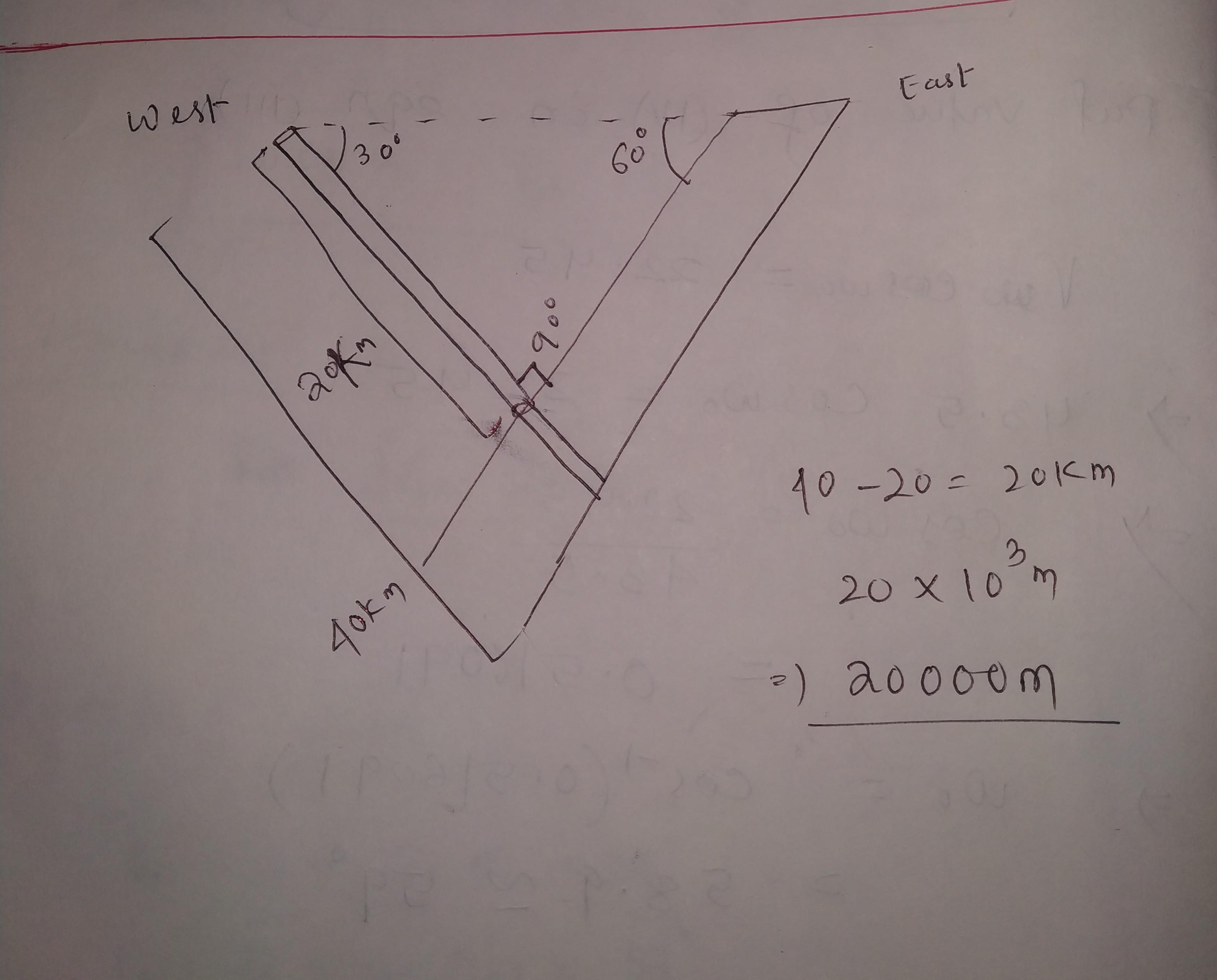

  • Sajan sarthak sahoo Best Answer
    20000m true thickness
    • cropped7139303015394528161.jpg
    Likes(1) Reply(0)
  • Sajan sarthak sahoo thankyou
    Directly as it is perpendicular to strata then it would be in true thickness.
    Likes(0) Reply(0)
  • Rahul pandey

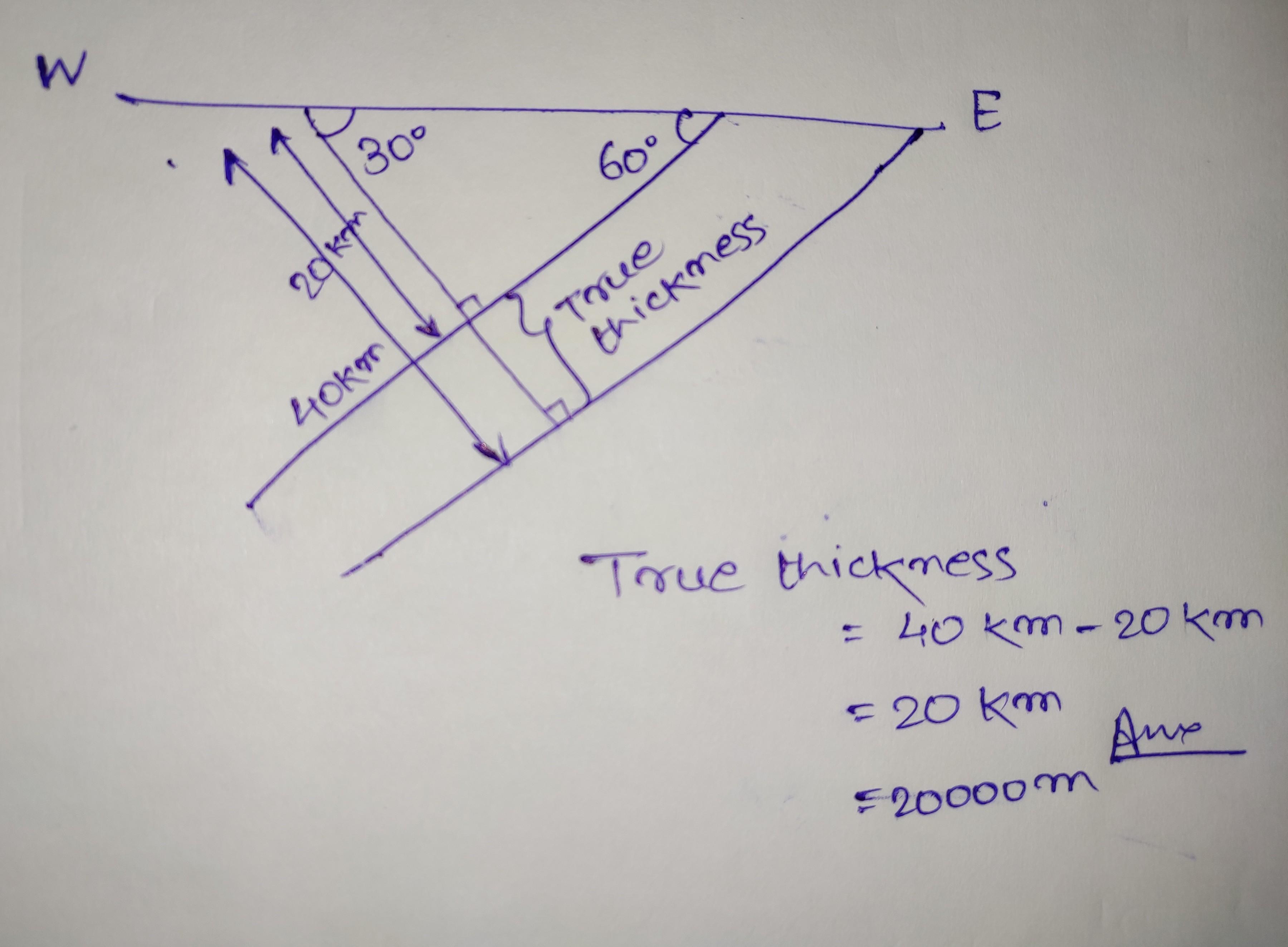

    Ans- 20Kms. Please see the attachment for details.
    • cropped9158879488045903135.jpg
    Likes(1) Reply(0)
  • Rahul pandey
    Dear student, please mark the question as answered. You can ask me in case of any doubt.
    Likes(1) Reply(0)
