Anukruti Asked a Question
October 22, 2020 12:41 pmpts 30 pts
  • IIT JAM
  • Geology (GG)

On a flat surface the eastern limb of a fold dips 60° towards n45°w and western limb dips 40° towards n60°e.find the trend and plunge of the fold axis

  • 2 Answer(s)
Answer Now
  • like-1
  • 1 Likes
  • 2 Comments
  • Shares
  • Sajan sarthak thankyou

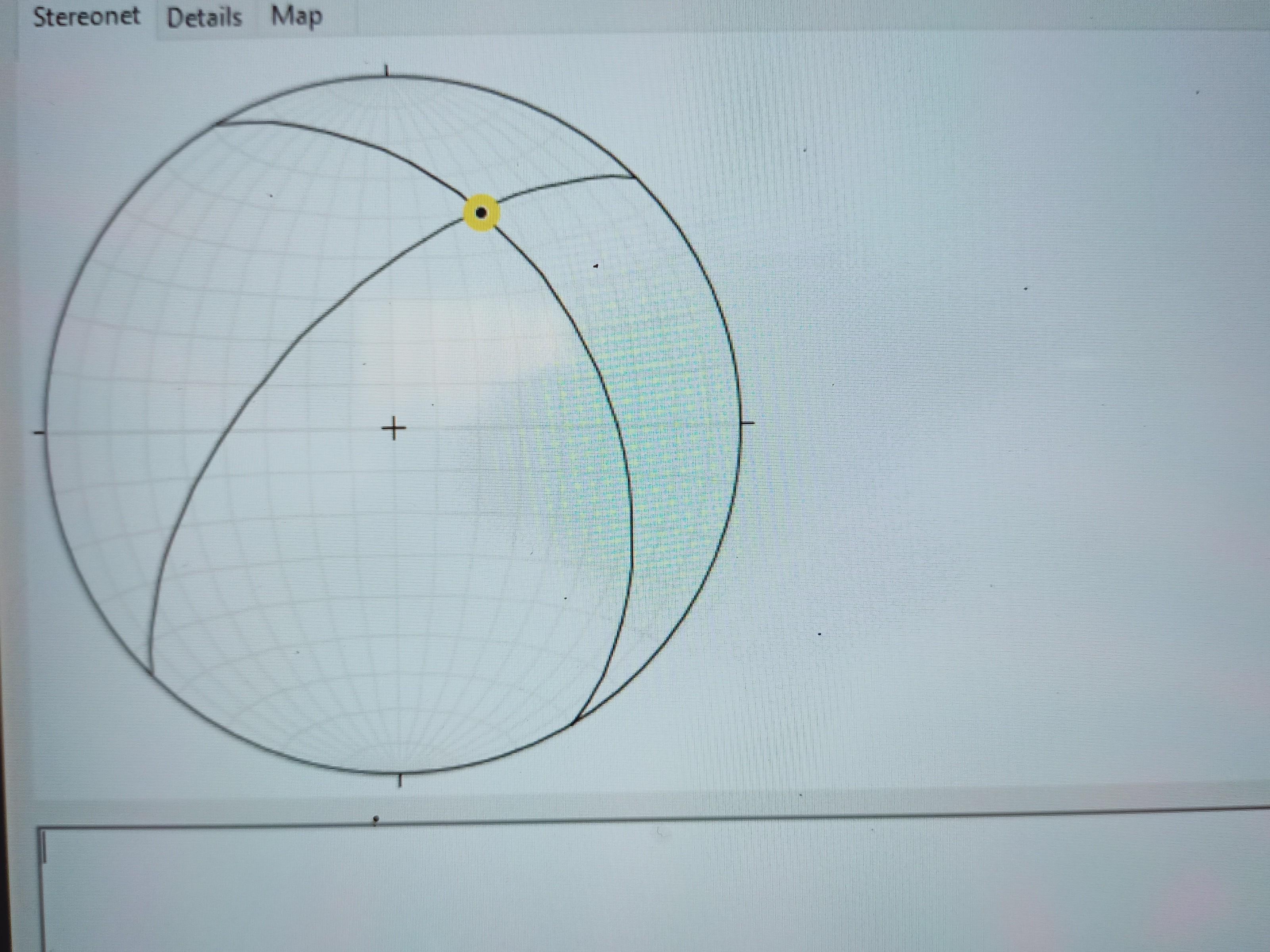

    Fold axis is having a trend of 023 and plunge. 34 degree The dott showing in stereo is the fold axis and the arc are planes
    • cropped6986661528225673483.jpg
    Likes(0) Reply(0)
  • Rahul kumar Best Answer

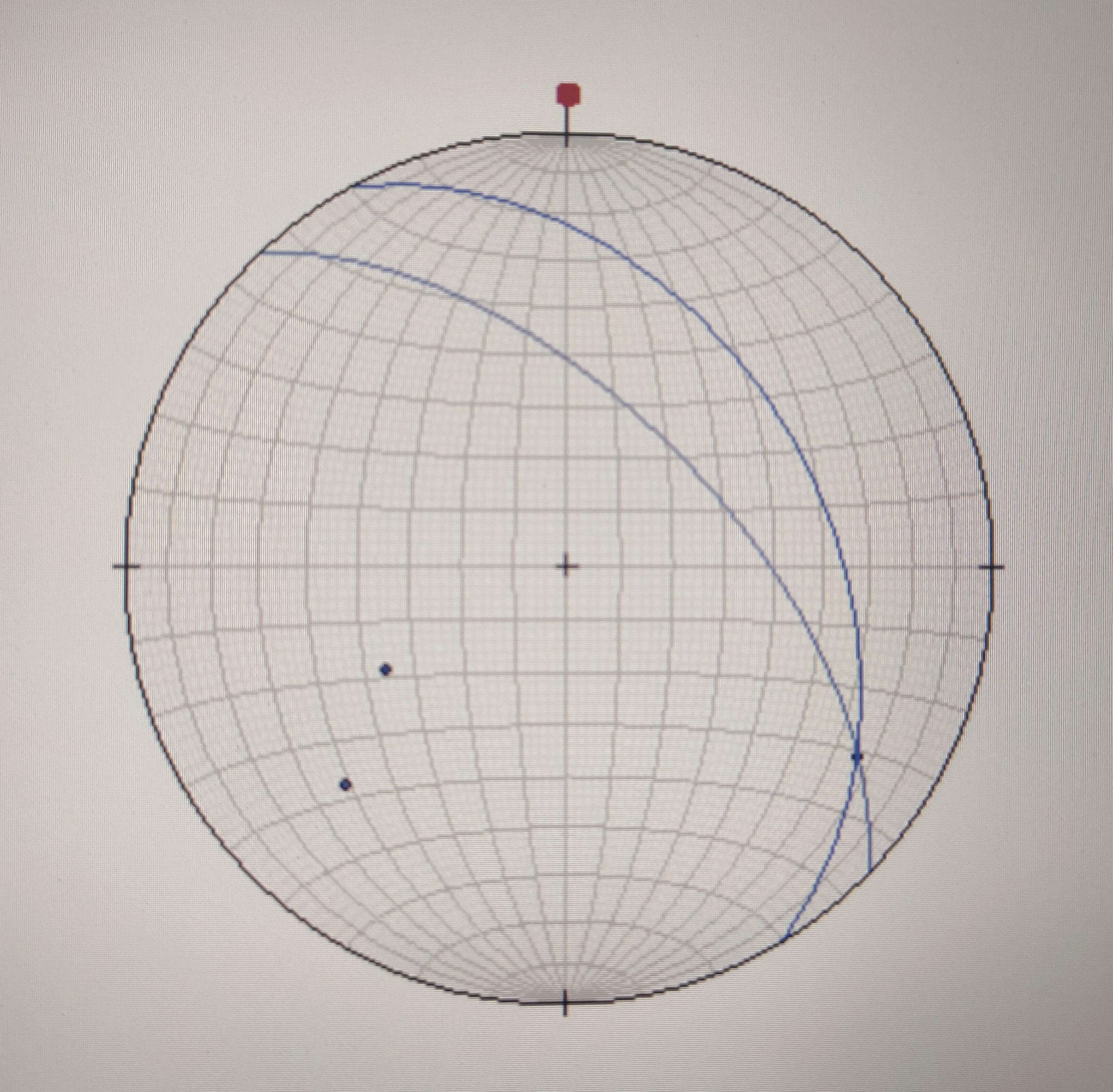

    Fold axis will be the intersection line of two limbs. The trend of the fold axis is 123 and plunge of the fold axis is 20° as shown in the stereonet below.
    • cropped5079597712353153004.jpg
    Likes(0) Reply(0)
