Optics a parallel beam of light comp....
Optics A parallel beam of light comp.... Answer is 0.001
3 Answer(s)
Answer Now
- 0 Likes
- 6 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Ruby negi
![best-answer]()

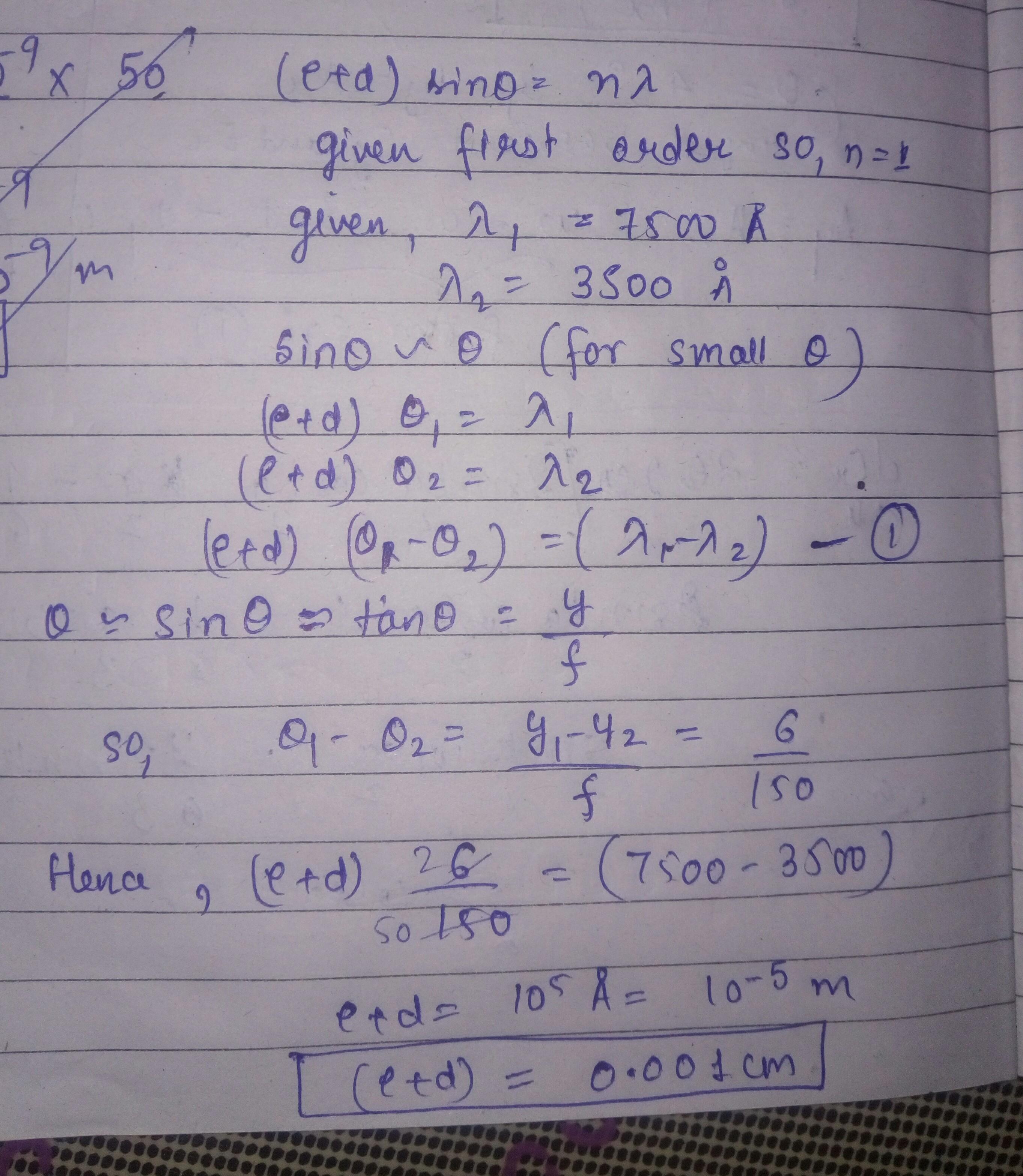

here is the solution dear, 0.001cm is the correct ans.. hope you will get it.. for any doubt please ask.
![cropped1598955103.jpg]()
-
![comment-profile-img]()
>
Abhishek singh Best Answer

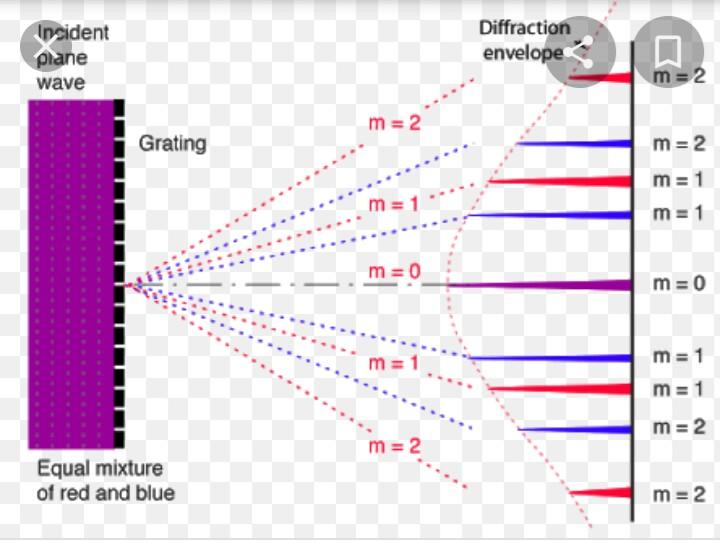

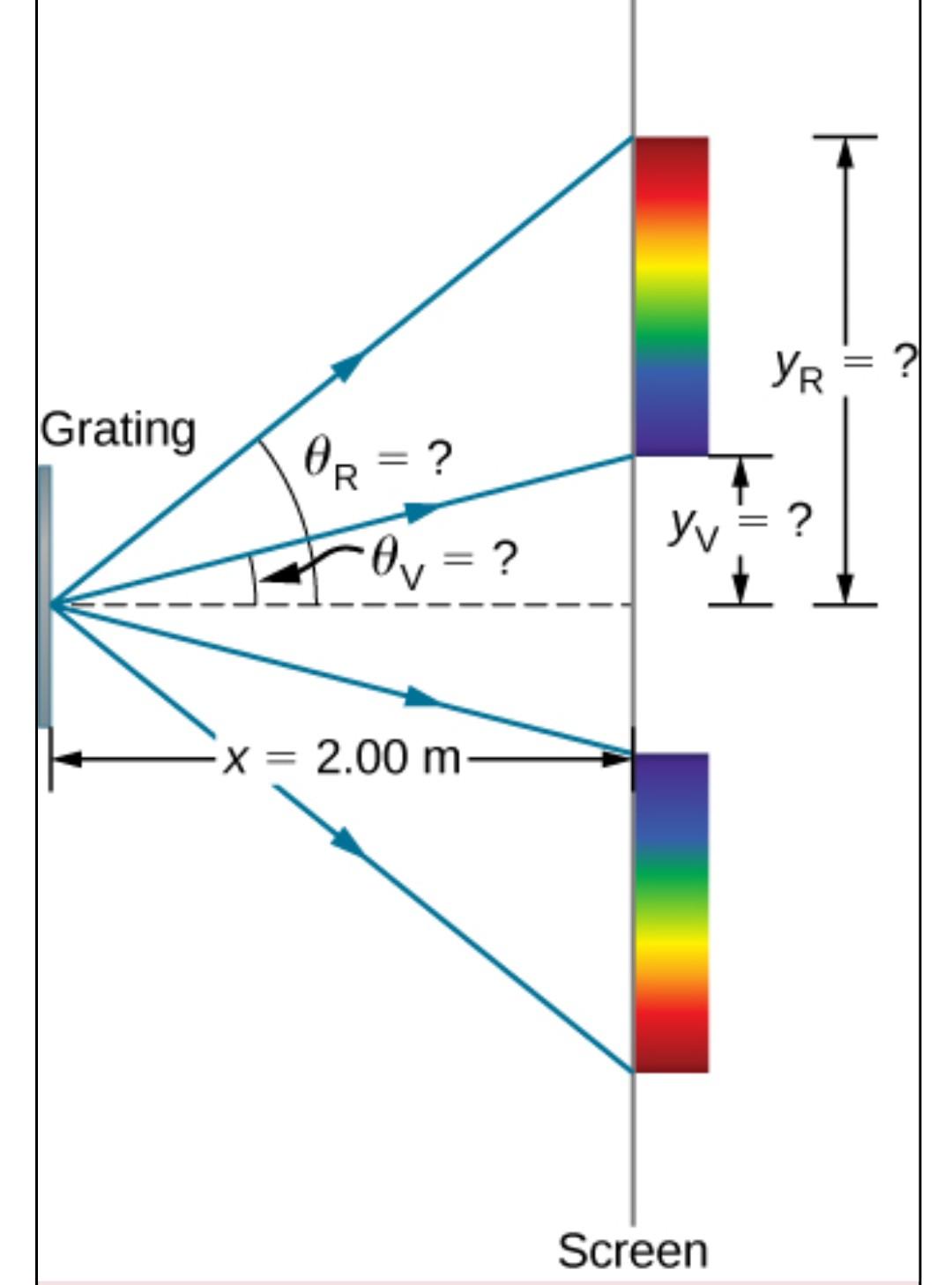

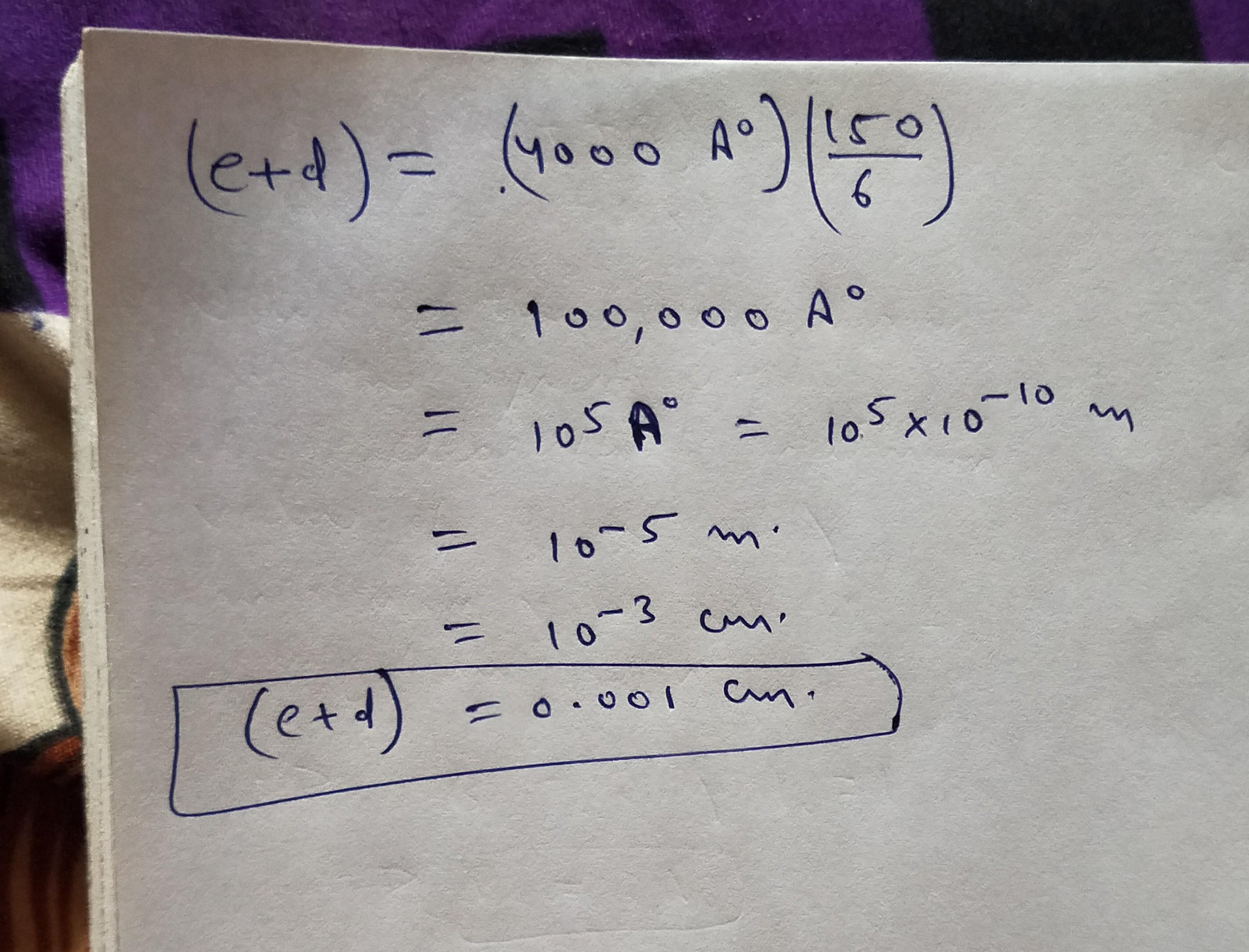

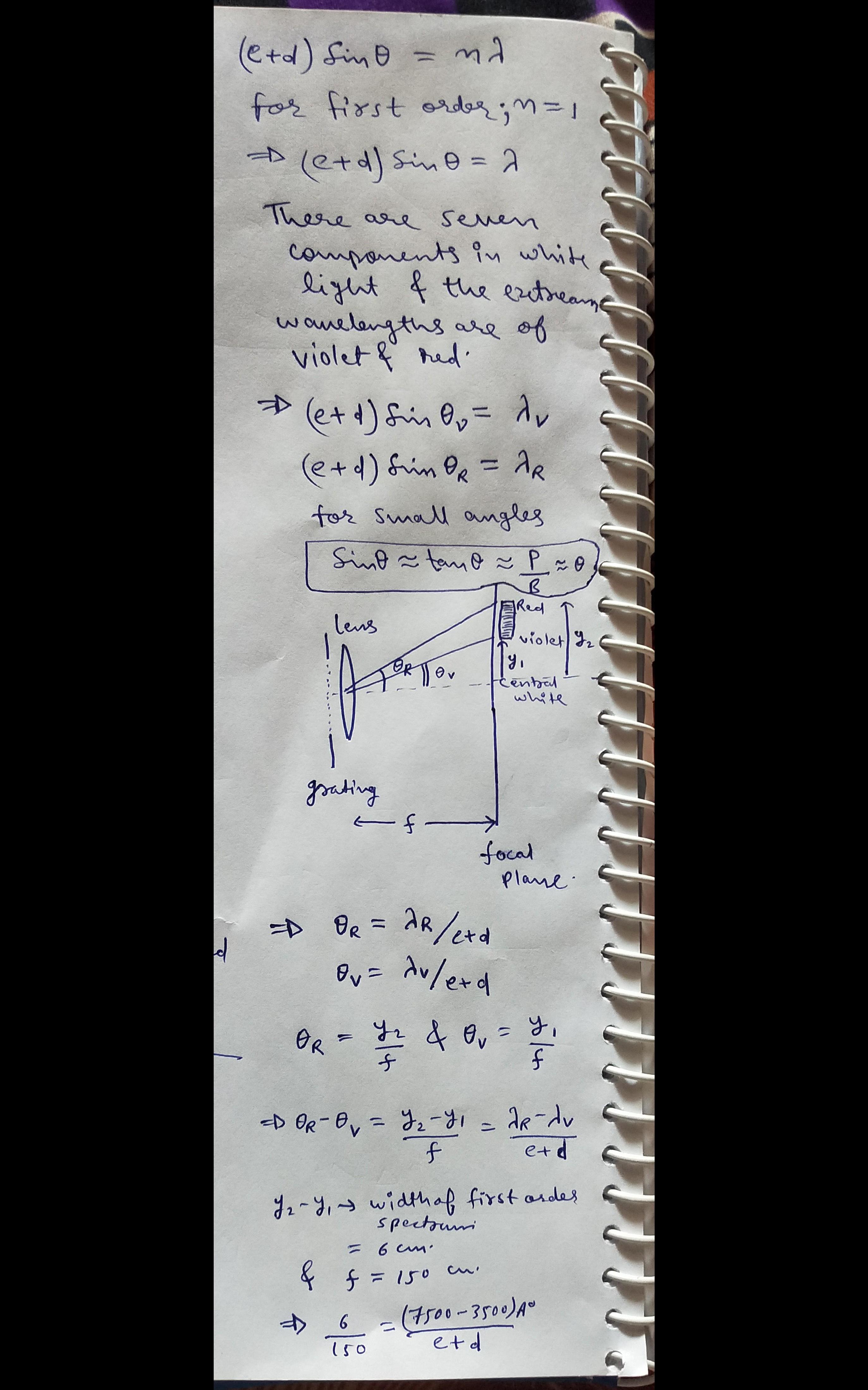

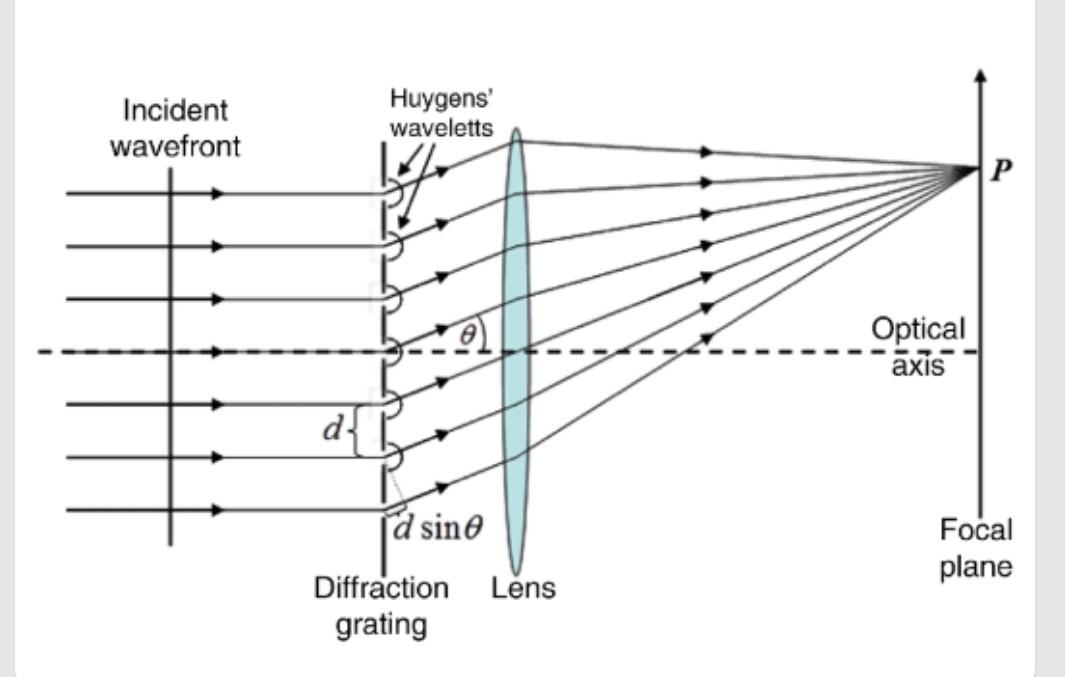

The plane where the parallel beam of light after falling on a lens converges is called focal plane of that lens. In actual practice, the grating is always followed by a lens(I have attached a diagram for explaining that). For small angle approximation sin@ = tan@ = @, where @ is the angle. also, tan@ = Perpendicular/ Base. here the base length will be equal to focal length of lens(as we always put lens very close to grating and the focal plane is far enough from lens). I am attaching the necessary diagrams followed by solution of this question. Best regards.
![cropped7997840104676415136.jpg]()
![cropped3192945938949994873.jpg]()
![cropped5731096383966397659.jpg]()
![cropped547468887004601282.jpg]()
![eduncle-logo-app]()
read the solution atleast 2-3 times as it is conceptually rich.
-
Himanshu Pandey
also focal plane!!
-
Himanshu Pandey
how to solve it,main thing here Focal length is given what to do for that !!!!!
-
![comment-profile-img]()
>
Dhairya sharma
![best-answer]()

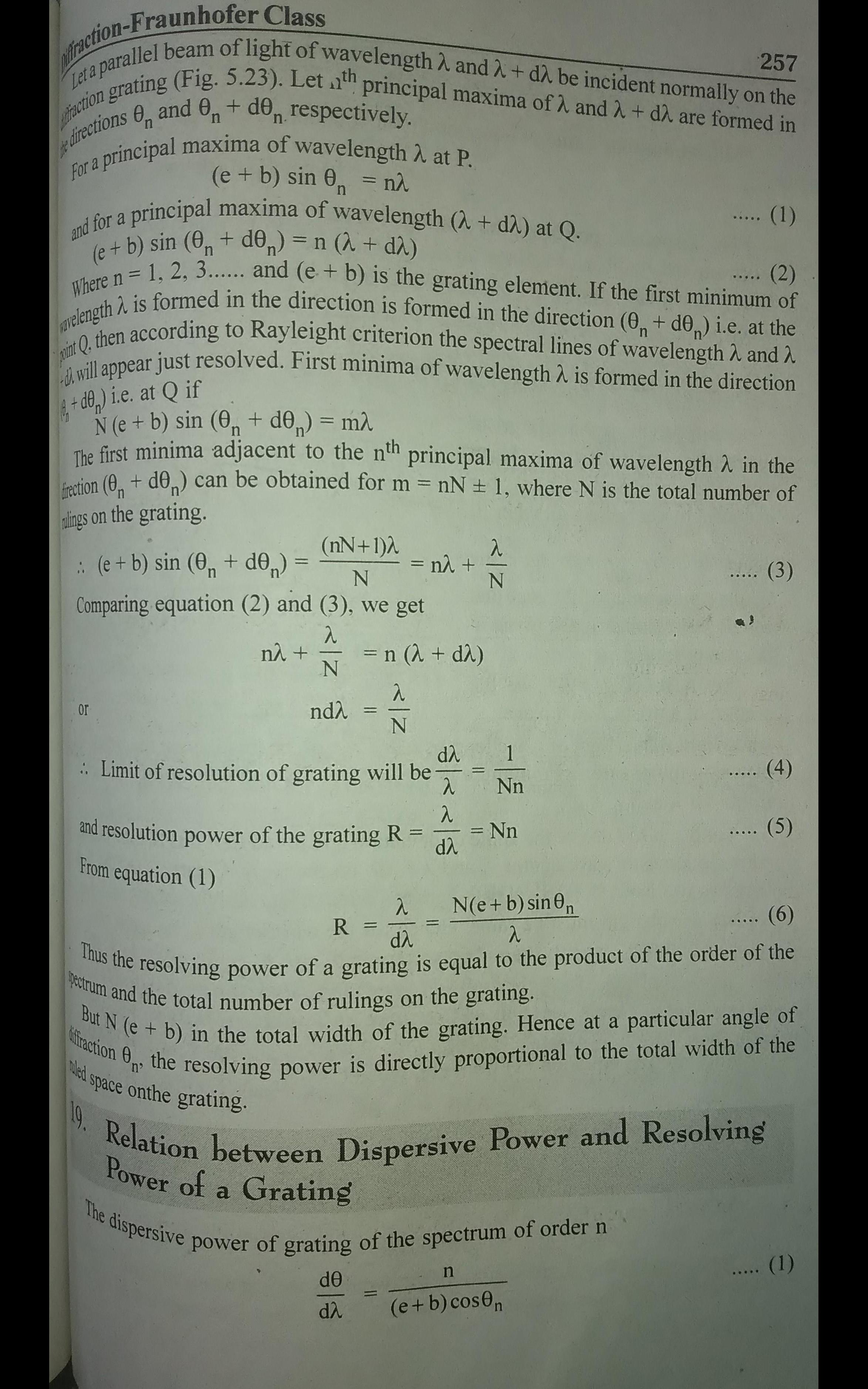

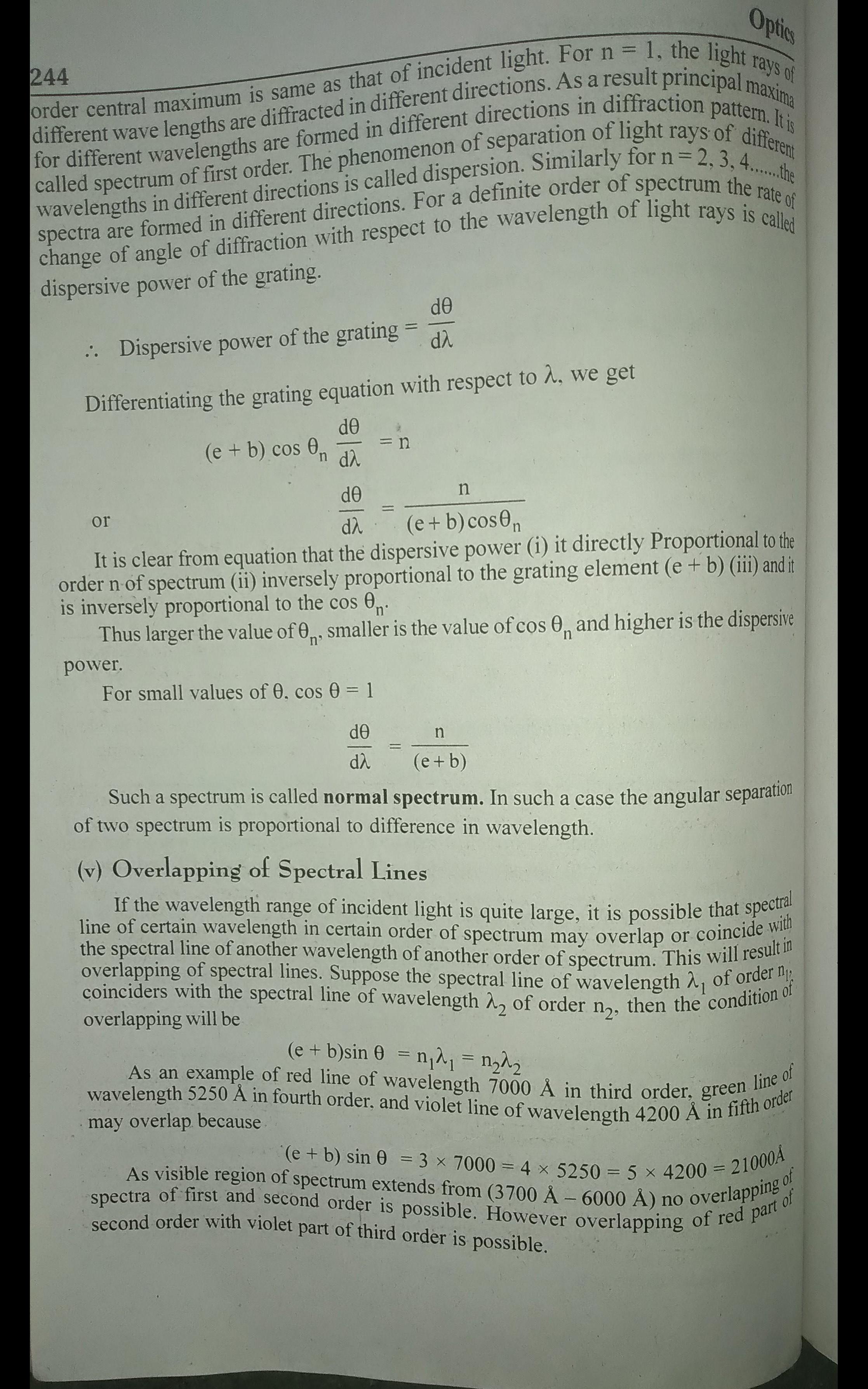

see the attached.
![cropped546624838764931895.jpg]()
![cropped7491564637338144387.jpg]()
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Ruby negi

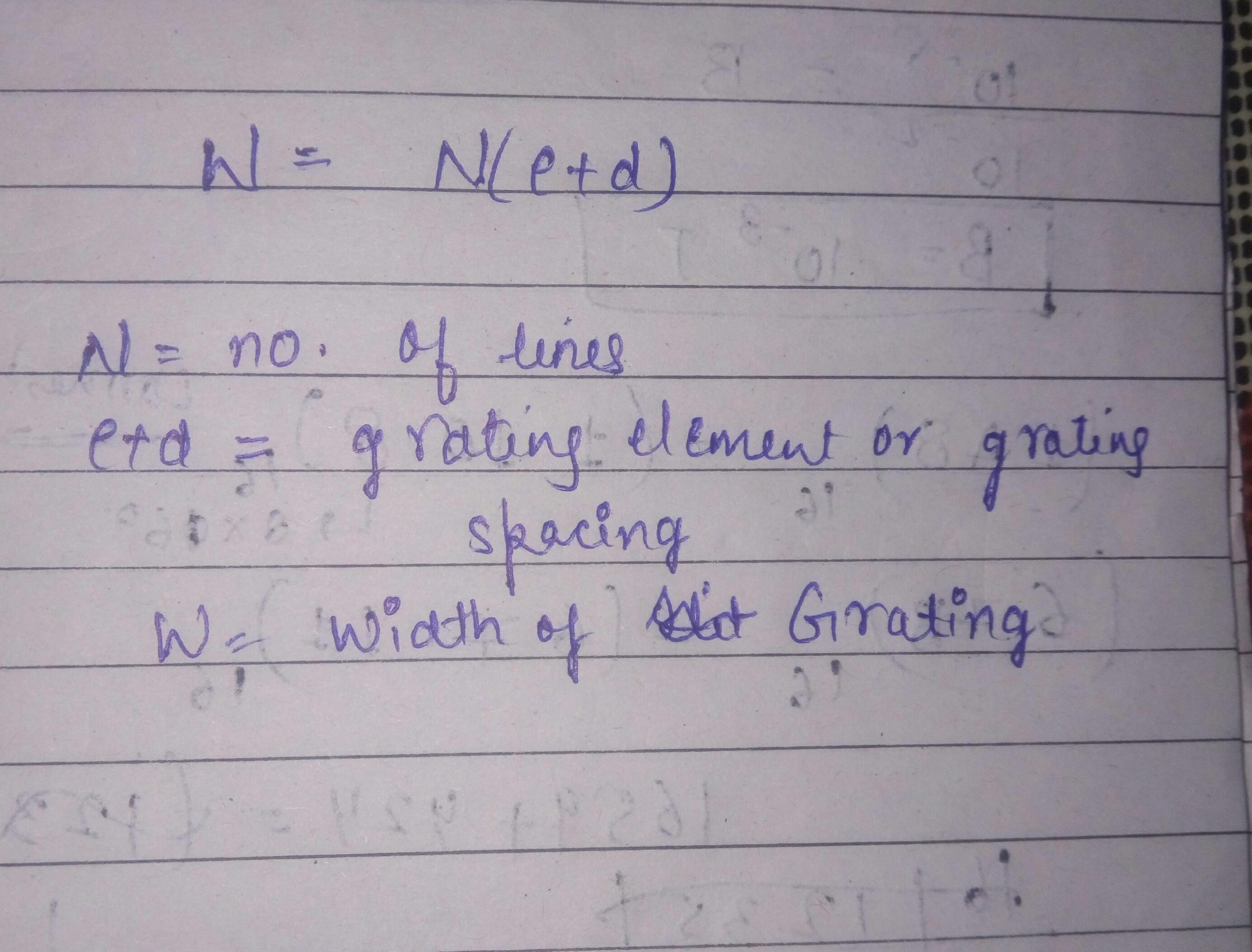

grating element and grating spacing is same i.e e+d... don't get confuse... look this formula.. sometimes in ques, they ask to calculate width of grating.. so W=N(e+d) is width of grating... best regards.
