Himanshu posted an Question
May 25, 2020 • 07:47 am 30 points
  • IIT JAM
  • Physics (PH)

Optics in an x ray diffraction experiment.....

trying to solve with grating equation but failed. Also I am not very much clear with its basics.

3 Answer(s) Answer Now
  • 0 Likes
  • 5 Comments
  • 0 Shares
  • comment-profile-img>
    Abhishek singh Best Answer

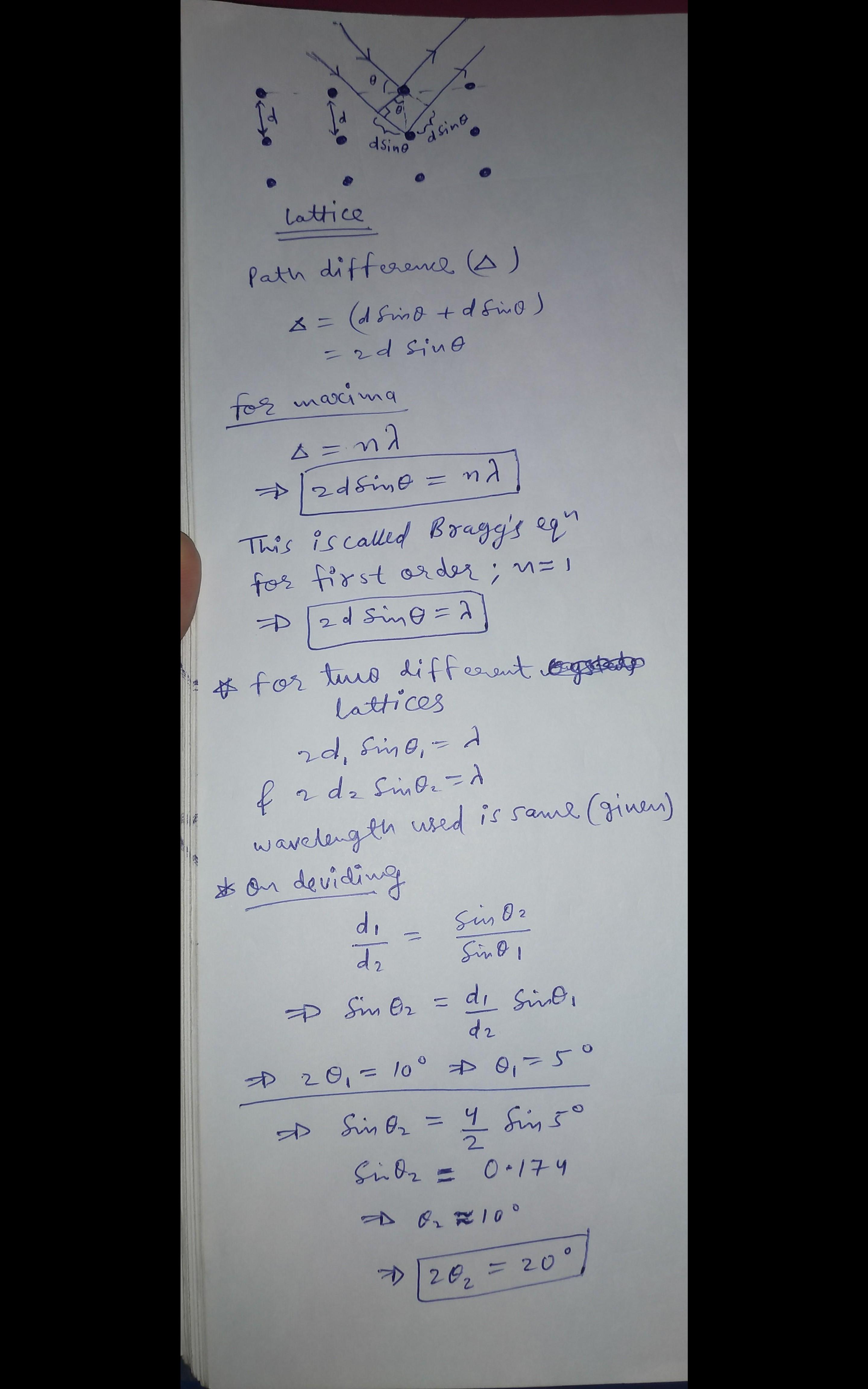

    Actually this topic is from solid state physics. I have derived Bragg's law first. it is very easy because it's just the condition for maxima. rest is calculation. Best regards.

    eduncle-logo-app

    wavelengths are same because same experiment is repeated with different crystals.

    eduncle-logo-app

    they have written in the question about first peak. it means the maxima corresponding to first order, hence n=1 is used.

    eduncle-logo-app

    you are free to ask further doubts.

  • comment-profile-img>
    Chandra prakash

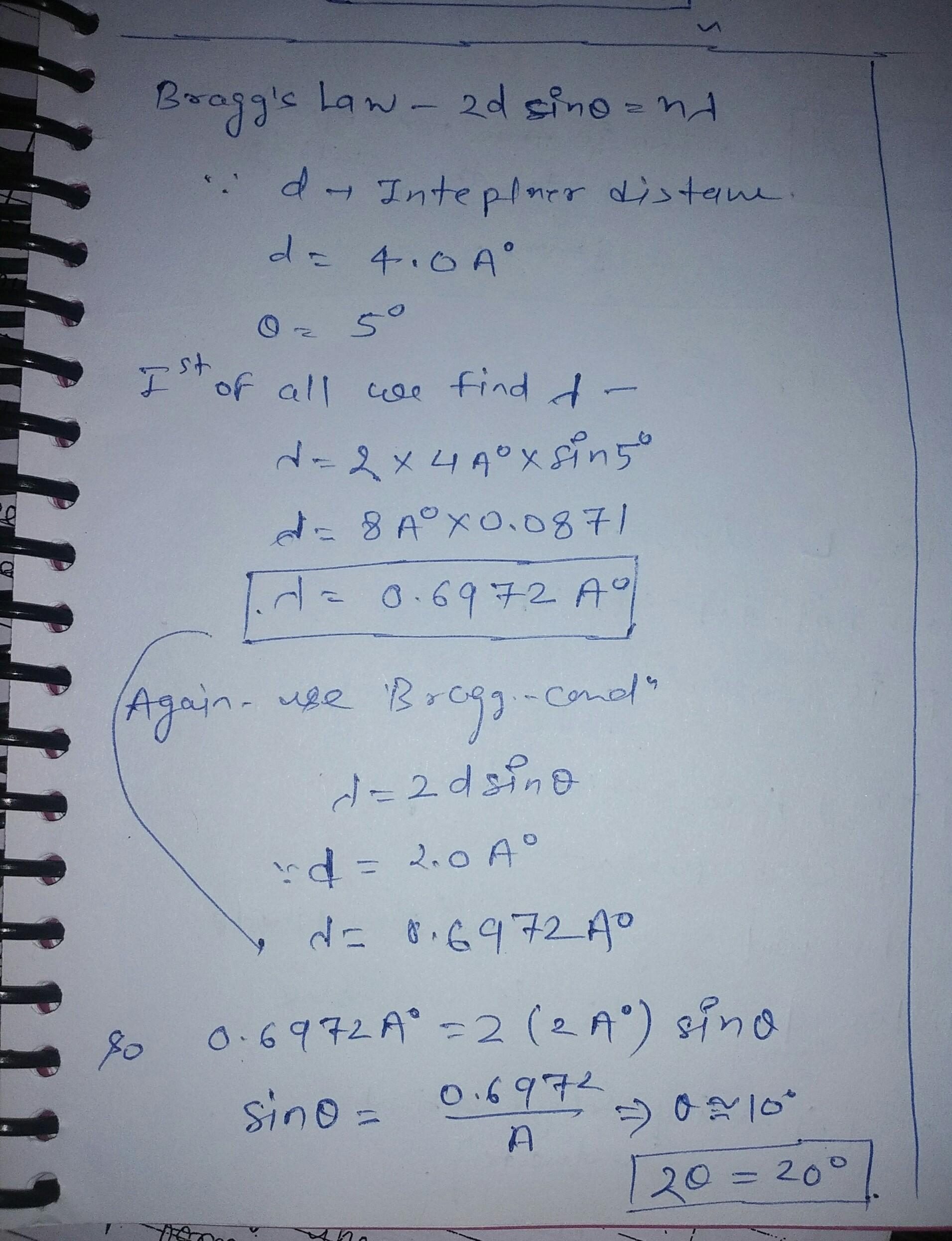

    dear see attached file .for this type of prob I suggest you u should check condition and given values.. and confirm what we found . ..i think u will get it... best regards

    eduncle-logo-app

    I hope you got it my point dear

    eduncle-logo-app

    I hope you got it my point dear

  • comment-profile-img>
    Ruby negi best-answer

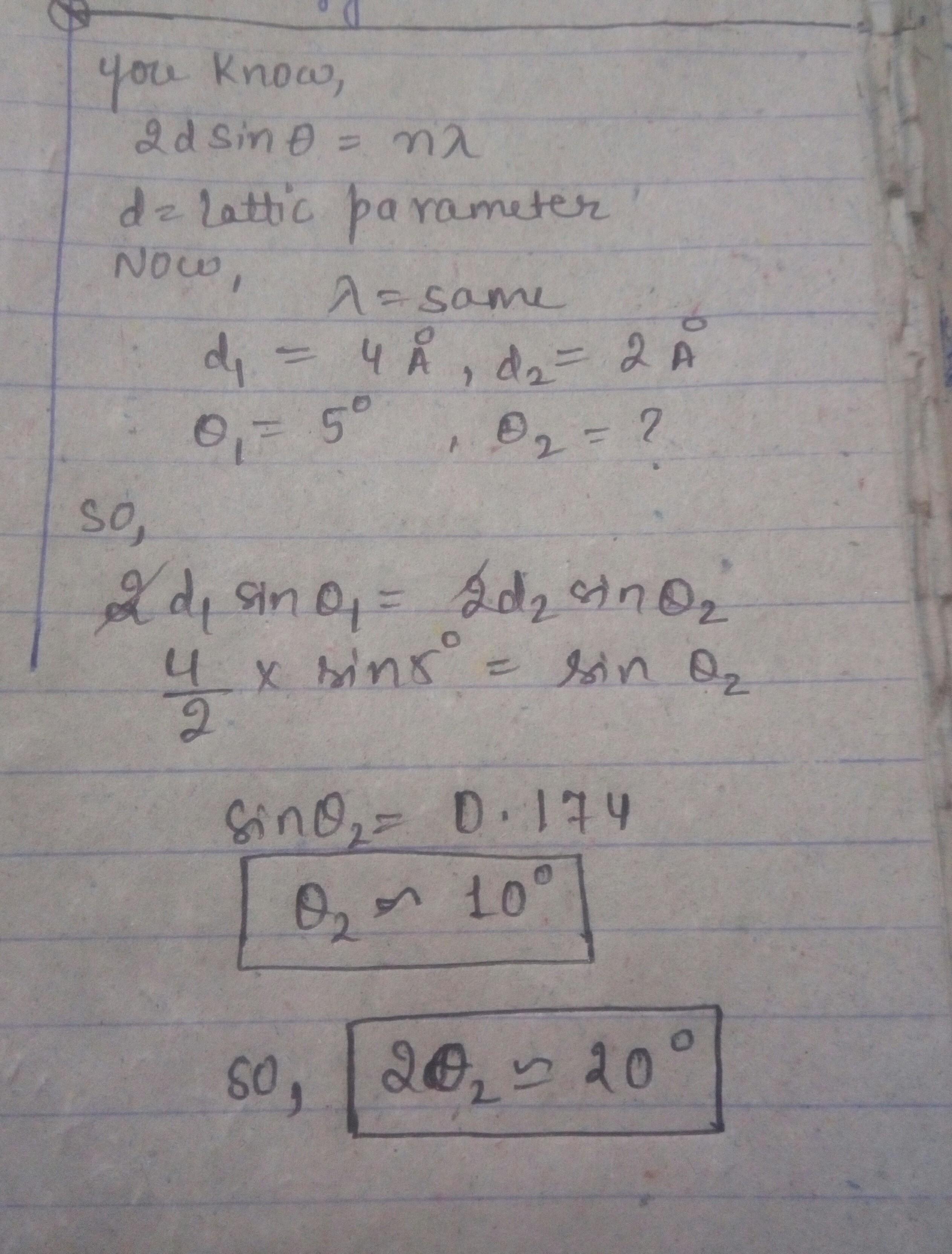

    dear,this is the easiest topic of solid state physics... look the wavelength is same for both experiments and they ask for first peak so n=1 for both experiments, therefore the two equations become equal and u can easily find theta for second experiment...best regards...

    eduncle-logo-app

    actually d is interplanar spacing. but here the types of material is not given so we take lattice parameter as d....

    eduncle-logo-app

    yeah, actually it's a question from solid state physics.

    eduncle-logo-app

    Bragg's law

  • comment-profile-img>
    Dhairya sharma best-answer

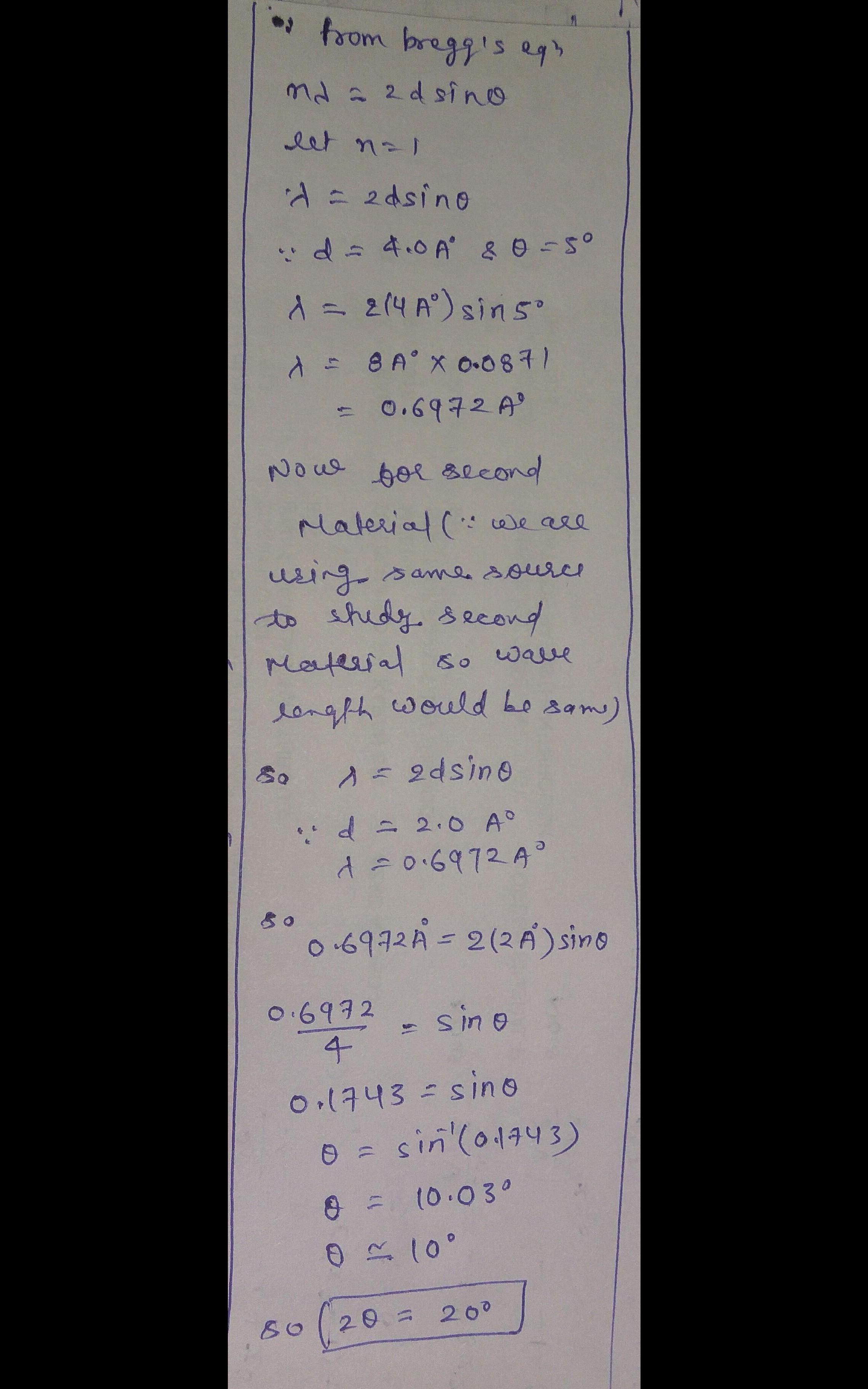

    dear see attached.

    eduncle-logo-app

    in this question we are finding the structure of crystal by some incident radiation. And take the same source for both. so lembda means wave length would be same

    eduncle-logo-app

    i use Bragg's equation to solve it. i hope u will get it.

    eduncle-logo-app

    ask for further clarification
