P-15) the logic circuit shovwn in the following figure yields the given truth table. a y b- a 1 0 1 0 truth table b 1 1 0 0 (b) (d) y 1 1 1 0 xor nor (a) c) nan

P-15) The logic circuit shovwn in the following figure yields the given truth table. A y B- A 1 0 1 0 Truth table B 1 1 0 0 (B) (D) Y 1 1 1 0 XOR NOR (A) C) NAND AND
  • 2 Answer(s)
Answer Now
  • 0 Likes
  • 3 Comments
  • Shares
  • Abhishek singh thankyou

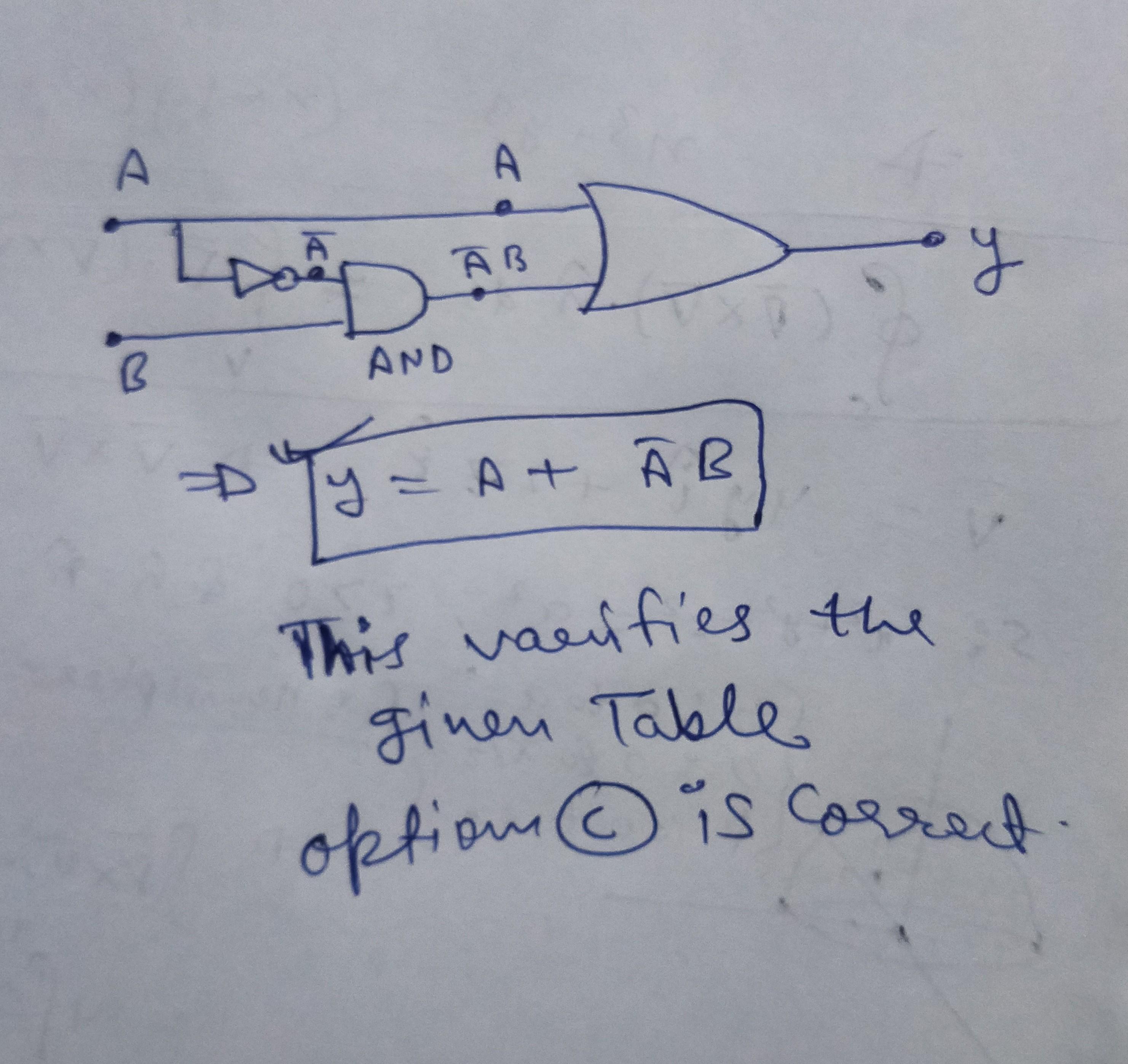

    Option C is correct. Solution attached. Best regards.
    • cropped4775476720367422560.jpg
    Likes(2) Reply(0)
  • Dhairya sharma
    none if the four option are correct bcoz its or gate which is simpally adding the logic expression
    Likes(0) Reply(1)
    Aditi agrawal
    thank you
  • Ruby negi thankyou
    this truth table is of or gate... zero zero gives zero , zero one give one, one zero give one , one one give one...
    Likes(1) Reply(0)
