Ph jam. 2020 q.49 the figure shows a circuit containing two diodes dy and d; with threshold voltages v of 0.7 v and 0.3 v, respectively.
PH JAM. 2020 Q.49 The figure shows a circuit containing two diodes Dy and D; with threshold voltages V of 0.7 V and 0.3 V, respectively. Considering the simplified diode model, which assumes diode I-V characteristic as shown in the plot on the right, the current through the resistor R is...
3 Answer(s)
Answer Now
- 0 Likes
- 5 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Chandra prakash Best Answer
Both Si and Ge are in forward bias but Ge will attain cut off early. So Si not conduct in this case...
![eduncle-logo-app]()
but hmne to 10 volt dc apply kiya h to dono ek sath conduct ku nhi karenge ,
![eduncle-logo-app]()
if the apply source has unlimited current, the Ge diode will conduct first. but the high current will vaporize it. then the silicon diode will conduct. then it will also vaporize.. if the supply is current limited to 30mA, the Ge diode will conduct at perhaps 0.3v continuously. the silicon diode never turn on
-
![comment-profile-img]()
>
Chandra prakash

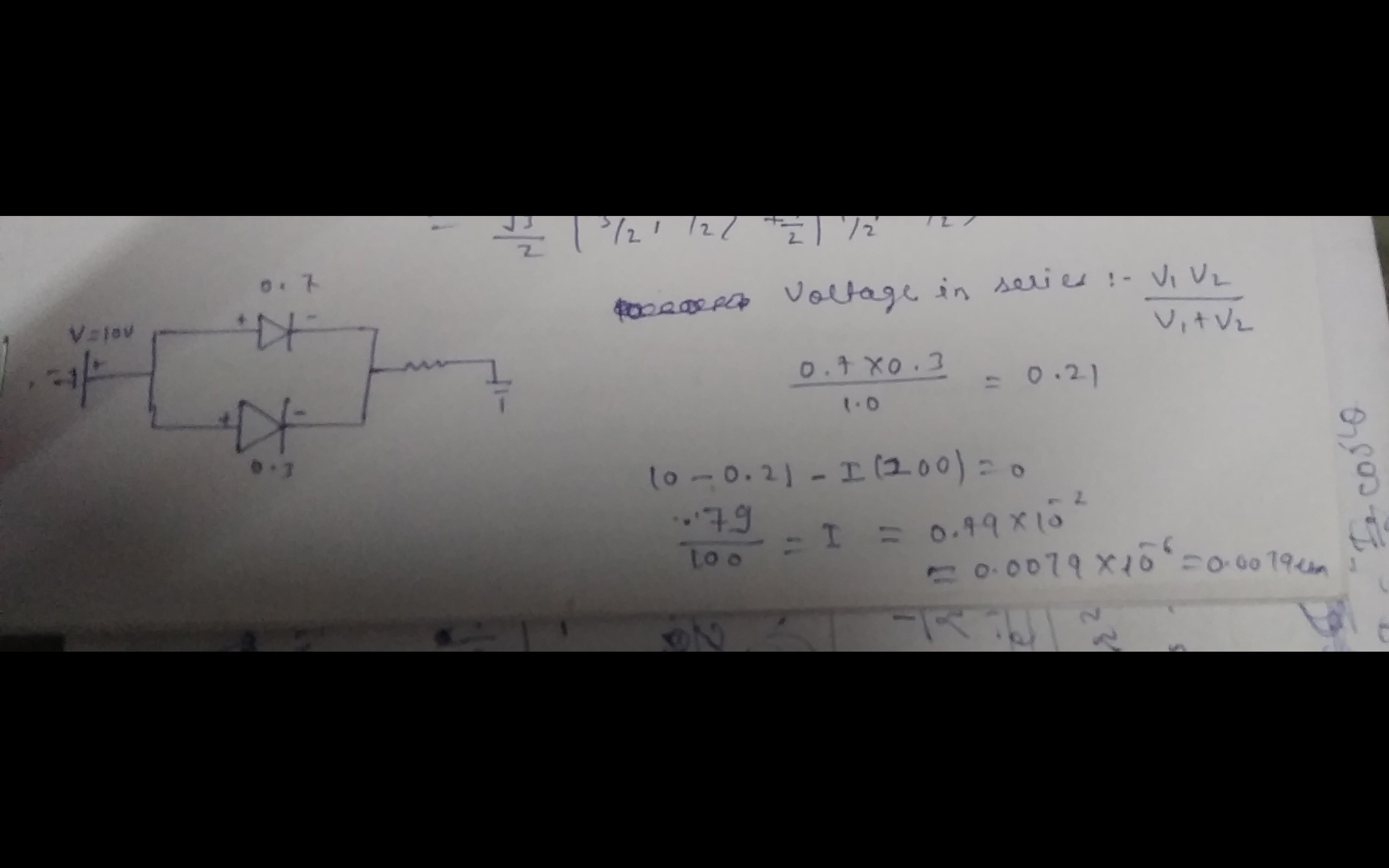

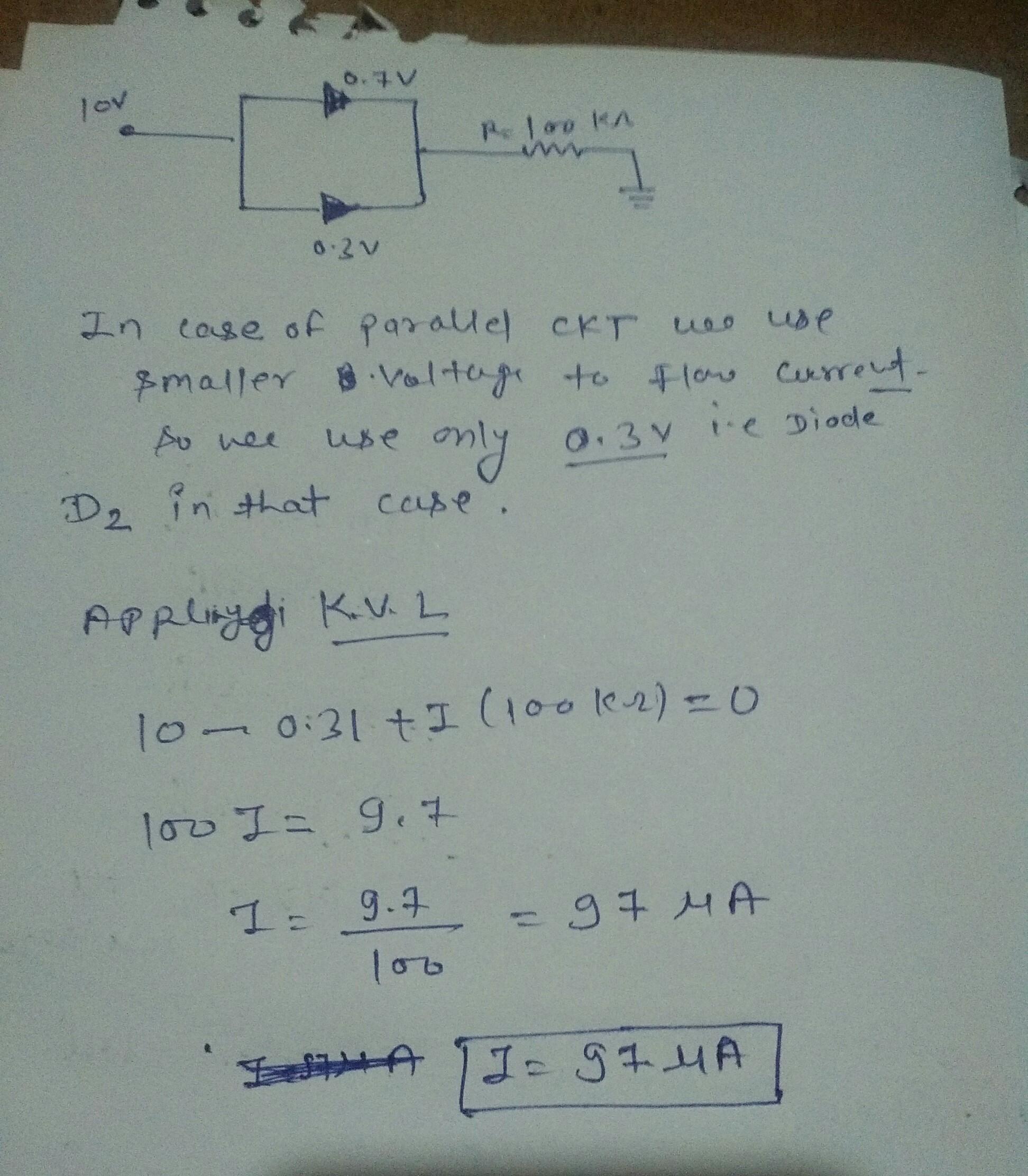

see attached file it's very helpful for you
![cropped-918260046.jpg]()
-
![comment-profile-img]()
>
Abhishek singh
![best-answer]()

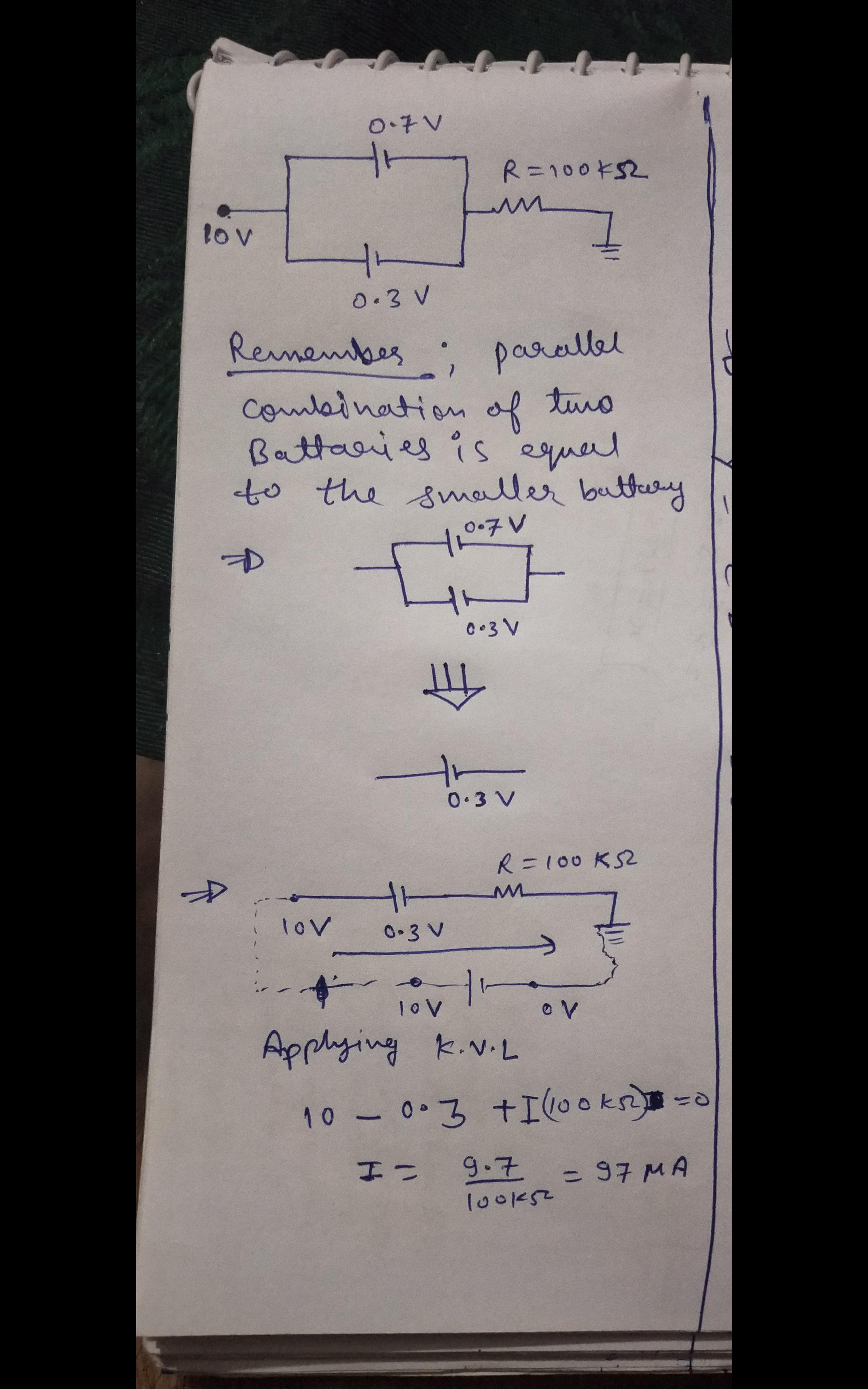

You can consider the 10 volt as a battery of 10 volt( I have drawn a battery of 10V in the final diagram).
![cropped458945709220328768.jpg]()
![eduncle-logo-app]()
ask doubts if any?
![eduncle-logo-app]()
haan doubt ye h ki parallel combination m net smaller k equivalent kaise hoga
![eduncle-logo-app]()
because jitna less voltage hoga utna less resistance.. and current always flows through less resistive path
-
![comment-profile-img]()
>
Dhairya sharma
![best-answer]()
attached:
![cropped2681698912255749518.jpg]()
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Abhishek singh
Here from 10 volt (left) to 0 volt (ground, in right most side) The current will flow from left to right. I think this is clear to you. Now we have two batteries in parallel(in opposite direction to current flow), so current will choose the path with minimum oppose, 0.3Volt is the minimum oppose, that why current will only flow through it and equivalently the effective battery is smaller battery.
remember this concept, it will always help you in electronics
Any queries?
ok , agr battery opposite polarity ki hoti jo current ko support kare. to konsi battery effective hoti
In that case, both diodes will be reverse biased. And the current will be zero.
