Amrutha t Asked a Question
July 25, 2020 7:40 pmpts 30 pts
Physics (Electrostatics) 24.5 Examples on use of electric dis placement (D) ExA A thick spherical shell (inner radius a, outer radius b) is made of dielectric material with a "frozen in" polarization P)- where k is a constant andr is the distance from the center (fig). Find the electric field in all three regions
  • 1 Answer(s)
  • 0 Likes
  • 8 Comments
  • Shares
  • Ruby negi thankyou
    see this....

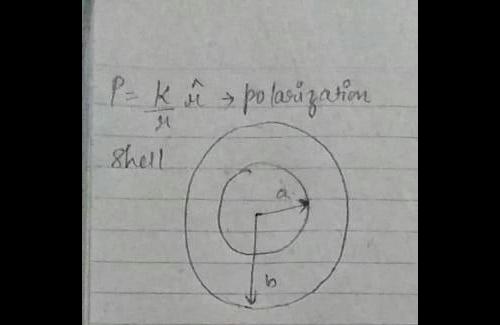

    • cropped-1147902863.jpg

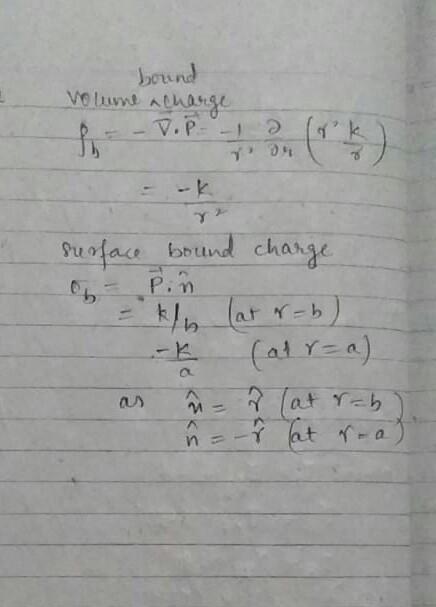

    • cropped1695766207.jpg

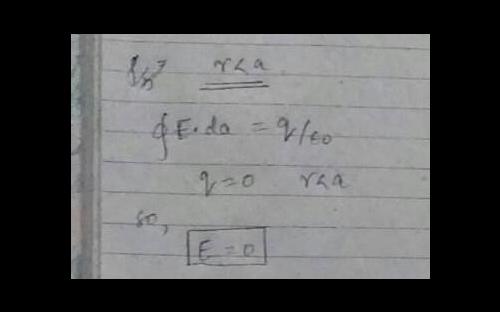

    • cropped957800601.jpg

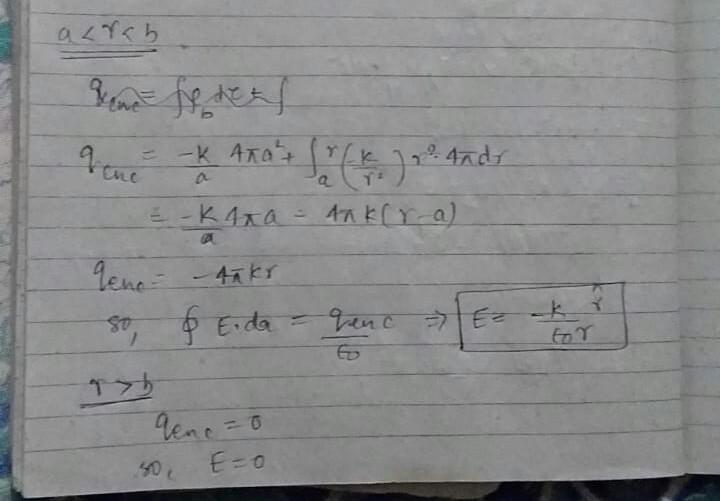

    • cropped1991567156.jpg
    Likes(1) Reply(8)
    Ruby negi
    here note, first find the bound charge density then e.f ... total bound charge for shell is zero that's why e.f outside the shell is also zero.
  • Vaishali sharma
    solution
    • cropped6571001874203935630.jpg
    Likes(1) Reply(6)
    Vaishali sharma
    hope it will help u
  • Ruby negi

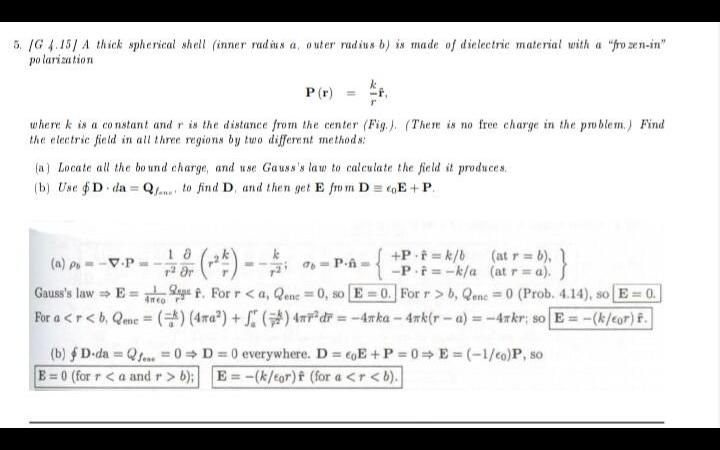

    see this..
    • cropped2040275232.jpg
    Likes(1) Reply(6)
    Ruby negi
    for doubt
  • Vaishali sharma
    for doubt plz ask dear
    Likes(1) Reply(3)
    Amrutha t
    mam, in first case p=0 and D=0 then E should be equels to zero. then how can u say that it is E=-k/r abdolo
  • Vaishali sharma
    hope u will get it
    Likes(1) Reply(0)
  • Vaishali sharma

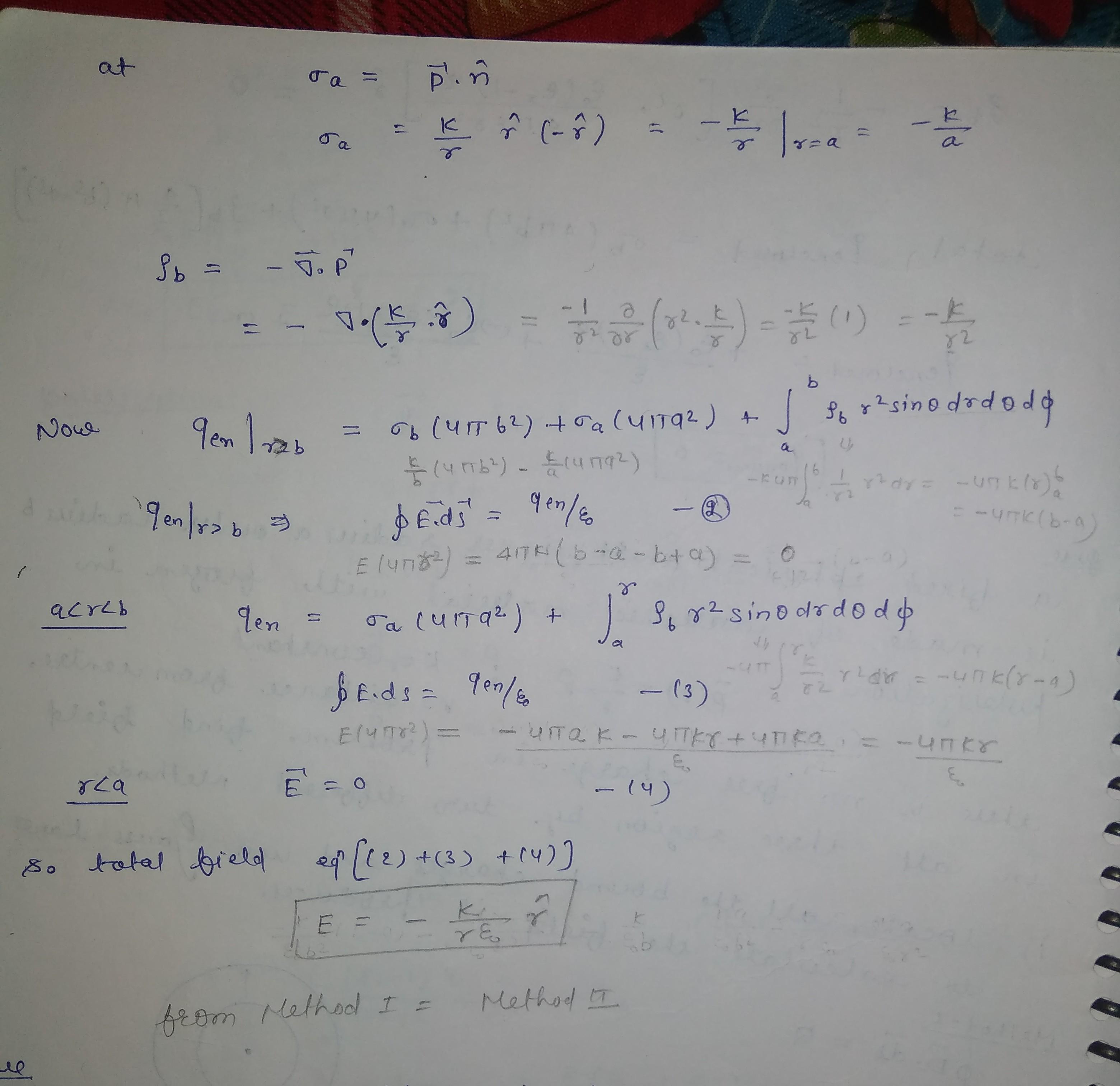

    renaming 2nd method
    • cropped3367340412696795097.jpg
    Likes(1) Reply(0)
  • Ravi prakash yadav
    see the attachment
    • cropped3105411798011674448.jpg
    • cropped1671934953005305589.jpg
    Likes(0) Reply(0)
  • Ghost.

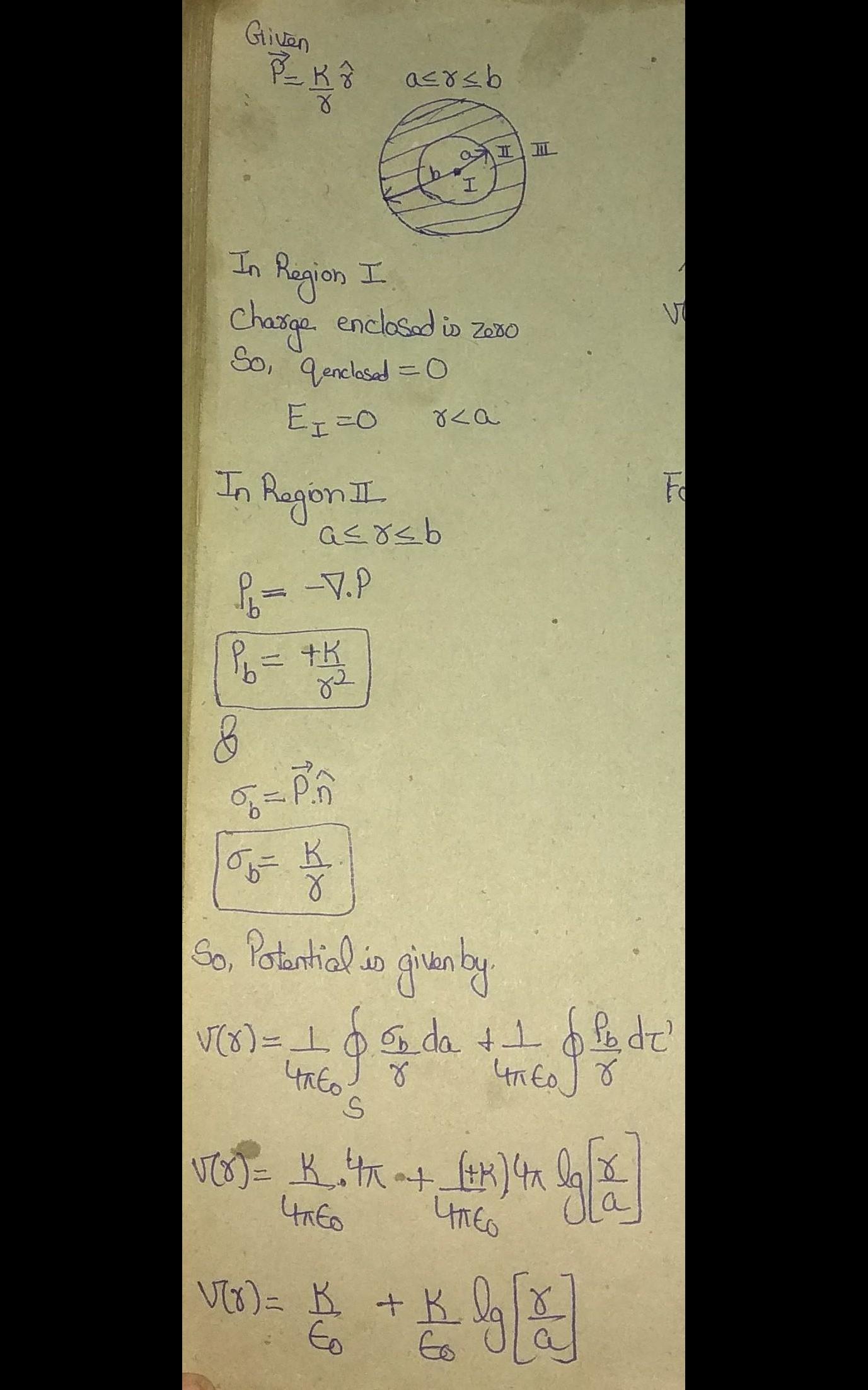

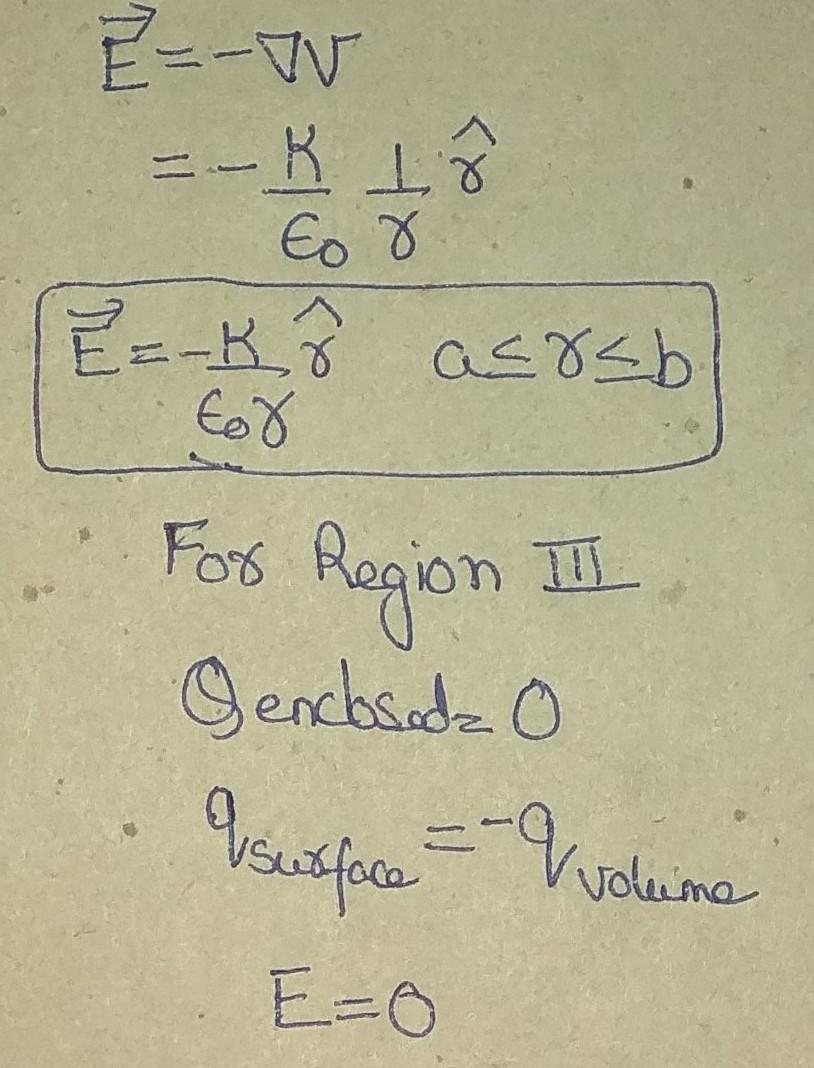

    Find surface and volume chanrge density, rest is just bit of calculation. see attached file .Wishes
    • cropped1253182681.jpg
    • cropped315005649.jpg
    Likes(0) Reply(0)
